Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

47 part groups · 11 illustrations

Illustrations

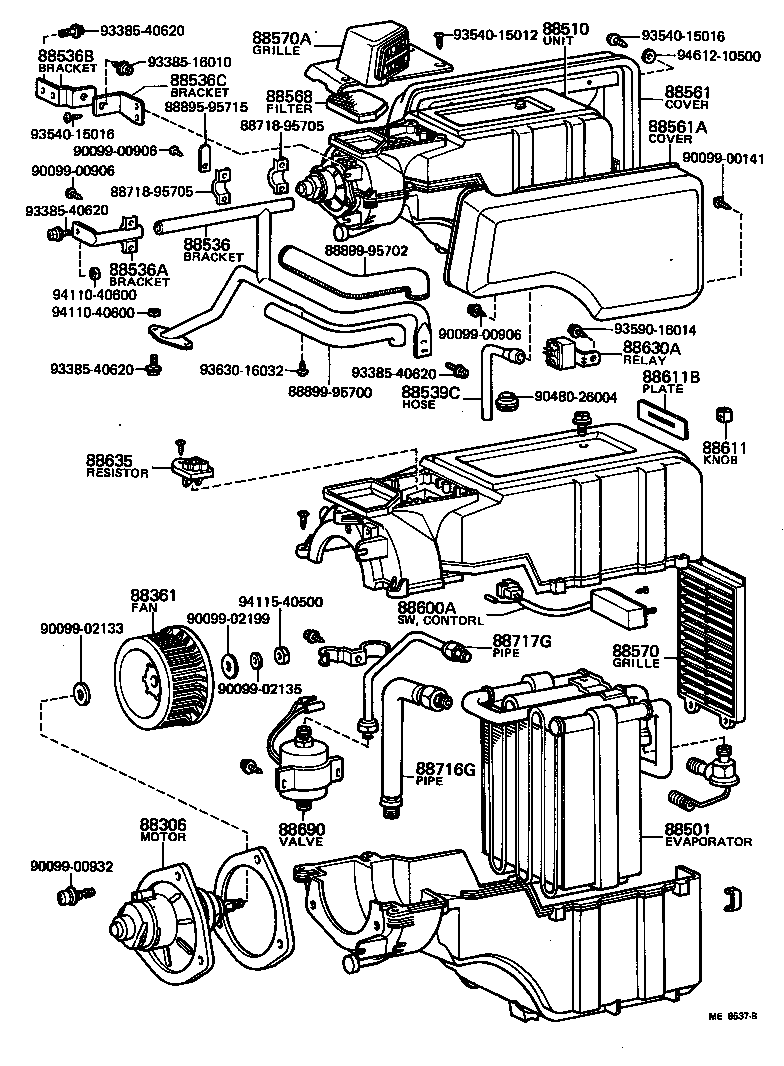

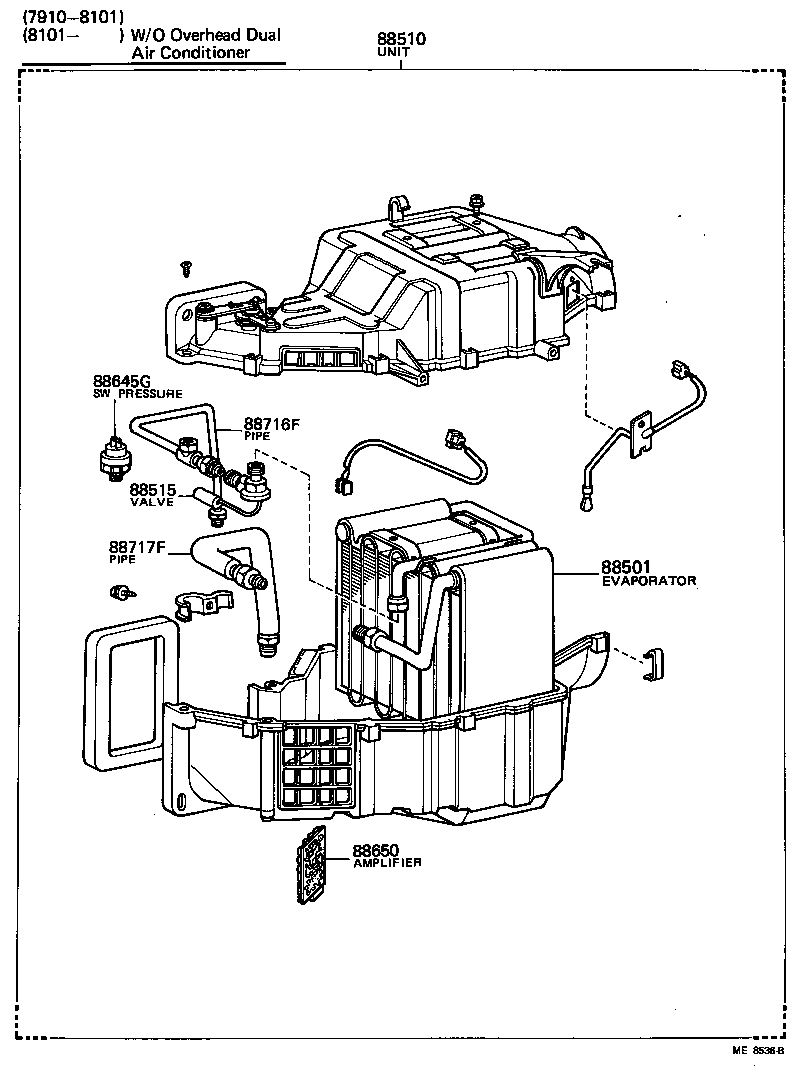

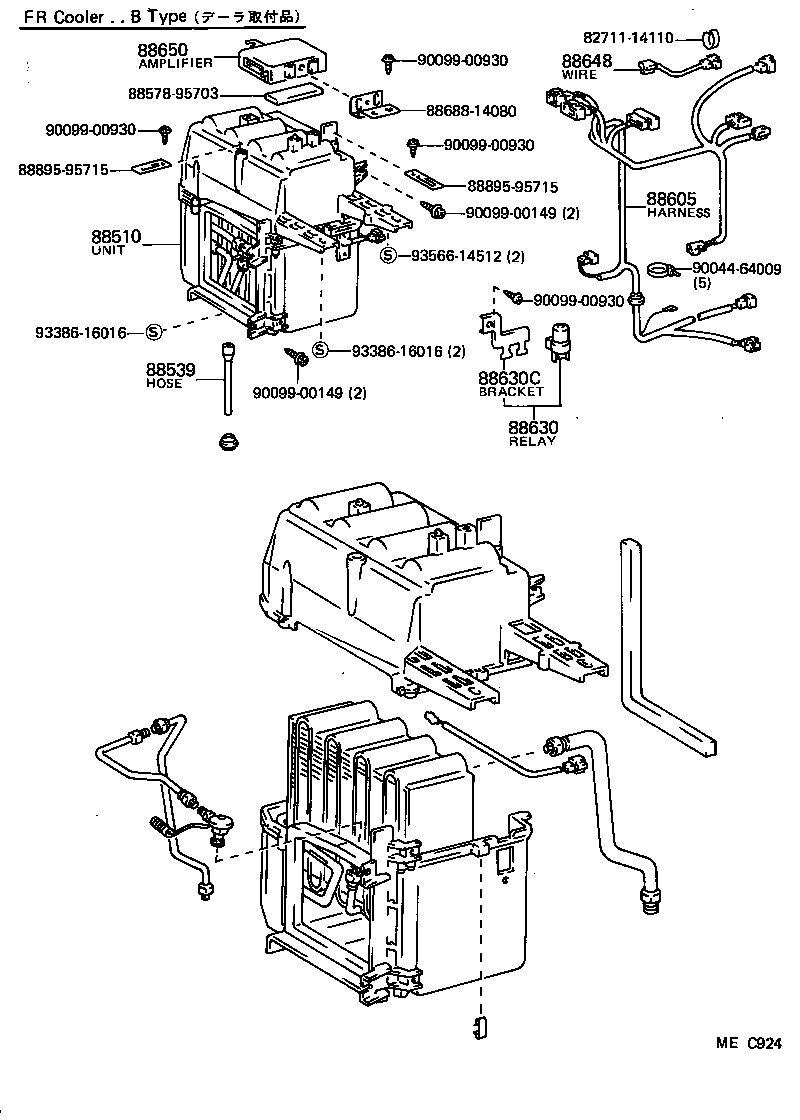

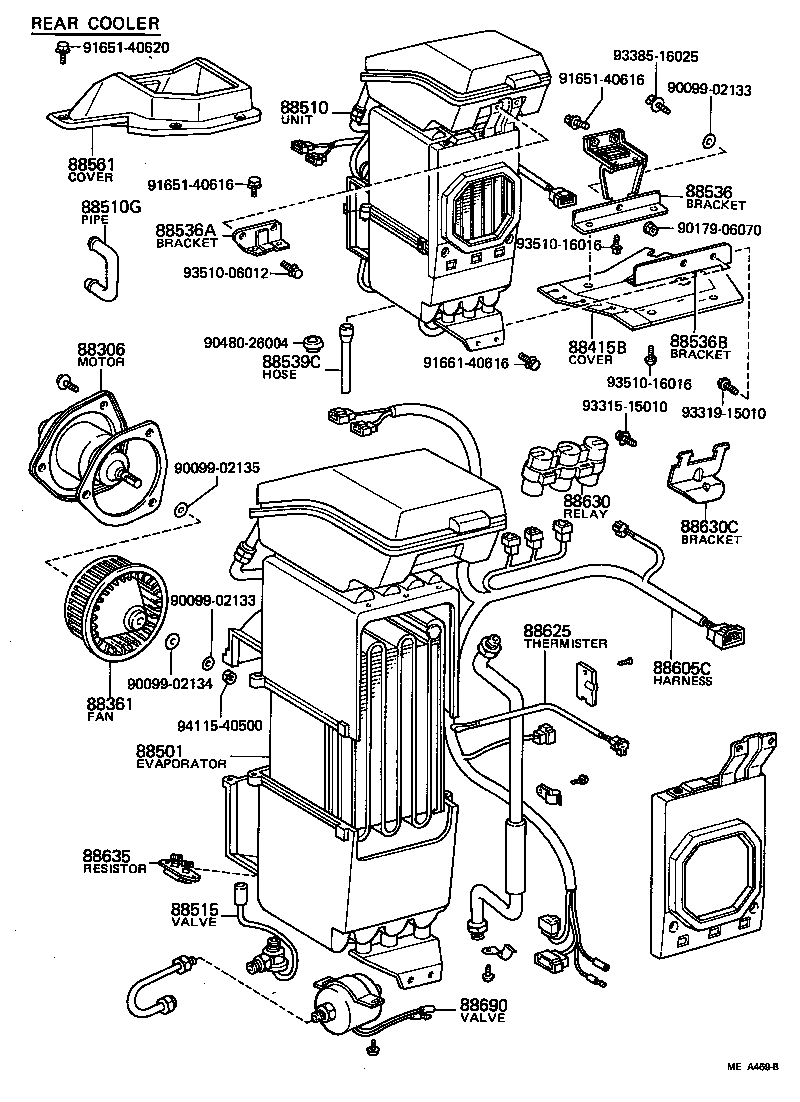

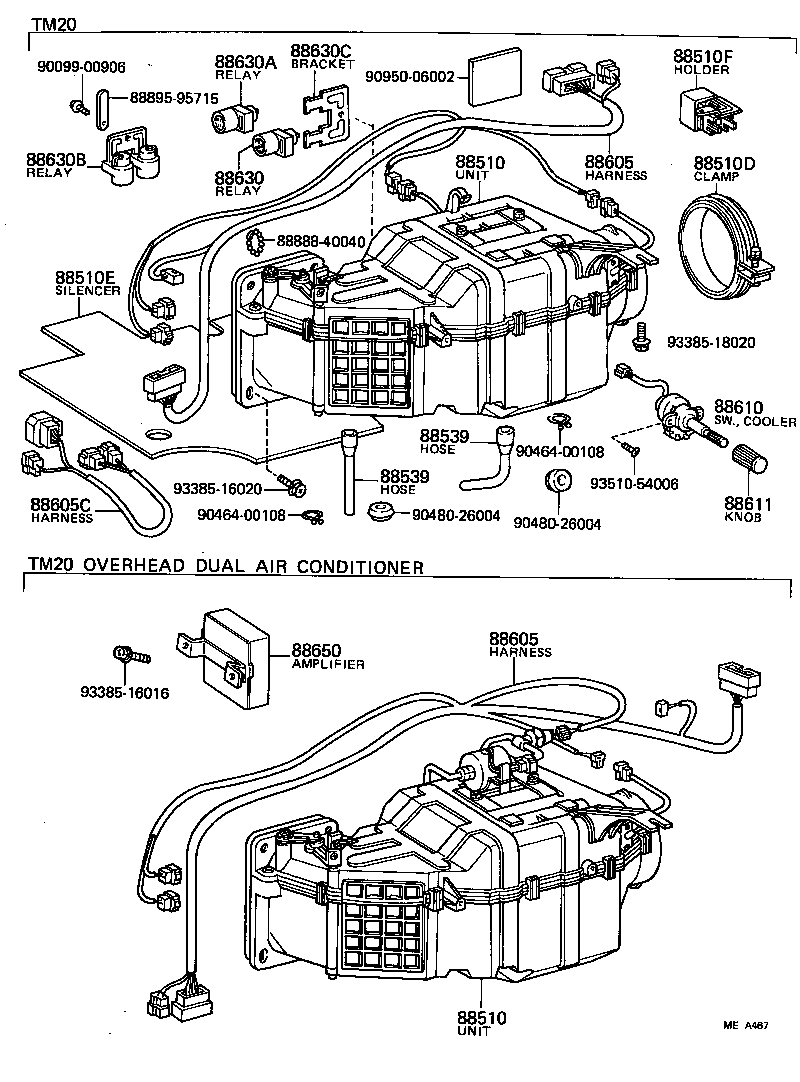

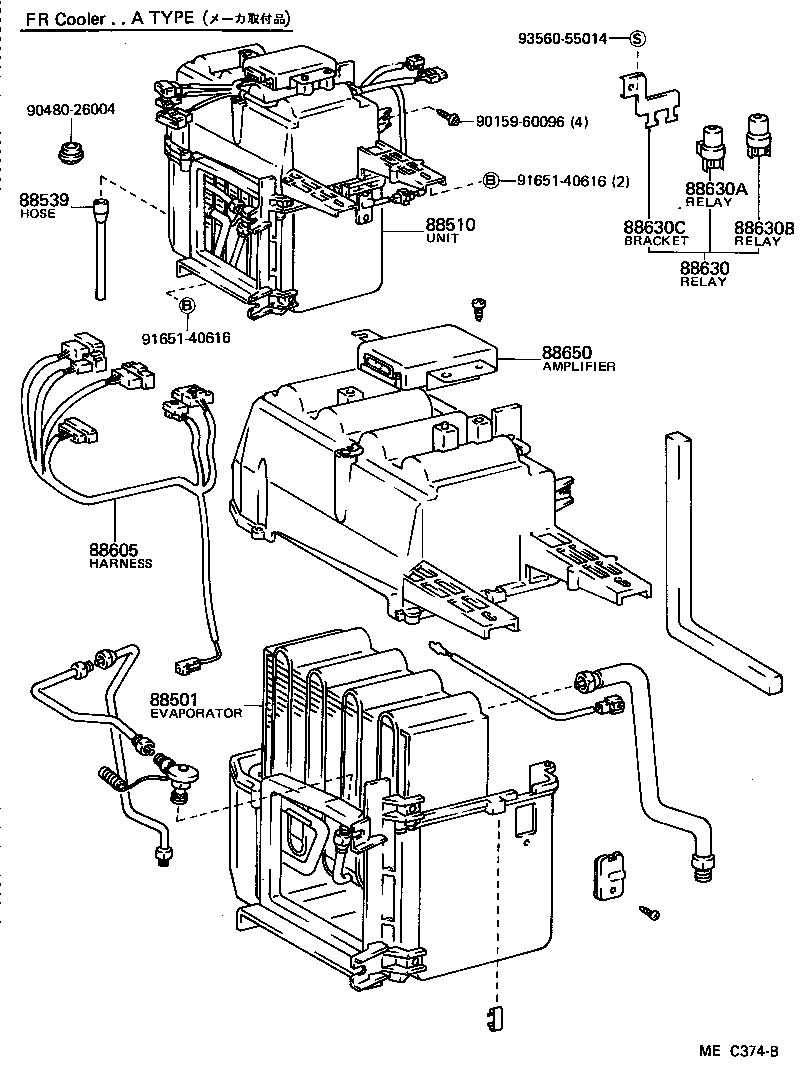

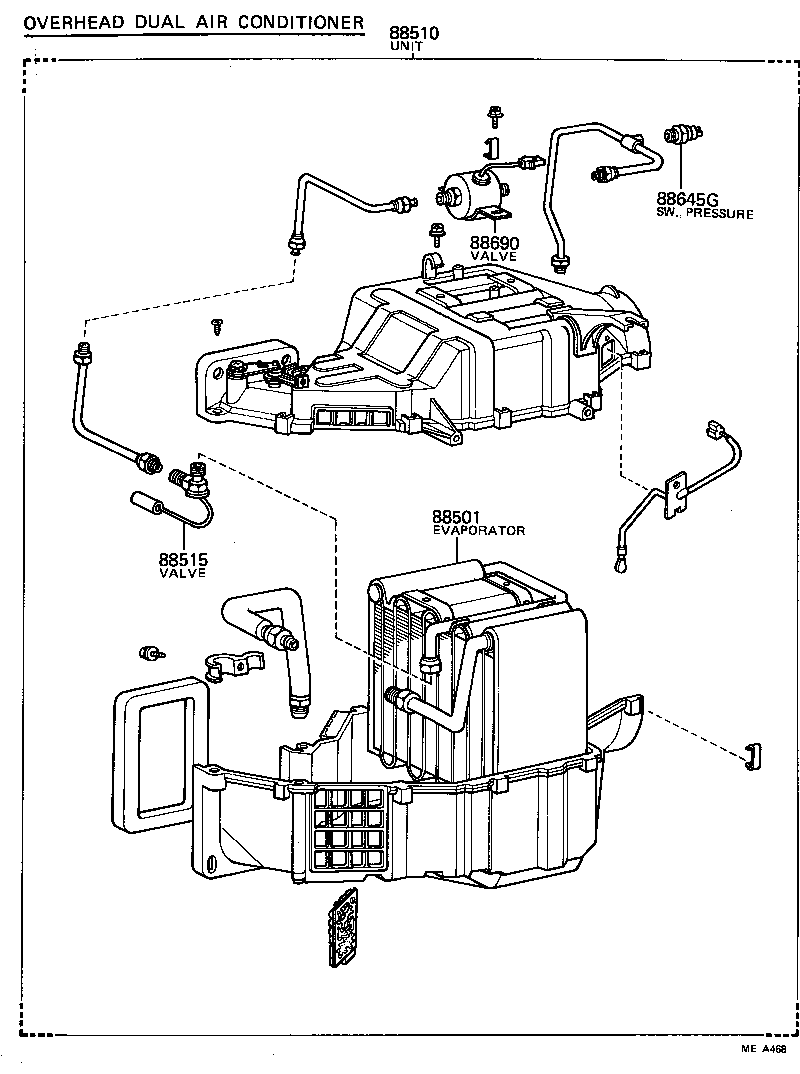

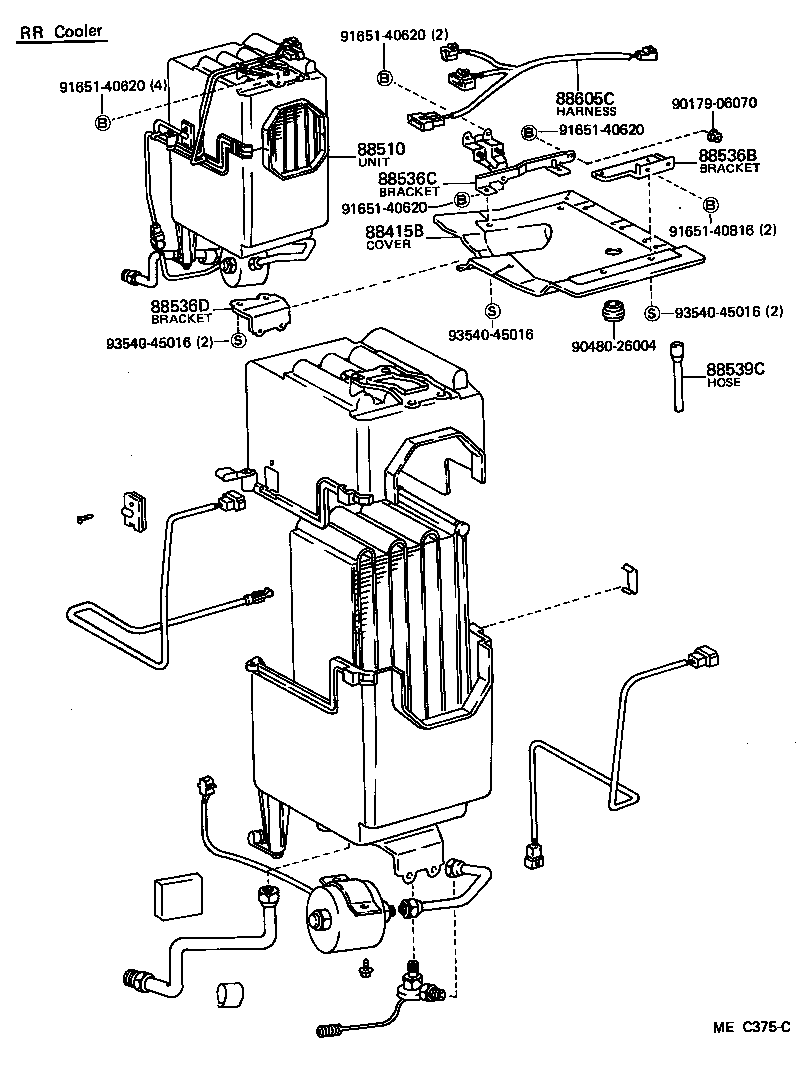

Figure ME8956A ME8956A 1979-10 → 1981-01 Figure ME8956A ME8956A 1981-01 → 1982-01 Figure MEA467 MEA467 1981-01 → 1982-10 Figure ME8536B ME8536B 1979-10 → 1982-10 Figure MEA468 MEA468 1981-01 → 1982-10 Figure ME8537B ME8537B 1979-10 → 1981-01 Figure MEA469B MEA469B 1981-01 → 1982-10 Figure MEC374B MEC374B 1982-10 → 1985-08 Figure MEC924 MEC924 1982-10 → — Figure MEC375C MEC375C 1982-10 → 1985-08 Figure MED279A MED279A 1982-10 → 1985-08

Part groups

PNCDescription
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88415B Cover, Dust
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88510D Clamp, Cooler Unit
88510E Silencer, Cooler Unit
88510F Holder, Fuse
88510G Pipe, Air
88515 Valve, Cooler Expansion
88520 Box Assy, Cooling
88521 Case, Cooler Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88536C Bracket, Cooling Unit, NO.4
88536D Cover, Cooler Unit Bracket
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88549B Plate, Caution
88561 Cover, Cooler Unit
88561A Cover, Cooler Unit, A
88568 Filter, Cooler Unit Cover
88570 Grille Sub-assy, Cooler Air Outlet
88570A Grille Assy, Air Outlet
88576E Duct, Cooler Air, NO.1
88576F Duct, Cooler Air, NO.2
88600A Switch Assy, Air Conditioner Control
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88610 Switch Assy, Cooler Control
88611 Knob, Cooler Control Switch
88611B Plate, Cooler Control Switch
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630C Bracket, Cooler Relay
88635 Resistor, Cooler Unit Blower
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88690 Valve Assy, Cooler Magnet
88716F Pipe, Cooler Refrigerant Liquid, F
88716G Pipe, Cooler Refrigerant Liquid, G
88717F Pipe, Cooler Refrigerant Suction, F
88717G Pipe, Cooler Refrigerant Suction, G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
