Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

54 part groups · 12 illustrations

Illustrations

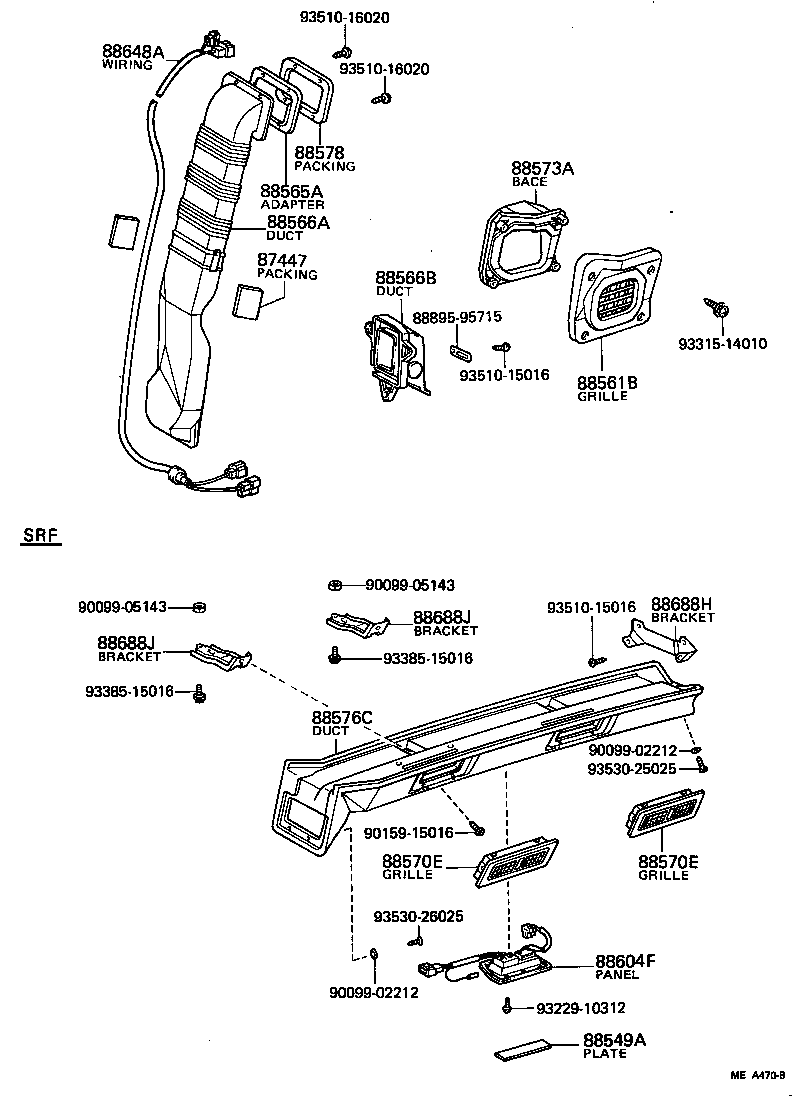

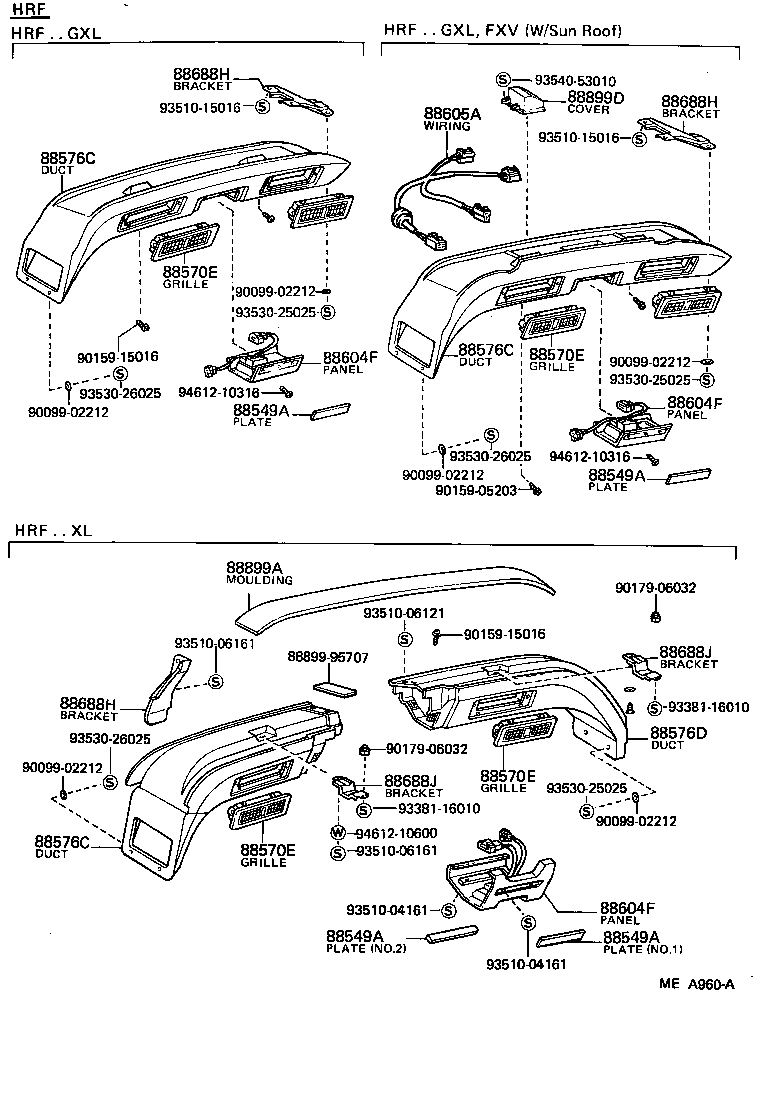

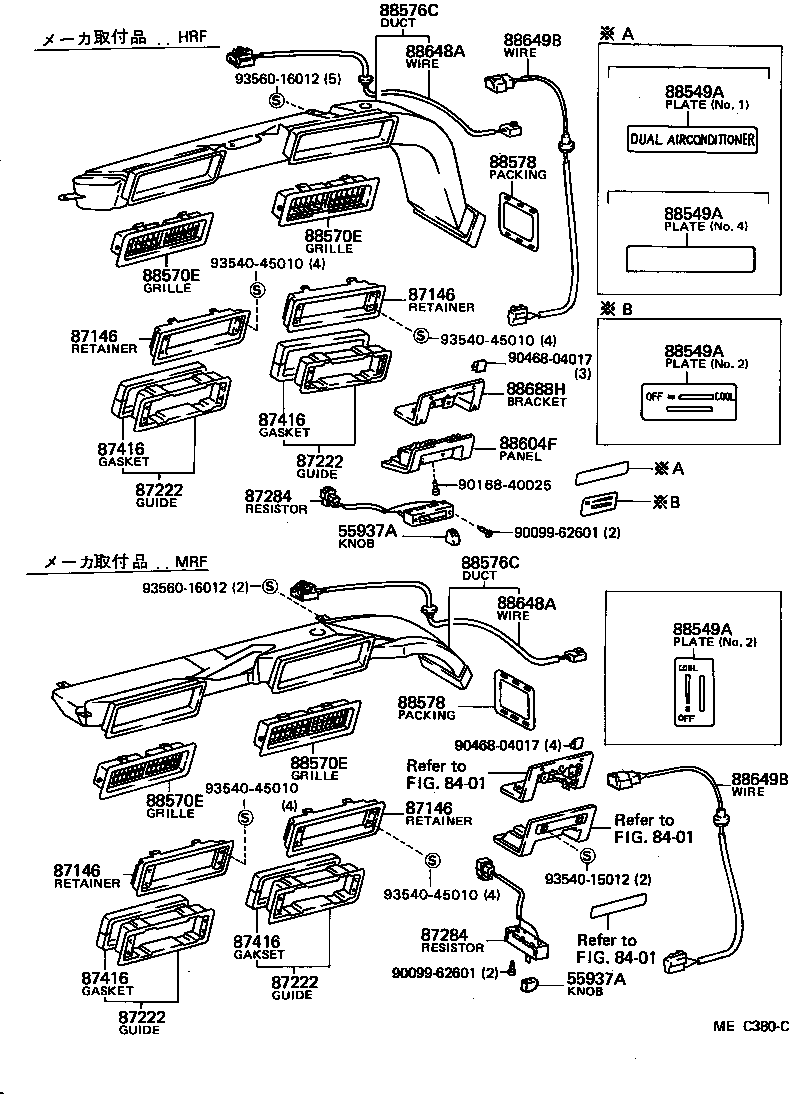

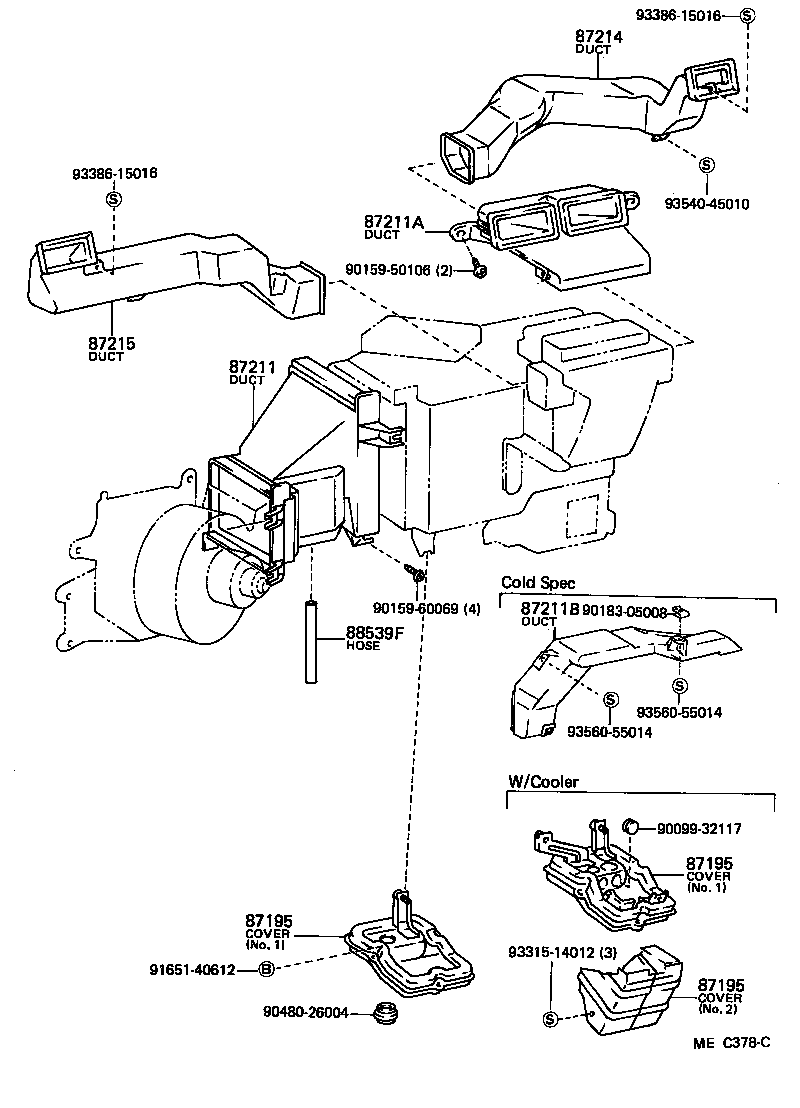

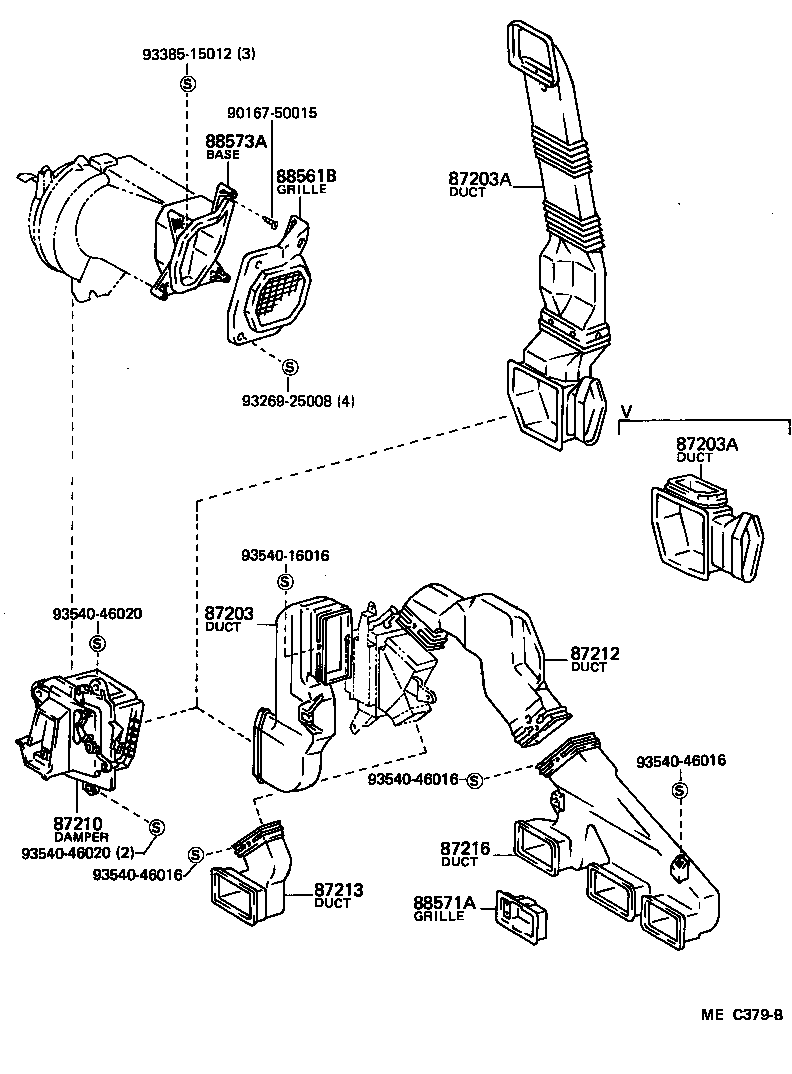

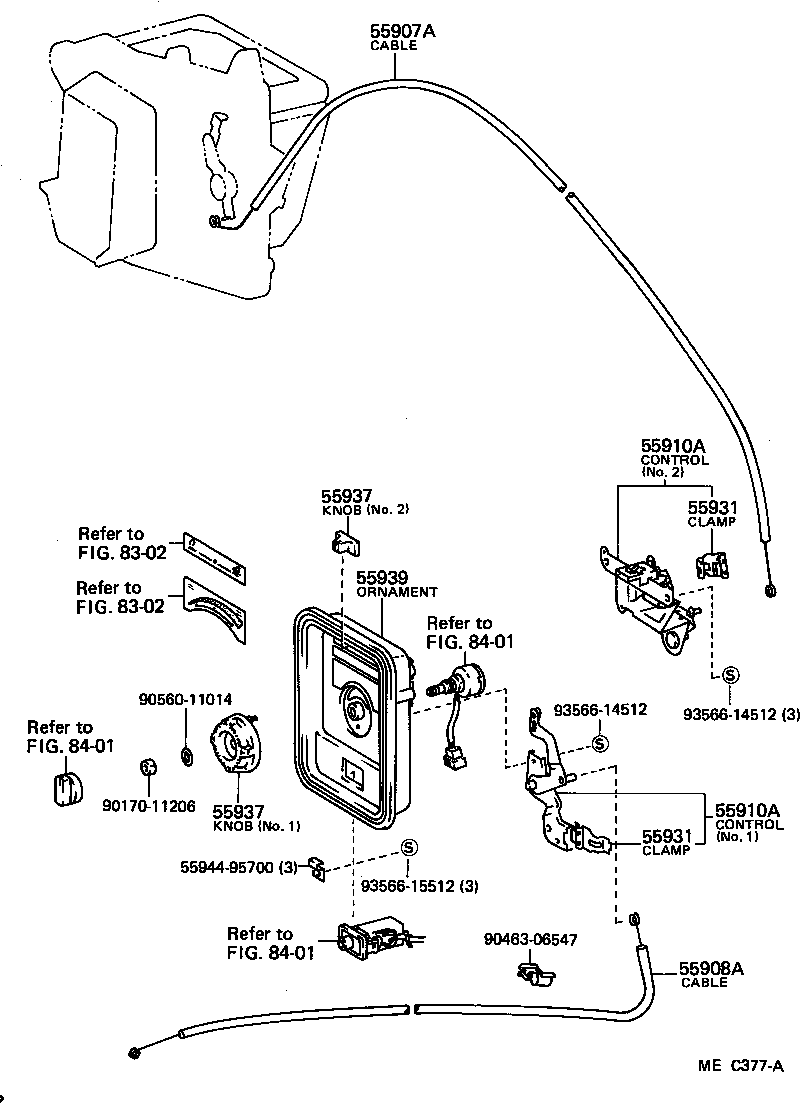

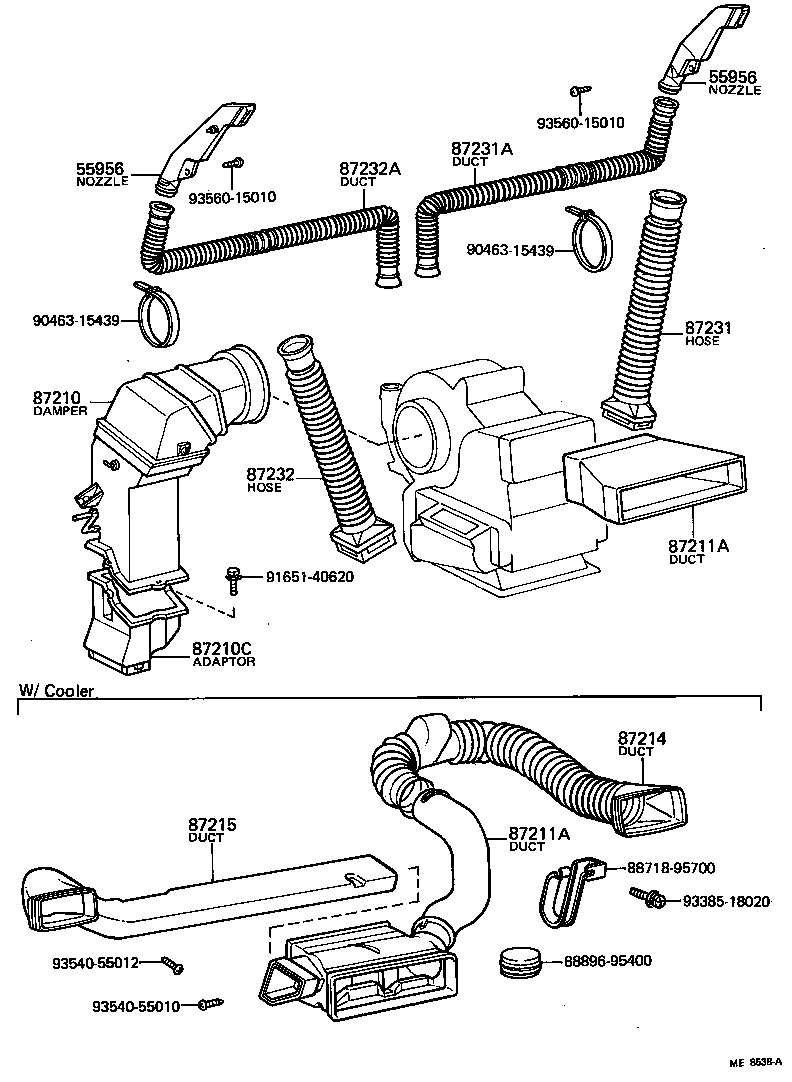

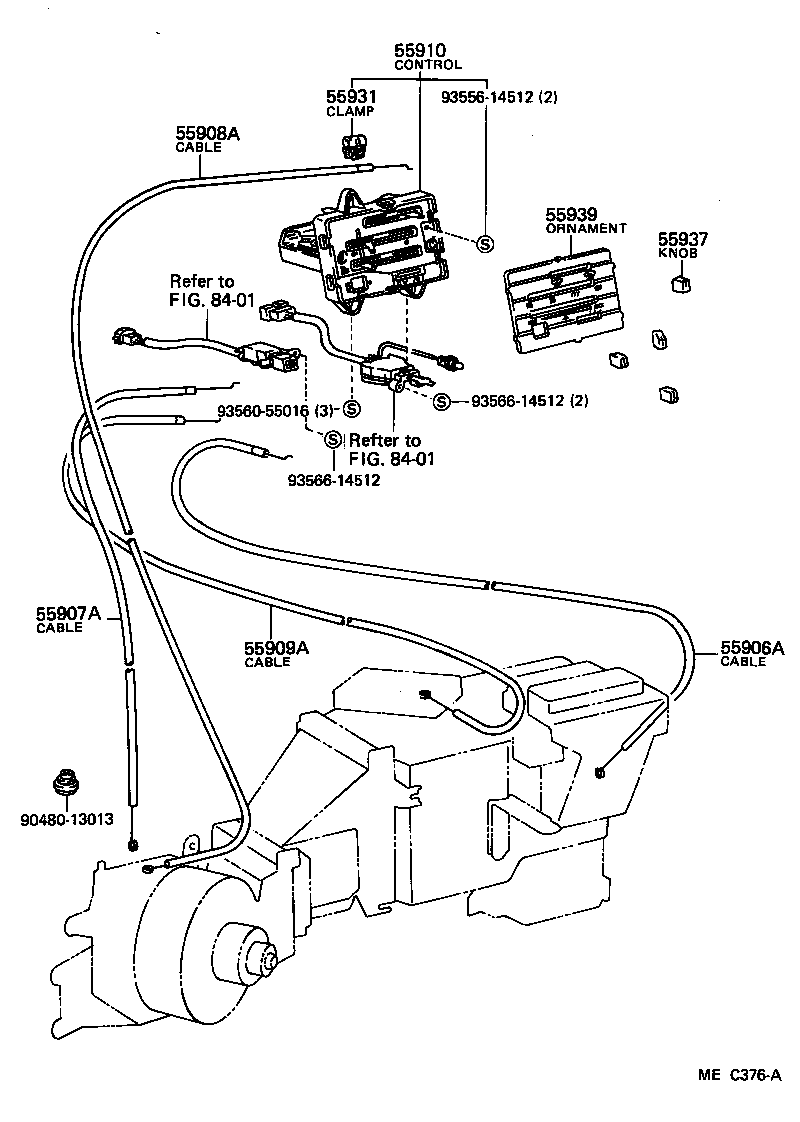

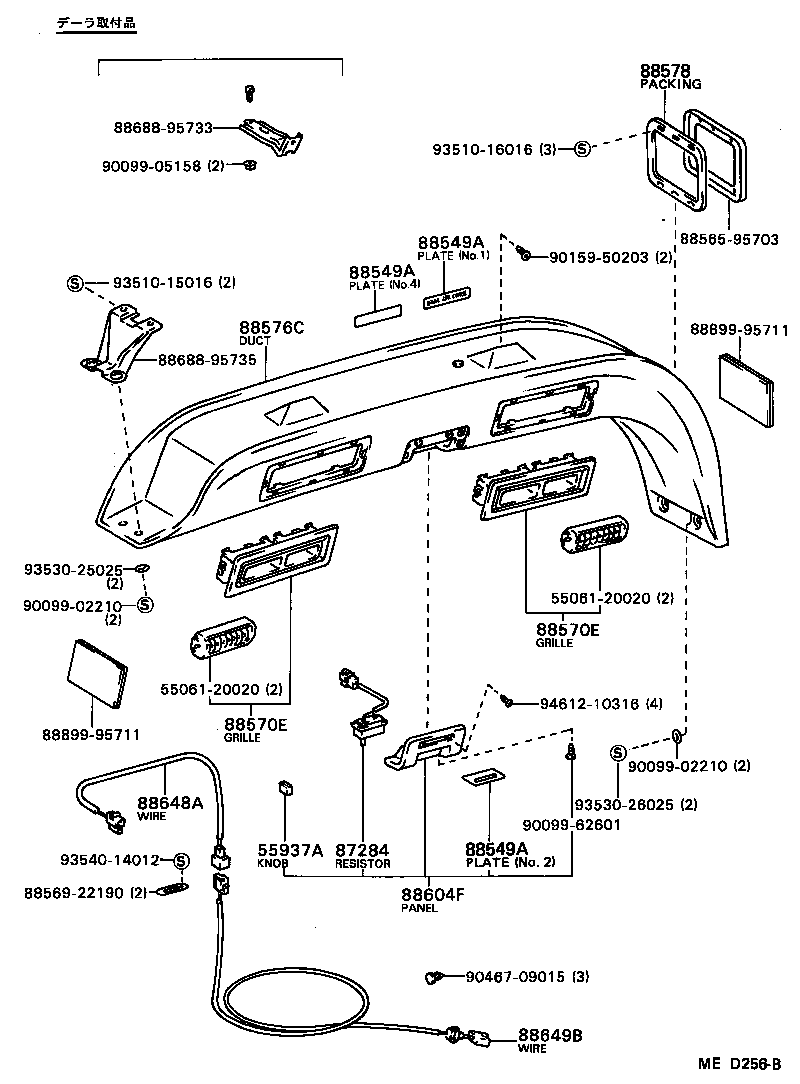

Figure ME8381C ME8381C 1979-10 → 1982-10 Figure MEC376A MEC376A 1982-10 → — Figure MEA277C MEA277C 1981-01 → 1982-10 Figure MEA277C MEA277C 1982-10 → 1985-08 Figure MEC377A MEC377A 1982-10 → 1985-08 Figure ME8538A ME8538A 1979-10 → 1982-10 Figure MEC378C MEC378C 1982-10 → — Figure MEA470B MEA470B 1981-01 → 1982-10 Figure MEA960A MEA960A 1981-01 → 1982-10 Figure MEC379B MEC379B 1982-10 → 1985-08 Figure MEC380C MEC380C 1982-10 → 1985-08 Figure MED256B MED256B 1982-10 → 1985-08

Part groups

PNCDescription
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910A Control Assy, Rear Heater
55931 Clamp, Heater Control Wire
55937 Knob, Heater Control Lever
55937A Knob, Cooler Control Lever
55939 Ornament, Heater Control
55941A Guide, Heater Control
55956 Nozzle, Side Defroster
87146 Retainer, Grille
87195 Cover, Hole
87203 Duct, Heater Air, Rear NO.1
87203A Duct Assy, Heater Air, Rear
87210 Damper Assy, Air
87210C Adapter, Heater Air Damper
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87216 Duct, Heater Interior Air (TO REAR)
87222 Guide, Air Duct, Rear
87231 Hose, Heater Defroster, RH
87231A Duct, Heater Defroster, Side NO.1 RH
87232 Hose, Heater Defroster, LH
87232A Duct, Heater Defroster, Side NO.1 LH
87284 Resistor Sub-assy, Variable
87416 Gasket, Air Duct
87447 Packing, Air Duct
88539F Hose, Drain
88549A Plate, Caution
88561B Grille, Cooler Air Inlet
88565A Adapter, Air Duct, NO.1
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88570E Grille Assy, Air Outlet
88571A Grille, Air Outlet
88573A Base, Grille
88576C Duct, Cooler Air, NO.1
88576D Duct, Cooler Air, NO.2
88578 Paking, Cooler Air Duct
88604F Panel Sub-assy, Cooler Control
88605A Harness Sub-assy, Cooler Wiring
88648A Wiring, Cooler
88649B Wiring, Cooler
88688H Bracket, Cooler Air Duct, NO.1
88688J Bracket, Cooler Air Duct, NO.2
88899A Moulding, Air Duct
88899D Cover, Cooler Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
