Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

23 part groups · 16 illustrations

Illustrations

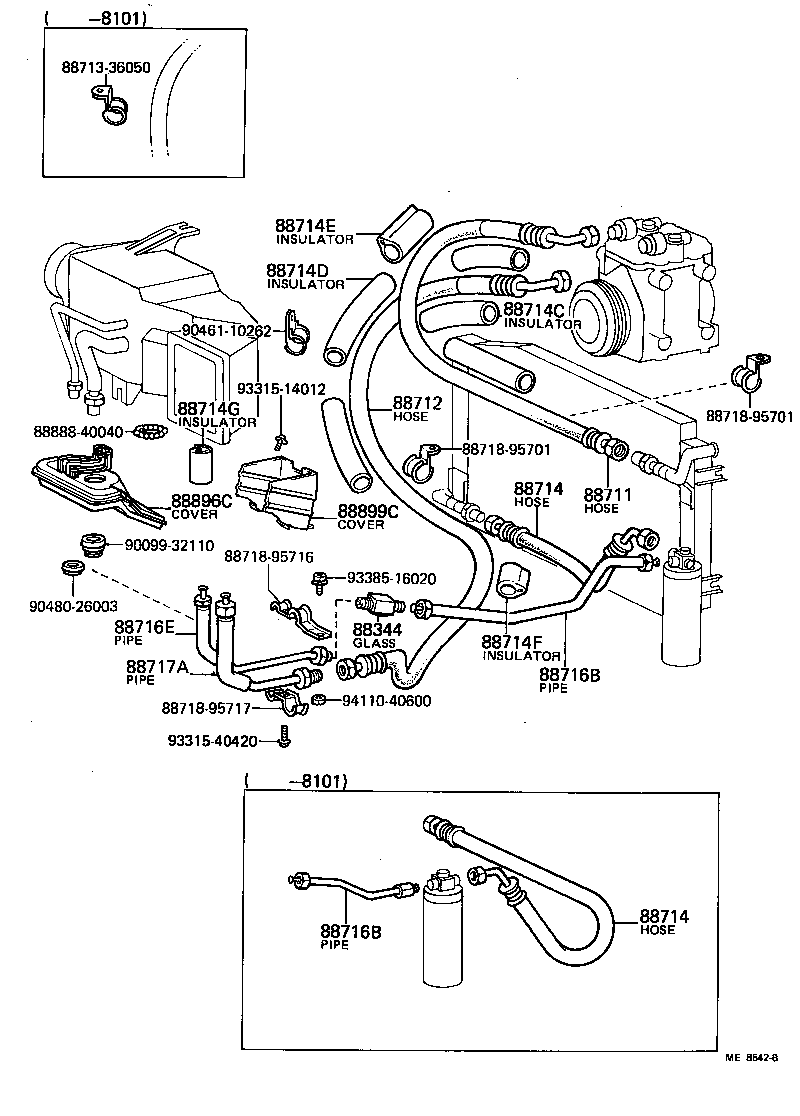

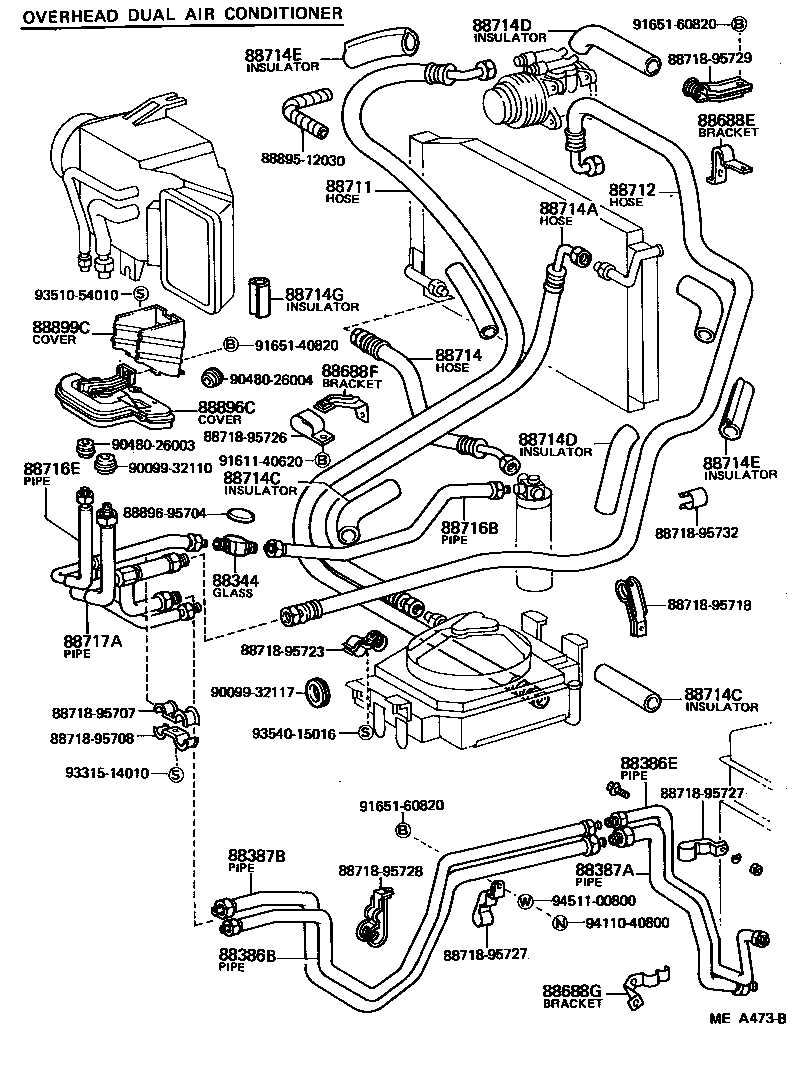

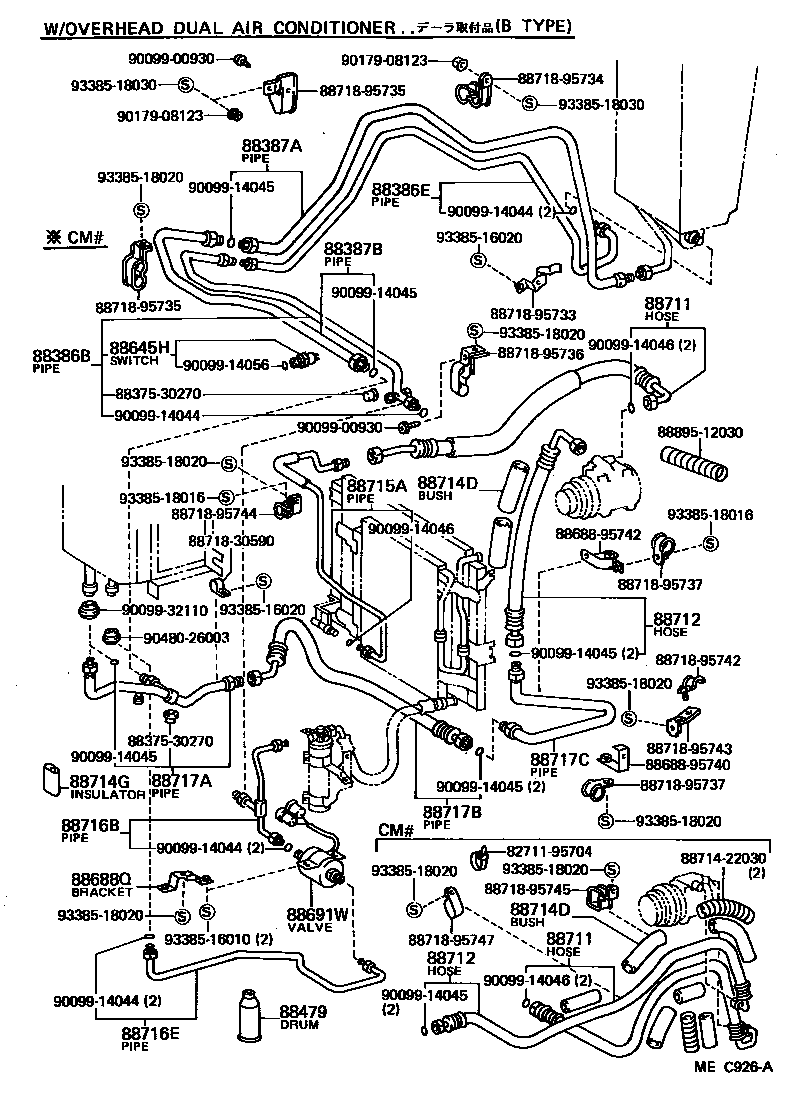

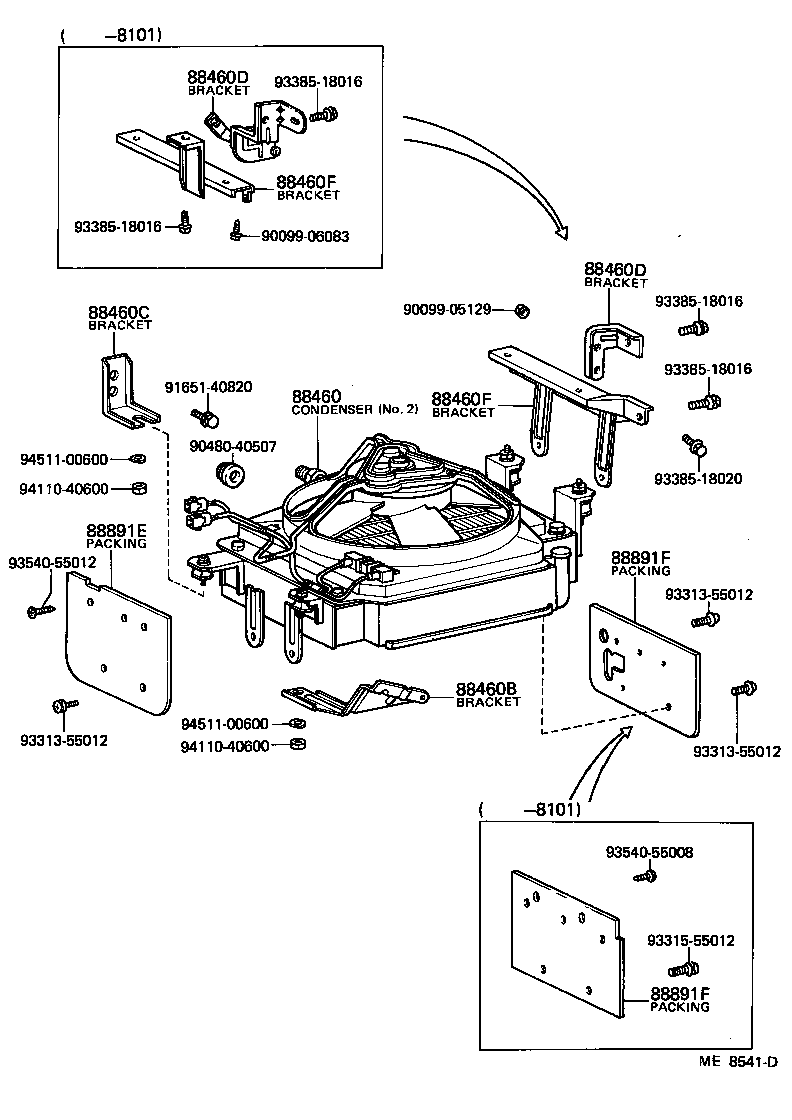

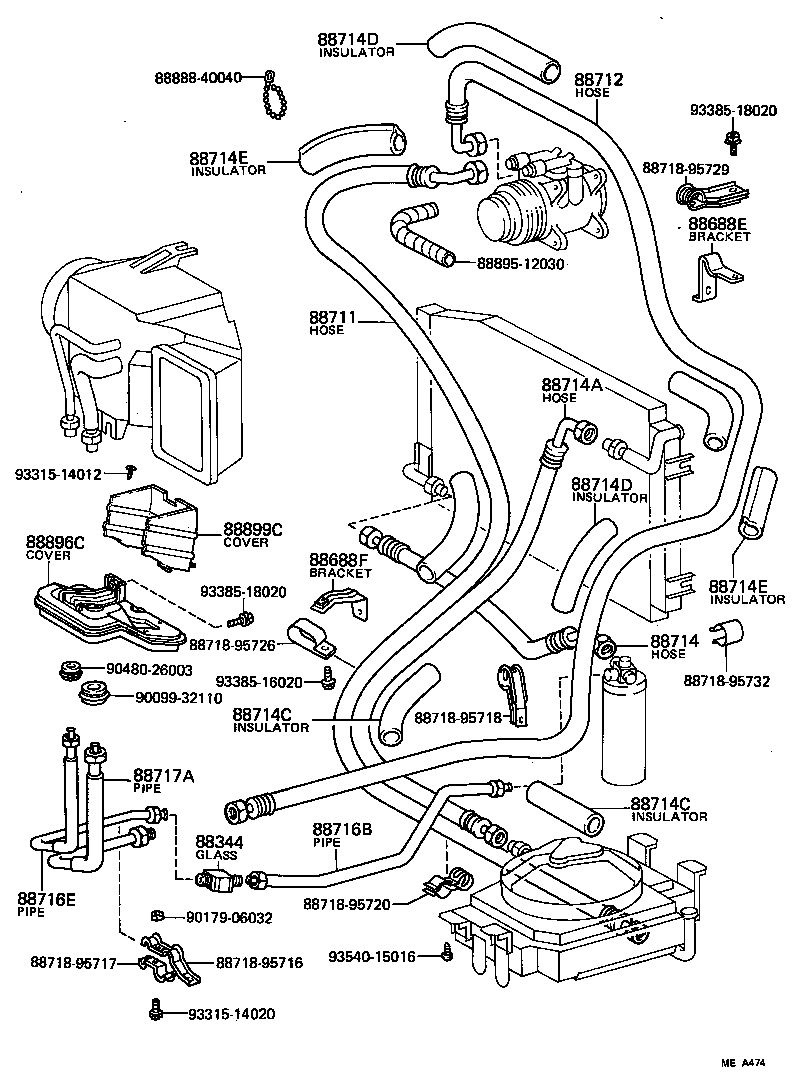

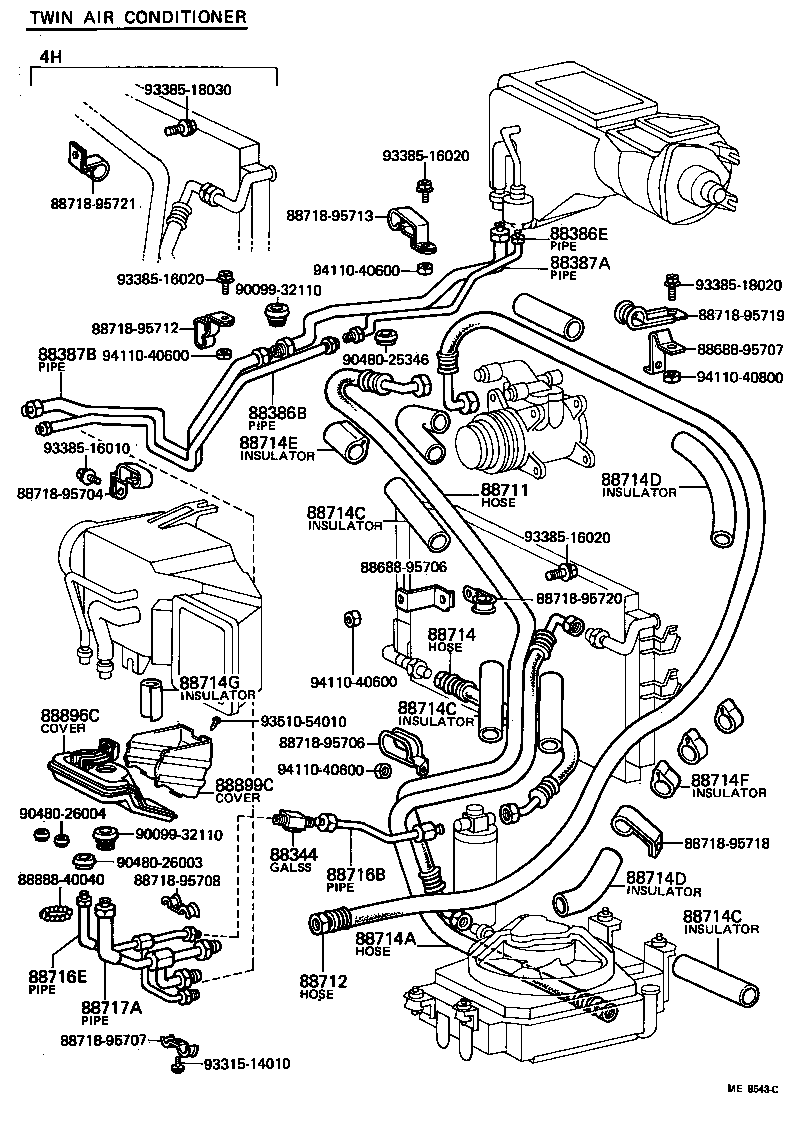

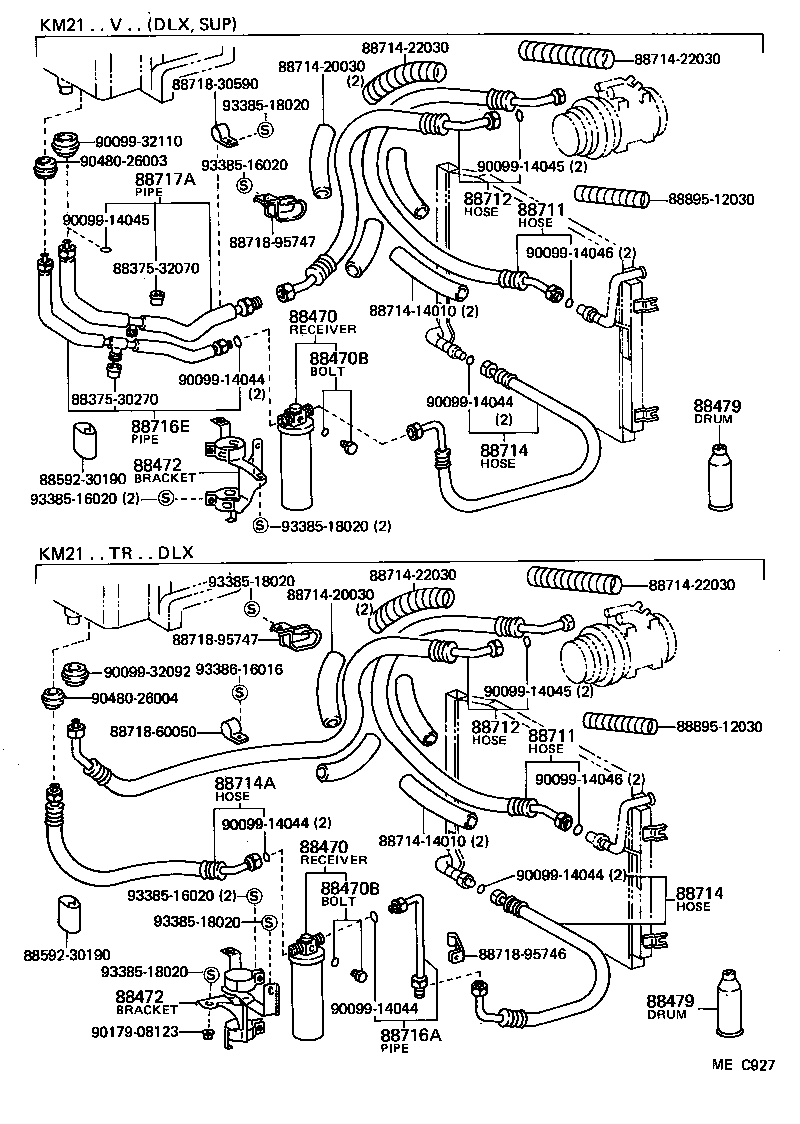

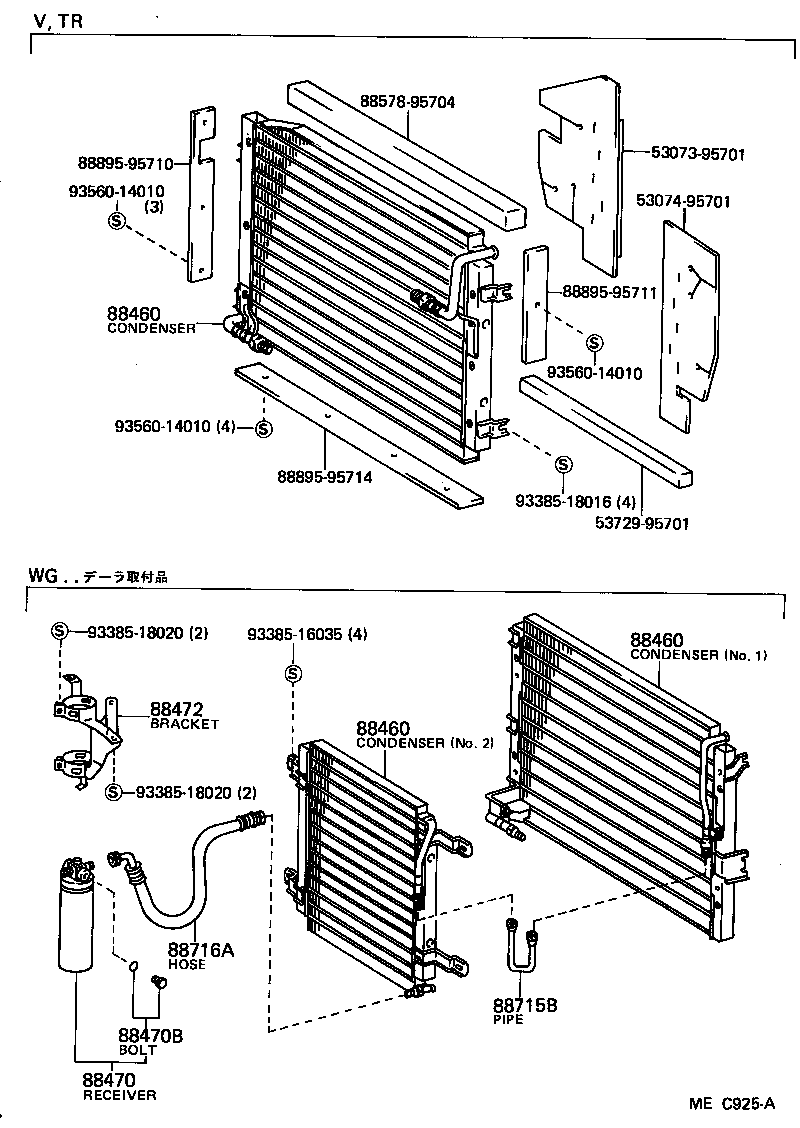

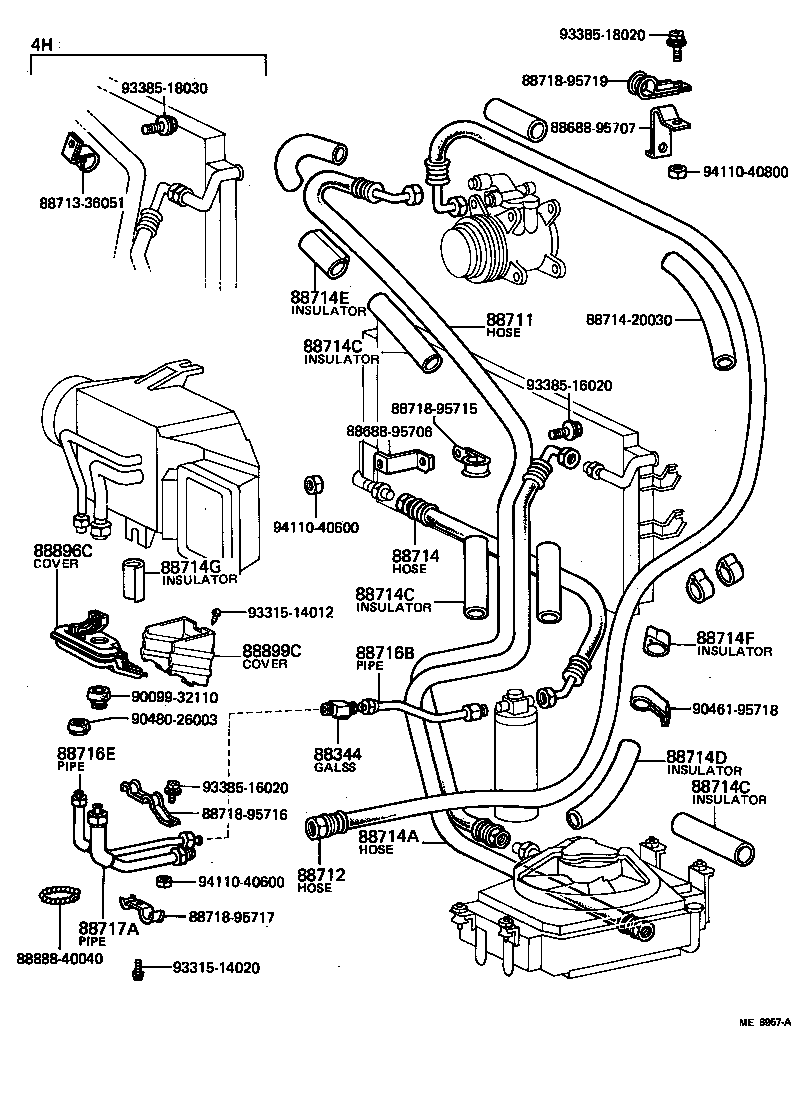

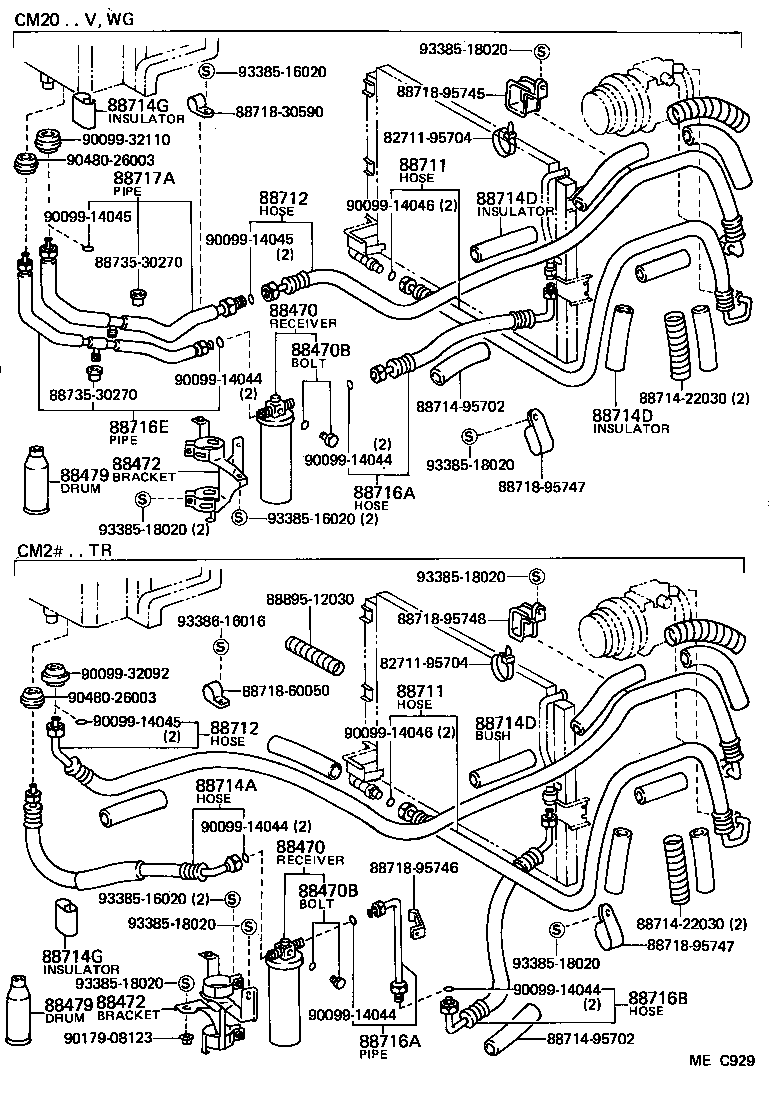

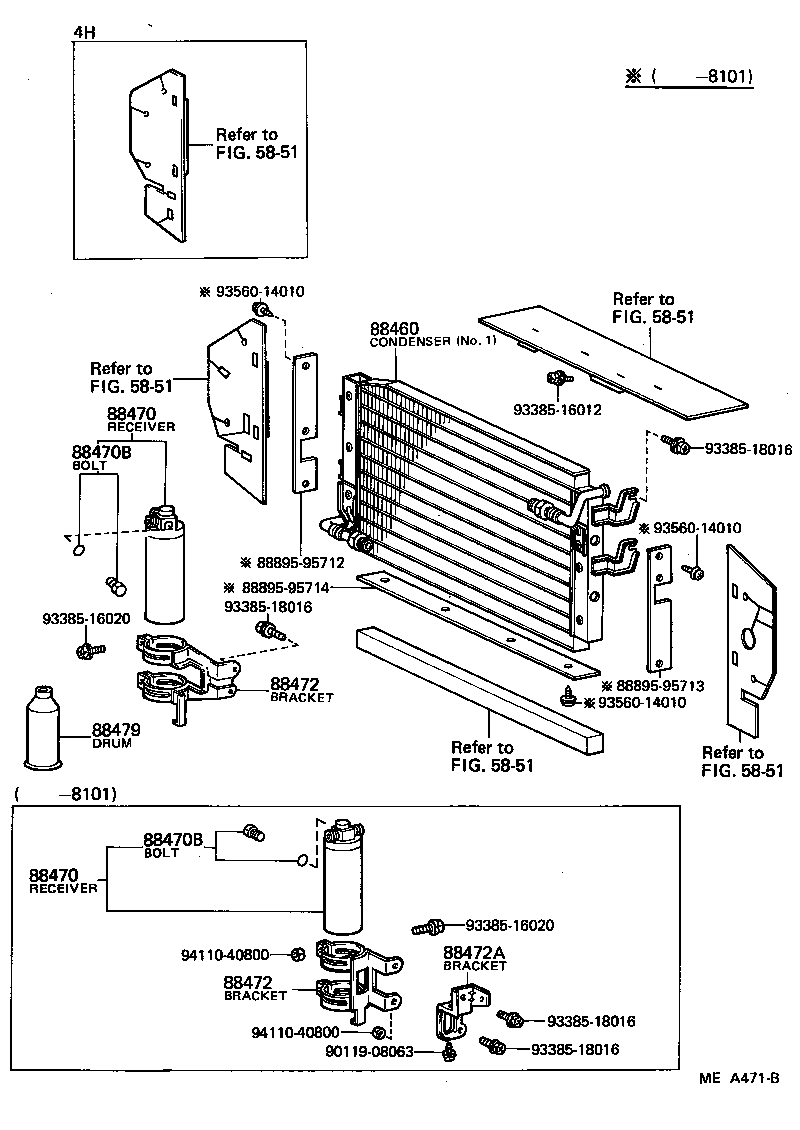

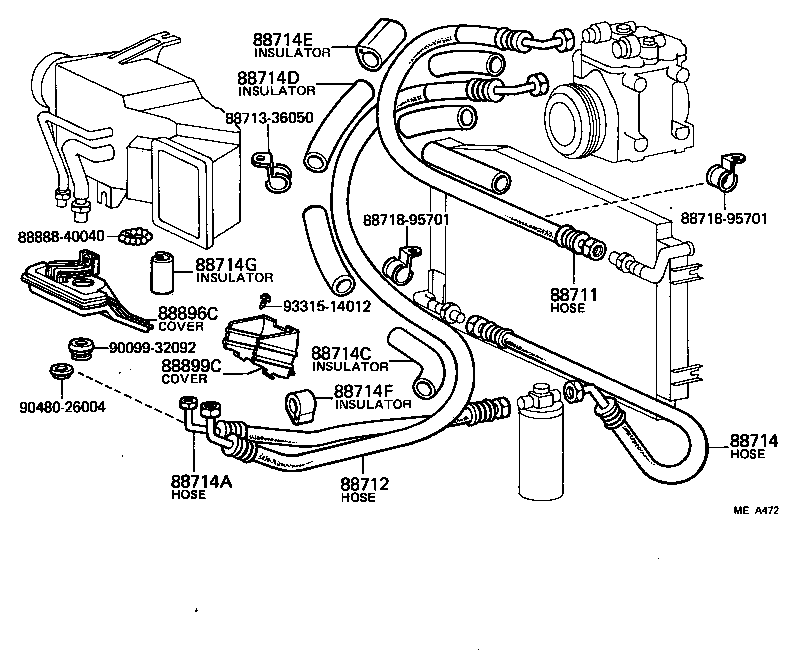

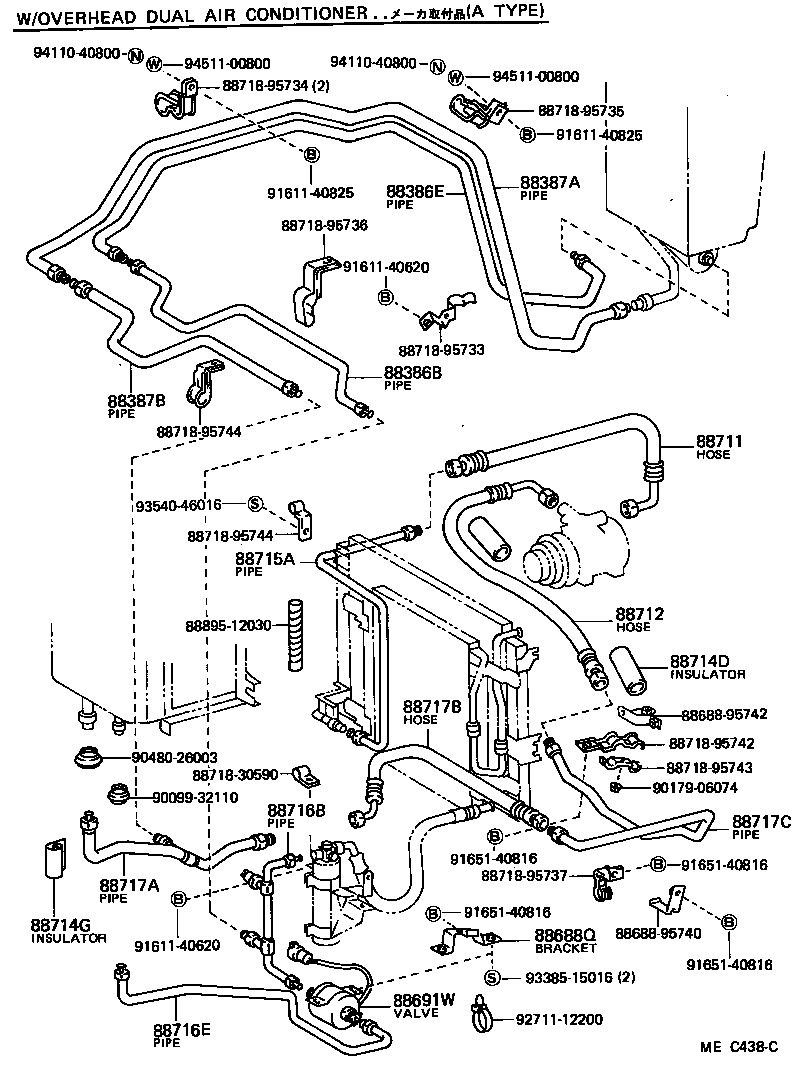

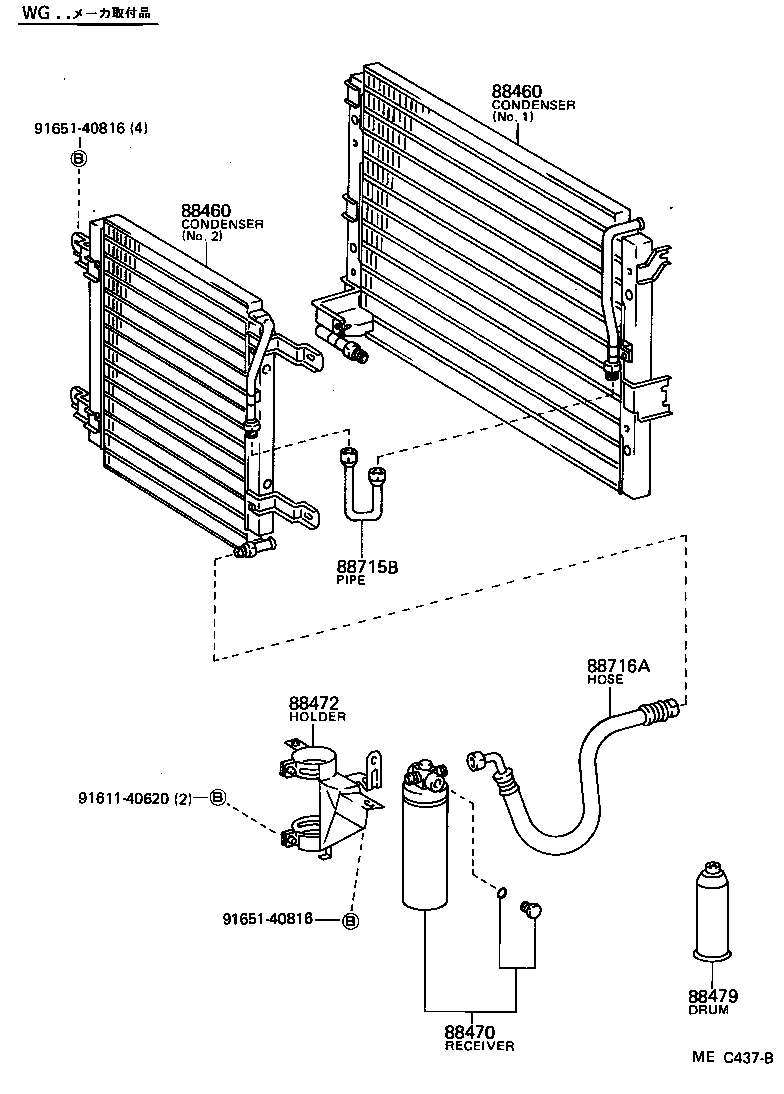

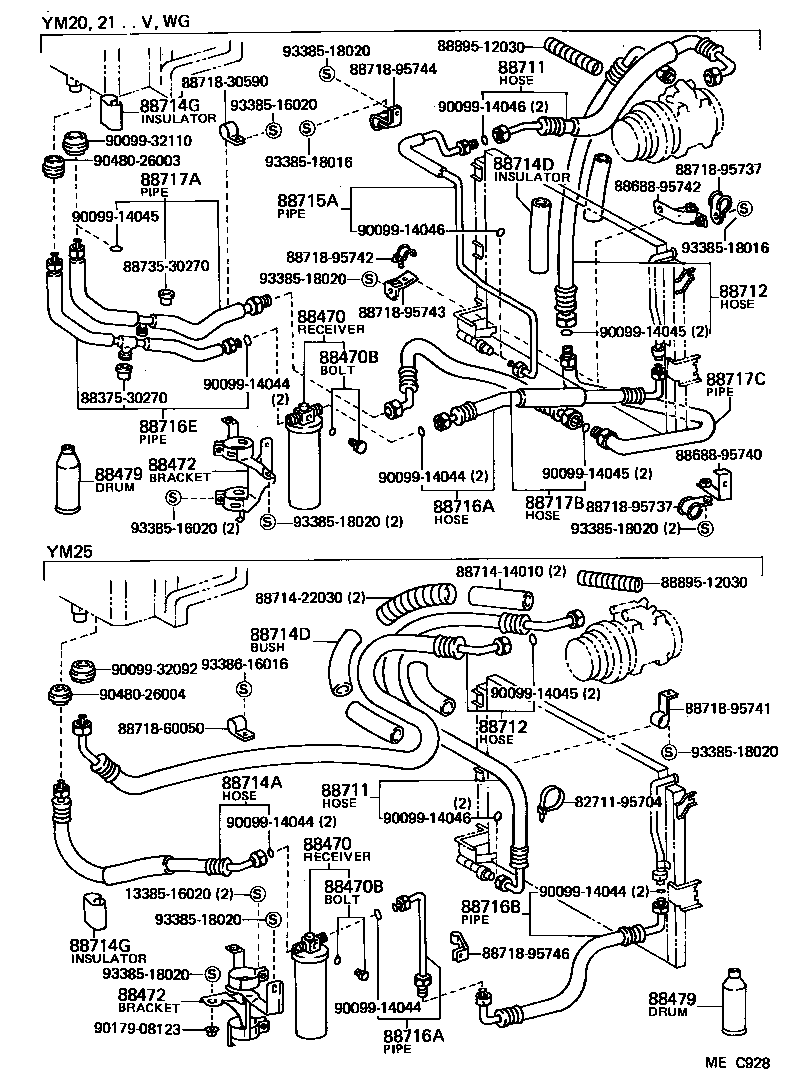

Figure ME8540C ME8540C 1979-10 → 1982-10 Figure MEA471B MEA471B 1979-10 → 1982-10 Figure ME8541D ME8541D 1979-10 → 1982-10 Figure ME8542B ME8542B 1979-10 → 1982-10 Figure MEA472 MEA472 1979-10 → 1982-10 Figure ME8543C ME8543C 1979-10 → 1981-01 Figure MEA473B MEA473B 1981-01 → 1982-10 Figure ME8957A ME8957A 1980-01 → 1981-01 Figure MEA474 MEA474 1981-01 → 1982-10 Figure MEC925A MEC925A 1982-10 → — Figure MEC437B MEC437B 1982-10 → 1985-08 Figure MEC927 MEC927 1982-10 → — Figure MEC928 MEC928 1982-10 → — Figure MEC929 MEC929 1982-10 → — Figure MEC438C MEC438C 1982-10 → 1985-08 Figure MEC926A MEC926A 1982-10 → 1985-08

Part groups

PNCDescription
88386B Pipe, Rear Cooler Refrigerant Liquid, B
88386E Pipe, Rear Cooler Refrigerant Liquid, E (TO COOLER UNIT)
88387A Pipe, RR Cooler Refrigerant Suction, A (FROM COOLER UNIT)
88387B Pipe, Rear Cooler Refrigerant Suction, B
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88472A Bracket, Receiver Tank, NO.2
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88688G Bracket, Cooler Refrigerant Pipe
88688Q Bracket (FOR MAGNET VALVE)
88691W Valve, Magnet
88714A Hose, Cooler Refrigerant Liquid, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88891E Packing E (FOR COOLER)
88891F Packing F (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
