Toyota Liteace Van,Wagon

1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 9 illustrations

Illustrations

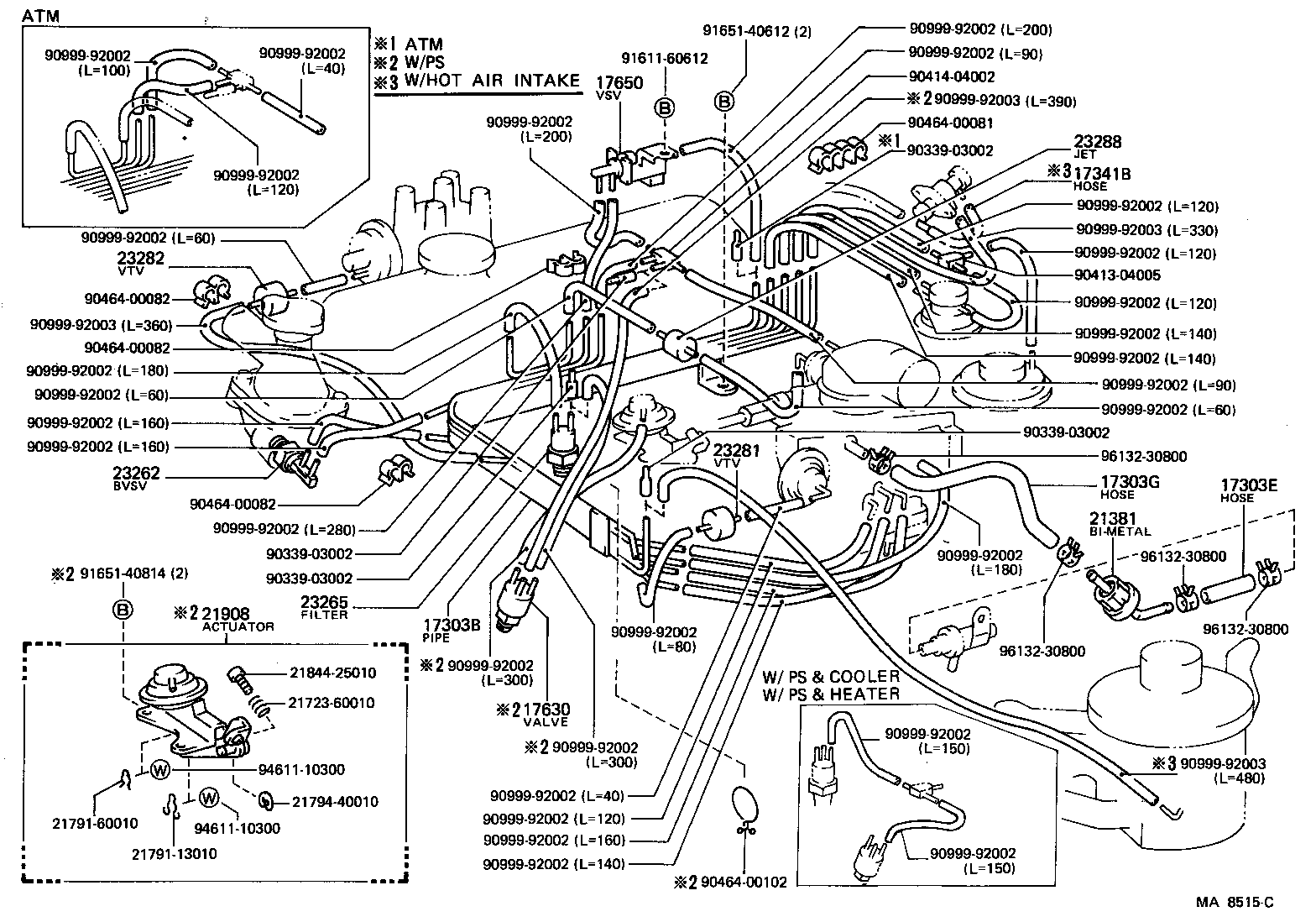

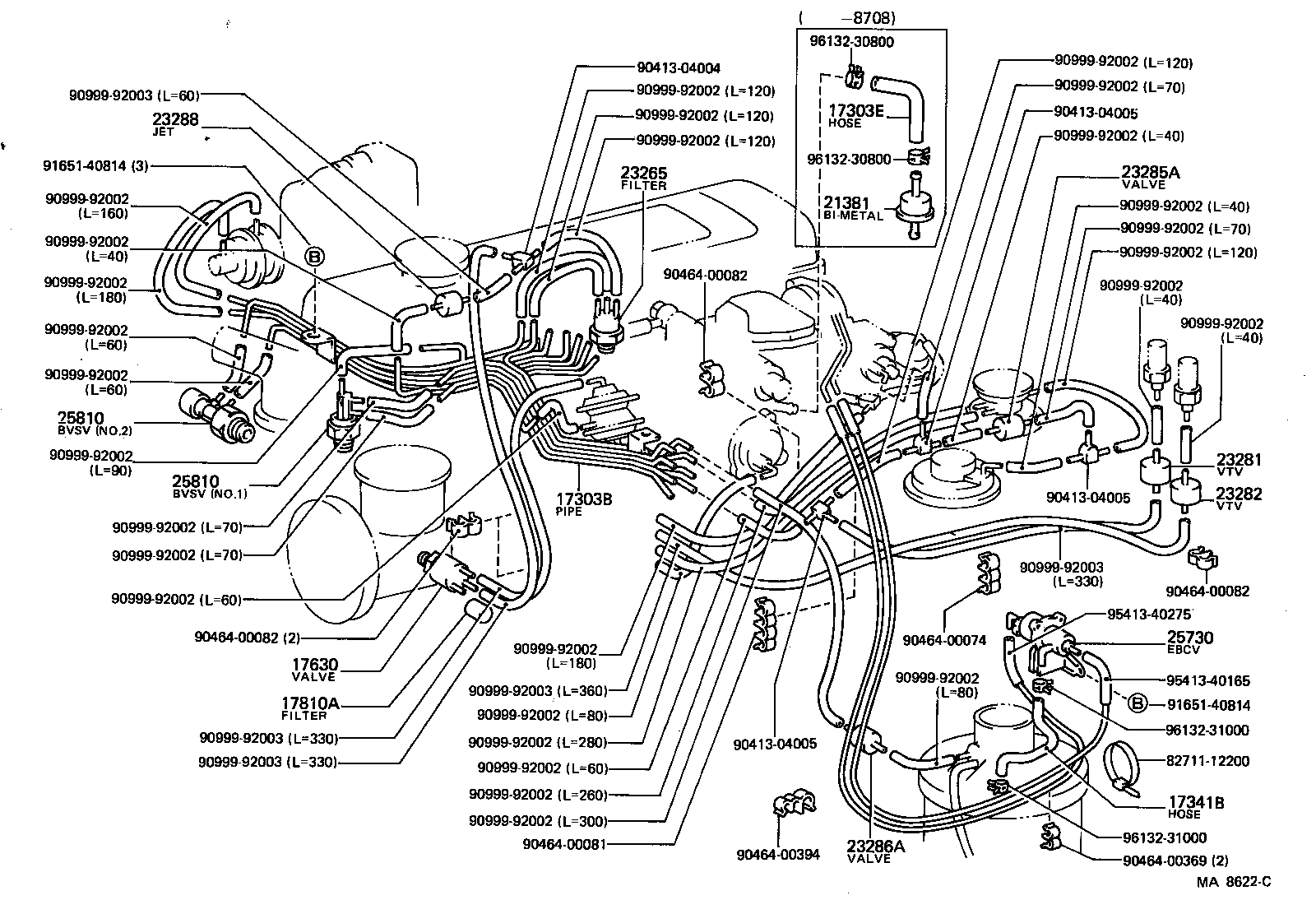

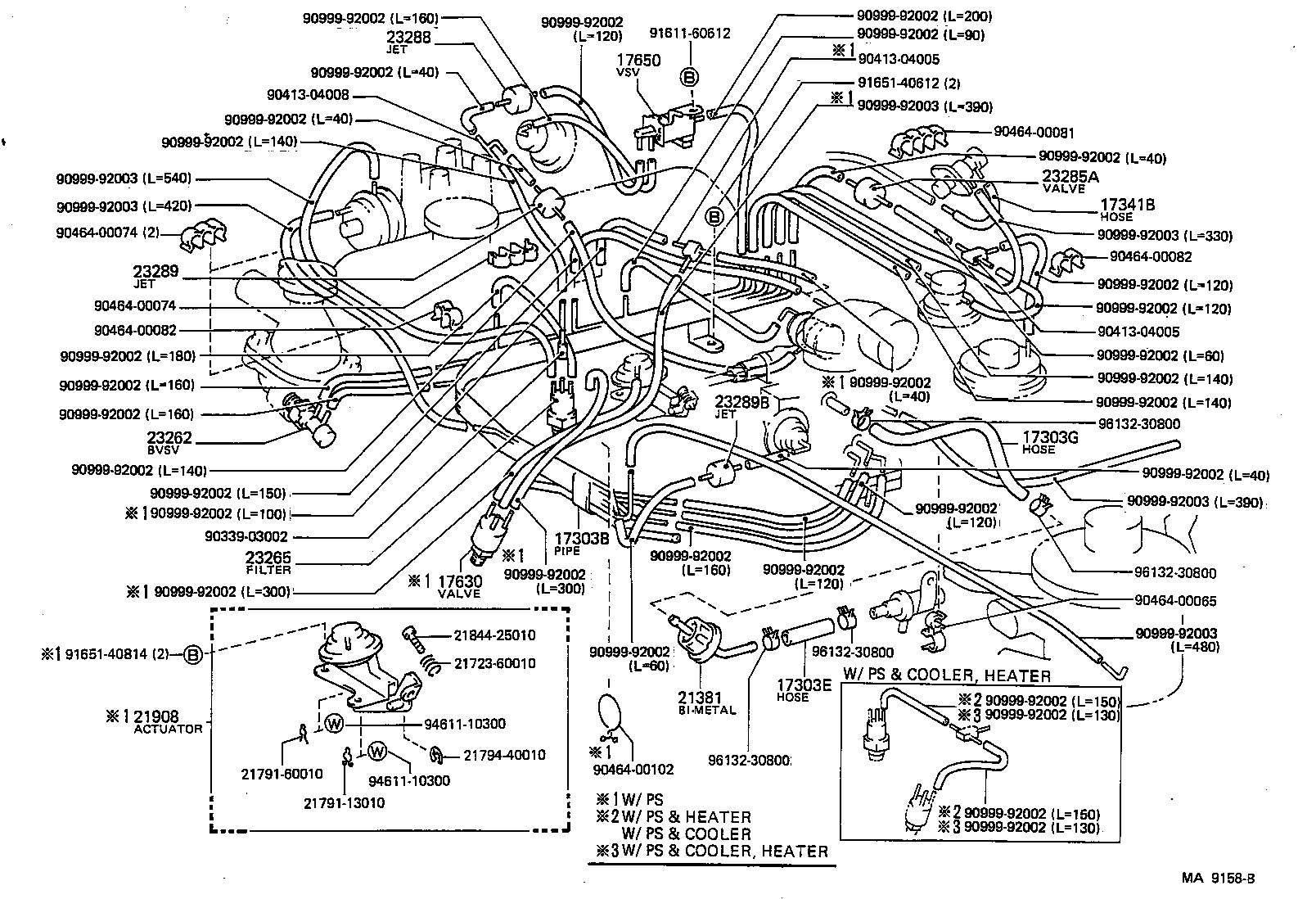

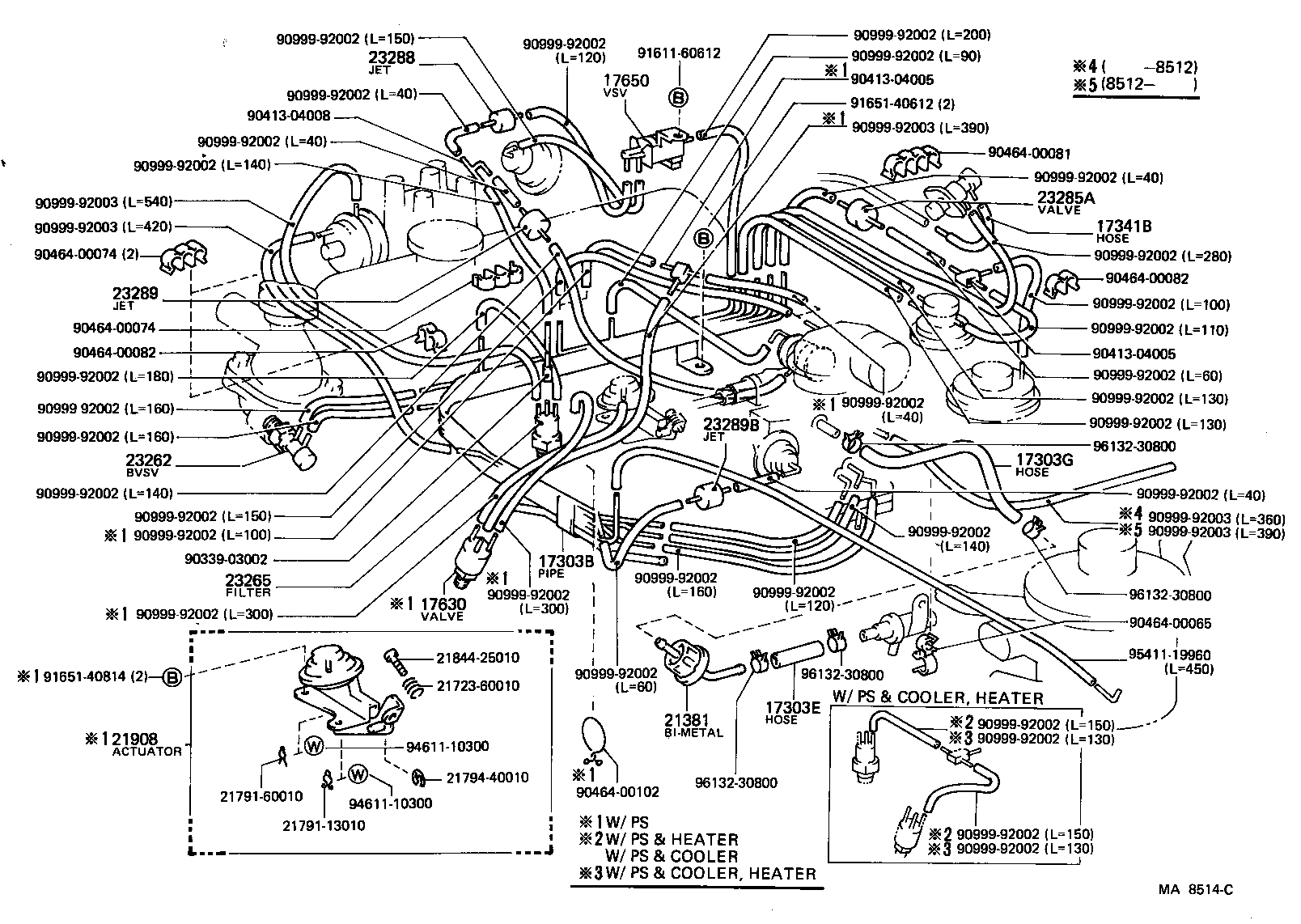

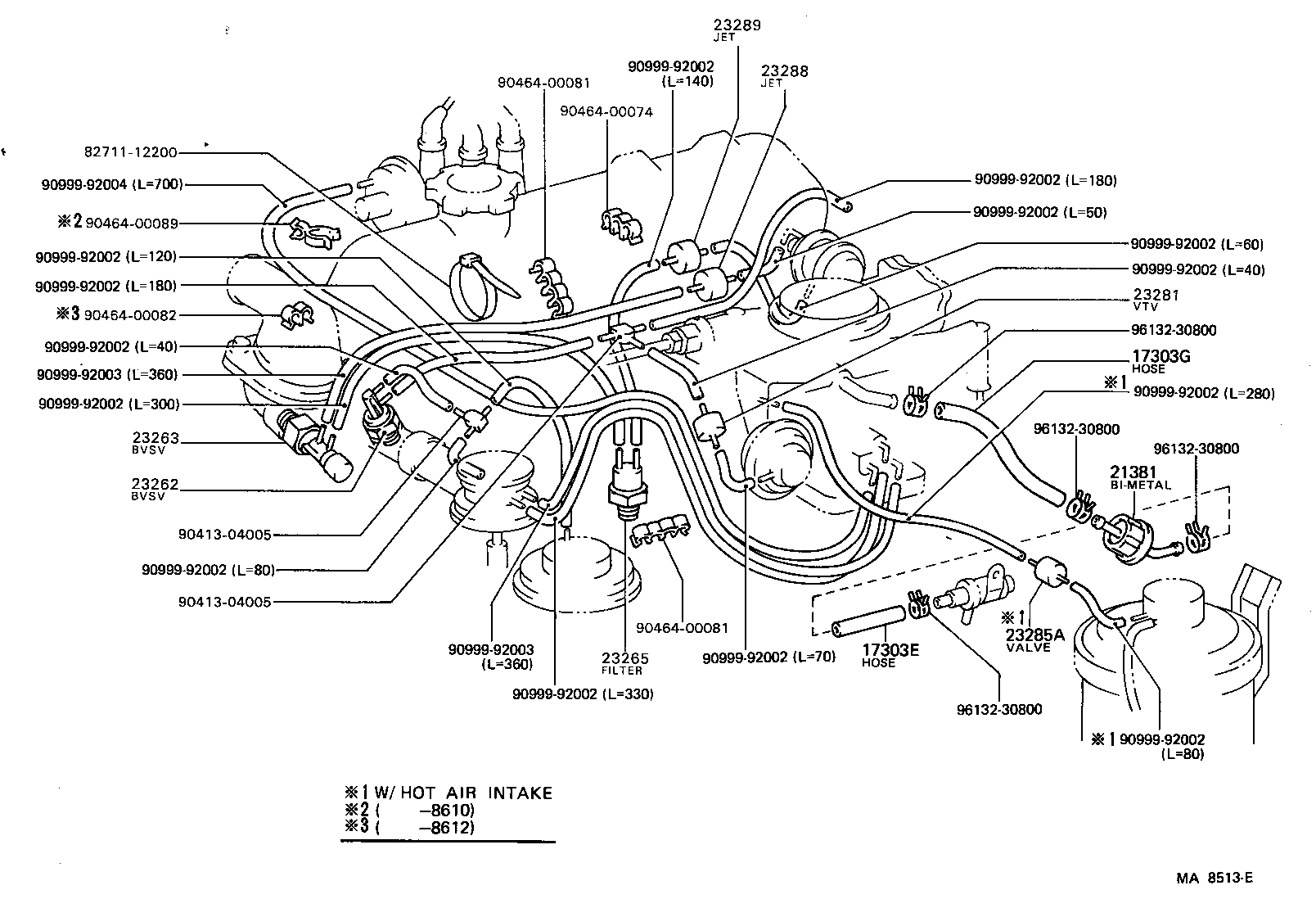

Figure MA9503A MA9503A 1985-09 → — Figure MA8608B MA8608B 1985-09 → — Figure MA9503A MA9503A 1985-09 → — Figure MA8513E MA8513E 1985-09 → — Figure MA8514C MA8514C 1985-09 → 1986-05 Figure MA9158B MA9158B 1986-05 → — Figure MA8515C MA8515C 1985-09 → — Figure MA9503A MA9503A 1985-09 → — Figure MA8622C MA8622C 1985-09 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17303G Hose, NO.3(FOR AIR PIPE)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
21381 Bimetal, Thermostatic
21908 Actuator Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
23289B Jet, NO.3
25730 Valve Assy, Electric Bleed Air Control
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
