Toyota Liteace Van,Wagon

1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

22 part groups · 5 illustrations

Illustrations

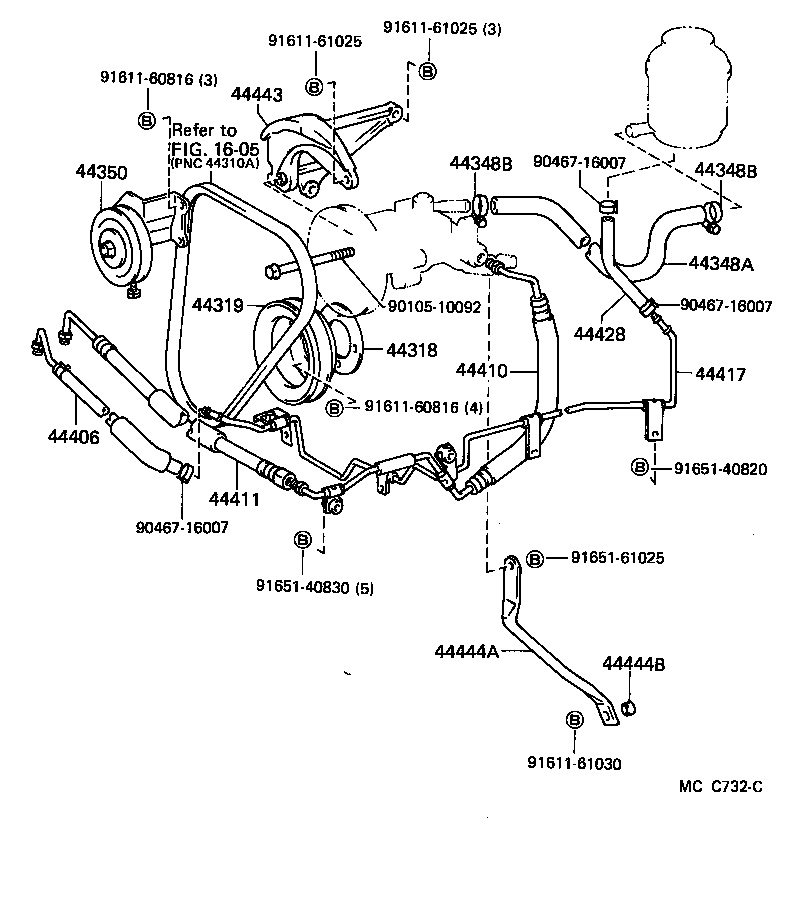

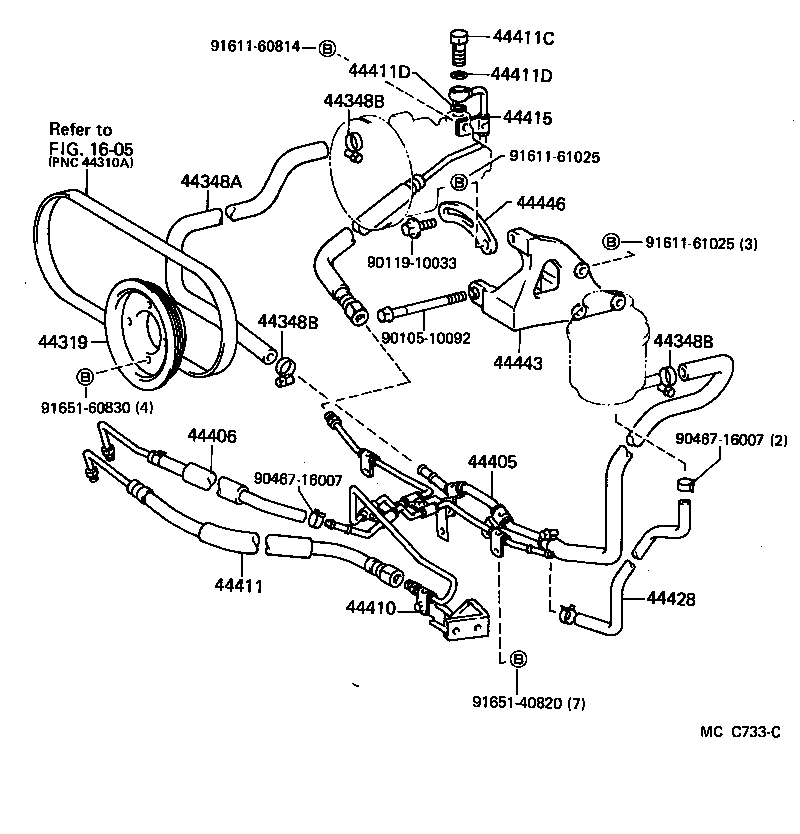

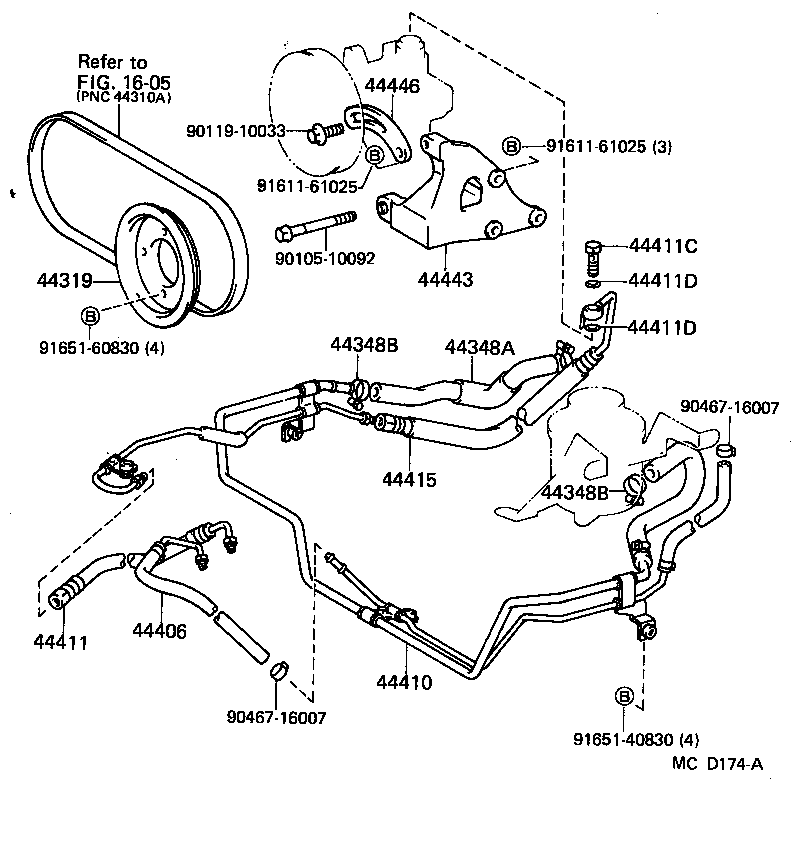

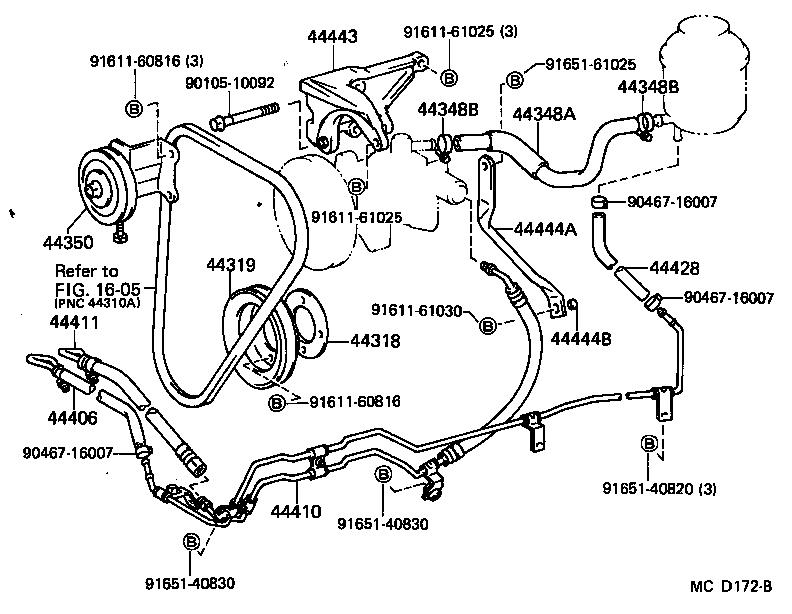

Figure MCC731C MCC731C 1985-09 → — Figure MCC732C MCC732C 1985-09 → — Figure MCD172B MCD172B 1985-10 → — Figure MCC733C MCC733C 1985-09 → — Figure MCD174A MCD174A 1985-10 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411A Seat, Union(FOR PRESSURE FEED HOSE)
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44413 Tube, Pressure Feed, NO.1
44415 Hose, Pressure Feed, NO.2
44417 Tube, Return, NO.2
44428 Hose, Return, NO.2
44443 Bracket, Pump
44444A Stay, Pump, Rear NO.1
44444B Collar (FOR PUMP REAR STAY)
44446 Strut, Adjusting
44454 Stay, Pump, Rear NO.2
44455 Stay, Pump, Rear NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
