Toyota Liteace Van,Wagon
1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan
Discontinued model
Data version 1988-12

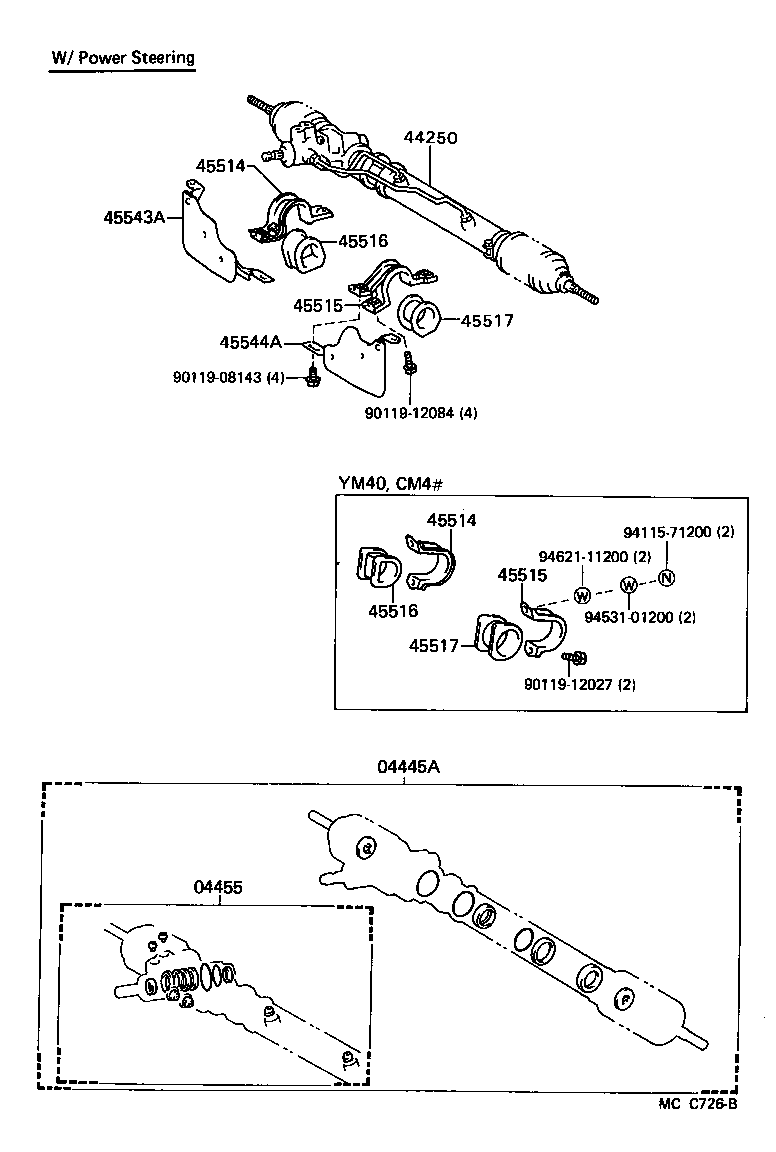

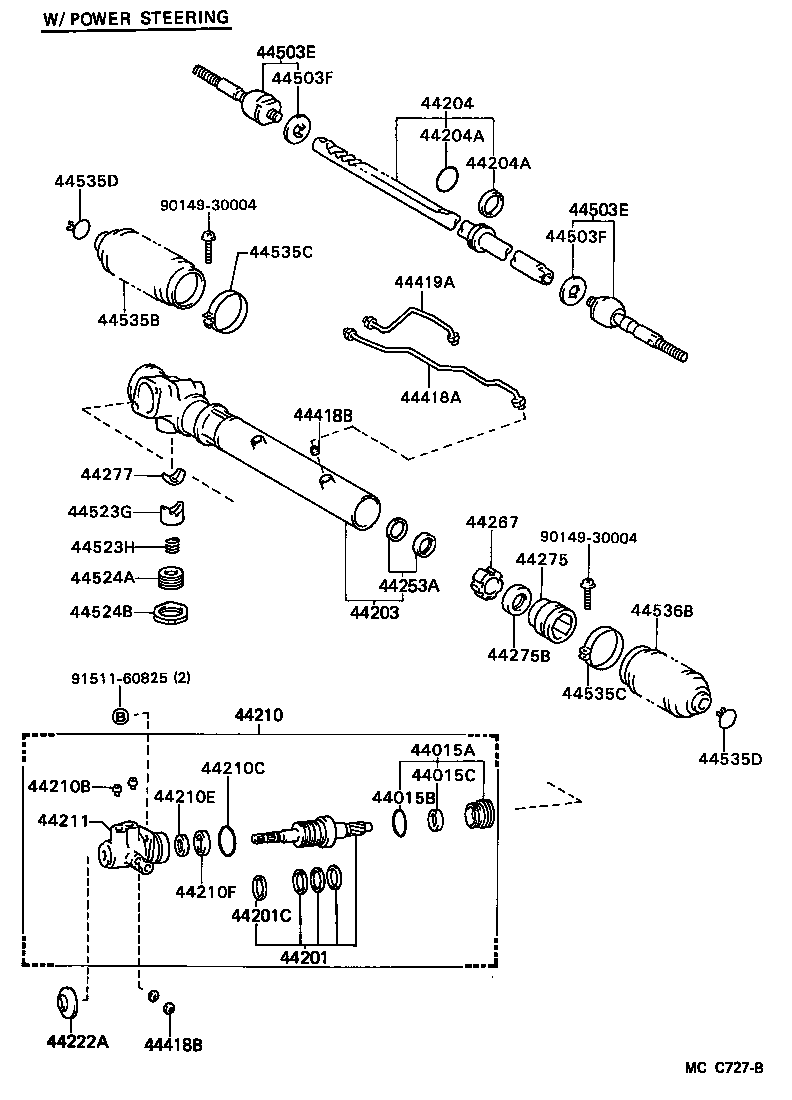

Front Steering Gear & Link
69 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04445A | Gasket Kit, Power Steering Gear(FOR RACK & PINION) |
| 04455 | Gasket Kit, Power Steering Control Valve Overhole |
| 44015A | Nut Sub-assy, Bearing Guide |
| 44015B | Ring, O(FOR BEARING GUIDE NUT) |
| 44015C | Seal, Oil(FOR BEARING GUIDE NUT) |
| 44201 | Valve Sub-assy, Power Steering Control |
| 44201C | Ring(FOR POWER STEERING CONTROL VALVE) |
| 44203 | Housing Sub-assy, Power Steering Rack |
| 44204 | Rack Sub-assy, Power Steering |
| 44204A | Ring(FOR RACK STEERING PISTON) |
| 44210 | Valve Assy, Power Steering Control |
| 44210B | Seat, Union(FOR POWER STEERING CONTROL VALVE) |
| 44210C | Ring, O(FOR POWER STEERING CONTROL VALVE) |
| 44210E | Seal, Oil(FOR POWER STEERING CONTROL VALVE) |
| 44210F | Bearing(FOR POWER STEERING CONTROL VALVE) |
| 44211 | Housing, Control Valve |
| 44222A | Cover, Dust(FOR POWER STEERING GEAR) |
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44253A | Seal, Oil(FOR POWER STEERING RACK HOUSING) |
| 44267 | Guide, Rack End |
| 44275 | Stopper, Cylinder End |
| 44275B | Seal, Oil(FOR CYLINDER END STOPPER) |
| 44277 | Seat, Rack Guide |
| 44418A | Tube, Steering Right Turn Pressure |
| 44418B | Seat, Union(FOR STEERING TURN PRESSURE TUBE) |
| 44419A | Tube, Steering Left Turn Pressure |
| 44503E | End Sub-assy, Steering Rack(FOR POWER STEERING) |
| 44503F | Washer, Claw(FOR POWER STEERING RACK END) |
| 44523G | Guide, Rack(FOR POWER STEERING) |
| 44523H | Spring(FOR POWER STEERING RACK GUIDE) |
| 44524A | Cap, Rack Guide Spring(FOR POWER STEERING) |
| 44524B | Nut(FOR POWER STEERING RACK GUIDE CAP) |
| 44535B | Boot, Steering Rack NO.1(FOR POWER STEERING) |
| 44535C | Clamp(FOR POWER STEERING RACK BOOT) |
| 44535D | Clip(FOR POWER STEERING RACK BOOT) |
| 44536B | Boot, Steering Rack NO.2(FOR POWER STEERING) |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45222 | Cover, Steering Gear Dust |
| 45460 | Rod Assy, Tie, RH |
| 45466 | Clamp, Tie Rod End |
| 45470 | Rod Assy, Tie, LH |
| 45501 | Housing Sub-assy, Steering Rack |
| 45501A | Seal, Type T Oil(FOR STEERING RACK HOUSING) |
| 45503 | End Sub-assy, Steering Rack |
| 45504A | Guide Sub-assy, Rack |
| 45509 | Pinion Sub-assy, Steering |
| 45510 | Gear Assy, Steering |
| 45514 | Bracket, Steering Rack Housing, NO.1 |
| 45515 | Bracket, Steering Rack Housing, NO.2 |
| 45516 | Grommet, Steering Rack Housing, NO.1 |
| 45517 | Grommet, Steering Rack Housing, NO.2 |
| 45521 | Rack, Steering |
| 45522 | Bush, Steering Rack |
| 45523A | Spring(FOR STEERING GEAR RACK GUIDE) |
| 45524 | Cap, Steering Rack Guide Spring |
| 45524A | Nut(FOR STEERING RACK GUIDE SPRING CAP) |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535A | Clamp(FOR STEERING RACK BOOT) |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45537A | Washer, Claw(FOR STEERING RACK END LOCK) |
| 45543A | Protector, Steering Rack Boot, RH |
| 45544A | Protector, Steering Rack Boot, LH |
| 45545 | Screw, Pinion Bearing Adjusting |
| 45545A | Nut(FOR PINION BEARING ADJUSTING SCREW) |
| 45611 | Arm, Steering Knuckle, RH |
| 45611A | Bolt, Knuckle Stopper |
| 45612 | Arm, Steering Knuckle, LH |
| 45619 | Cover, Knuckle Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
