Toyota Liteace Van,Wagon

1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

11 part groups · 2 illustrations

Illustrations

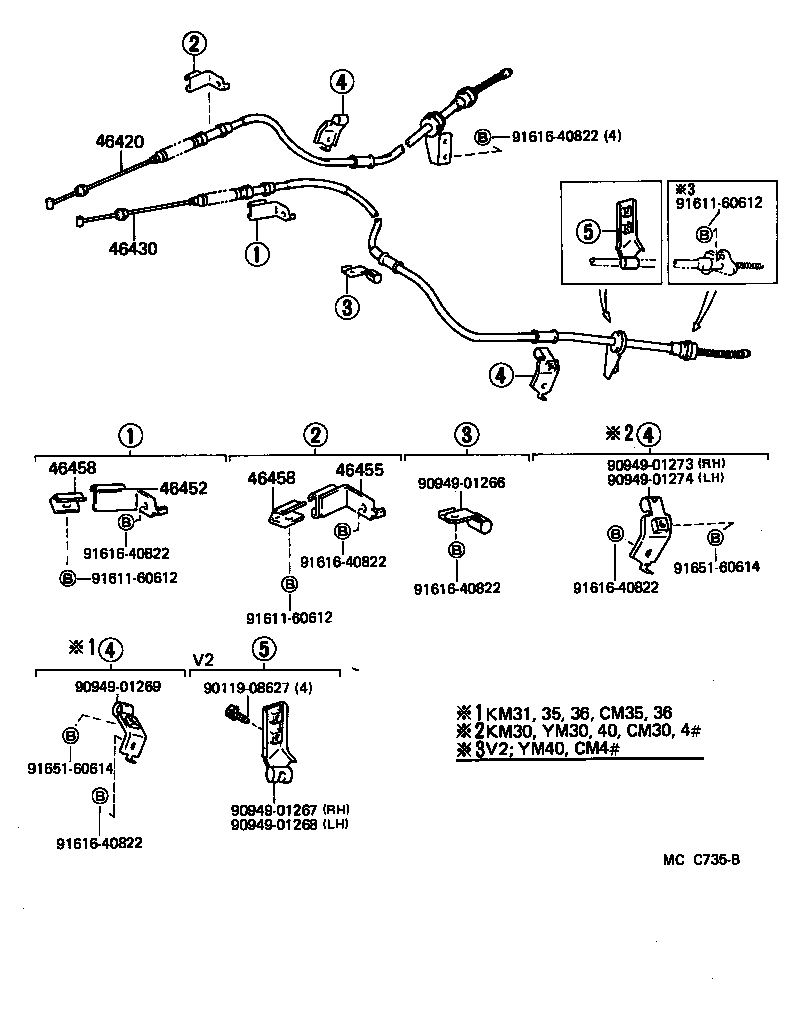

Figure MCC734 MCC734 1985-09 → — Figure MCC735B MCC735B 1985-09 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46217 Knob, Parking Brake Release Rod
46225A Spring, Compression(FOR PARKING BRAKE PAWL ROD)
46304 Equalizer Sub-assy, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46452 Bracket, Parking Brake Cable Support, NO.2
46455 Bracket, Parking Brake Cable Support, NO.3
46458 Retainer, Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
