Toyota Liteace Van,Wagon
1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan
Discontinued model
Data version 1988-12
Seat & Seat Track
194 part groups · 16 illustrations

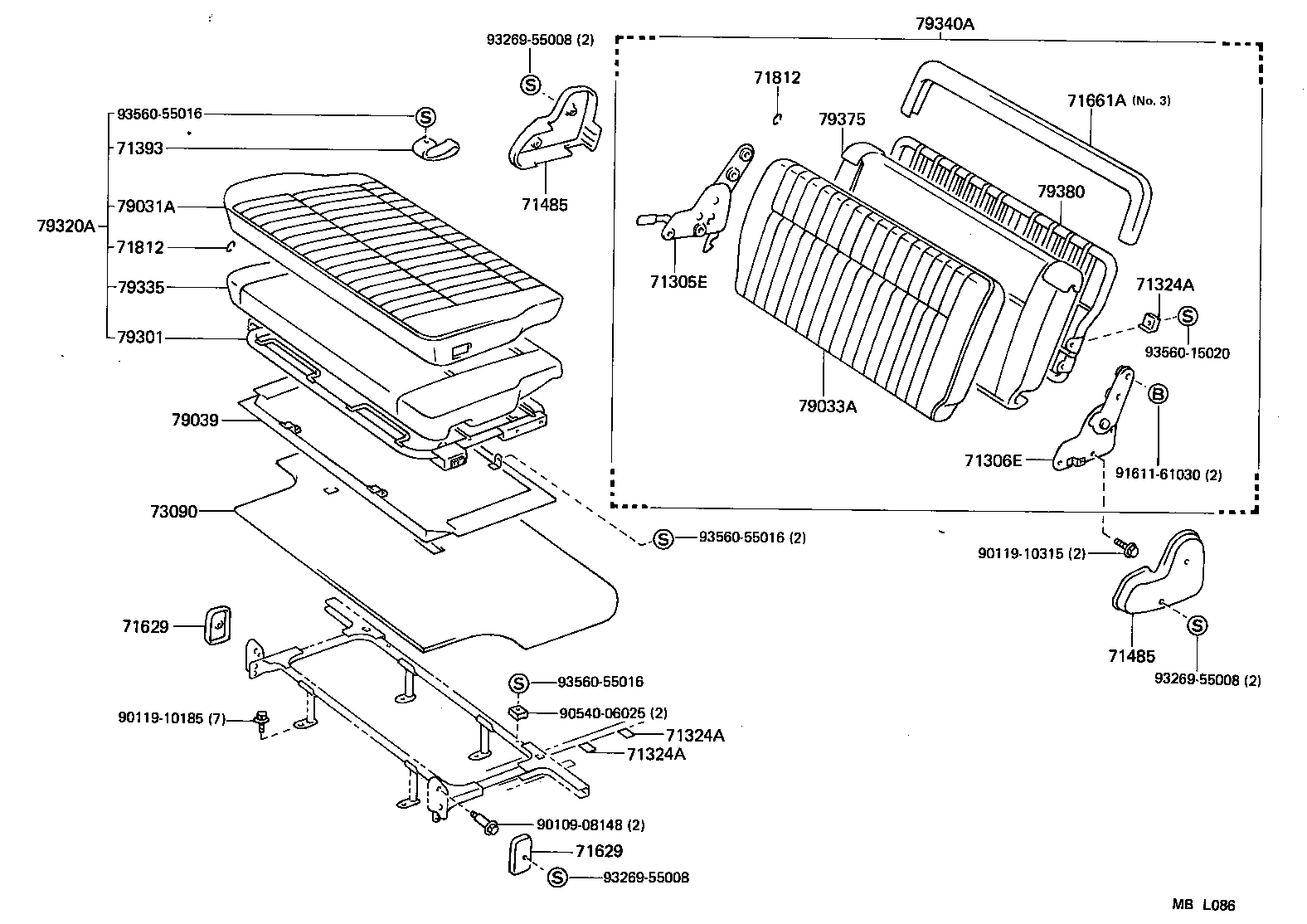

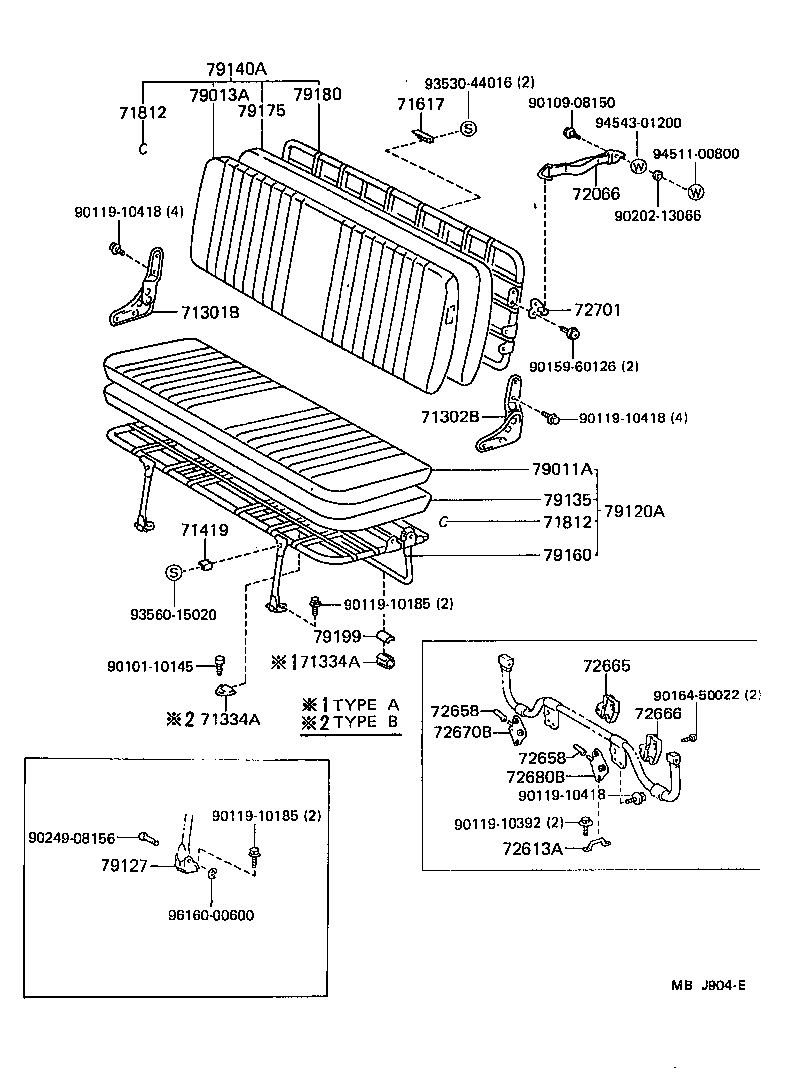

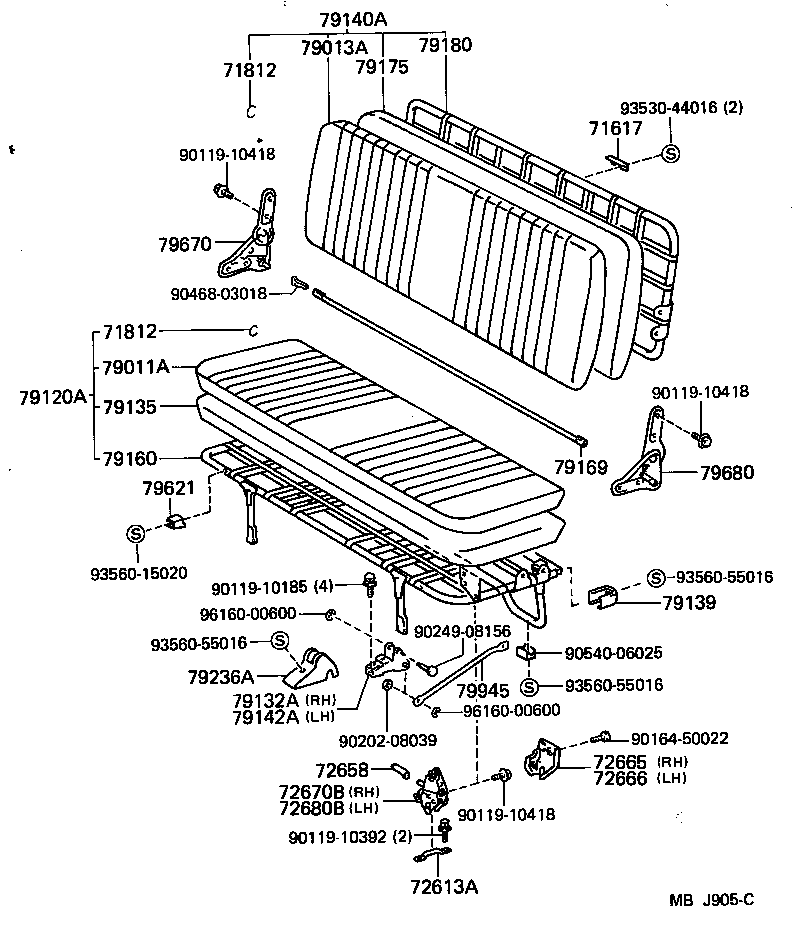

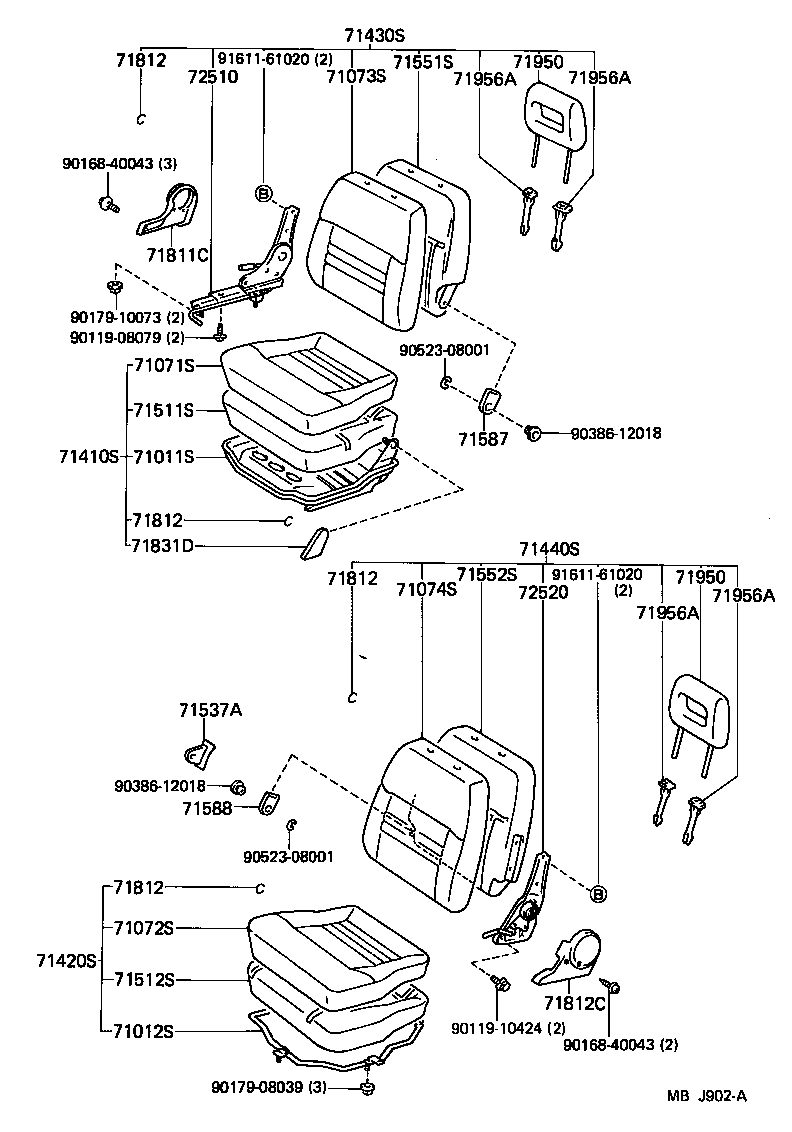

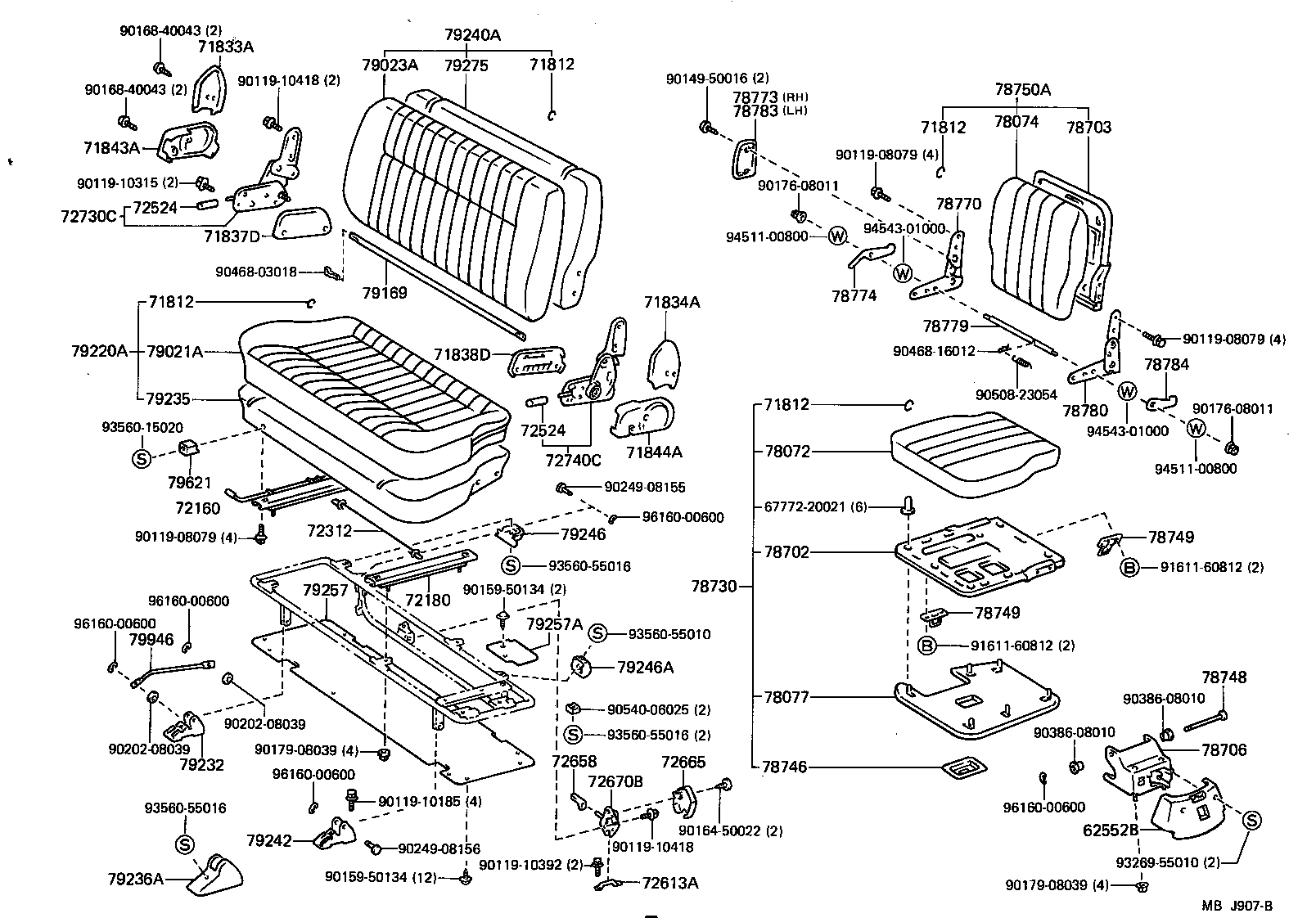

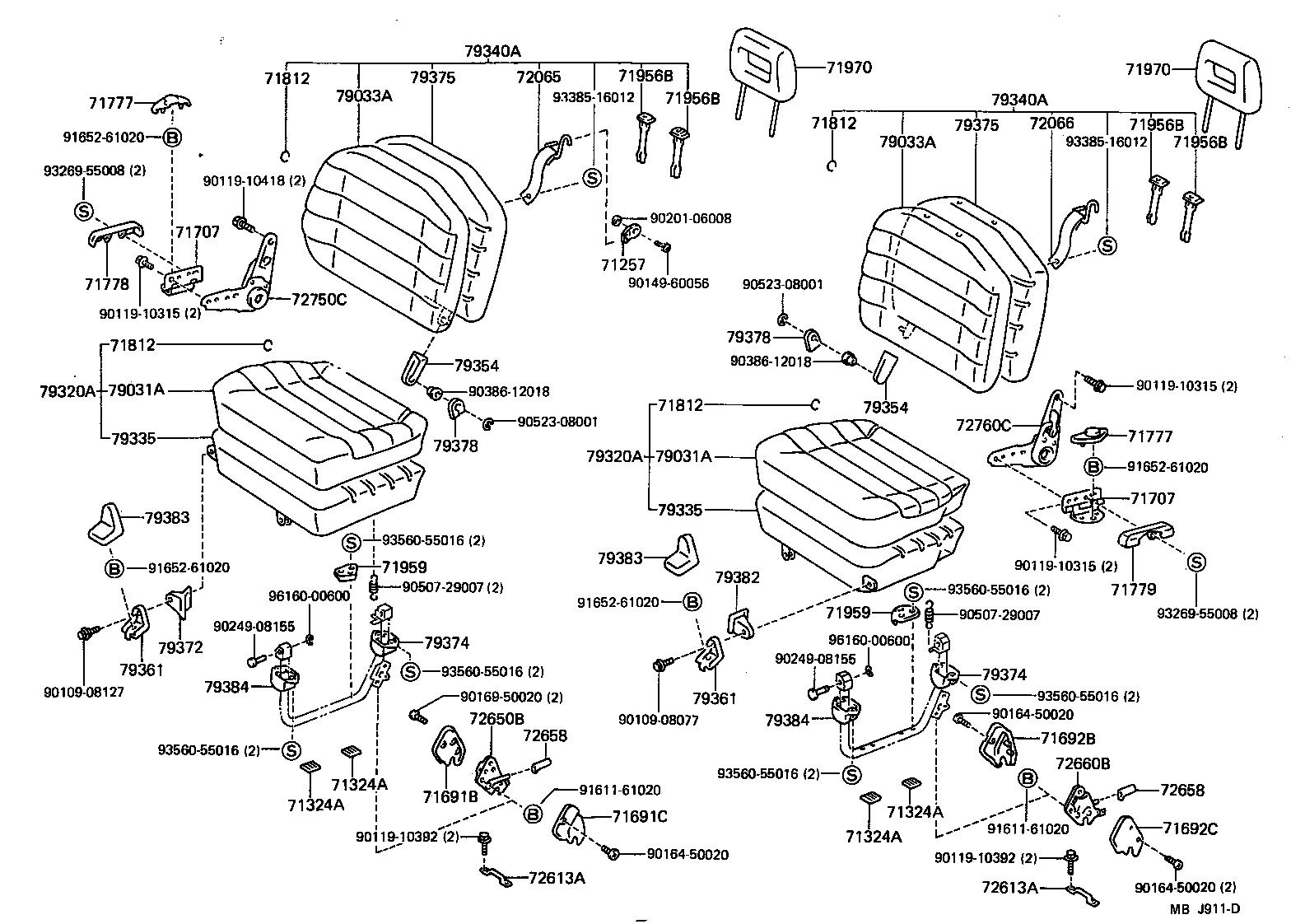

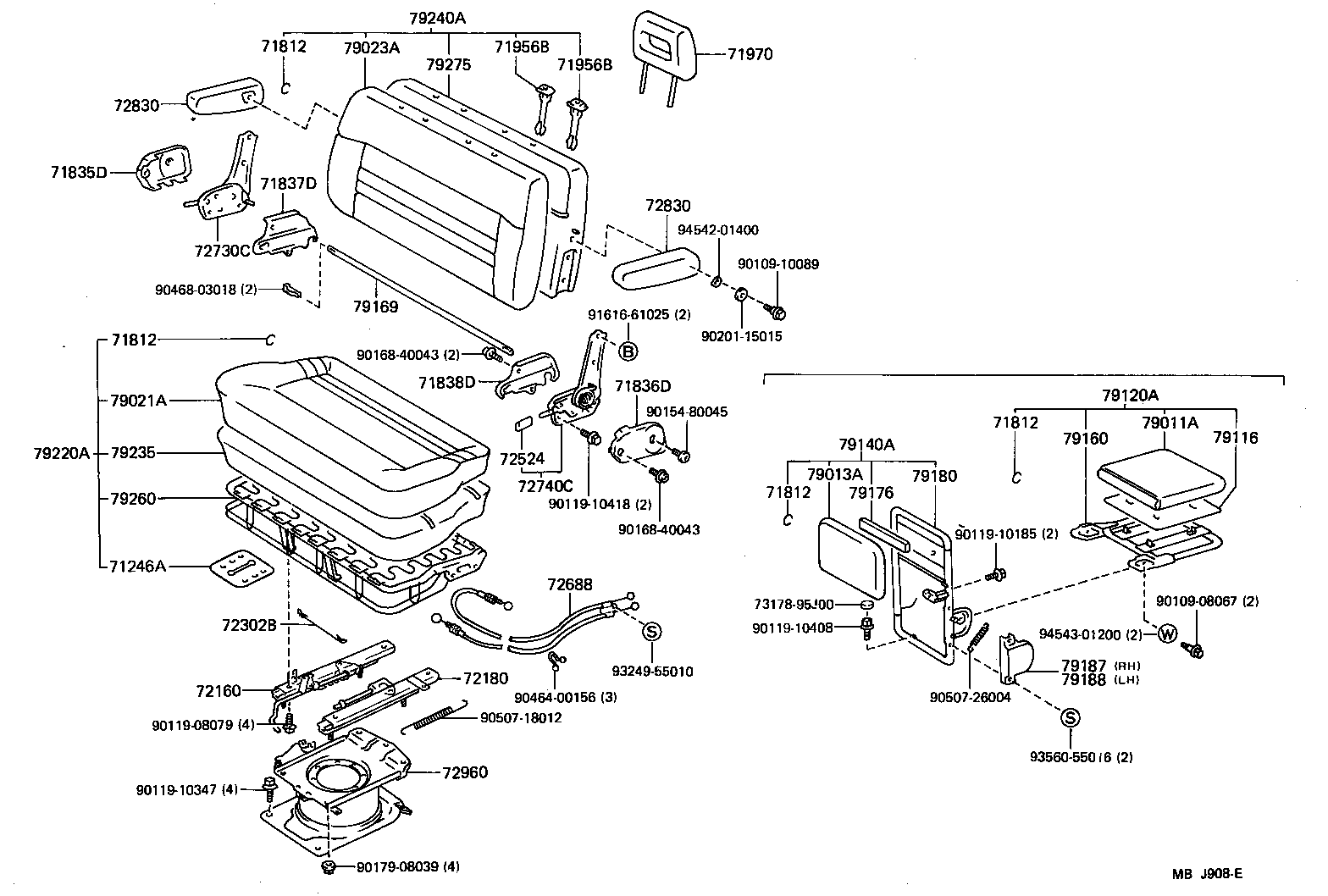

Illustrations

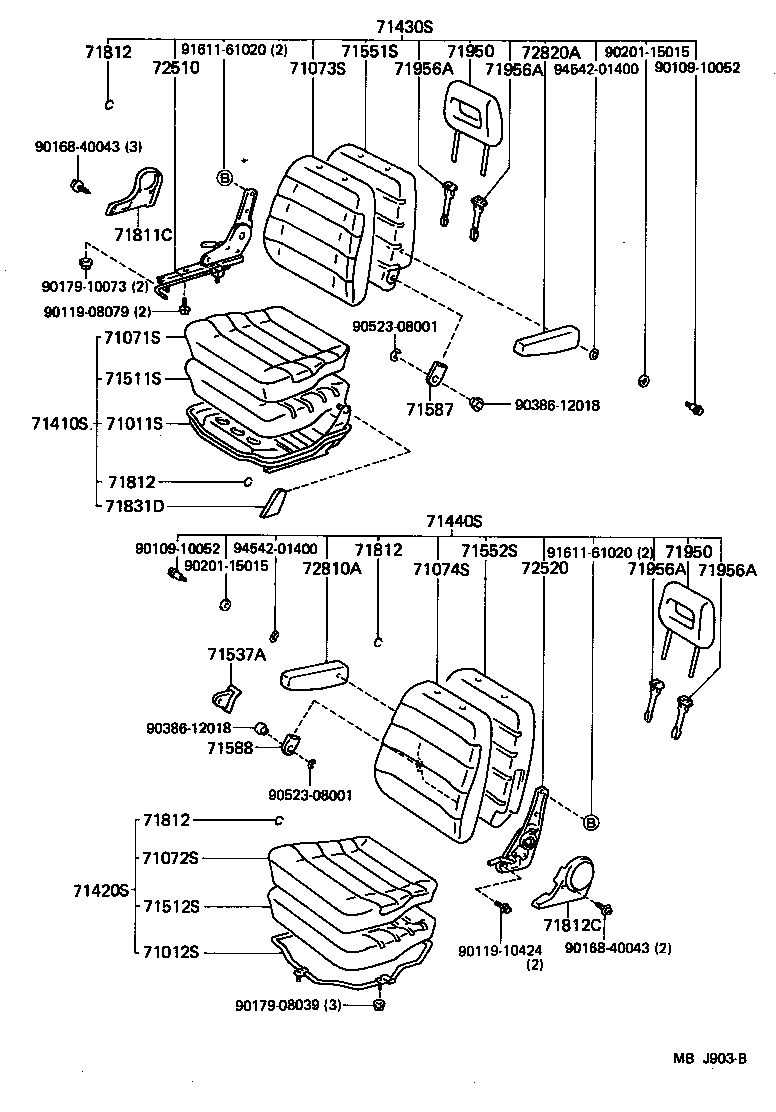

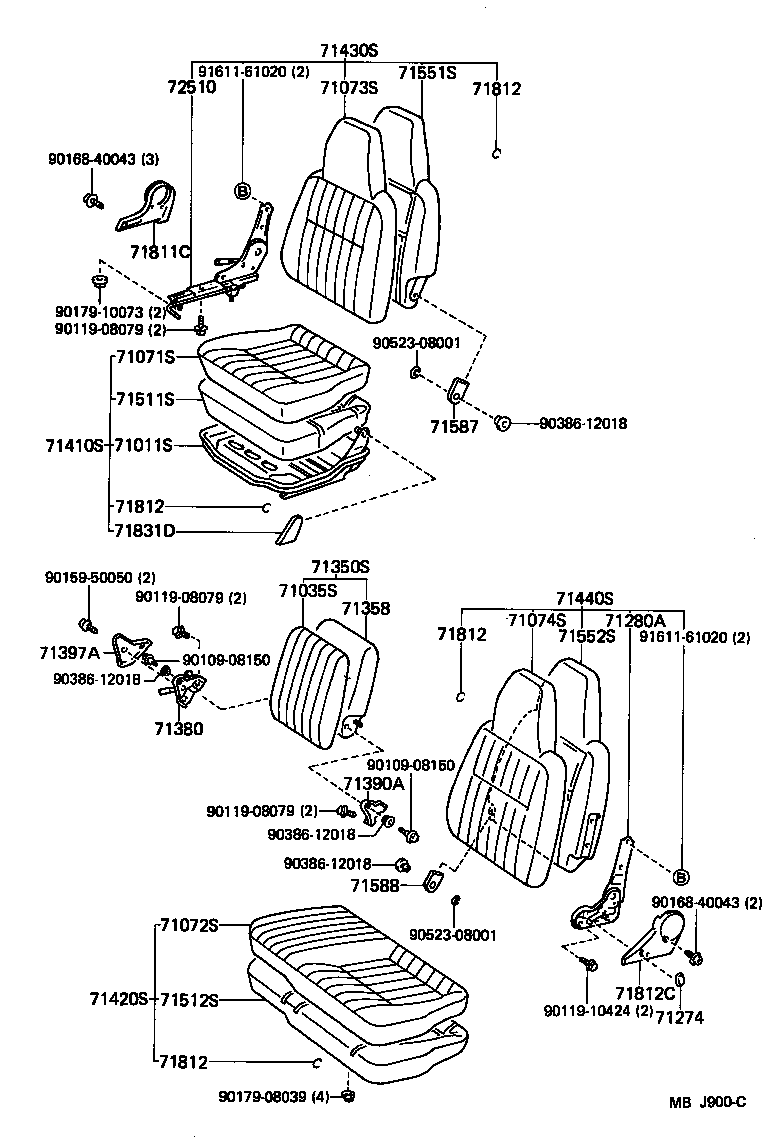

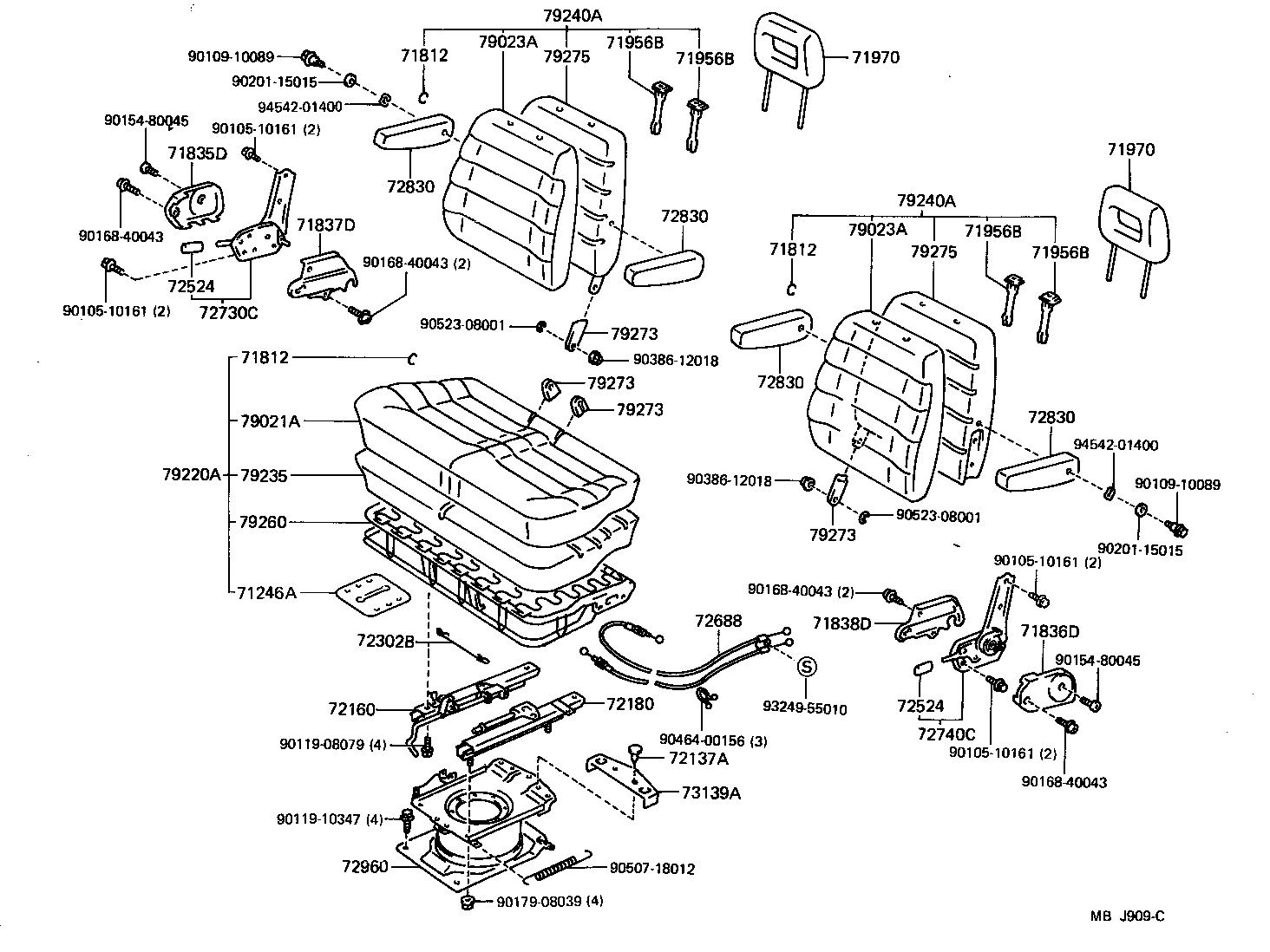

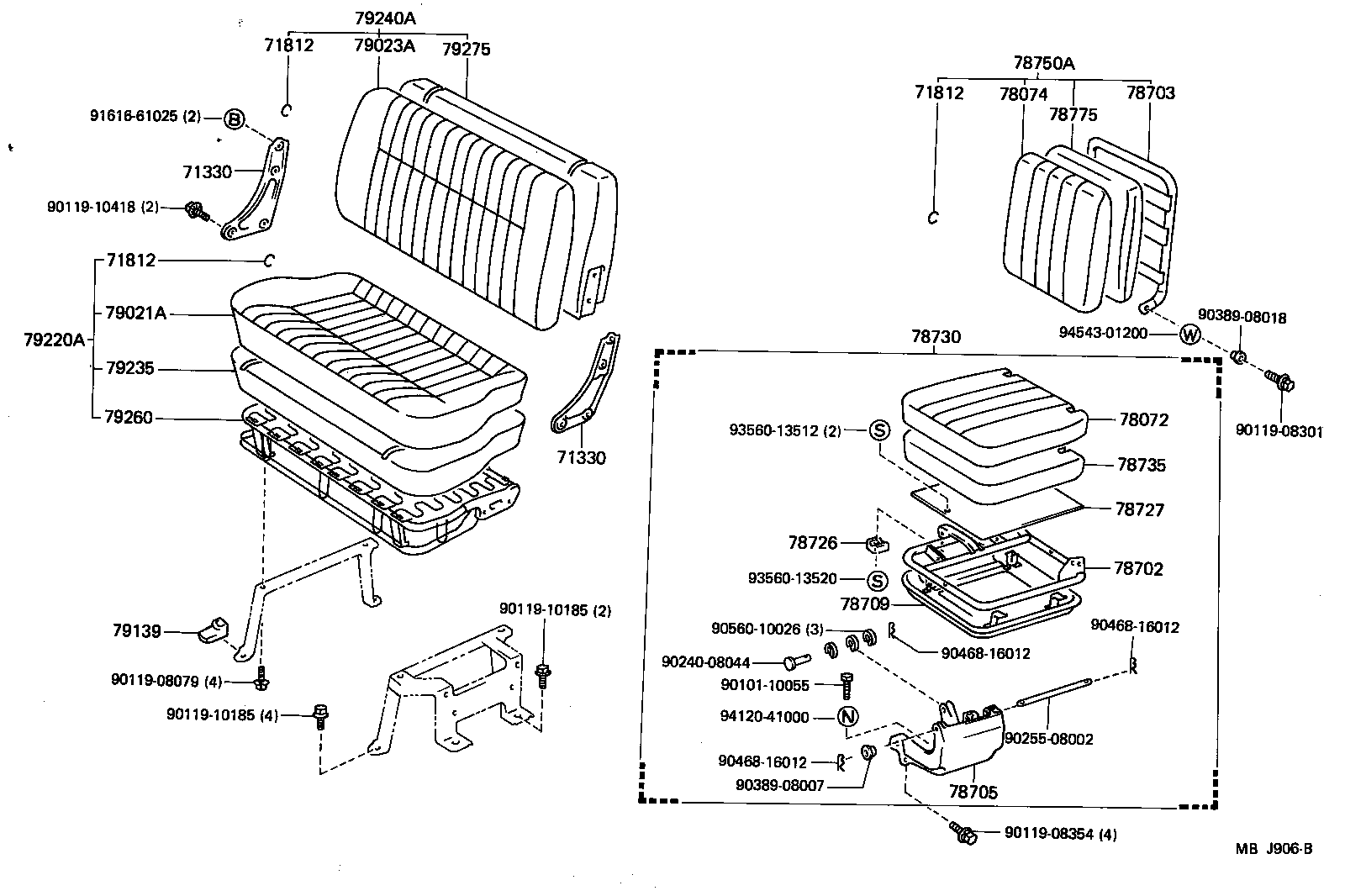

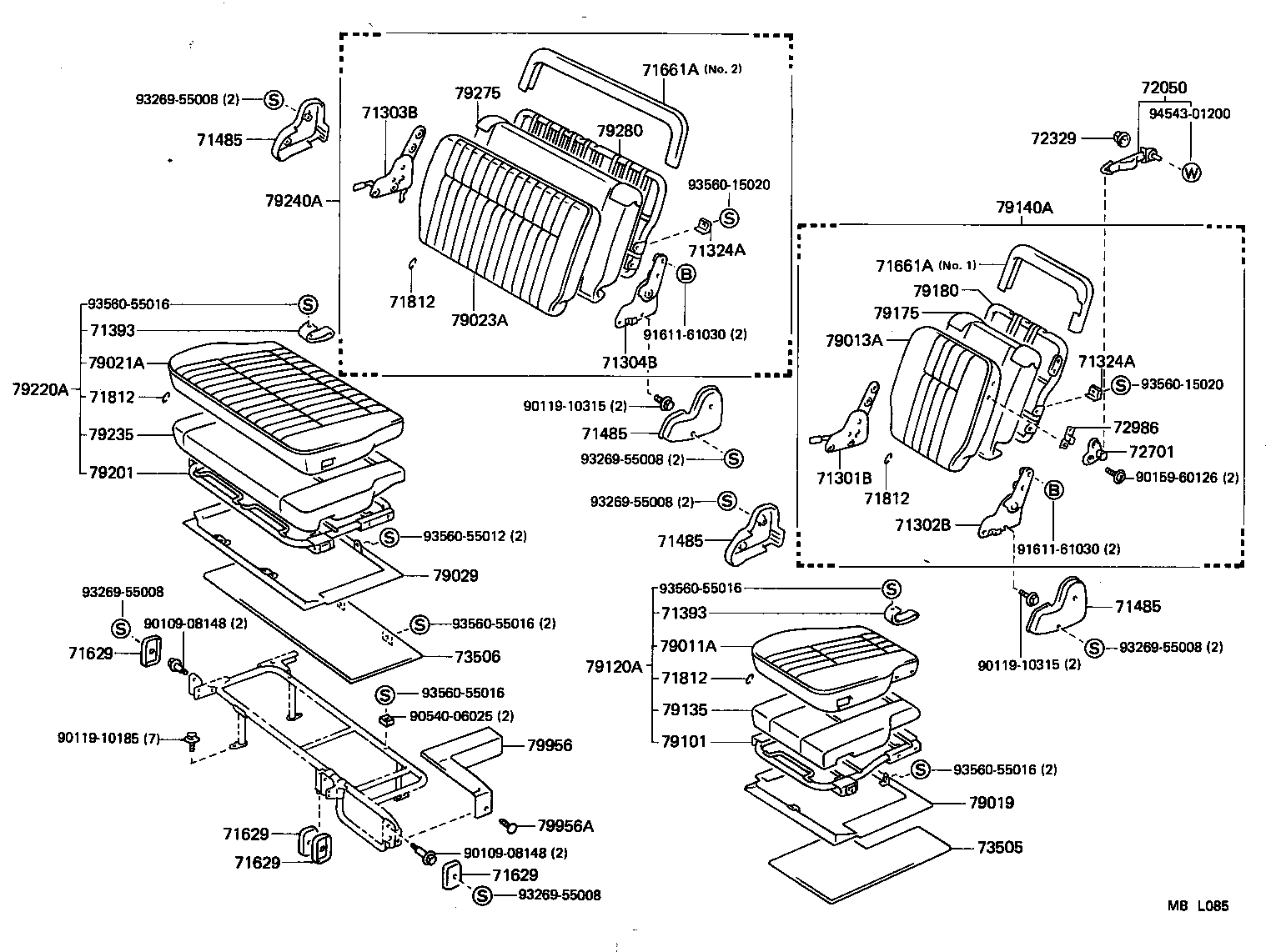

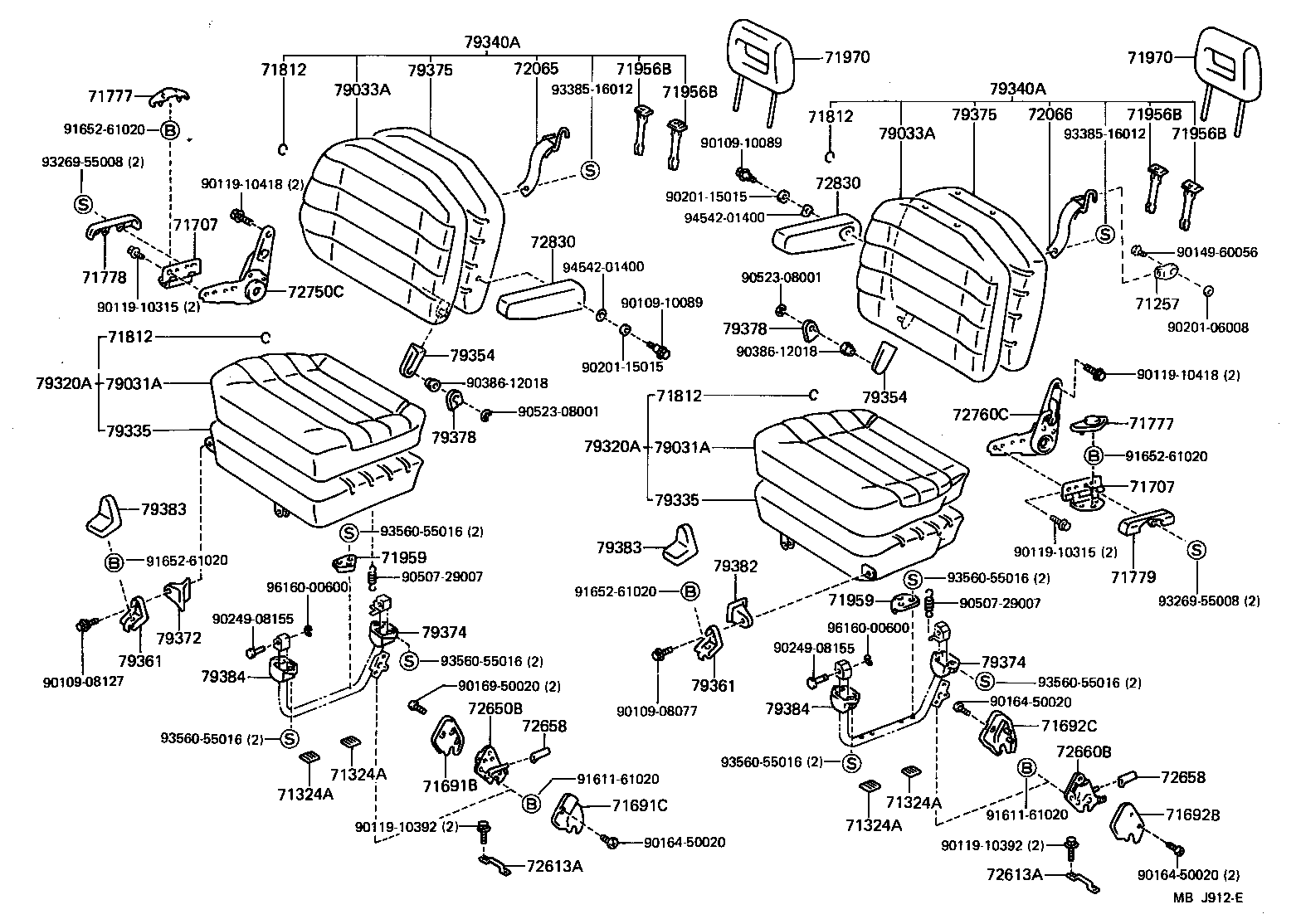

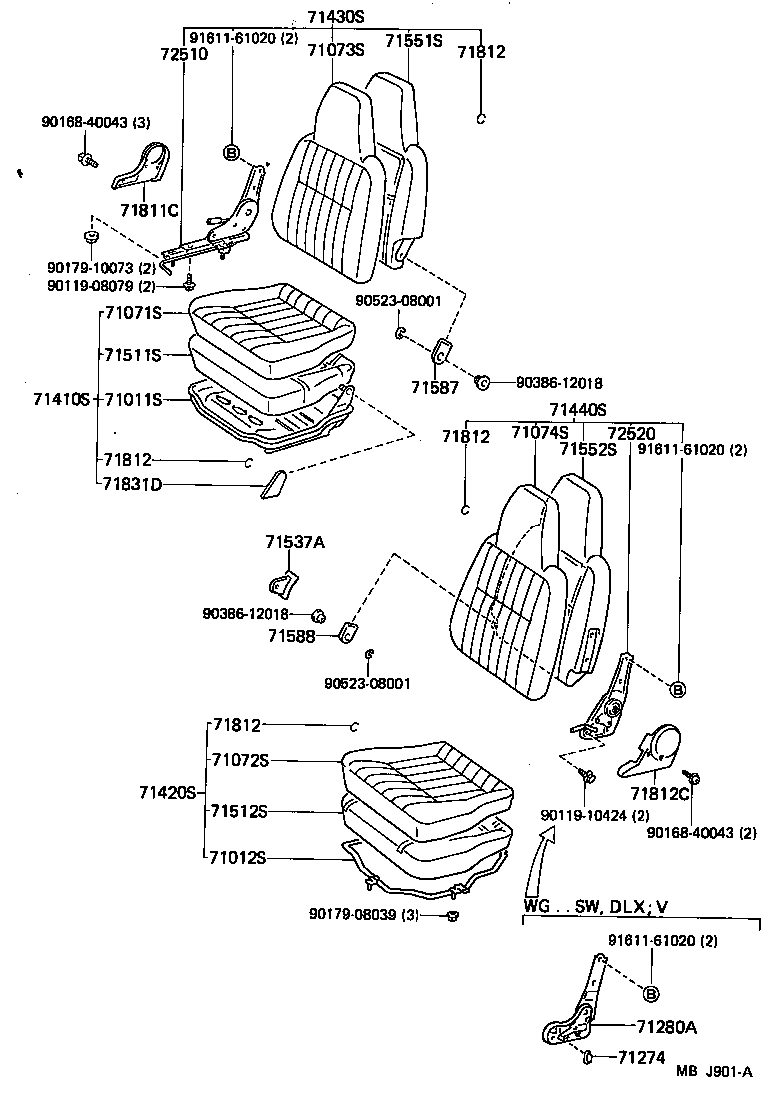

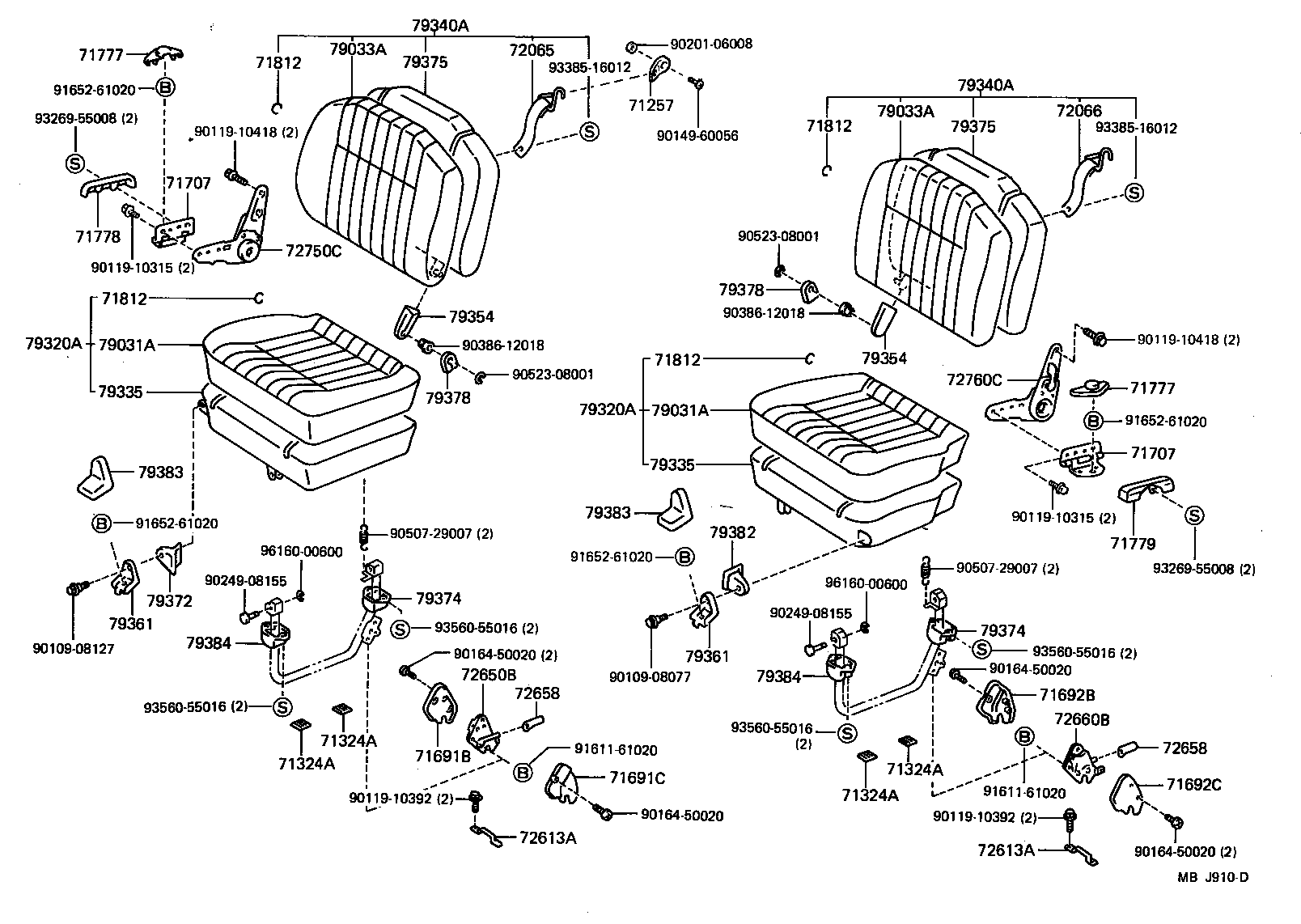

Part groups
| PNC | Description |
|---|---|
| 58936A | Band, Engine Service Hole Cover Support |
| 62552B | Garnish, Sub Seat Side |
| 70012A | Cushion(FOR NO.1 SEATBACK) |
| 70012B | Band, Engine Service Hole Cover Support |
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71035S | Cover, Front Seatback, Center |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71108 | Hinge Sub-assy, Front Seatback, Upper RH |
| 71109 | Hinge Sub-assy, Front Seatback, Upper LH |
| 71246A | Plate, Rear Seat Cushion Set |
| 71257 | Plate, Rear Seatback Anchor |
| 71274 | Knob, Front Seat Hinge |
| 71280A | Hinge Assy, Front Seatback, LH |
| 71301B | Hinge Sub-assy, Rear NO.1 Seat, RH |
| 71302B | Hinge Sub-assy, Rear NO.1 Seat, LH |
| 71303B | Hinge Sub-assy, Rear NO.2 Seat, RH |
| 71304B | Hinge Sub-assy, Rear NO.2 Seat, LH |
| 71305E | Hinge Sub-assy, Rear NO.3 Seat, RH |
| 71306E | Hinge Sub-assy, Rear NO.3 Seat, LH |
| 71324A | Cushion, Rear Seat |
| 71330 | Hinge Assy, Rear Seat Cushion |
| 71334A | Stopper, Rear Seat Leg |
| 71350S | Back Assy, Front Seat, Center |
| 71358 | Pad, Center Seatback |
| 71380 | Hinge Assy, Center Seat, RH |
| 71390A | Hinge Assy, Center Seat, LH |
| 71393 | Band, Rear Seat Cushion |
| 71397A | Cover, Center Seat Hinge |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71419 | Cushion (FOR REAR SEAT LEG) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71485 | Cover, Rear Seat Hinge |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71588 | Protector, Front Seatback Edge, NO.2 |
| 71617 | Protector, Rear Seatback |
| 71629 | Cover, Rear Seat Cushion Hinge |
| 71661A | Pad, Rear Seatback, Upper A |
| 71691B | Cover, Rear Seat Lock, Outer RH |
| 71691C | Cover, Rear Seat Lock, Inner RH |
| 71692B | Cover, Rear Seat Lock, Outer LH |
| 71692C | Cover, Rear Seat Lock, Inner LH |
| 71707 | Hinge Sub-assy, Rear Seat Side |
| 71777 | Cover, Rear Seat Side Hinge Female |
| 71778 | Cover, Rear Seat Side Hinge Male, RH |
| 71779 | Cover, Rear Seat Side Hinge Male, LH |
| 71811C | Cover, Reclining Adjuster, RH |
| 71812 | Clip (FOR FRONT SEAT CUSHION COVER) |
| 71812C | Cover, Reclining Adjuster, LH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71835D | Cover, Rear Seat Reclining, Lower RH |
| 71836D | Cover, Rear Seat Reclining, Lower LH |
| 71837D | Cover, Rear Seat Reclining, Inner RH |
| 71838D | Cover, Rear Seat Reclining, Inner LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71950 | Headrest Assy, Front Seat |
| 71956A | Support, Front Seat Headrest |
| 71956B | Support, Rear Seat Headrest |
| 71959 | Holder, Rear Seat Headrest |
| 71970 | Headrest Assy, Rear Seat |
| 72050 | Belt Assy, Rear Seat Hook |
| 72065 | Belt Sub-assy, Rear Seat Hook, RH |
| 72066 | Belt Sub-assy, Rear Seat Hook, LH |
| 72137A | Clip (FOR SEAT TRACK COVER) |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72180 | Track Assy, Rear Seat, Inner RH |
| 72302B | Wire Sub-assy, Rear Seat Track Equalizing |
| 72312 | Wire, Rear Seat Track Equalizing |
| 72329 | Cover, Seat Adjuster Bolt |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72524 | Handle, Reclining Adjuster Release |
| 72613A | Striker, Front Seat Lock |
| 72650B | Lock Assy, Rear NO.3 Seat, RH |
| 72658 | Knob, Rear Seat Handle |
| 72660B | Lock Assy, Rear NO.3 Seat, LH |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72666 | Cover, Rear Seatback Lock, LH |
| 72670B | Lock Assy, Rear Seat Cushion, RH |
| 72680B | Lock Assy, Rear Seat Cushion, LH |
| 72688 | Cable, Rear Seat Track & Turn Control |
| 72701 | Bracket Sub-assy, Rear Seatback Stopper |
| 72730C | Adjuster Assy, NO.2 Seat Reclining, RH |
| 72740C | Adjuster Assy, NO.2 Seat Reclining, LH |
| 72750C | Adjuster Assy, NO.3 Seat Reclining, RH |
| 72760C | Adjuster Assy, NO.3 Seat Reclining, LH |
| 72810A | Armrest Assy, Seat, RH |
| 72820A | Armrest Assy, Seat, LH |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72960 | Table Assy, Rear Seat Turn |
| 72986 | Slipper, Rear Seatback |
| 73090 | Board Assy, Rear Seat Sub Floor |
| 73139A | Cover, Seat Belt Anchor |
| 73505 | Board Sub-assy, Rear Seat Sub Floor |
| 73506 | Board Sub-assy, Rear Seat Sub Floor, NO.2 |
| 78072 | Cover Sub-assy, Sub Seat Cushion, LH |
| 78074 | Cover Sub-assy, Sub Seatback, LH |
| 78077 | Board Sub-assy, Sub Seat Cushion |
| 78702 | Frame Sub-assy, Sub Seat Cushion, LH |
| 78703 | Frame Sub-assy, Sub Seatback |
| 78705 | Bracket Sub-assy, Sub Seat Cushion |
| 78706 | Lock Sub-assy, Sub Seat Cushion |
| 78709 | Panel Sub-assy, Sub Seat Cushion |
| 78726 | Cushion, Sub Seat Cushion Frame |
| 78727 | Board, Sub Seat Cushion |
| 78730 | Cushion Assy, Sub Seat, LH |
| 78735 | Pad, Sub Seat Cushion |
| 78746 | Cover, Sub Seat Cushion Striker |
| 78748 | Bar, Sub Seat Cushion |
| 78749 | Striker, Sub Seat Cushion |
| 78750A | Back Assy, Sub Seat, LH |
| 78770 | Hinge Assy, Sub Seat, RH |
| 78773 | Cover, Sub Seat Hinge, RH |
| 78774 | Hook, Sub Seat Hinge, RH |
| 78775 | Pad, Sub Seatback |
| 78779 | Rod, Sub Seat Hinge |
| 78780 | Hinge Assy, Sub Seat, LH |
| 78783 | Cover, Sub Seat Hinge, LH |
| 78784 | Hook, Sub Seat Hinge, LH |
| 79011A | Cover Sub-assy, NO.1 Seat Cushion |
| 79013A | Cover Sub-assy, NO.1 Seatback |
| 79019 | Board Sub-assy, NO.1 Seat Cushion |
| 79021A | Cover Sub-assy, NO.2 Seat Cushion |
| 79023A | Cover Sub-assy, NO.2 Seatback |
| 79029 | Board Sub-assy, NO.2 Seat Cushion |
| 79031A | Cover Sub-assy, NO.3 Seat Cushion |
| 79033A | Cover Sub-assy, NO.3 Seatback |
| 79039 | Board Sub-assy, NO.3 Seat Cushion |
| 79101 | Frame Sub-assy, NO.1 Seat Cushion |
| 79116 | Board, NO.1 Seat Cushion |
| 79120A | Cushion Assy, NO.1 Seat |
| 79127 | Bracket, NO.1 Seat Leg, Lower |
| 79132A | Leg, Rear NO.1 Seat, RH |
| 79135 | Pad, NO.1 Seat Cushion |
| 79139 | Cover, Rear Seat Leg |
| 79140A | Back Assy, NO.1 Seat |
| 79142A | Leg, Rear NO.1 Seat, LH |
| 79160 | Spring Assy, NO.1 Seat Cushion |
| 79169 | Rod, Rear Seat Hinge Connector |
| 79175 | Pad, NO.1 Seatback |
| 79176 | Pad, NO.1 Seatback, NO.2 |
| 79180 | Spring Assy, NO.1 Seatback |
| 79187 | Cover, NO.1 Seat Inner Bracket |
| 79188 | Cover, NO.1 Seat Outer Bracket |
| 79199 | Holder, NO.1 Seat Leg Stopper |
| 79201 | Frame Sub-assy, NO.2 Seat Cushion |
| 79220A | Cushion Assy, NO.2 Seat |
| 79232 | Leg, Rear NO.2 Seat, RH |
| 79235 | Pad, NO.2 Seat Cushion |
| 79236A | Cover, NO.2 Seat Leg |
| 79240A | Back Assy, NO.2 Seat |
| 79242 | Leg, Rear NO.2 Seat, LH |
| 79246 | Cover, NO.2 Seat Leg, NO.1 |
| 79246A | Cover, NO.2 Seat Leg, NO.2 |
| 79257 | Board, NO.2 Seat |
| 79257A | Board, Sub Seat |
| 79260 | Spring Assy, NO.2 Seat Cushion |
| 79273 | Cover, NO.2 Seat Hinge |
| 79275 | Pad, NO.2 Seatback |
| 79280 | Spring Assy, NO.2 Seatback |
| 79301 | Frame Sub-assy, NO.3 Seat Cushion |
| 79320A | Cushion Assy, NO.3 Seat |
| 79335 | Pad, NO.3 Seat Cushion |
| 79340A | Back Assy, NO.3 Seat |
| 79354 | Cover, NO.3 Seatback Hinge |
| 79361 | Bracket, NO.3 Seat Support |
| 79372 | Cover, NO.3 Seat Front Bracket, RH |
| 79374 | Cover, NO.3 Seat Leg, Rear RH |
| 79375 | Pad, NO.3 Seatback |
| 79378 | Cover, NO.3 Seat Cushion Hinge |
| 79380 | Spring Assy, NO.3 Seatback |
| 79382 | Cover, NO.3 Seat Front Bracket, LH |
| 79383 | Cover, NO.3 Seat Bracket Support |
| 79384 | Cover, NO.3 Seat Leg, Rear LH |
| 79621 | Stopper, NO.2 Seat Cushion |
| 79670 | Hinge Assy, NO.1 Seat, RH |
| 79680 | Hinge Assy, NO.1 Seat, LH |
| 79945 | Stay, Seat Leg, NO.1 |
| 79946 | Stay, Seat Leg, NO.2 |
| 79956 | Cover, Rear Seat Leg Bracket |
| 79956A | Clip (FOR REAR SEAT LEG BRACKET COVER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
