Toyota Liteace Van,Wagon

1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

20 part groups · 4 illustrations

Illustrations

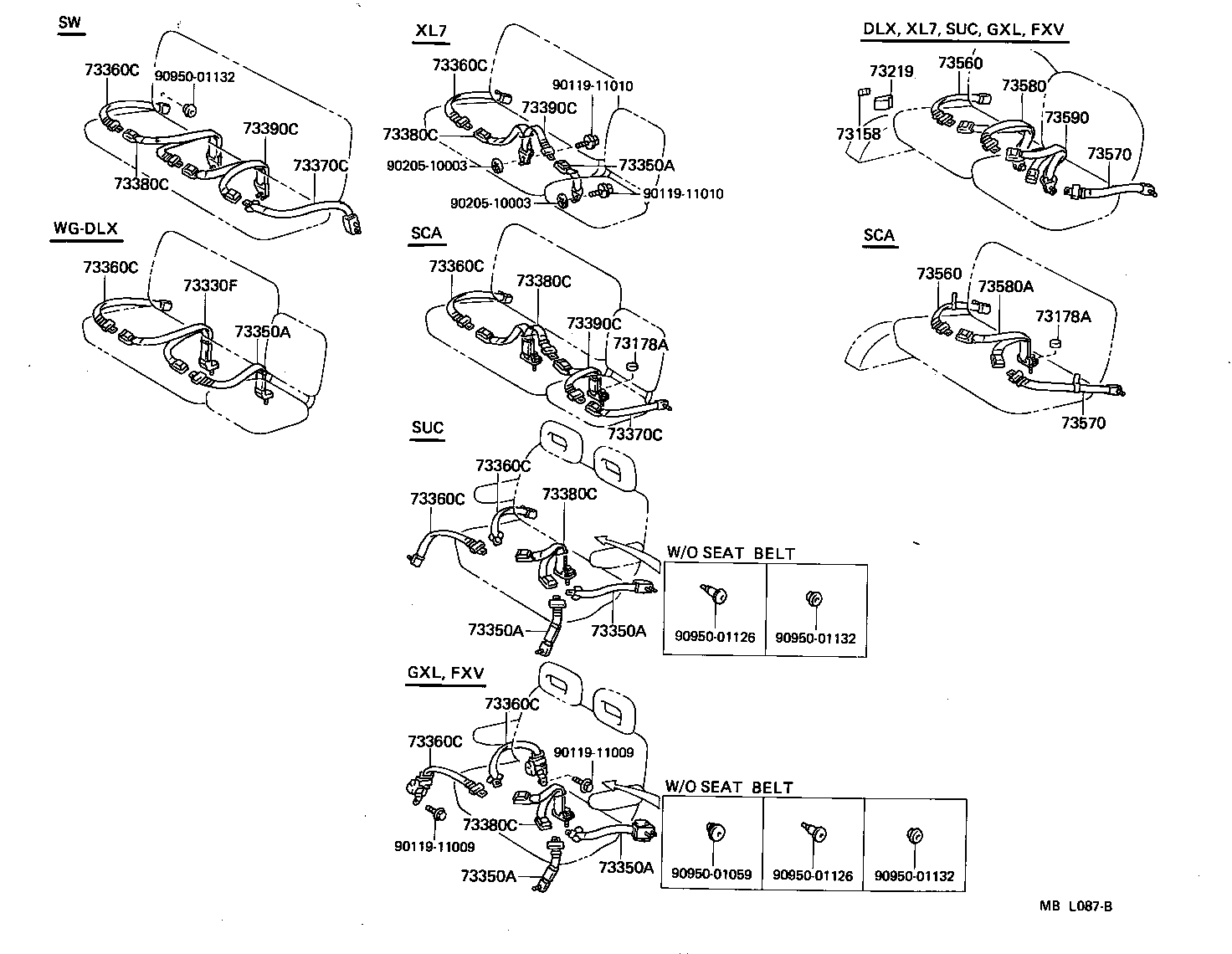

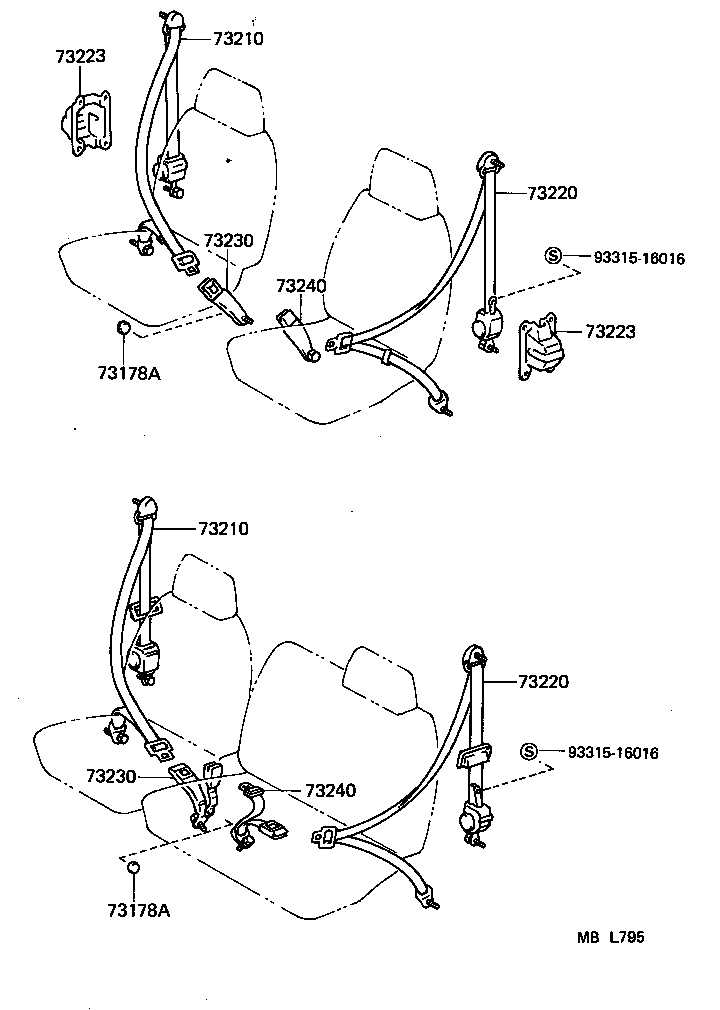

Figure MBJ913B MBJ913B 1985-09 → 1986-08 Figure MBL795 MBL795 1986-08 → — Figure MBL087B MBL087B 1986-08 → — Figure MBL458 MBL458 1986-09 → —

Part groups

PNCDescription
73002 Belt Set, Rear Seat
73158 Bracket, Seat Belt Guide Set
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330F Belt Sub Assy, Rear NO.1 Seat Lap Type
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
