Toyota Liteace Van,Wagon

1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

15 part groups · 12 illustrations

Illustrations

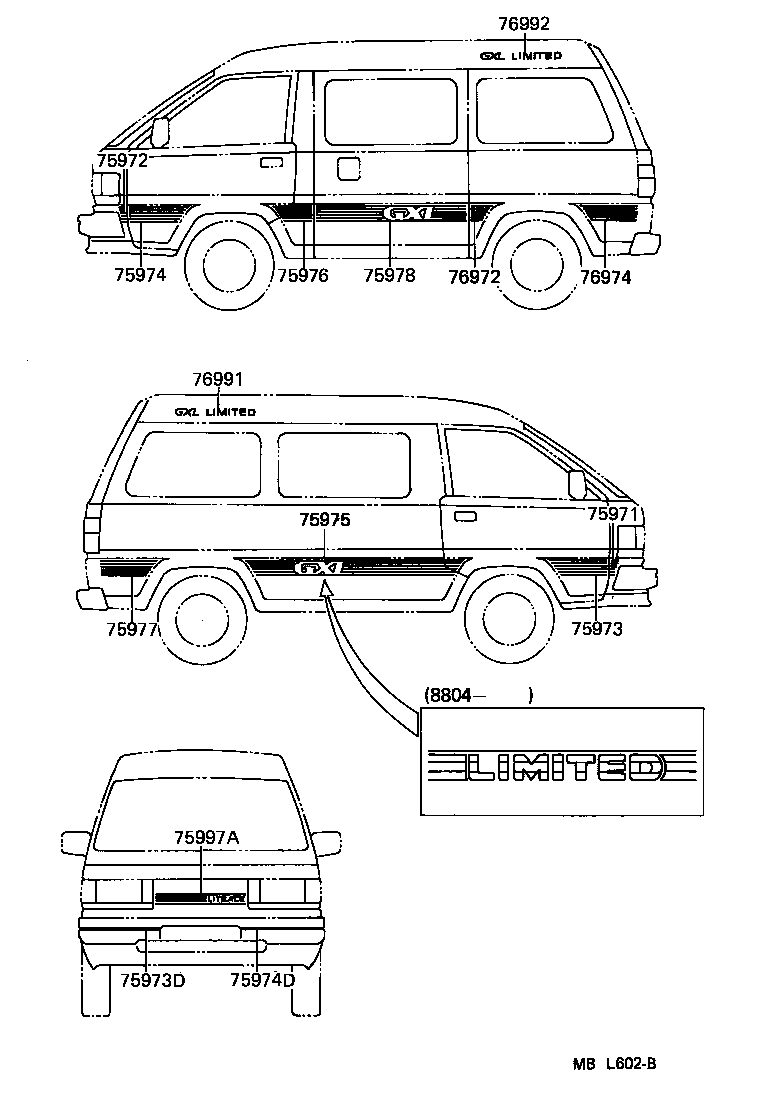

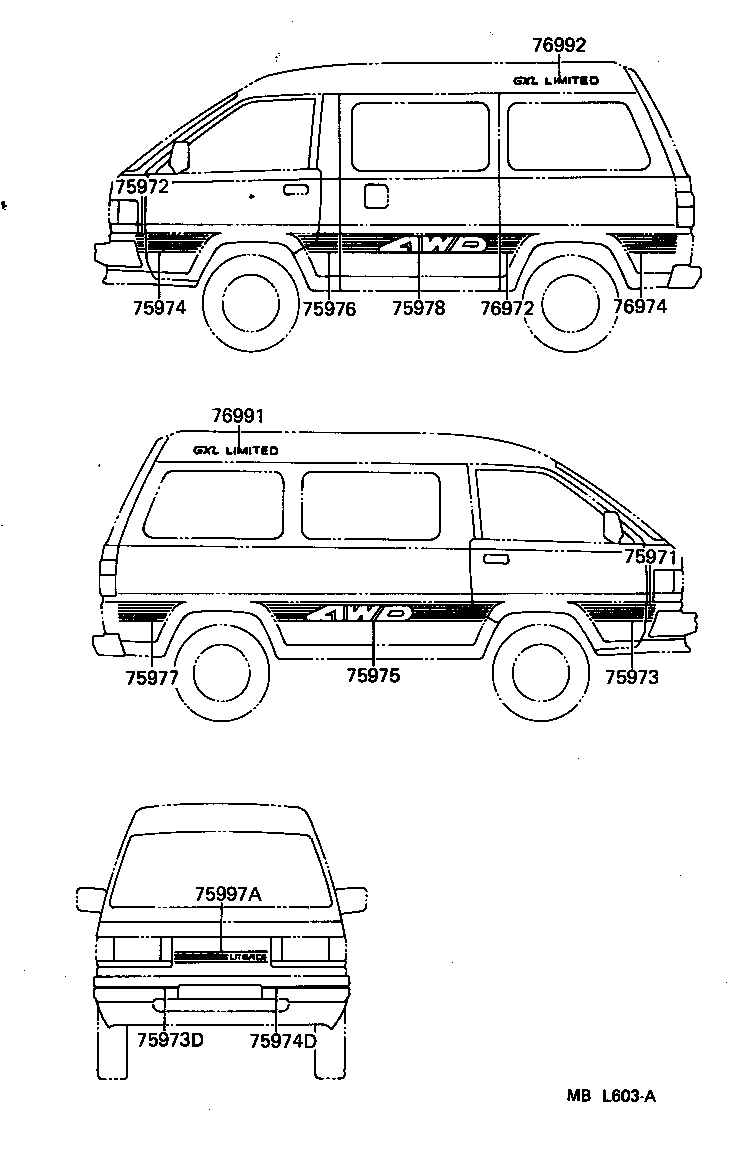

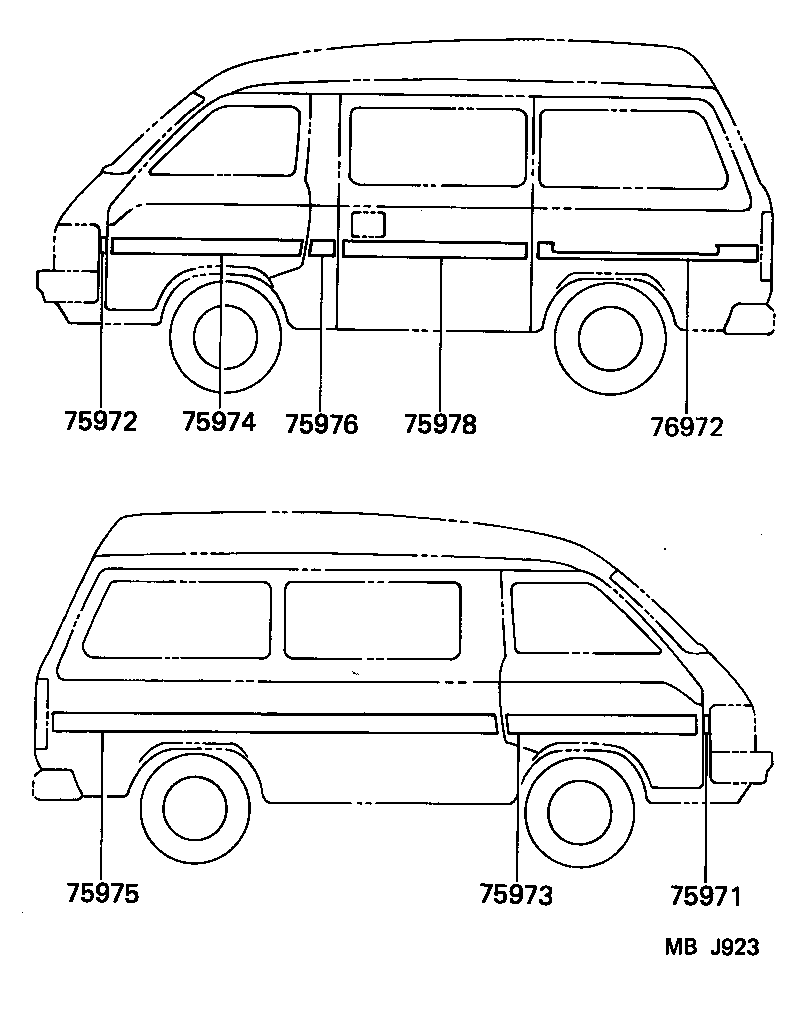

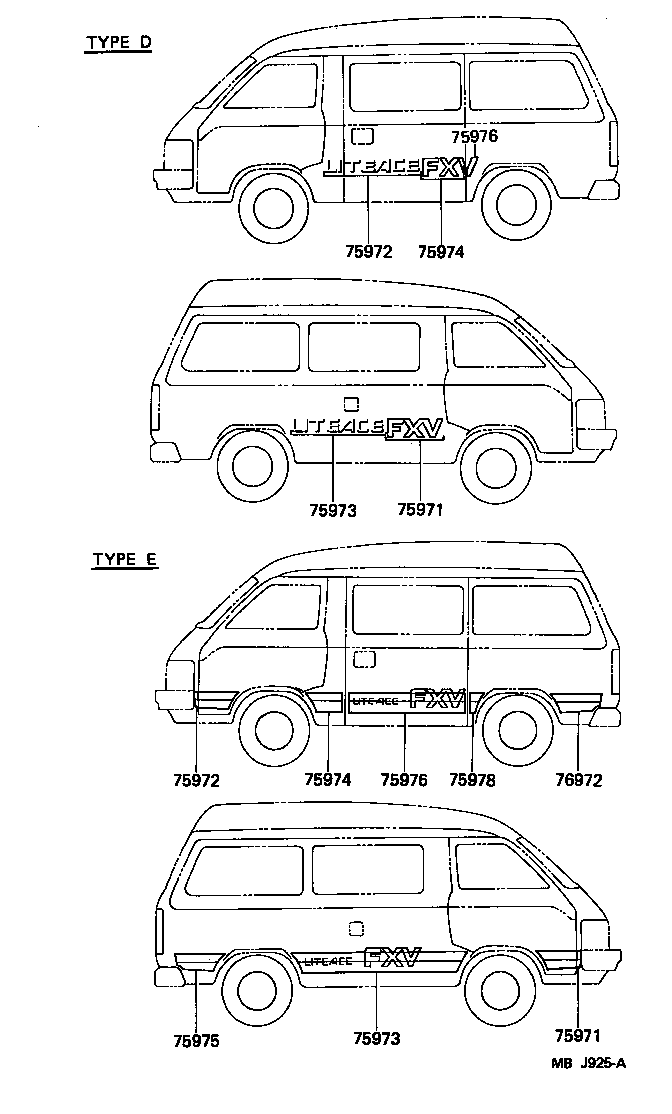

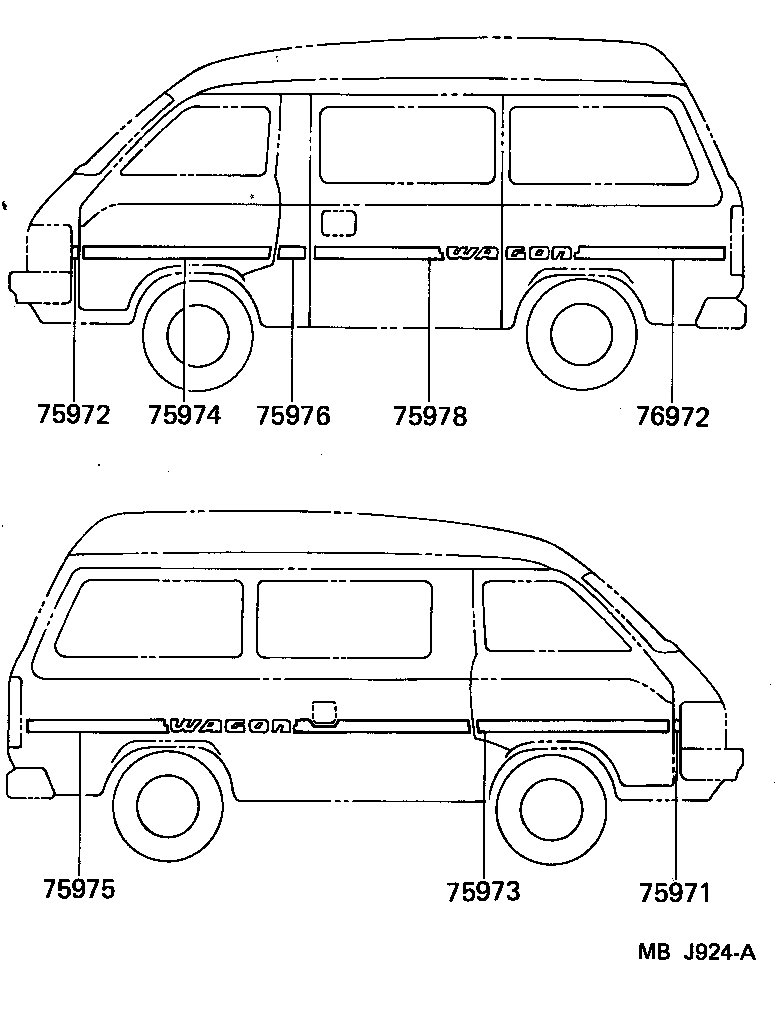

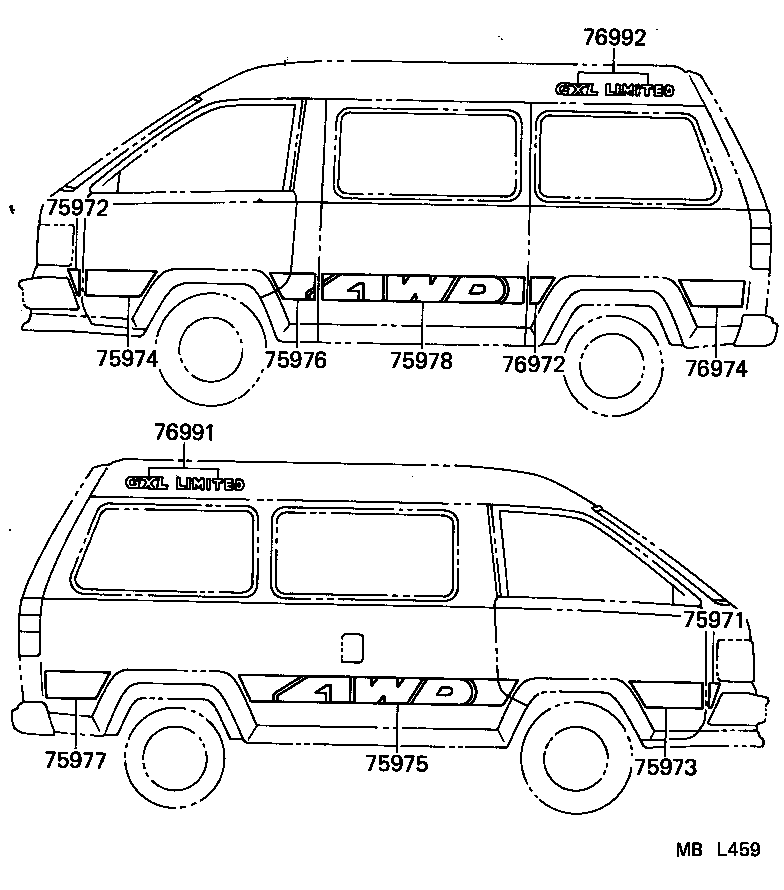

Figure MBJ922 MBJ922 1985-09 → — Figure MBJ923 MBJ923 1985-09 → — Figure MBJ924A MBJ924A 1985-09 → — Figure MBJ925A MBJ925A 1985-09 → — Figure MBJ974 MBJ974 1985-10 → — Figure MBL088 MBL088 1986-04 → 1986-08 Figure MBL089 MBL089 1986-08 → — Figure MBL090 MBL090 1986-08 → — Figure MBL459 MBL459 1986-10 → 1987-04 Figure MBL602B MBL602B 1987-04 → — Figure MBL603A MBL603A 1987-04 → — Figure MBR919 MBR919 1988-04 → —

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75972 Stripe, Side, LH NO.1
75973 Stripe, Side, RH NO.2
75973D Stripe, Front Bumper Side, RH
75974 Stripe, Center Pillar, LH NO.2
75974D Stripe, Front Bumper Side, LH
75975 Stripe, Side, RH Upr NO.3
75976 Stripe, Side, LH Upr
75977 Stripe, Side, RH NO.4
75978 Stripe, Side, LH NO.4
75997A Stripe, Front Panel
76972 Stripe, Quarter, Rear LH
76974 Stripe, Side, LH NO.6
76991 Stripe, Side Mark, RH NO.1
76992 Stripe, Side Mark, LH NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
