Toyota Liteace Van,Wagon

1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

27 part groups · 5 illustrations

Illustrations

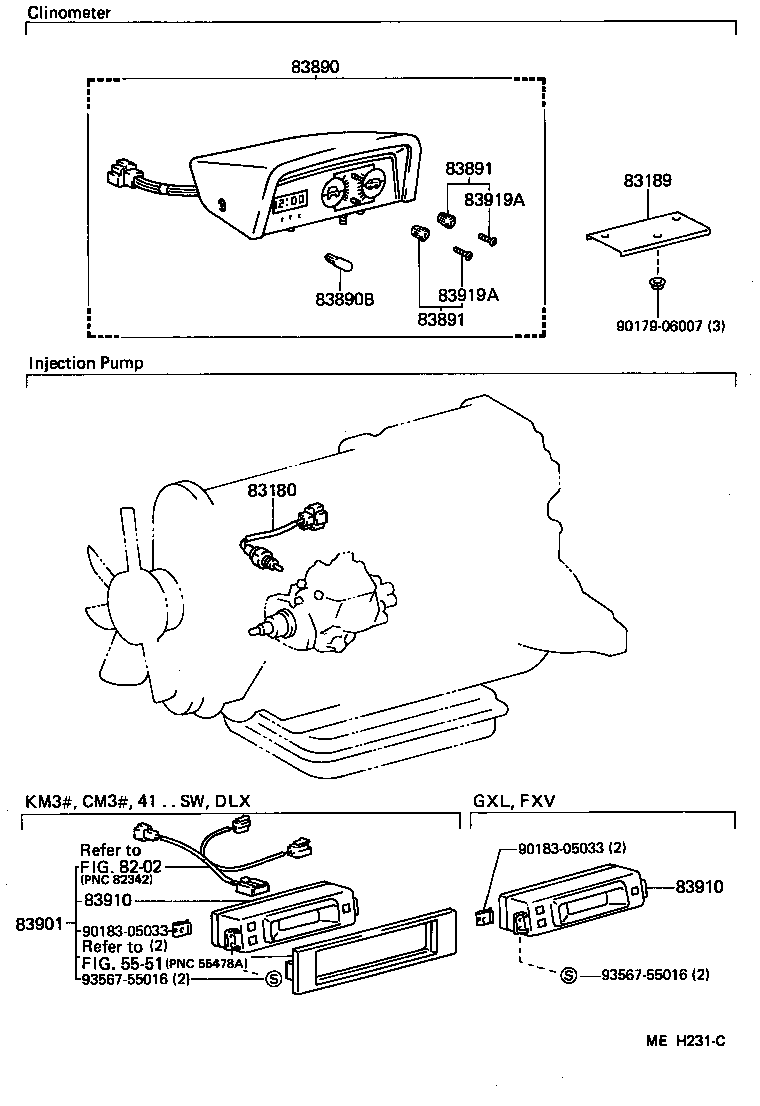

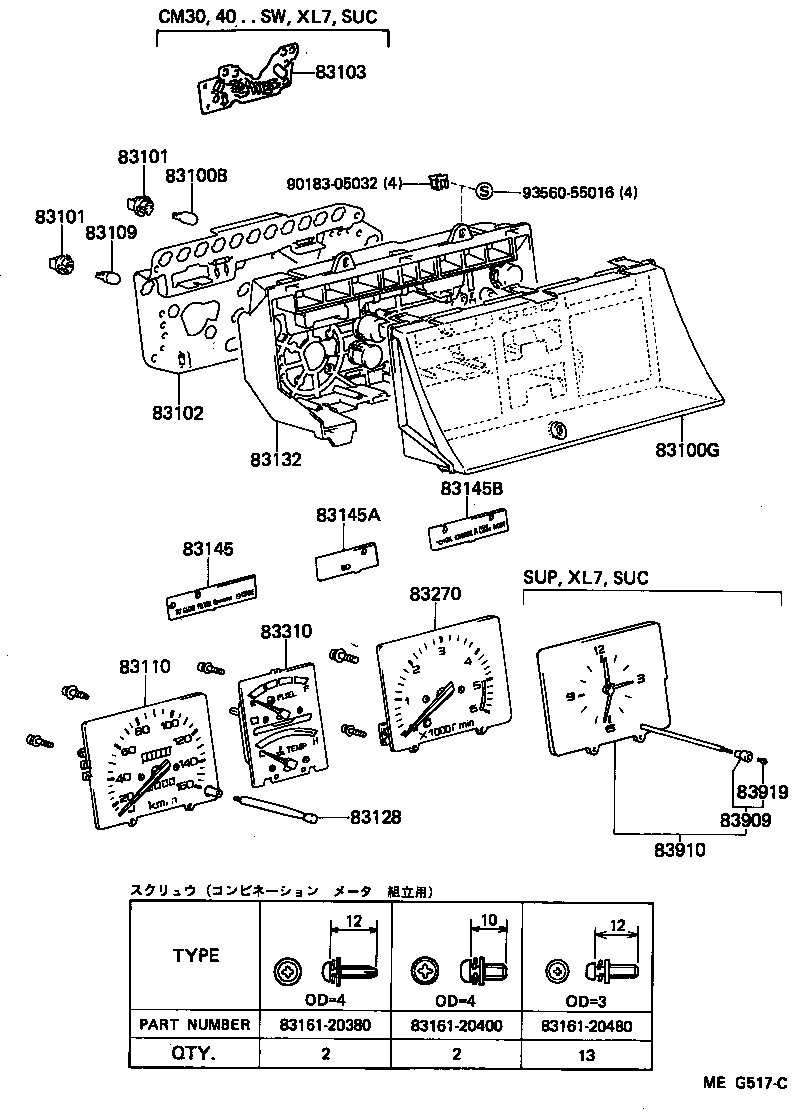

Figure MEG516B MEG516B 1985-09 → — Figure MEG517C MEG517C 1985-09 → — Figure MEG517C MEG517C 1985-10 → — Figure MEG518B MEG518B 1985-09 → — Figure MEH231C MEH231C 1985-09 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83180 Detector Assy, Revolution
83189 Bracket, Meter
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83890 Clinometer Assy
83890B Bulb, Clinometer
83891 Knob, Clinometer
83901 Clock And Setting Parts Set
83909 Knob, Clock
83910 Clock Assy
83919 Screw, Clock
83919A Screw (FOR CLINOMETER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
