Toyota Liteace Van,Wagon

1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

15 part groups · 2 illustrations

Illustrations

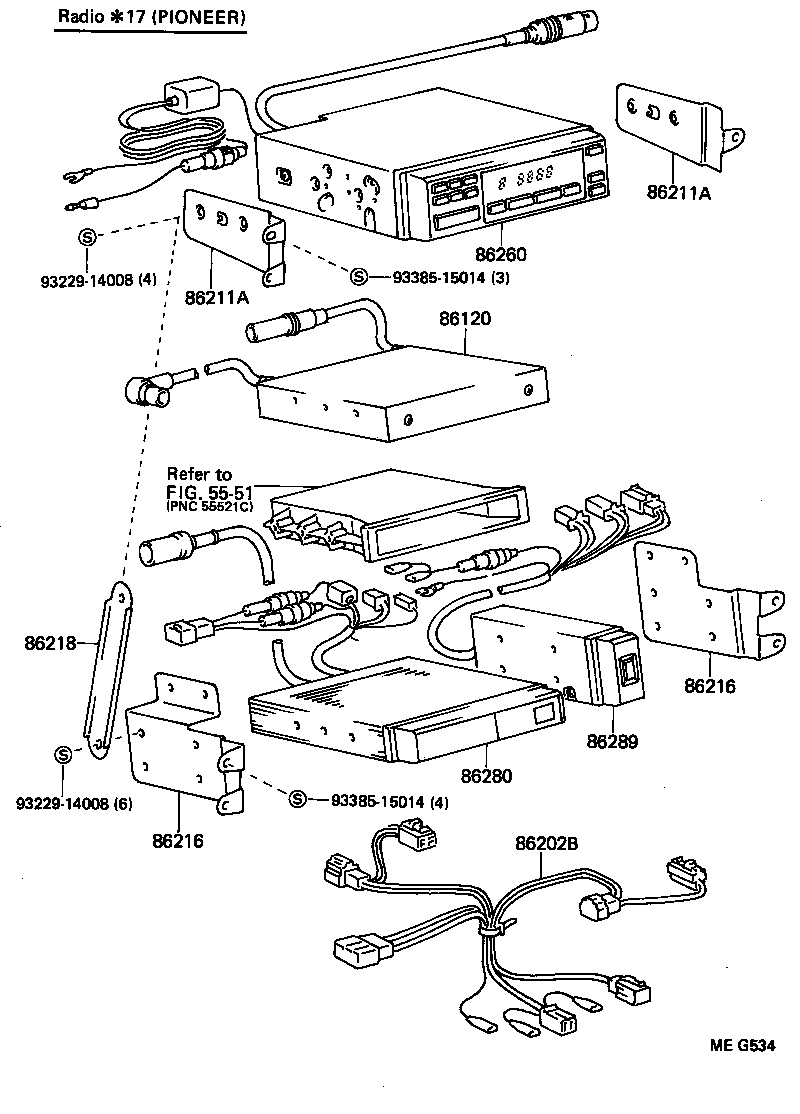

Figure MEG533C MEG533C 1985-09 → — Figure MEG534 MEG534 1985-09 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86202B Wire, Tape Player
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86211A Bracket, Stereo Component, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86214 Bracket, Radio, NO.4
86216 Bracket, Stereo Component, NO.2
86218 Bracket, Stereo Component, NO.3
86260 Tape Player Assy
86280 Amplifier Assy, Stereo Component
86289 Controller, Stereo Component Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
