Toyota Liteace Van,Wagon
1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan
Discontinued model
Data version 1988-12

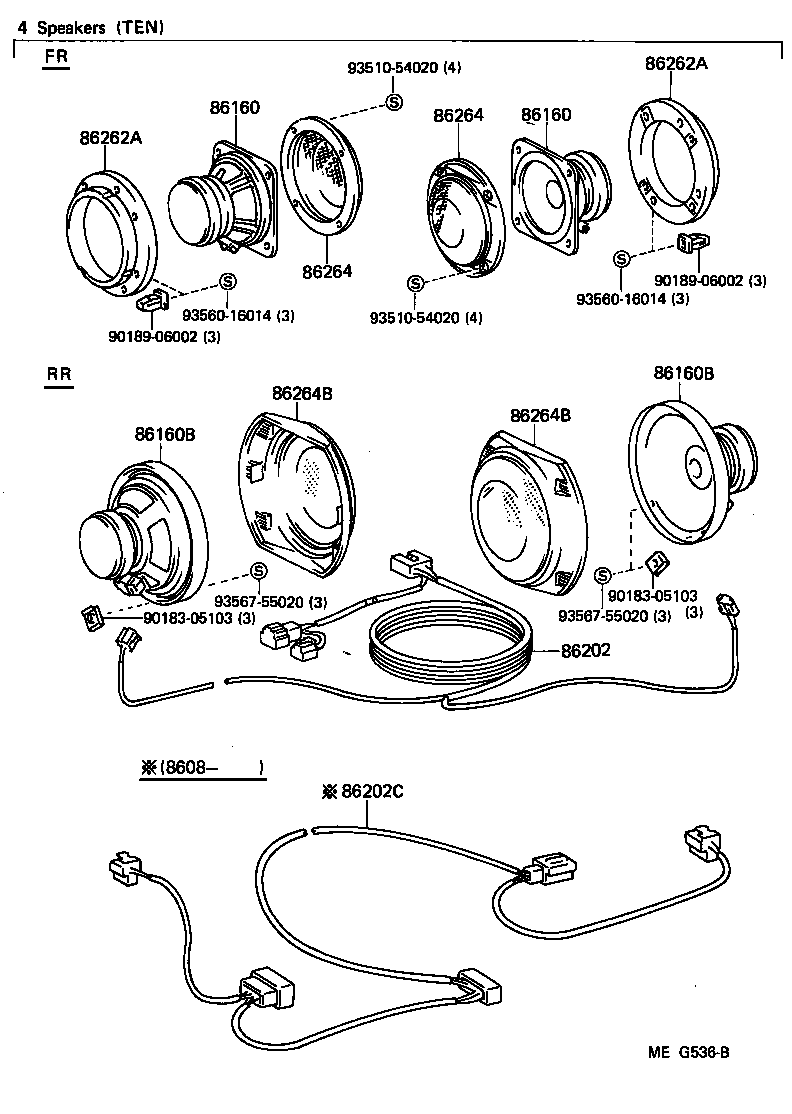

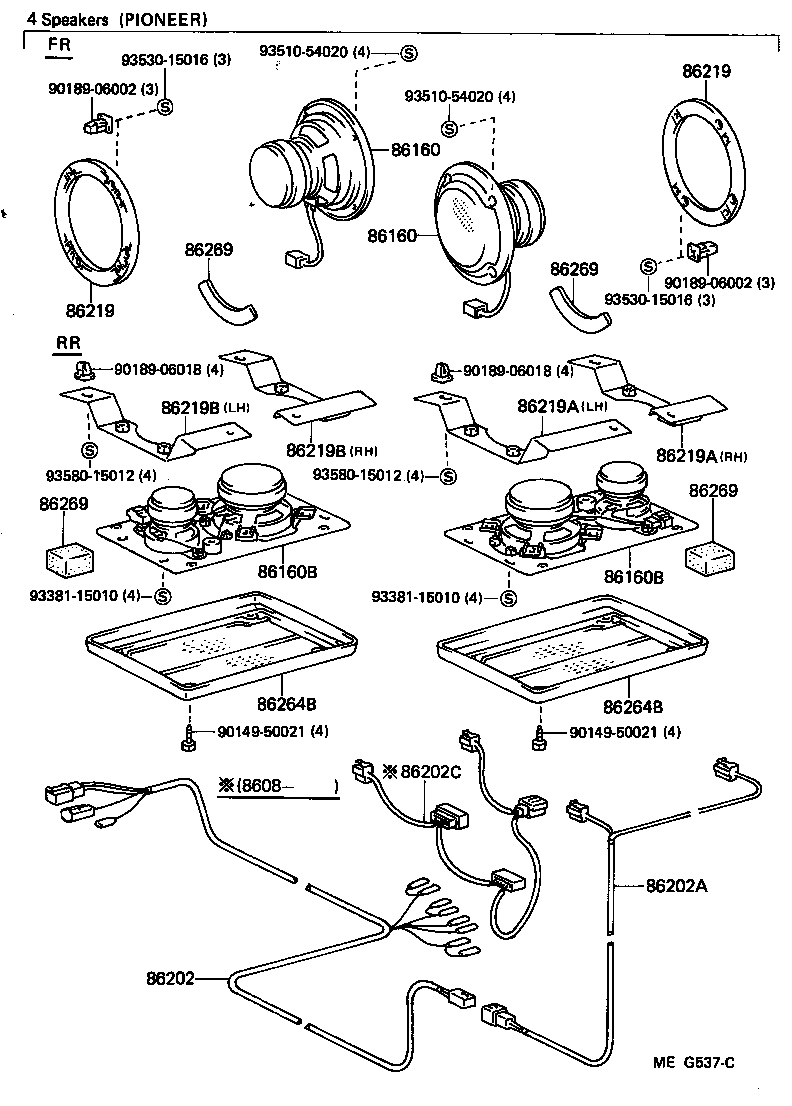

Speaker
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86202 | Wire, Speaker, NO.1 |
| 86202A | Wire, Speaker, NO.2 |
| 86202C | Wire, Speaker, NO.3 |
| 86219 | Bracket, Stereo Component Speaker, NO.1 |
| 86219A | Bracket, Stereo Component Speaker, NO.2 |
| 86219B | Bracket, Stereo Component Speaker, NO.3 |
| 86262A | Cover, Speaker, Front |
| 86264 | Grille, Speaker, Front |
| 86264B | Grille, Speaker, Rear |
| 86269 | Pad, Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
