Toyota Liteace Van,Wagon

1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Set

6 part groups · 5 illustrations

Illustrations

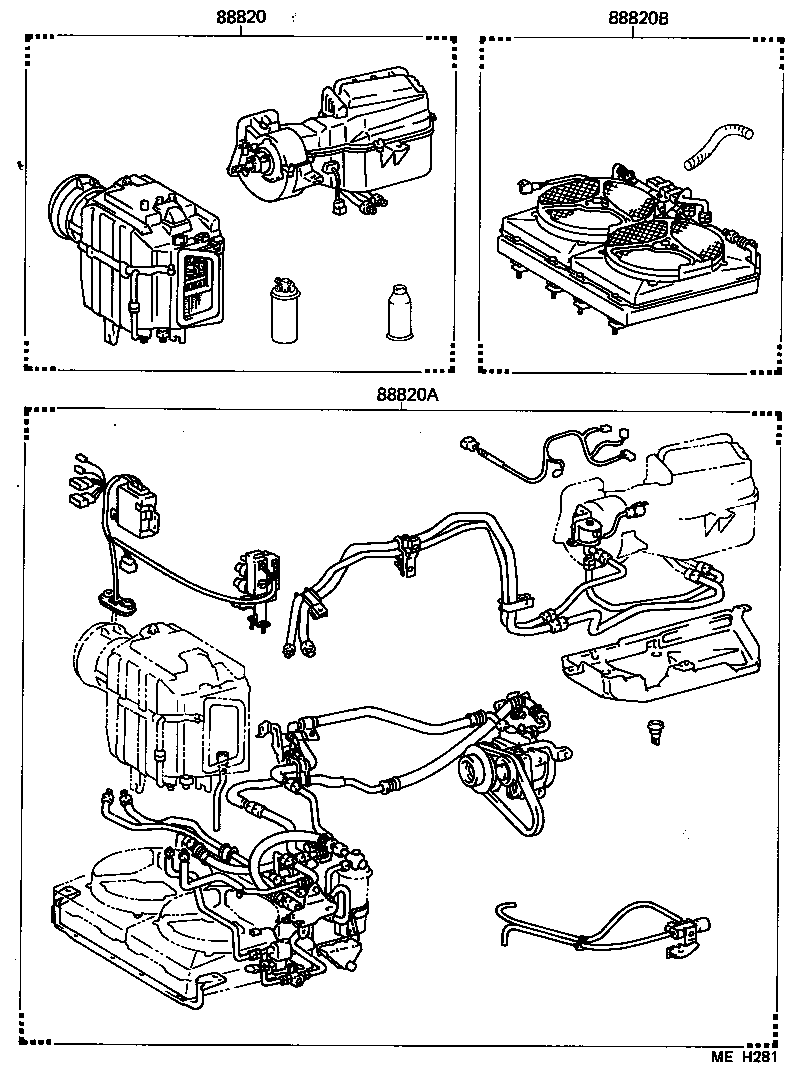

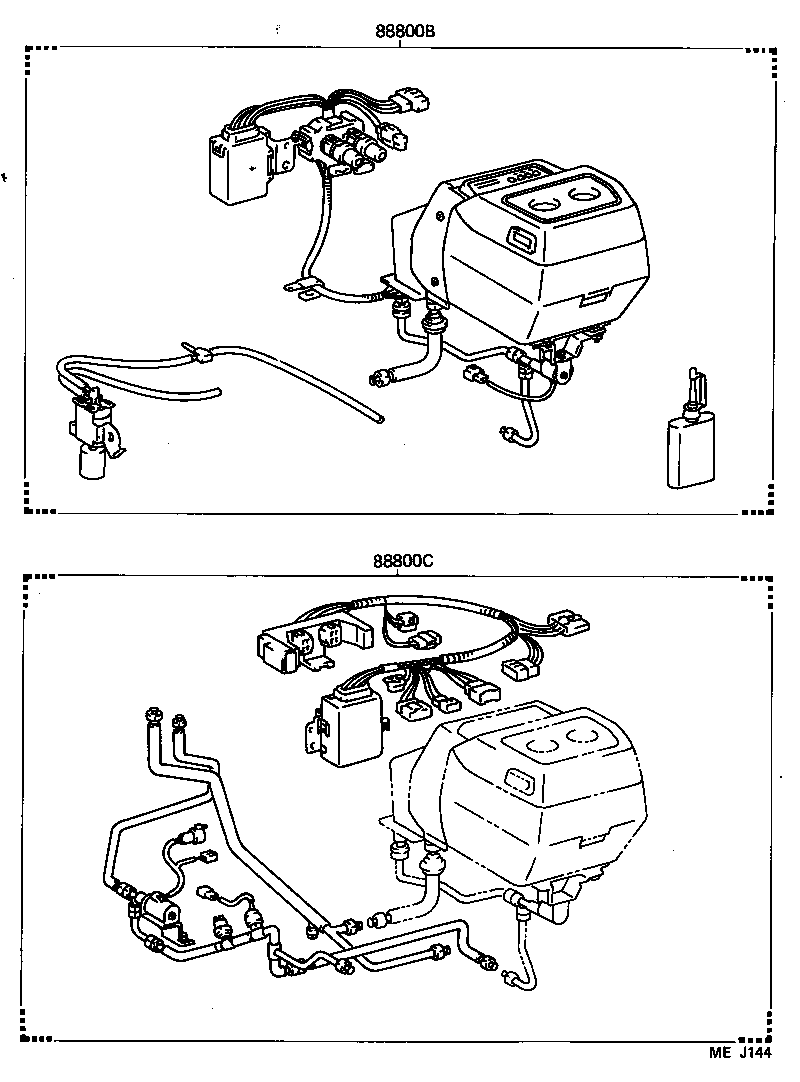

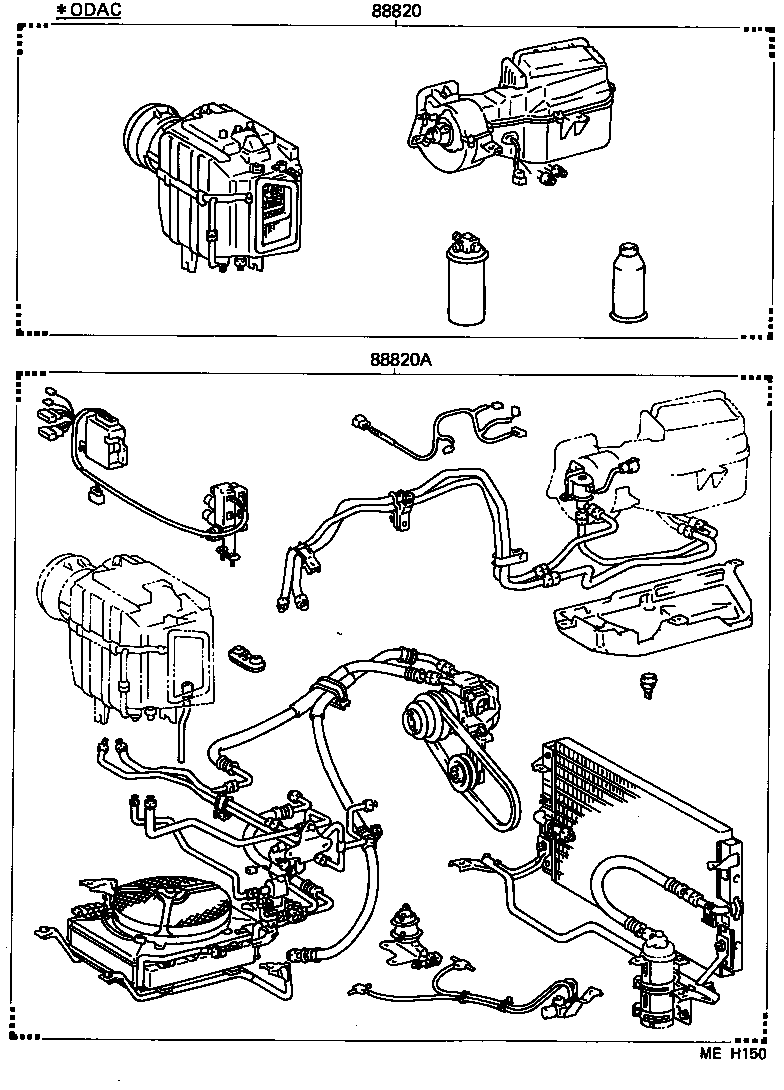

Figure MEG542A MEG542A 1985-09 → — Figure MEH150 MEH150 1985-09 → — Figure MEH281 MEH281 1985-09 → — Figure MEH151 MEH151 1985-09 → — Figure MEJ144 MEJ144 1985-09 → —

Part groups

PNCDescription
88800B Cool Box And Accessory Assy, NO.1
88800C Cool Box And Accessory Assy, NO.2
88820 Air Conditioner & Accessory Sub-assy, NO.1
88820A Air Conditioner & Accessory Sub-assy, NO.2
88820B Air Conditioner & Accessory Sub-assy, NO.3
88870 Duct And Accessory Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
