Toyota Liteace Van,Wagon

1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

12 part groups · 3 illustrations

Illustrations

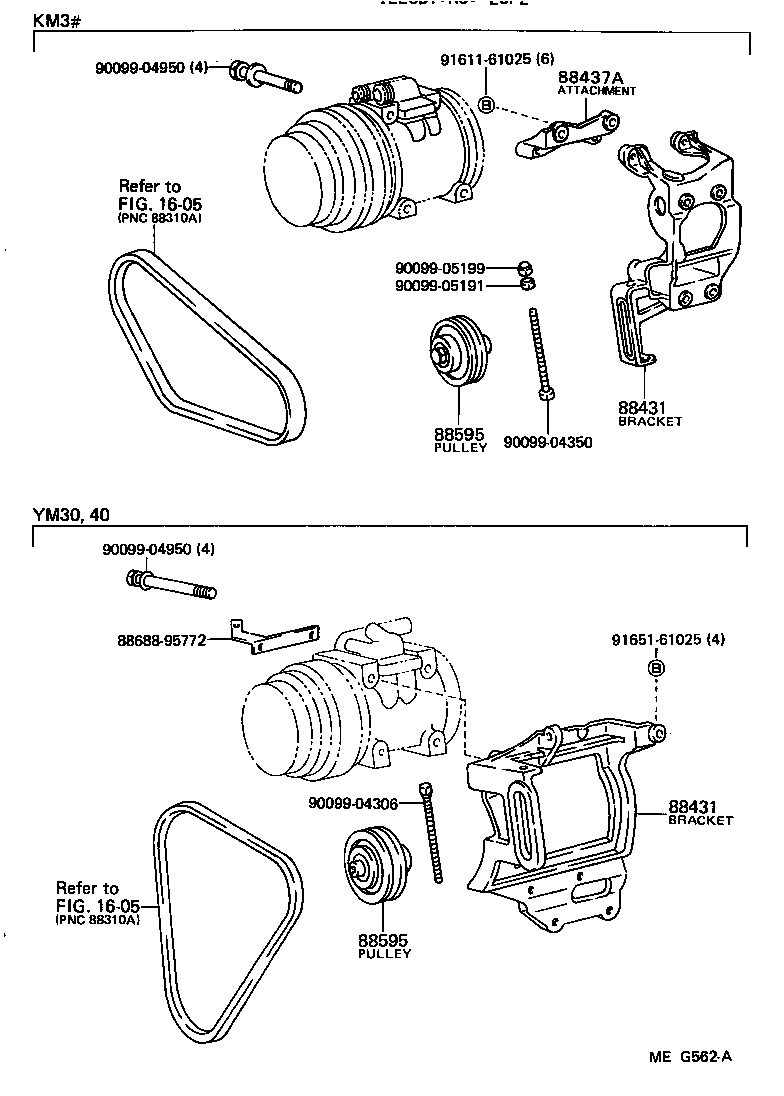

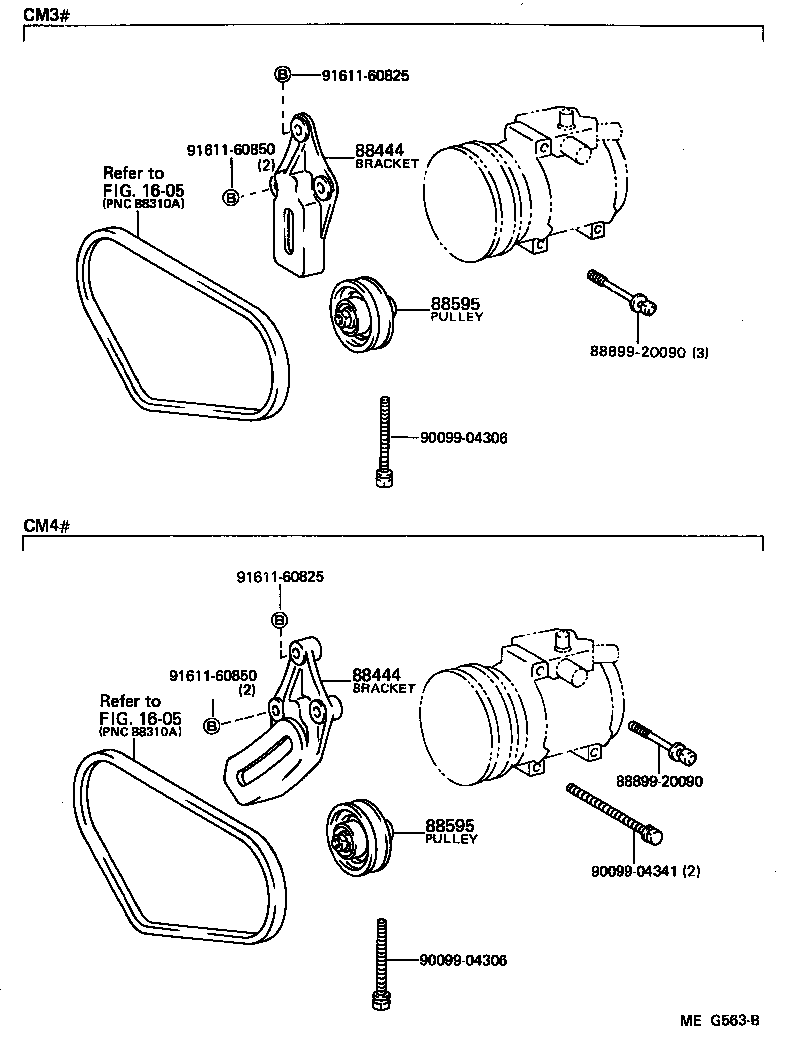

Figure MEG631B MEG631B 1985-09 → — Figure MEG562A MEG562A 1985-09 → — Figure MEG563B MEG563B 1985-09 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330A Washer (FOR MAGNET CLUTCH)
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88431 Bracket, Compressor Mounting, NO.1
88437A Attachment, Compressor
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
