Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

23 part groups · 8 illustrations

Illustrations

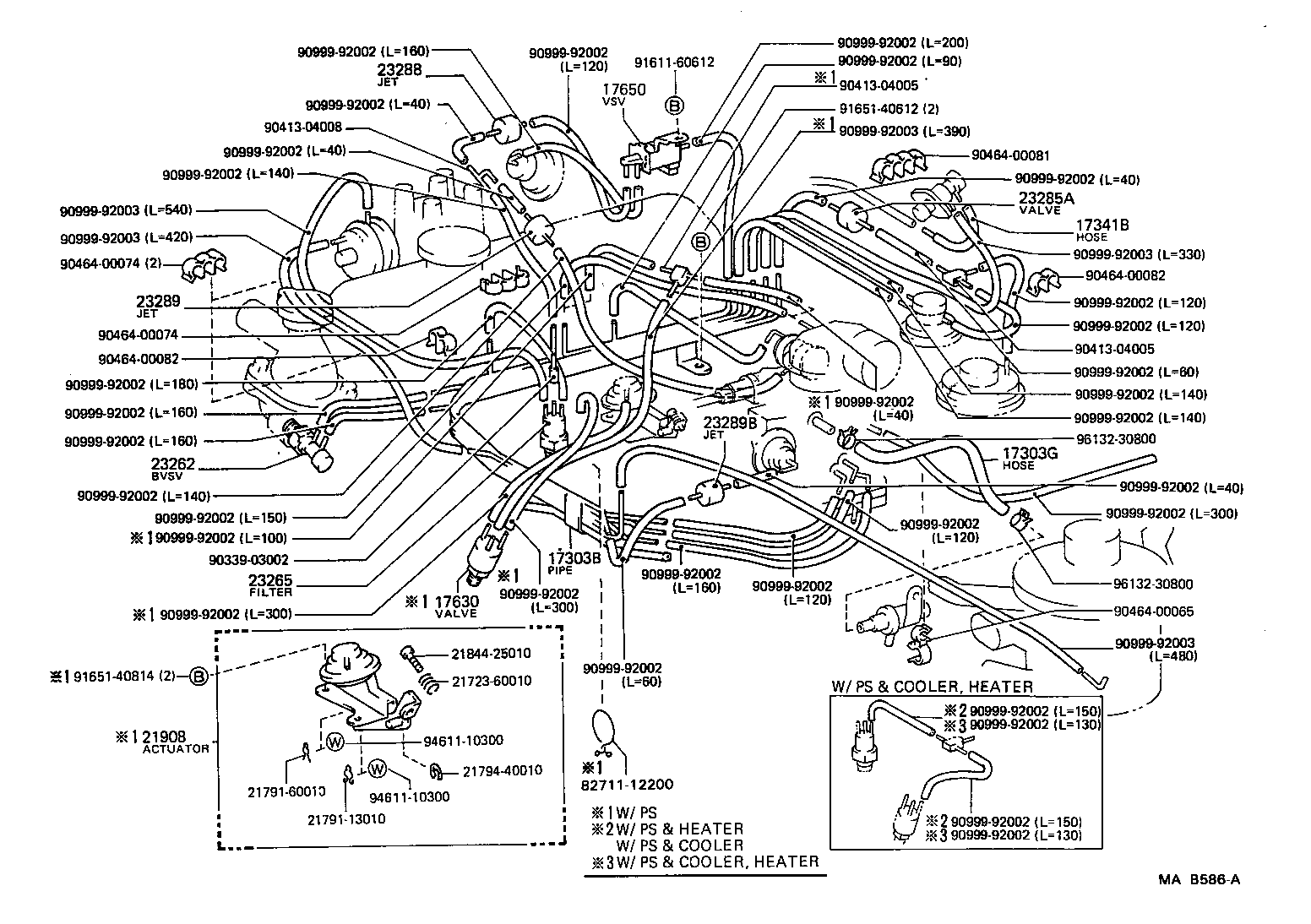

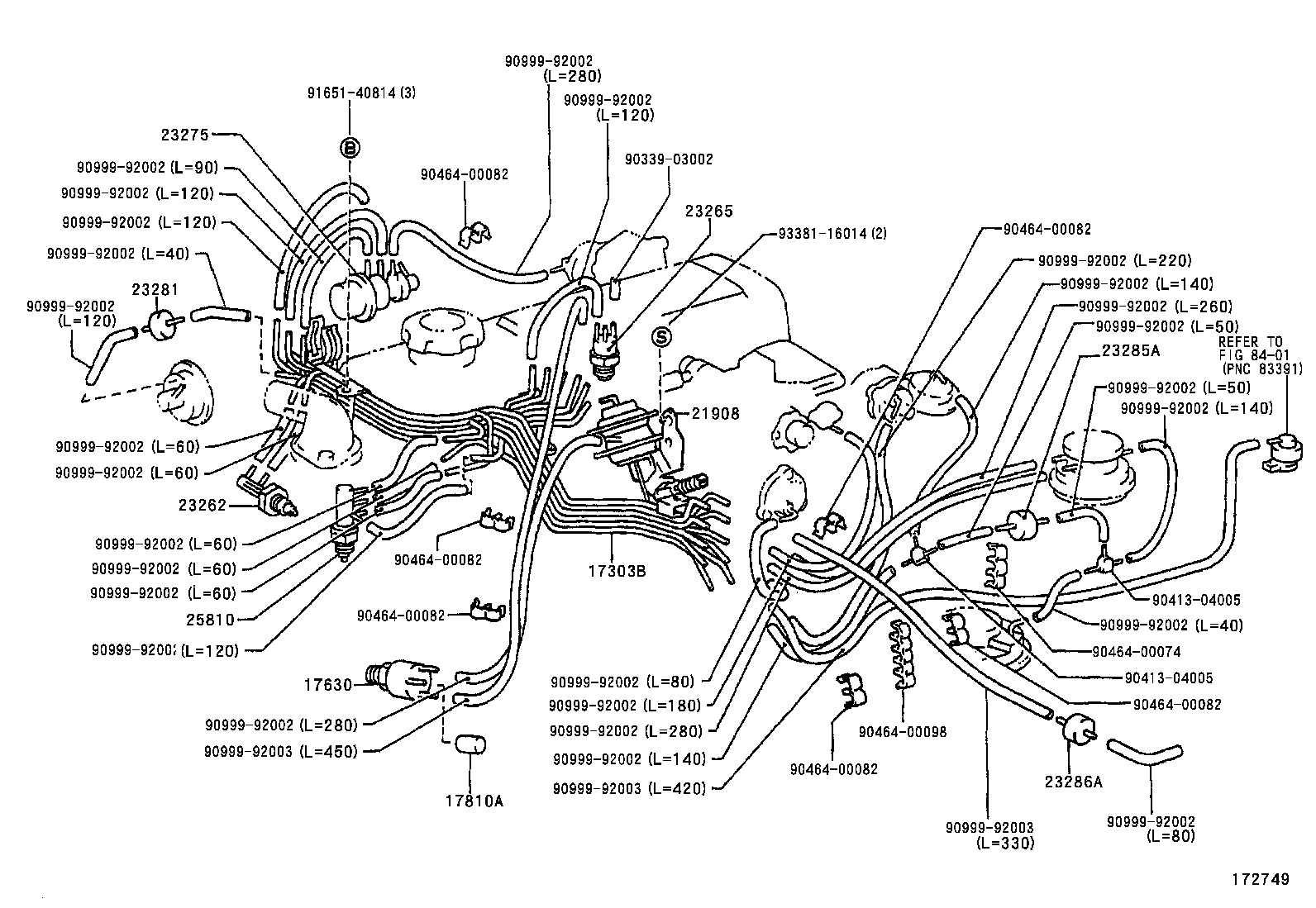

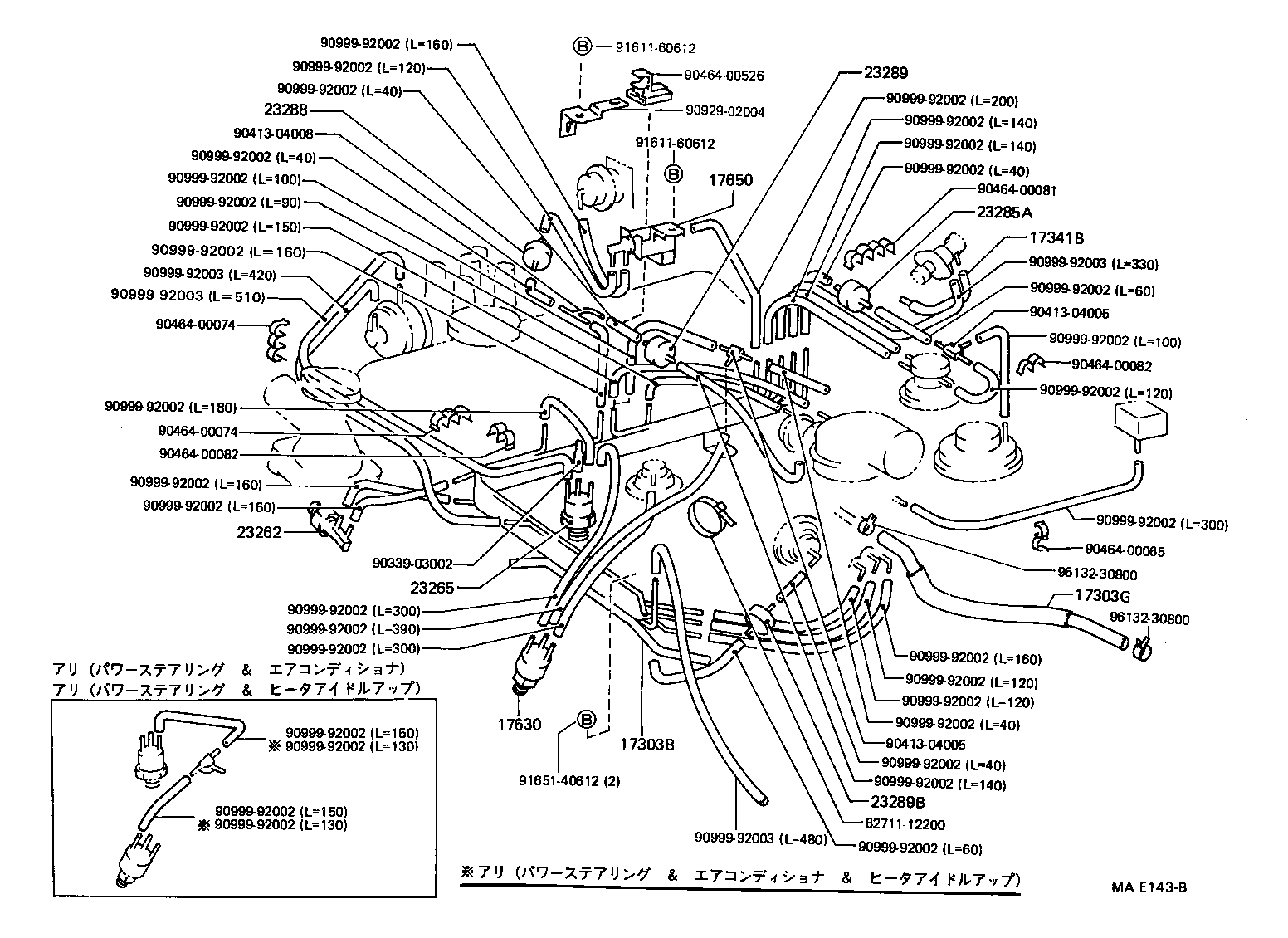

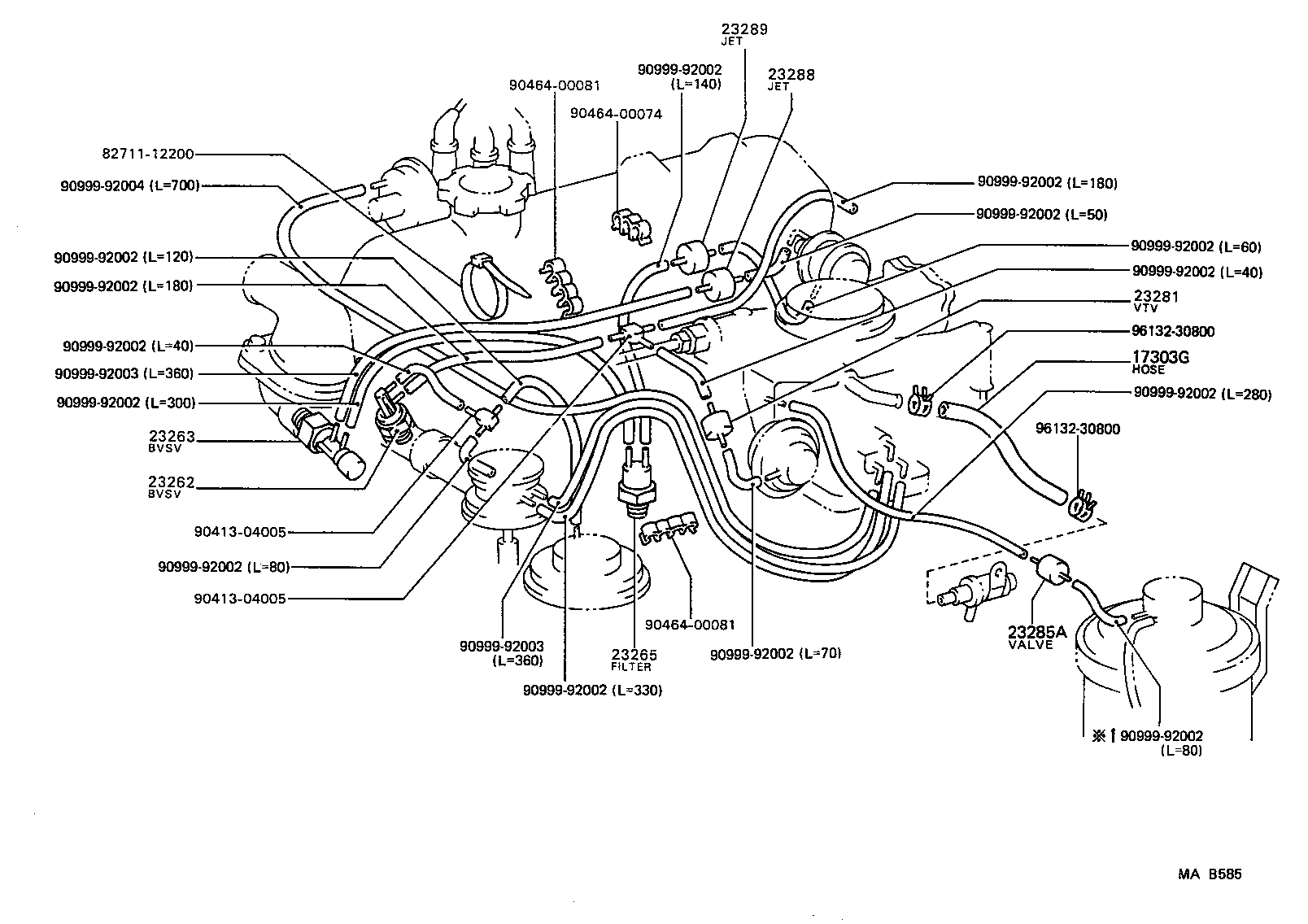

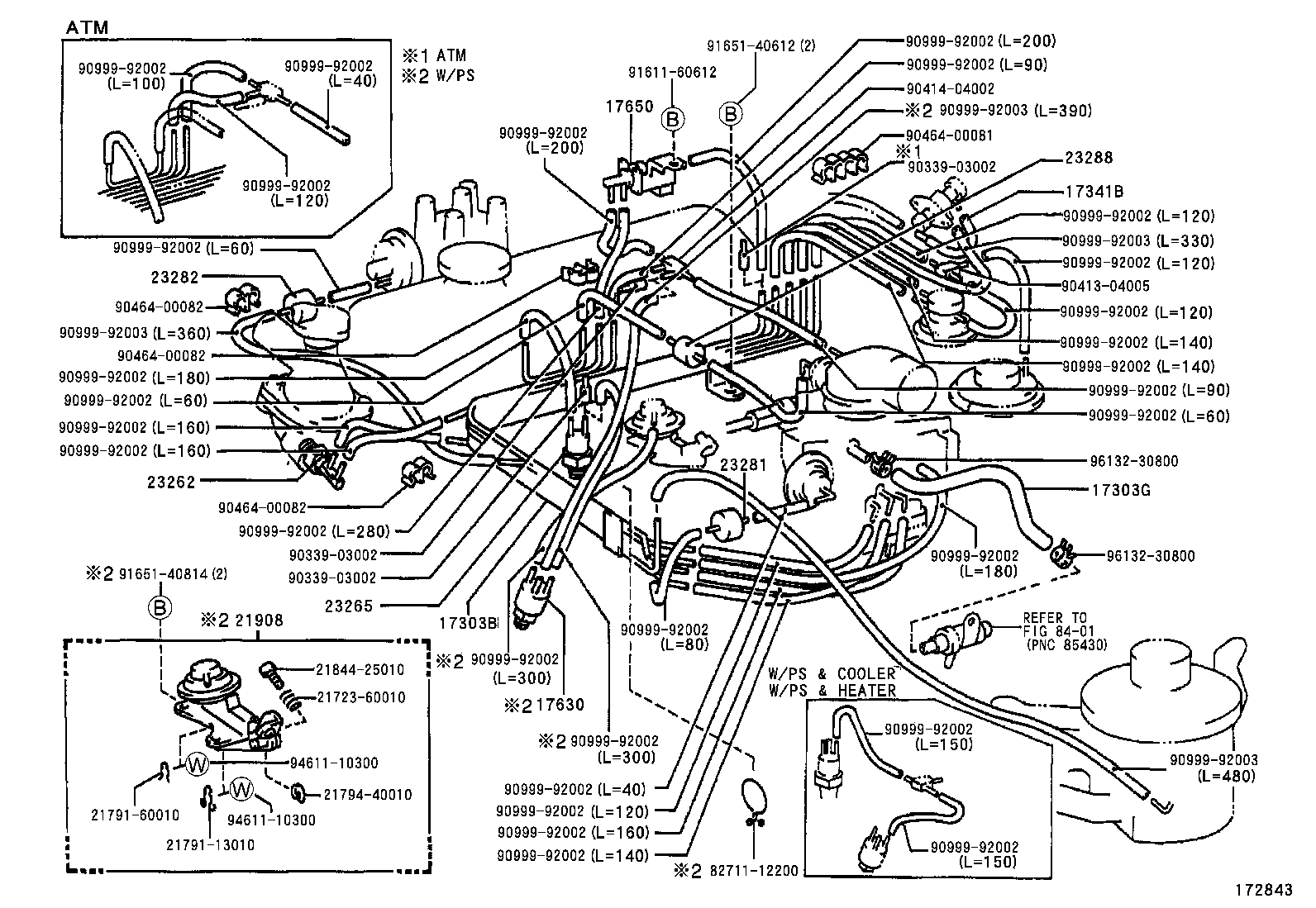

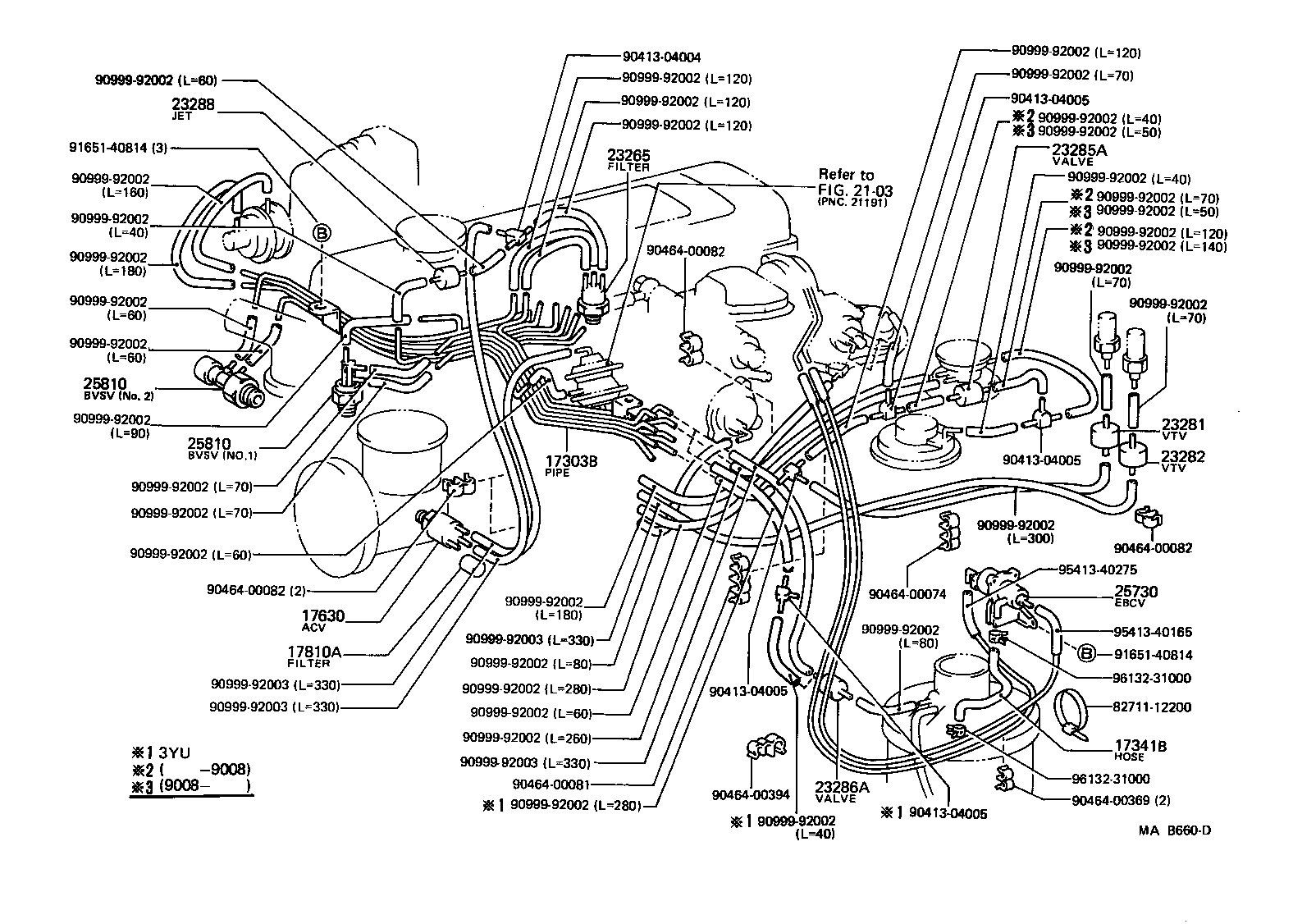

Figure MAB298A MAB298A 1988-08 → — Figure MA9503A MA9503A 1988-08 → — Figure MAB585 MAB585 1988-08 → 1990-08 Figure MAB586A MAB586A 1988-08 → 1990-08 Figure 172843 172843 1988-08 → 1990-08 Figure MAE143B MAE143B 1990-08 → — Figure MAB660D MAB660D 1988-08 → — Figure 172749 172749 1990-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303G Hose, NO.3(FOR AIR PIPE)
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
21908 Actuator Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
23289B Jet, NO.3
25730 Valve Assy, Electric Bleed Air Control
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25819 Valve Assy, Vacuum Regulating
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
