Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 2 illustrations

Illustrations

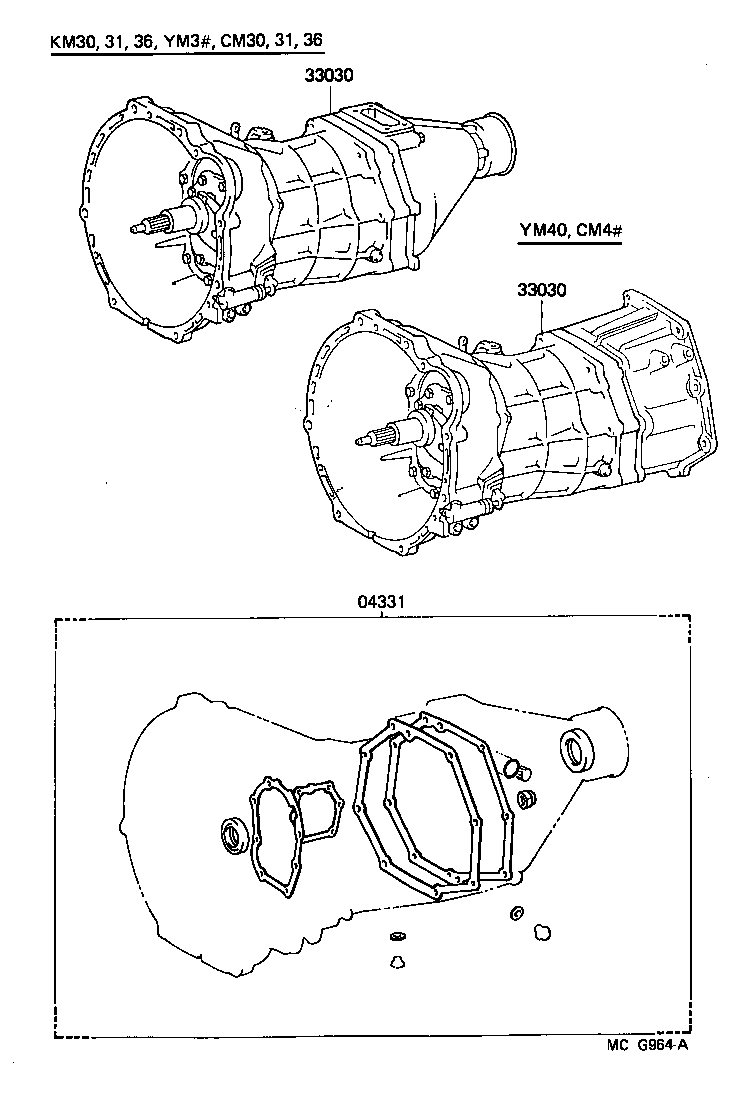

Figure MCG963 MCG963 1988-08 → 1990-08 Figure MCG964A MCG964A 1988-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
