Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Vacuum Piping

17 part groups · 2 illustrations

Illustrations

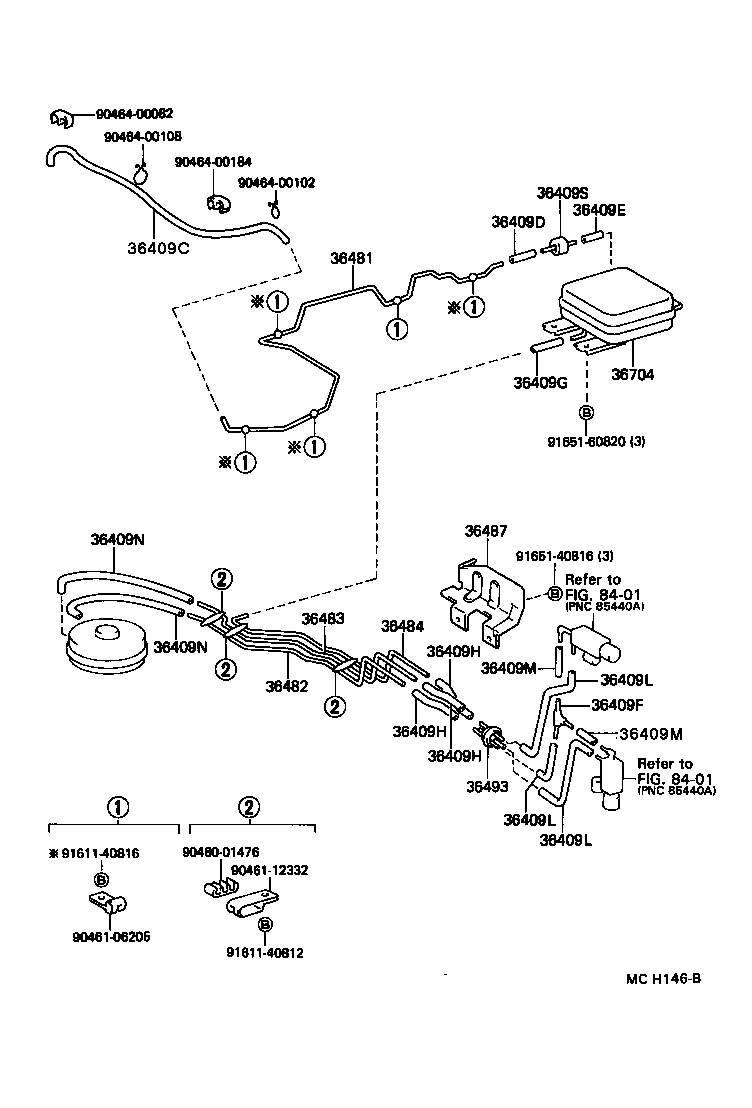

Figure MCH145 MCH145 1988-08 → — Figure MCH146B MCH146B 1988-08 → —

Part groups

PNCDescription
36409C Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
36409D Hose, Vacuum, NO.2 (FOR FRONT DRIVE SHIFT)
36409E Hose, Vacuum, NO.3 (FOR FRONT DRIVE SHIFT)
36409F Way, 3, NO.1 (FOR FRONT DRIVE SHIFT)
36409G Hose, Vacuum, NO.4 (FOR FRONT DRIVE SHIFT)
36409H Hose, Vacuum, NO.5 (FOR FRONT DRIVE SHIFT)
36409L Hose, Vacuum, NO.7 (FOR FRONT DRIVE SHIFT)
36409M Hose, Vacuum, NO.8 (FOR FRONT DRIVE SHIFT)
36409N Hose, Vacuum, NO.9 (FOR FRONT DRIVE SHIFT)
36409S Valve, Check (FOR FRONT DRIVE SHIFT)
36481 Tube, Front Drive Vacuum, NO.1
36482 Tube, Front Drive Vacuum, NO.2
36483 Tube, Front Drive Vacuum, NO.3
36484 Tube, Front Drive Vacuum, NO.4
36487 Protector, Transfer Vacuum Tube
36493 Grommet, Transfer Vacuum
36704 Reservoir Sub-assy, Transmission Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
