Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

13 part groups · 2 illustrations

Illustrations

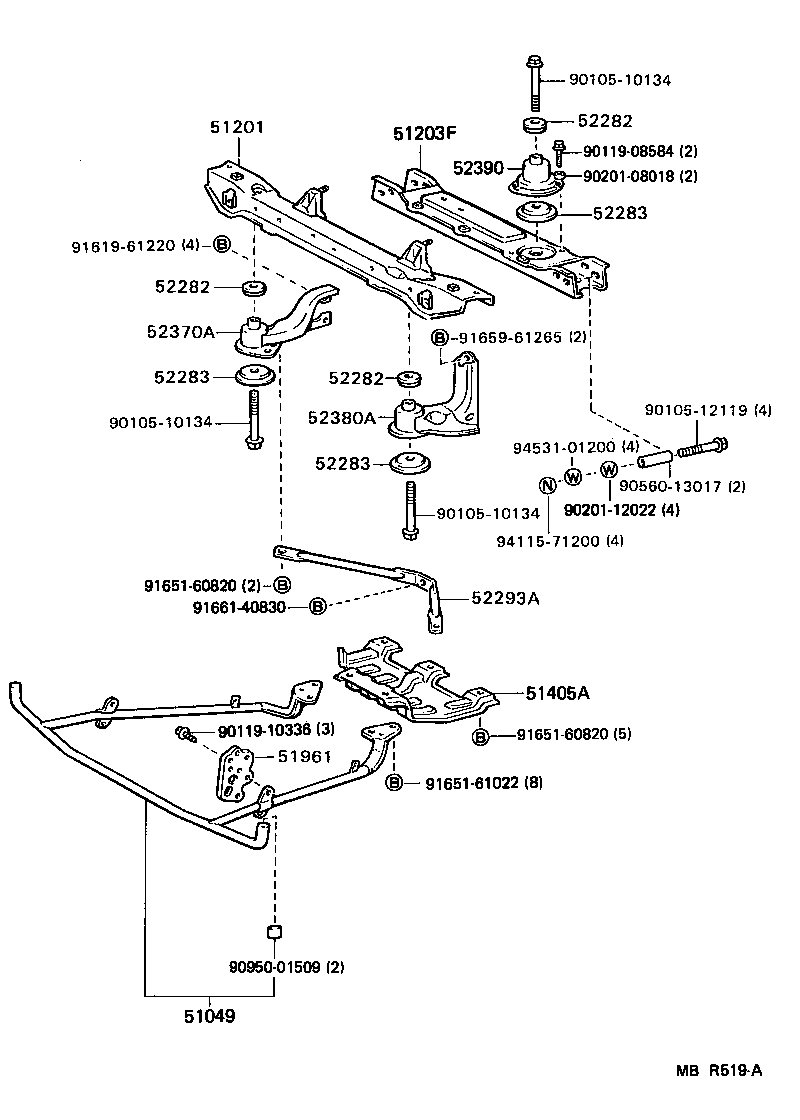

Figure MBR518A MBR518A 1988-08 → — Figure MBR519A MBR519A 1988-08 → —

Part groups

PNCDescription
51049 Bar Sub-assy, Under Guard, Front
51201 Crossmember Sub-assy, Front Suspension
51203F Crossmember Sub-assy, Front Suspension
51405A Cover Sub-assy, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51443B Cover, Engine Under, NO.3
51961 Hook, NO.1
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52293A Brace, Front Differential Support
52370A Support Assy, Front Differential, Front RH
52380A Support Assy, Front Differential, Front LH
52390 Support Assy, Front Differential, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
