Toyota Liteace Van,Wagon
1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan
Discontinued model
Data version 1992-09

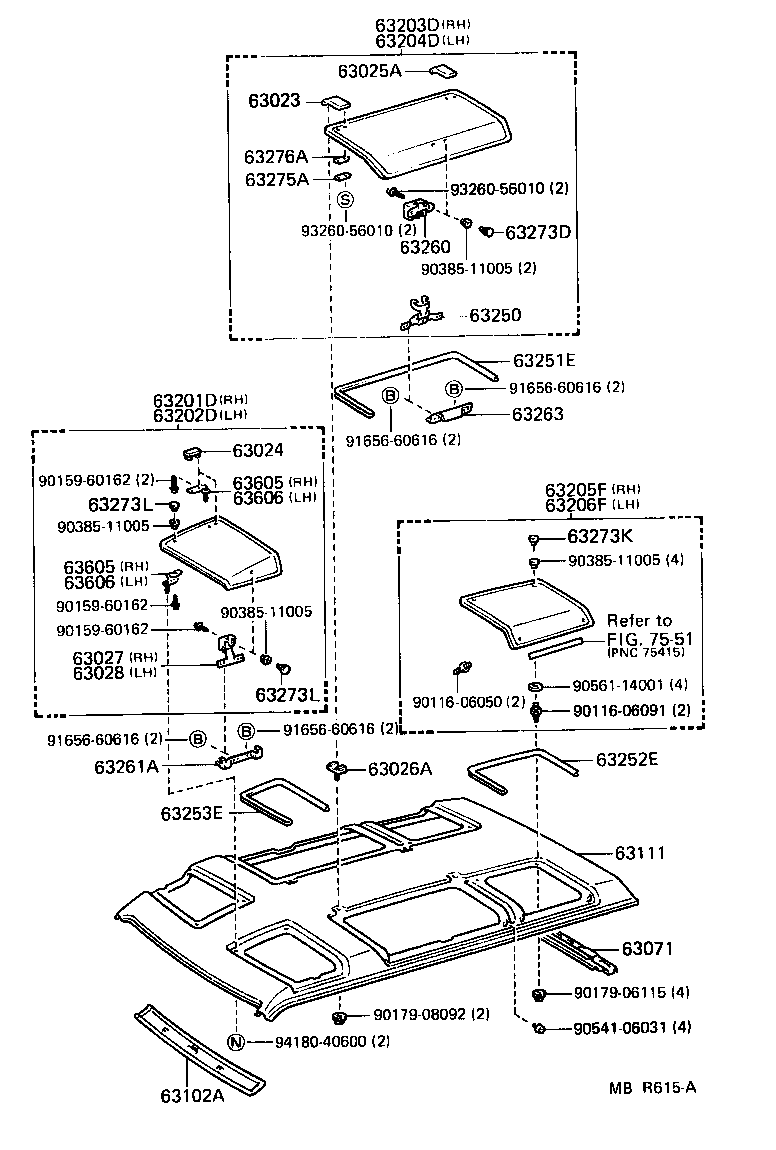

Roof Panel & Back Panel
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63023 | Hinge Sub-assy, Roof Window Male, Front |
| 63024 | Seal Sub-assy, Roof Window Hinge, NO.1 |
| 63025A | Hinge Sub-assy, Roof Window Male |
| 63026A | Hinge Sub-assy, Roof Window Female |
| 63027 | Lock Sub-assy, Roof Window, RH |
| 63028 | Lock Sub-assy, Roof Window, LH |
| 63071 | Frame Sub-assy, Back Door Opening, Upper |
| 63102A | Panel Sub-assy, Windshield Header |
| 63104B | Cushion, Roof TO Roof Reinforcement |
| 63111 | Panel, Roof |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63147 | Bracket, Roof Panel Reinforcement |
| 63201D | Glass Sub-assy, Roof Window, NO.1 RH |
| 63202D | Glass Sub-assy, Roof Window, NO.1 LH |
| 63203D | Glass Sub-assy, Roof Window, NO.2 RH |
| 63204D | Glass Sub-assy, Roof Window, NO.2 LH |
| 63205F | Glass Sub-assy, Roof Window, NO.3 RH |
| 63206F | Glass Sub-assy, Roof Window, NO.3 LH |
| 63250 | Base Assy, Removable Roof Lock |
| 63251E | Dam, Roof Window, NO.1 |
| 63252E | Dam, Roof Window, NO.2 |
| 63253E | Dam, Roof Window, NO.3 |
| 63260 | Handle Assy, Removable Roof Lock |
| 63261A | Support, Roof Window Lock, NO.1 |
| 63263 | Support, Roof Window Lock, NO.2 |
| 63273D | Retainer, Roof Window Hinge |
| 63273K | Retainer, Roof Window Hinge, Rear |
| 63273L | Retainer, Roof Window Hinge, Front |
| 63275A | Plate, Roof Window Hinge |
| 63276A | Seal, Roof Window Hinge |
| 63605 | Hinge Sub-assy, Tilt Roof, RH |
| 63606 | Hinge Sub-assy, Tilt Roof, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
