Toyota Liteace Van,Wagon
1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan
Discontinued model
Data version 1992-09

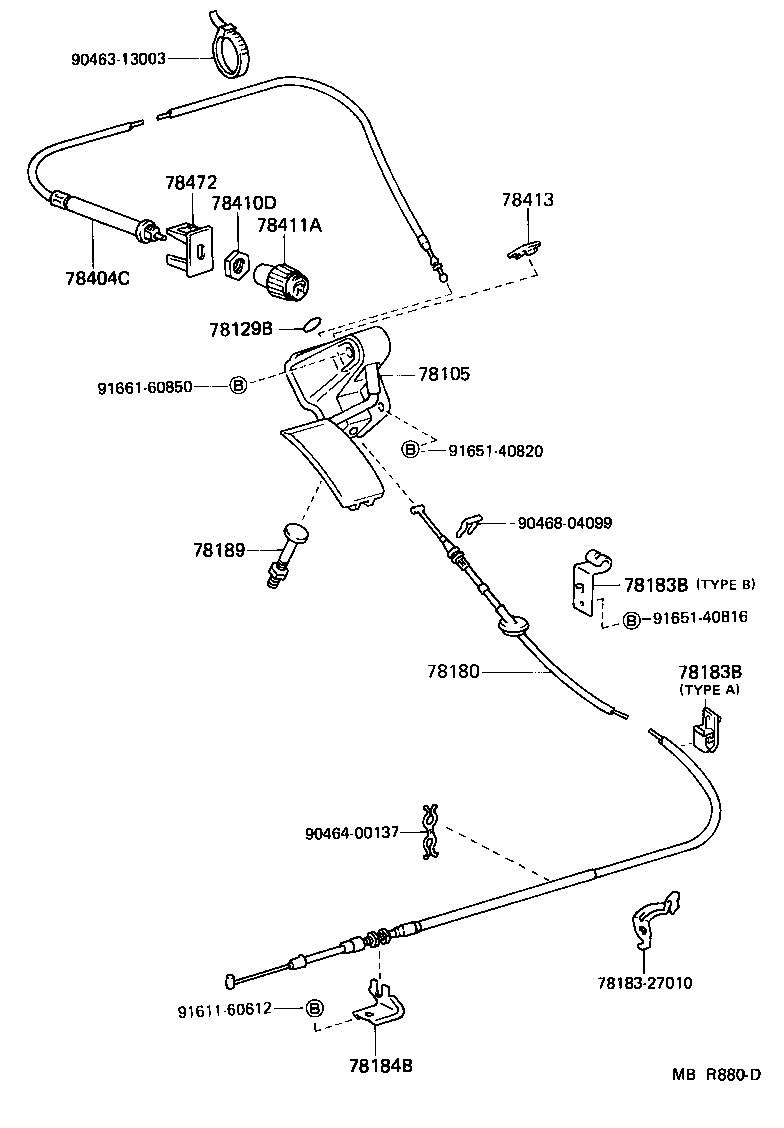

Accelerator Link
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 78105 | Rod Sub-assy, Accelerator Connecting, NO.3 |
| 78129B | Seal, Accelerator Pedal Arm |
| 78180 | Wire Assy, Accelerator |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78191A | Clamp (FOR ACCELERATOR WIRE SET) |
| 78404C | Rod Sub-assy, Throttle |
| 78410D | Nut, Throttle |
| 78411A | Knob, Throttle Control Cable |
| 78413 | Cover, Throttle Control Cable |
| 78472 | Support, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
