Toyota Liteace Van,Wagon
1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan
Discontinued model
Data version 1992-09

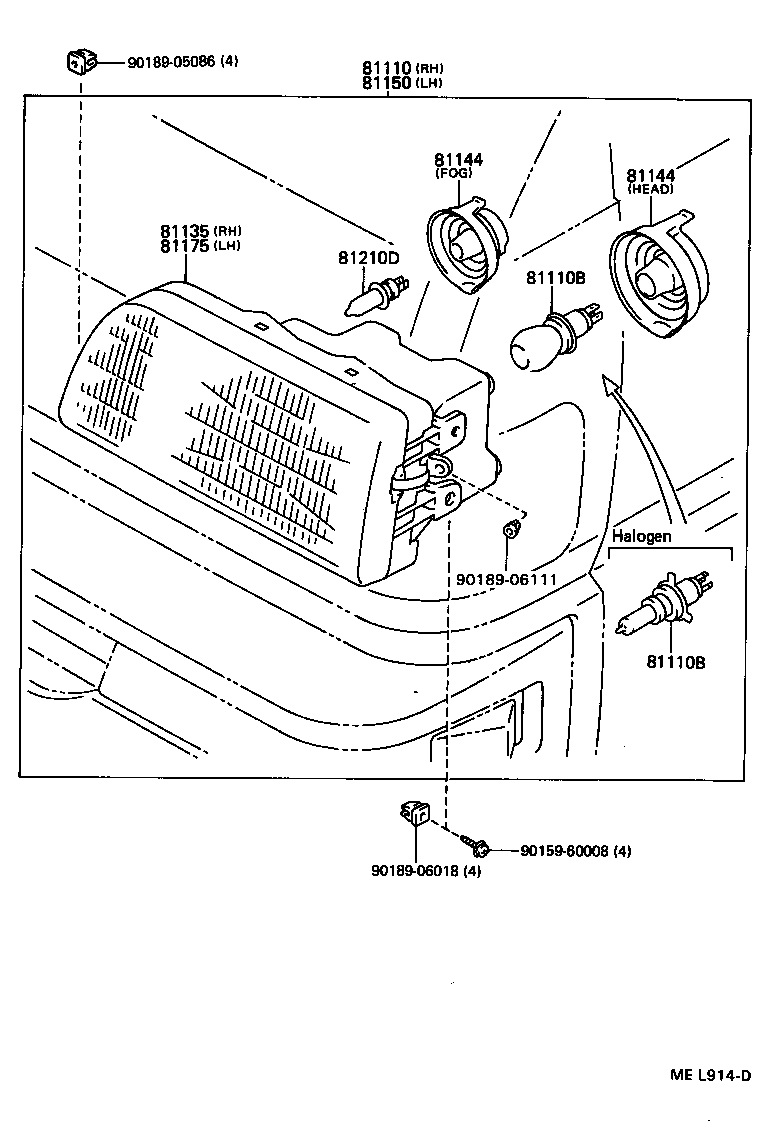

Headlamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81105 | Housing Sub-assy, Headlamp, RH |
| 81106 | Housing Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110S | Sealed Beam Unit, NO.1 |
| 81111 | Ring, Sealed Beam Retaining |
| 81113 | Ring, Sealed Beam Mounting, NO.1 RH |
| 81121 | Spring, Headlamp Tension |
| 81131 | Screw, Headlamp Adjusting |
| 81135 | Unit Assy, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81150 | Headlamp Assy, LH |
| 81153 | Ring, Sealed Beam Mounting, NO.1 LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81210D | Bulb, Fog Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
