Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

6 part groups · 2 illustrations

Illustrations

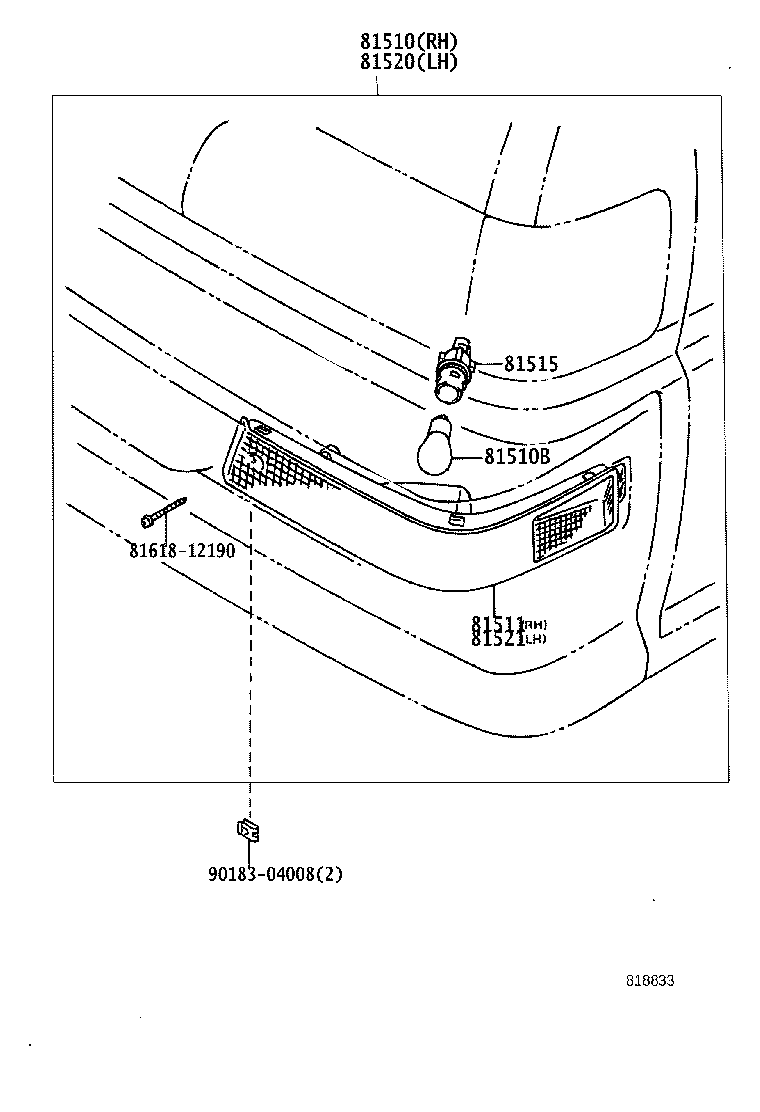

Figure 818835 818835 1988-08 → — Figure 818833 818833 1988-08 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515 Wire Sub-assy, Front Turn Signal Lamp Body
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
