Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

15 part groups · 5 illustrations

Illustrations

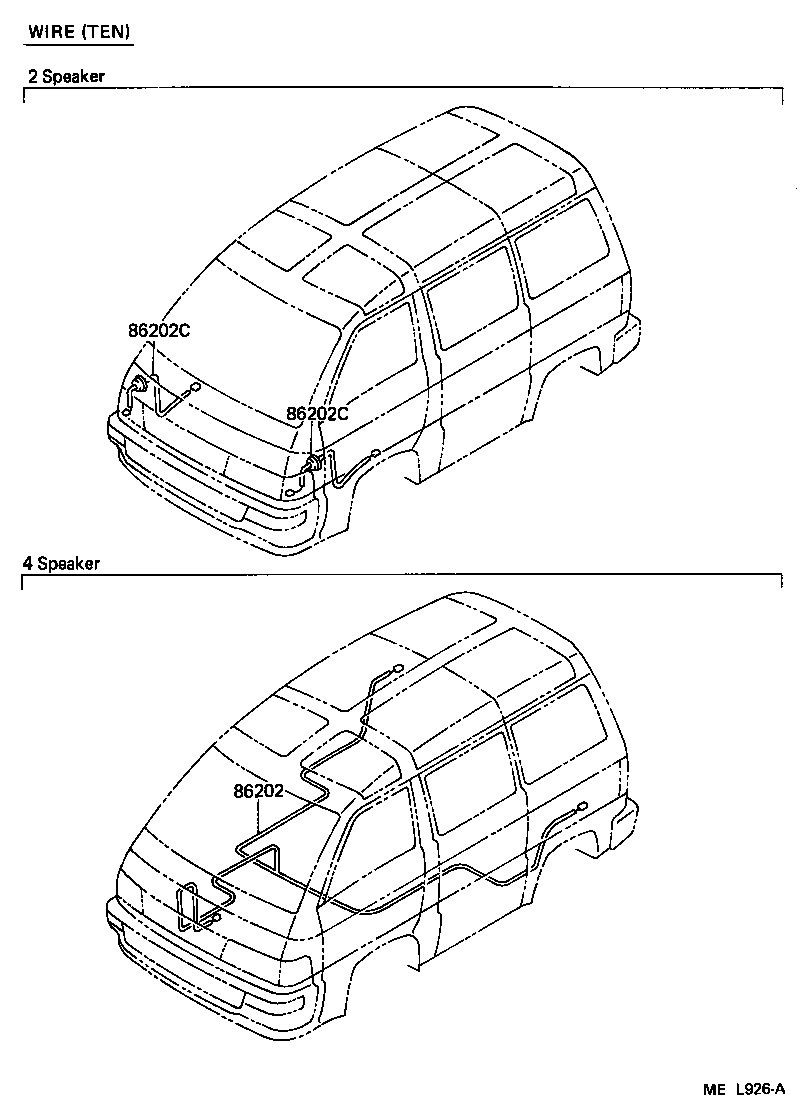

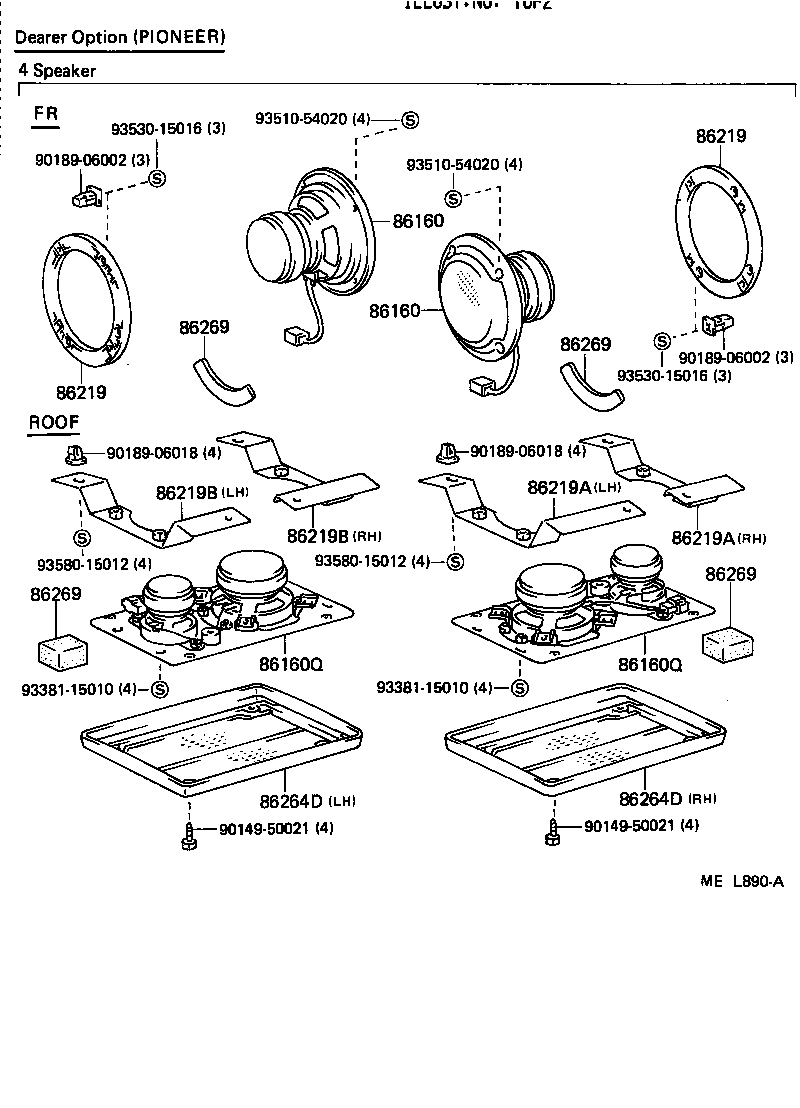

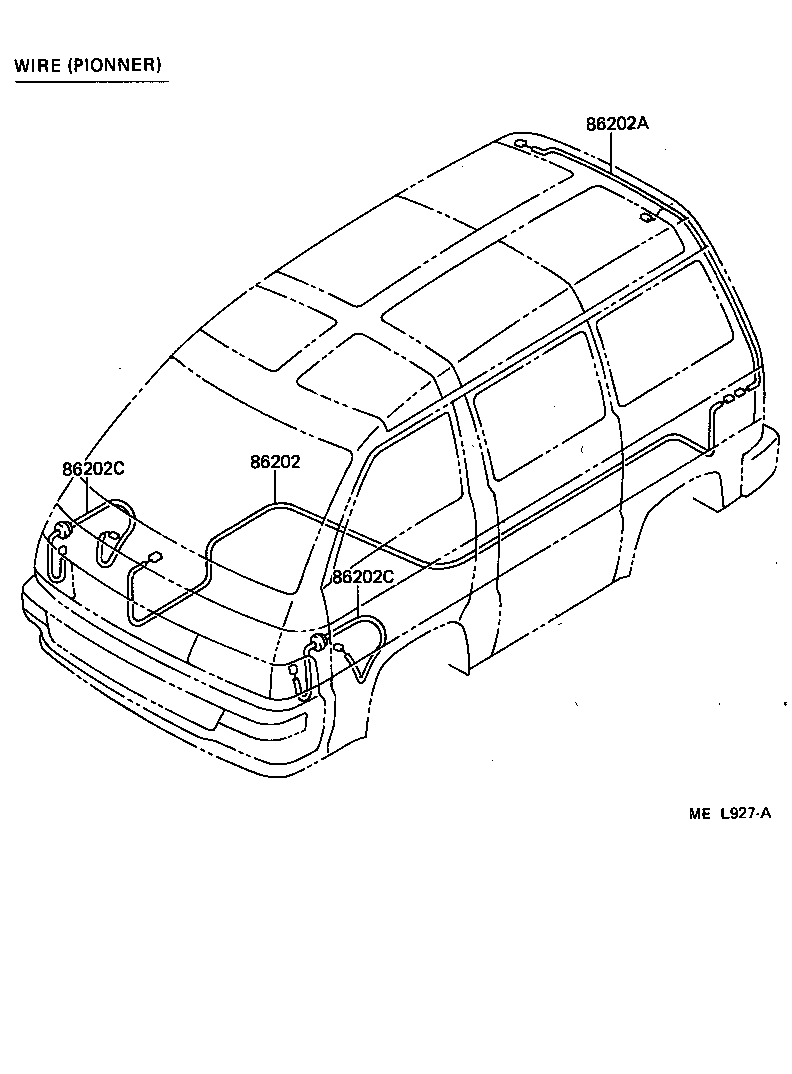

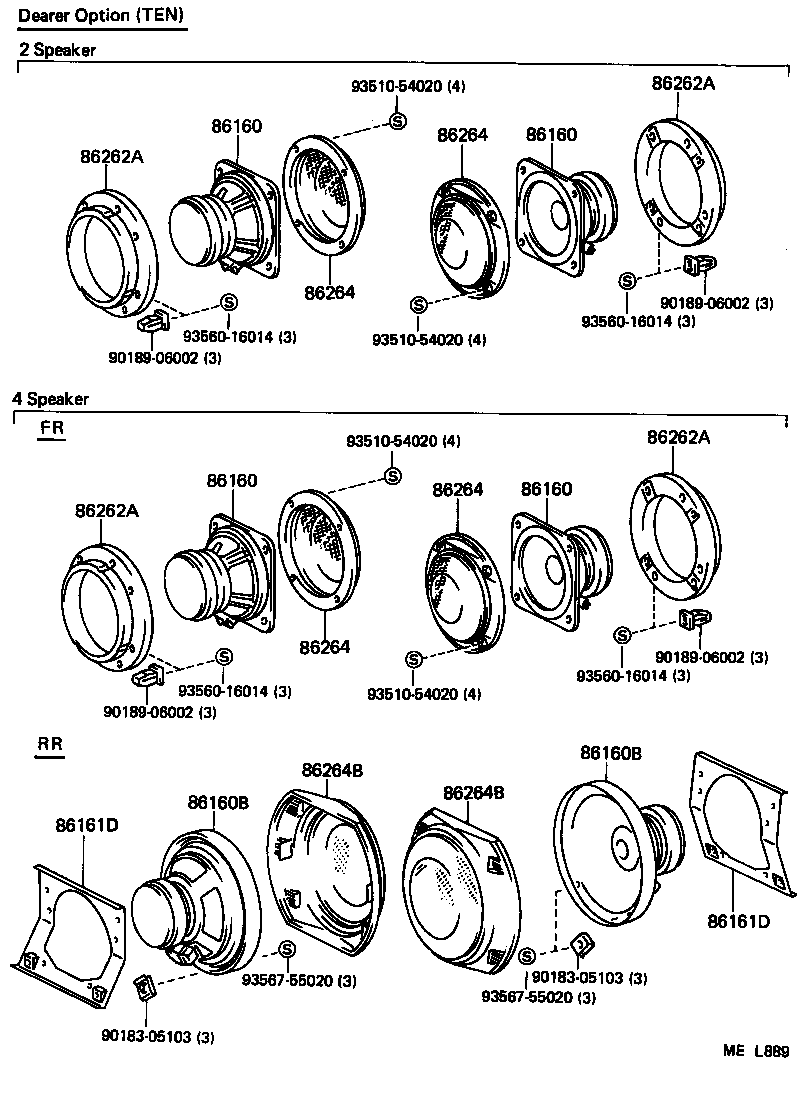

Figure MEL888B MEL888B 1988-08 → — Figure MEL889 MEL889 1988-08 → — Figure MEL890A MEL890A 1988-08 → — Figure MEL926A MEL926A 1988-08 → — Figure MEL927A MEL927A 1988-08 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160Q Speaker Assy, Roof
86161D Bracket, Speaker Mounting, NO.1
86202 Wire, Speaker, NO.1
86202A Wire, Speaker, NO.2
86202C Wire, Speaker, NO.3
86219 Bracket, Stereo Component Speaker, NO.1
86219A Bracket, Stereo Component Speaker, NO.2
86219B Bracket, Stereo Component Speaker, NO.3
86262A Cover, Speaker, Front
86264 Grille, Speaker, Front
86264B Grille, Speaker, Rear
86264D Grille, Speaker, Roof
86269 Pad, Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
