Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Set

7 part groups · 7 illustrations

Illustrations

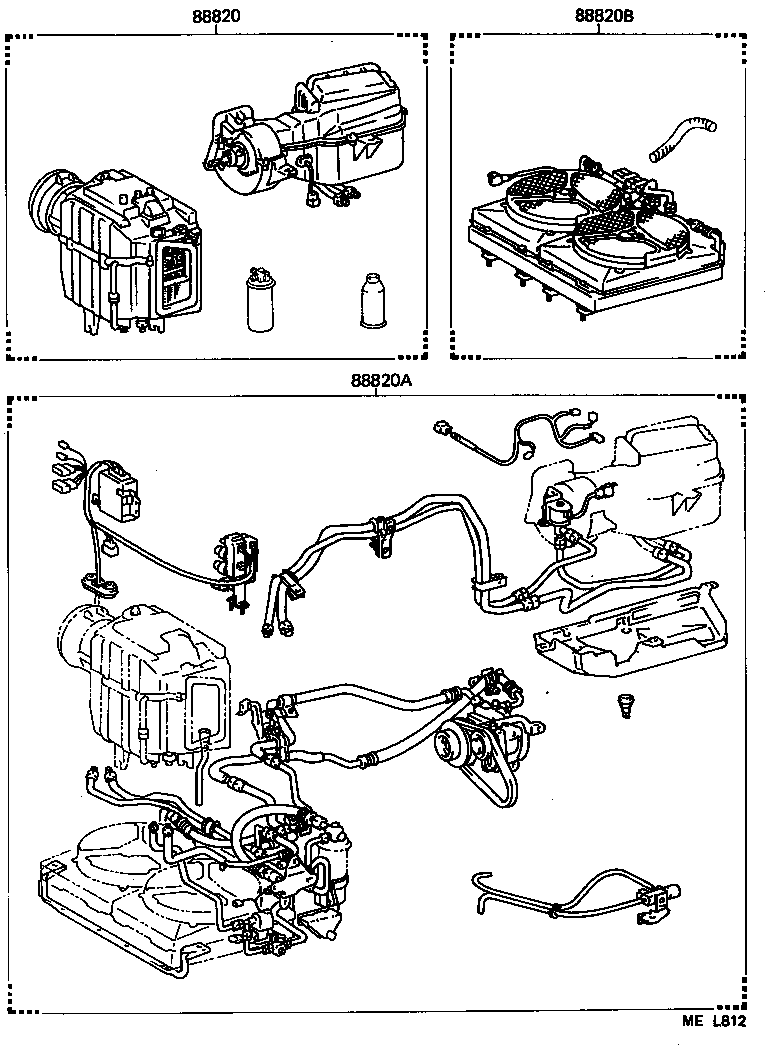

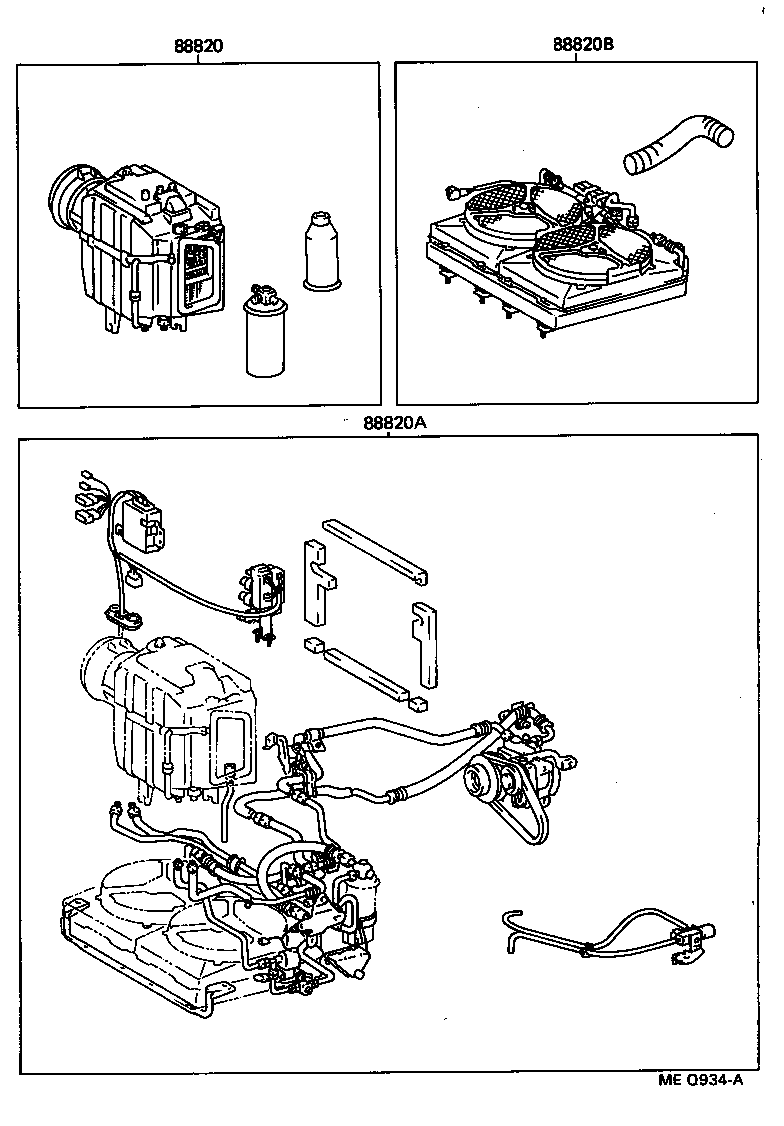

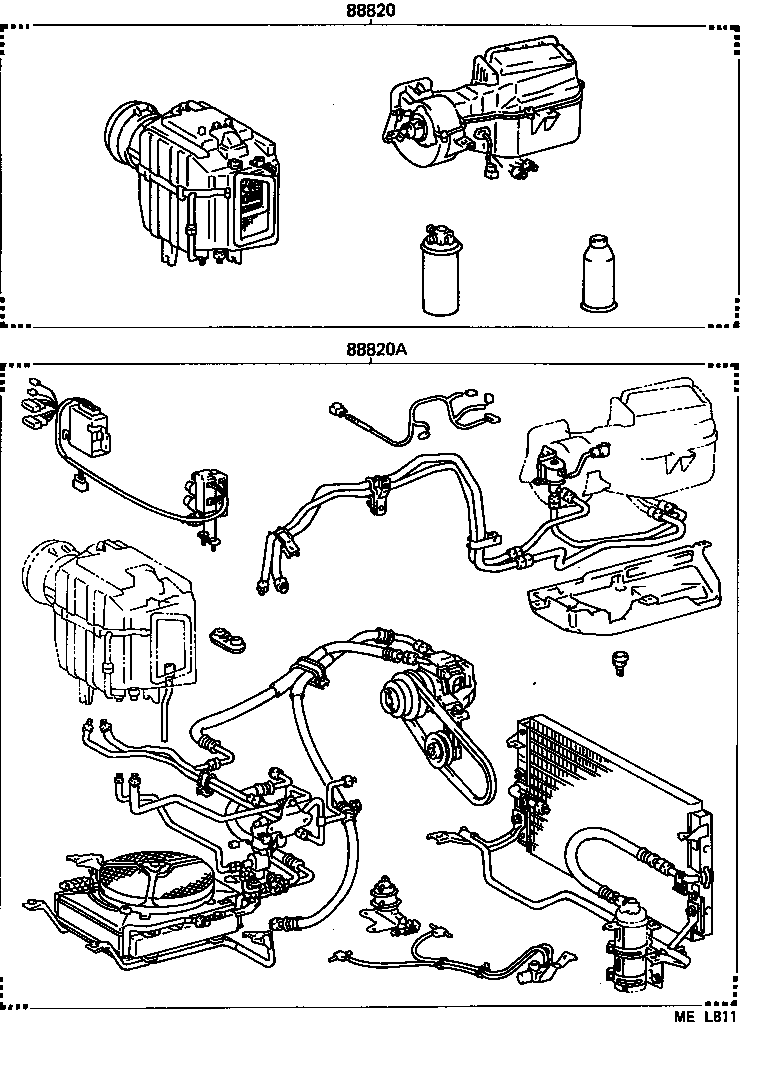

Figure MEL810 MEL810 1988-08 → — Figure MEQ934A MEQ934A 1988-08 → — Figure MEL811 MEL811 1988-08 → — Figure MEL812 MEL812 1988-08 → — Figure MEL813 MEL813 1988-08 → — Figure MEJ144 MEJ144 1988-08 → — Figure MEU797A MEU797A 1988-08 → —

Part groups

PNCDescription
88039 Additional Kit,Airconditioner
88800B Cool Box And Accessory Assy, NO.1
88800C Cool Box And Accessory Assy, NO.2
88820 Air Conditioner & Accessory Sub-assy, NO.1
88820A Air Conditioner & Accessory Sub-assy, NO.2
88820B Air Conditioner & Accessory Sub-assy, NO.3
88870 Duct And Accessory Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
