Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

6 part groups · 5 illustrations

Illustrations

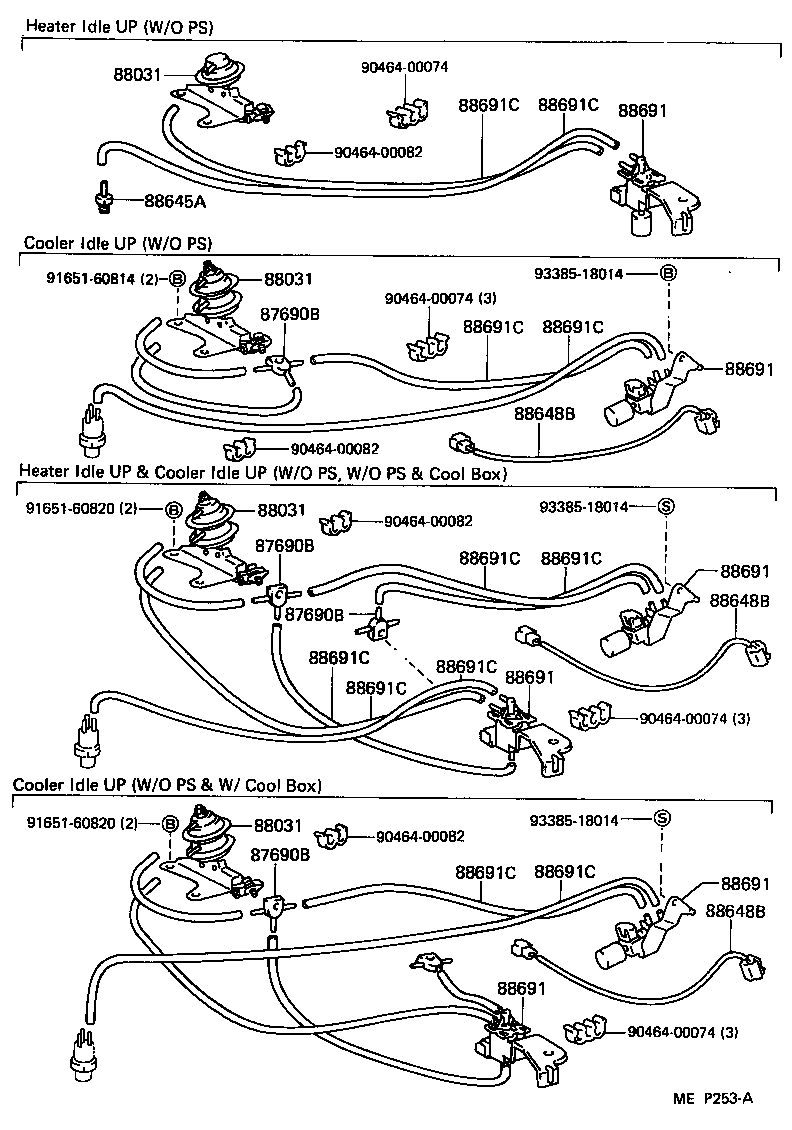

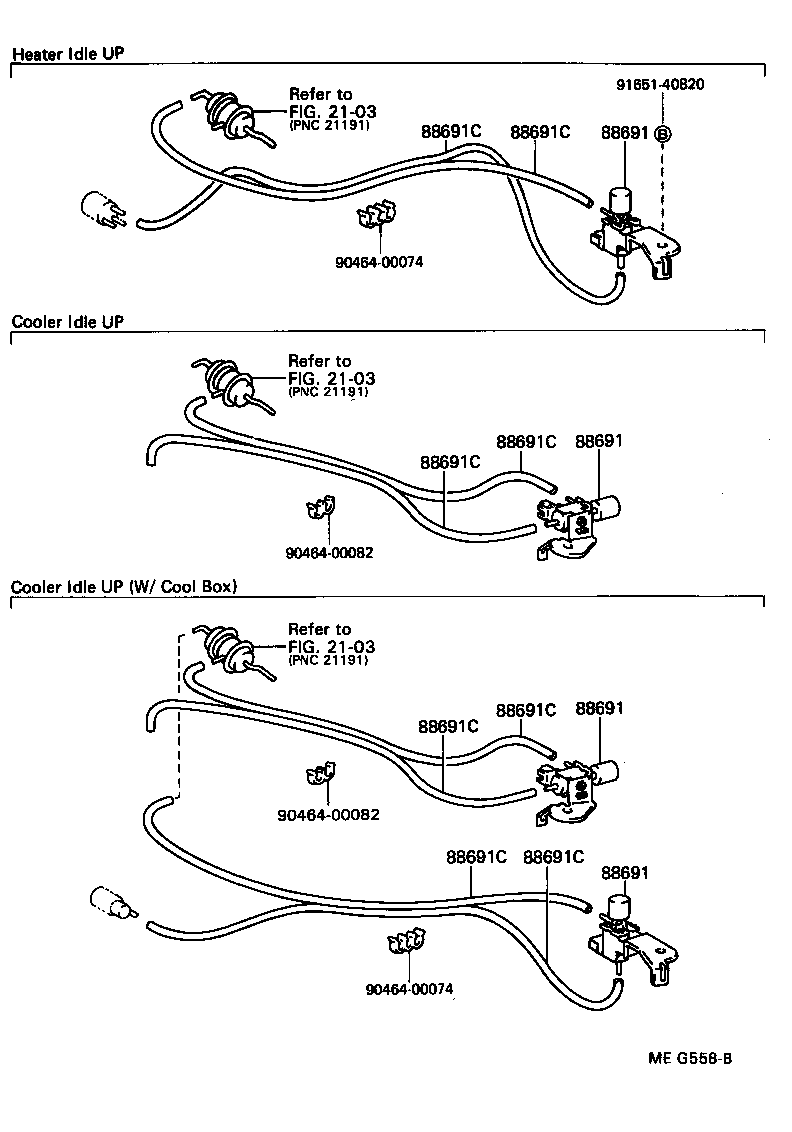

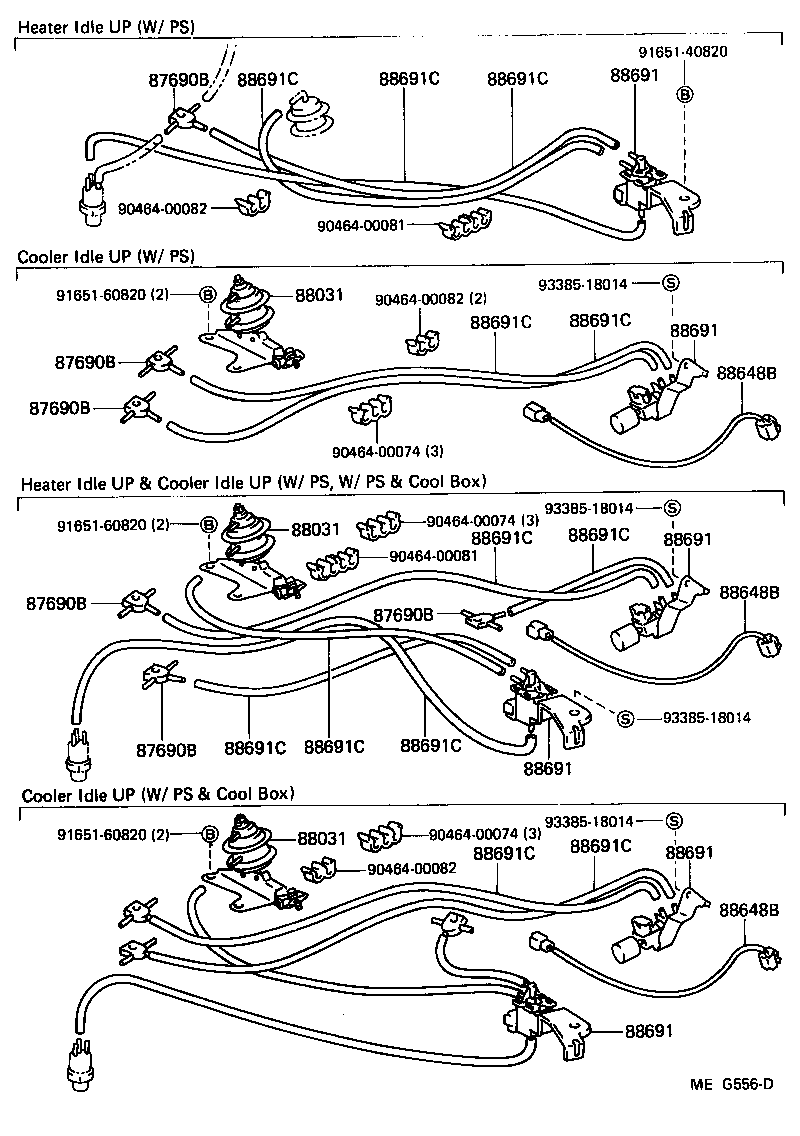

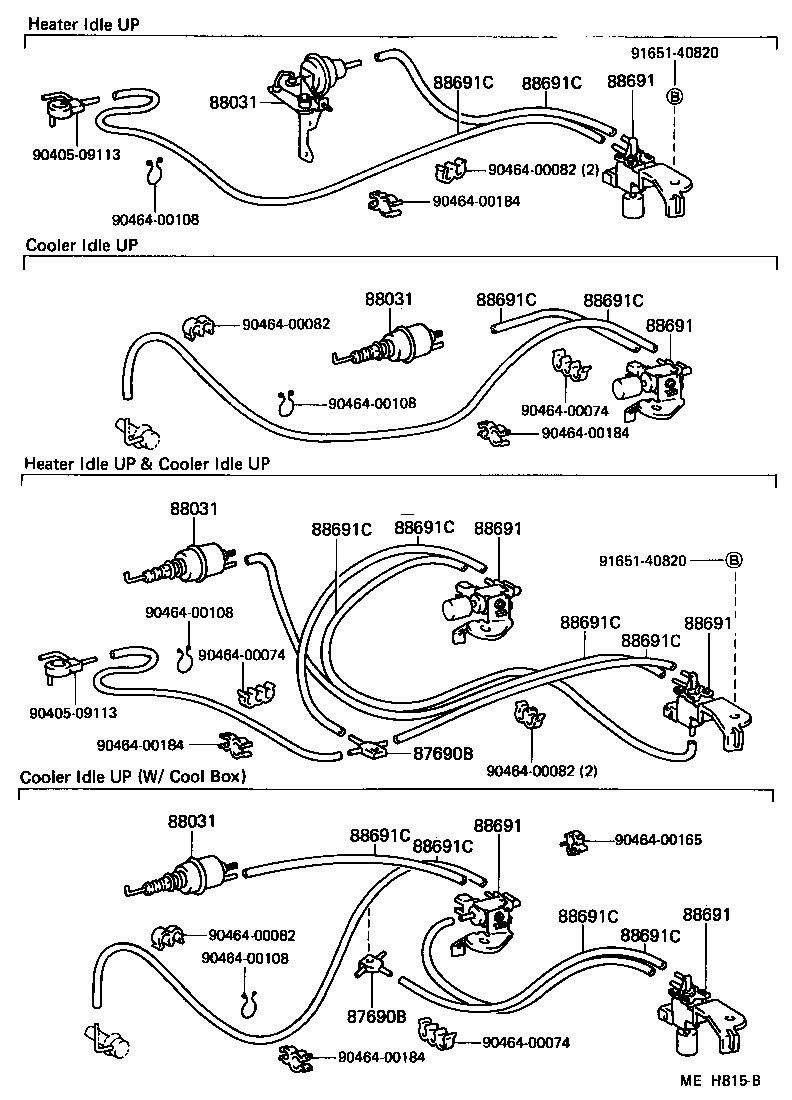

Figure MEP252A MEP252A 1988-08 → — Figure MEG558B MEG558B 1988-08 → — Figure MEP253A MEP253A 1988-08 → — Figure MEG556D MEG556D 1988-08 → — Figure MEH815B MEH815B 1988-08 → —

Part groups

PNCDescription
87690B Way, 3
88031 Actuator Set, Idle-up
88645A Union (FOR IDLE UP DEVICE)
88648B Wiring, Cooler, NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
