Toyota Sparky
2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan
Discontinued model
Data version 2003-10

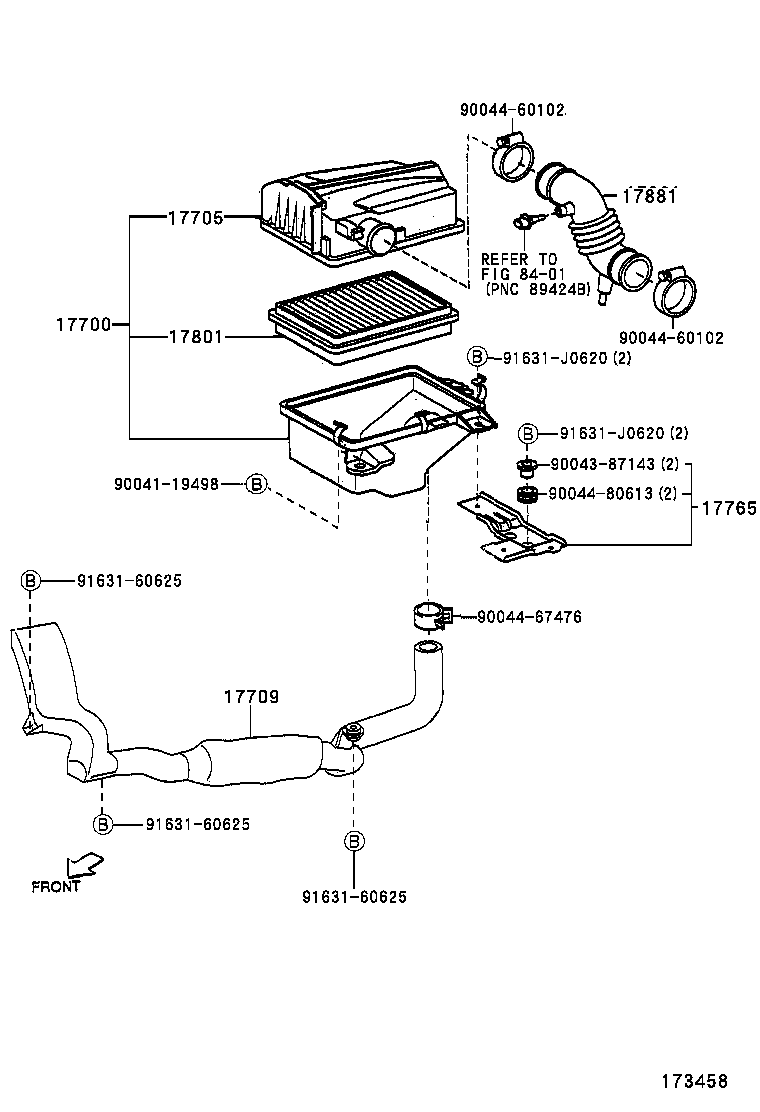

Air Cleaner
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17709 | Inlet Sub-assy, Air Cleaner |
| 17765 | Stay, Air Cleaner, NO.1 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
