Brake Tube & Clamp

26 part groups · 2 illustrations

Illustrations

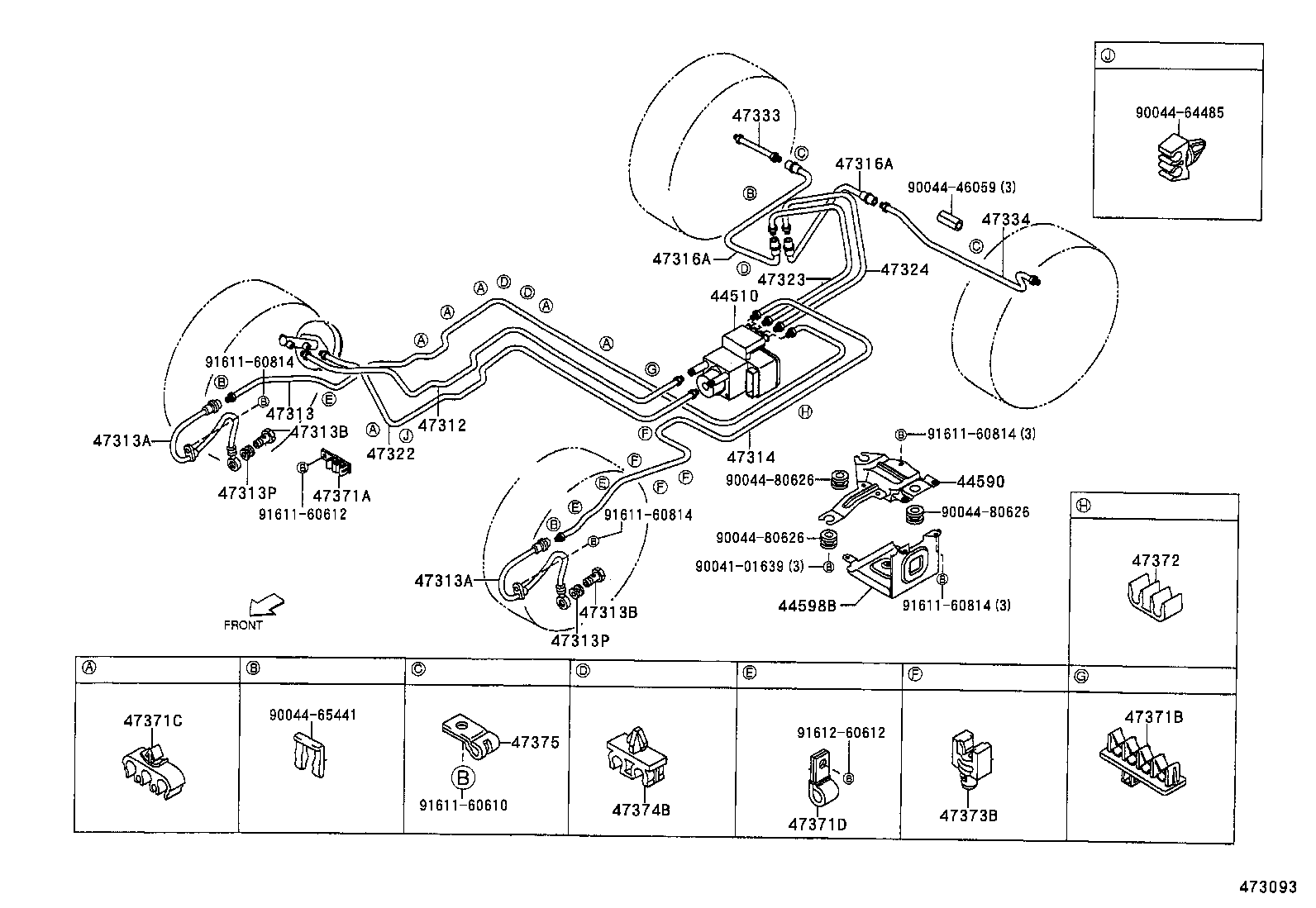

Figure 472280A 472280A 2000-09 → 2002-06 Figure 473093 473093 2002-06 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44590 Bracket Assy, Brake Actuator
44598B Cover, Brake Actuator
47150 Valve Assy, Proportioning
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
