Toyota Sparky

2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan

Discontinued model Data version 2003-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

54 part groups · 4 illustrations

Illustrations

581273A 2000-09 → —

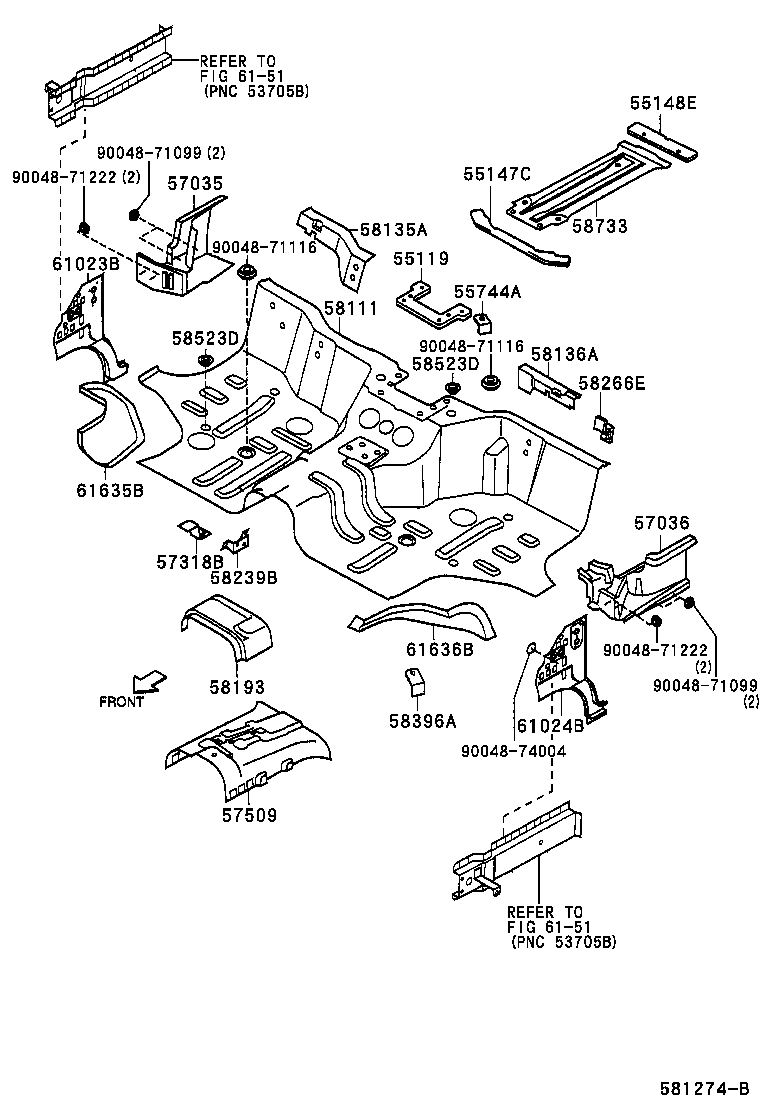

581274B 2000-09 → 2001-06

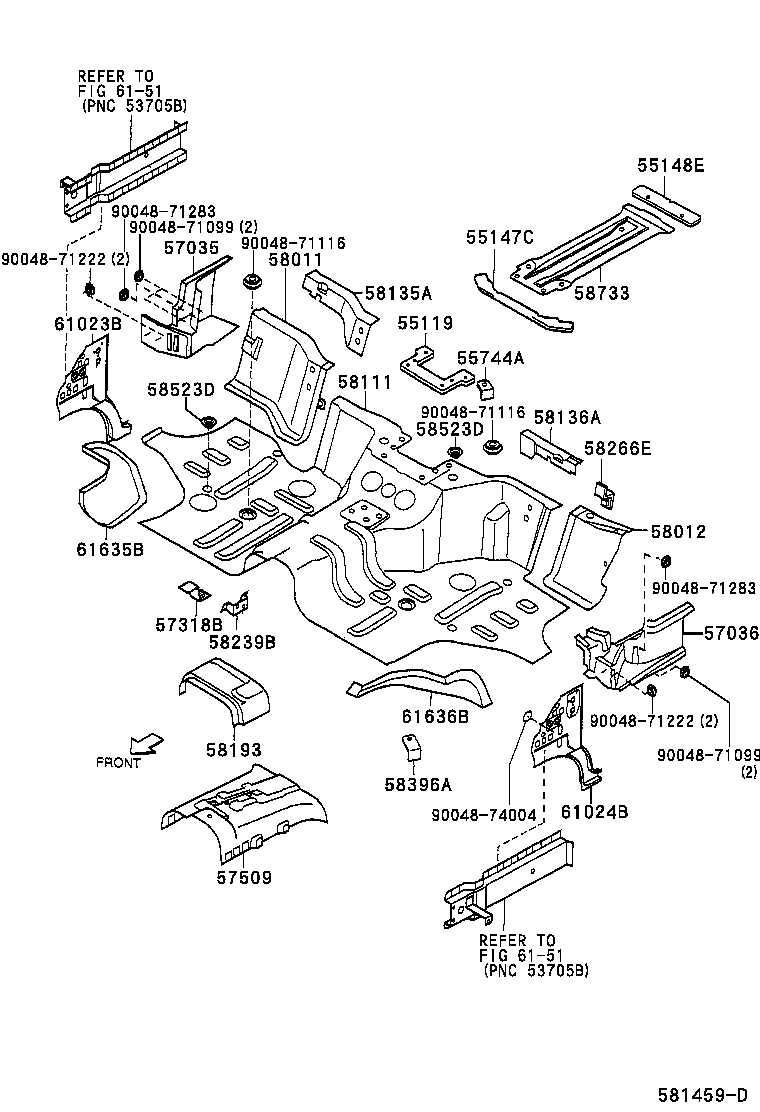

581459D 2001-06 → 2001-11

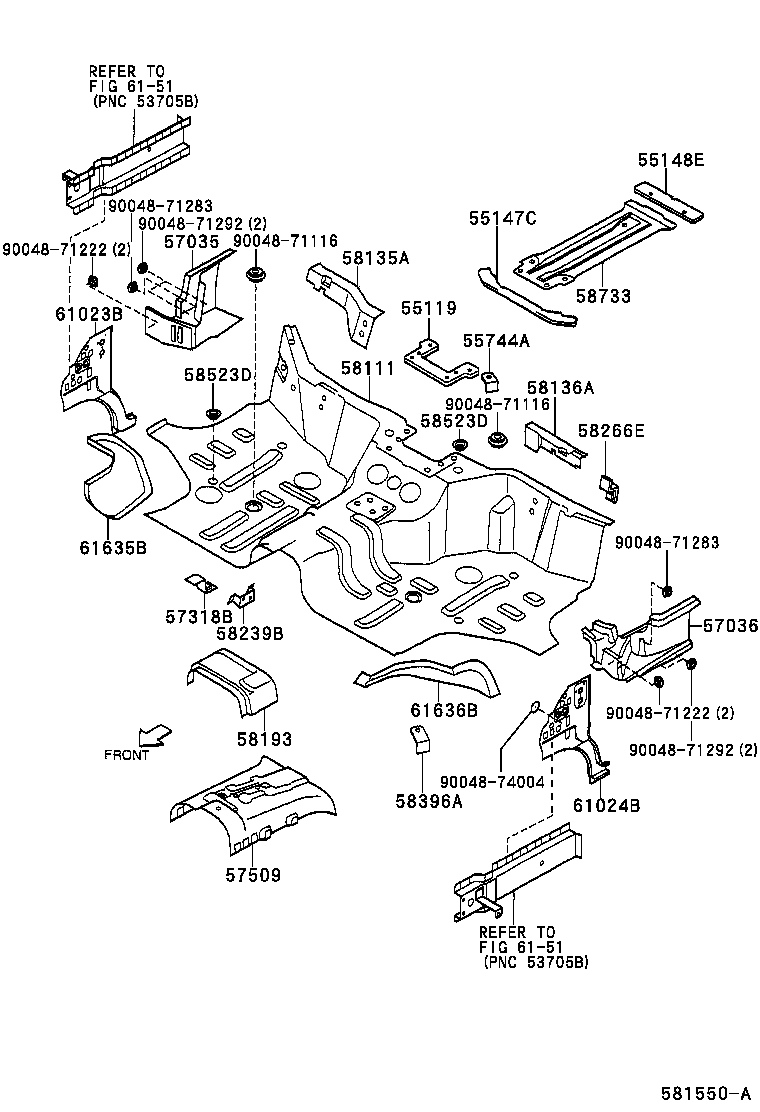

581550A 2001-11 → —

Part groups

PNC	Description
51017	Reinforcement Sub-assy, Side Rail, NO.1 RH
51018	Reinforcement Sub-assy, Side Rail, NO.1 LH
52021	Reinforcement Sub-assy, Front Bumper
52132A	Reinforcement, Front Bumper, NO.2
55119	Member, Seat Riser, Center
55147C	Cushion, Engine Service Hole Cover NO.1
55148E	Cushion, Engine Service Hole Cover, NO.2
55744A	Reinforcement, Pedal Bracket Mounting
57031A	Reinforce Sub-assy, Front Side Member, NO.2 RH
57032B	Reinforcement Sub-assy, Front Side Member, NO.2 LH
57033C	Reinforce Sub-assy, Front Side Member, NO.3 RH
57034C	Reinforce Sub-assy, Front Side Member, NO.3 LH
57035	Panel Sub-assy, Front Step, RH
57036	Panel Sub-assy, Front Step, LH
57051	Member Sub-assy, Front Floor Cross, RH
57052	Member Sub-assy, Front Floor Cross, LH
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57104A	Member Sub-assy, Front Cross
57111	Member, Front Side, RH
57112	Member, Front Side, LH
57113	Extension, Front Side Member, RH
57115B	Plate, Front Side Member, NO.1 RH
57116B	Plate, Front Side Member, NO.1 LH
57119A	Plate, Front Side Member, Front RH
57119B	Plate, Front Side Member, Front LH
57127A	Reinforcement, Front Side Member, NO.8 RH
57128B	Reinforcement, Front Side Member, NO.8 LH
57195A	Reinforcement, Front Side Member, Front RH
57196B	Reinforcement, Front Side Member, Front LH
57241	Reinforcement, Front Side Member, NO.5 RH
57242A	Reinforcement, Front Side Member, NO.5 LH
57318B	Bracket, Powersteering Tube Mounting
57509	Reinforcement Sub-assy, Front Floor, Center
57625	Reinforcement, Rear Floor Side Member, RH
58011	Panel Sub-assy, Front Floor Side, RH
58012	Panel Sub-assy, Front Floor Side, LH
58111	Pan, Front Floor
58135A	Panel, Front Floor Housing, Front RH
58136A	Cover, Front Floor Service Hole
58139C	Bracket, Harness Clamp
58193	Bracket, Instrument Panel Brace Mounting
58203E	Pillar, Center Body, Inner Lower RH
58204F	Pillar, Center Body, Inner Lower LH
58239B	Bracket, Cable Clamp
58266E	Bracket, Fuel Tube Clamp, Center
58396A	Bracket, Wire Harness Clamp
58475C	Packing, Engin Sub Cover, NO.3
58523D	Clip(FOR FLOOR CARPET SET BRACKET)
58733	Reinforcement, Engine Service Hole
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61635B	Panel, Quarter, Inner Front RH
61636B	Panel, Quarter, Inner Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
