Toyota Sparky

2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

27 part groups · 2 illustrations

Illustrations

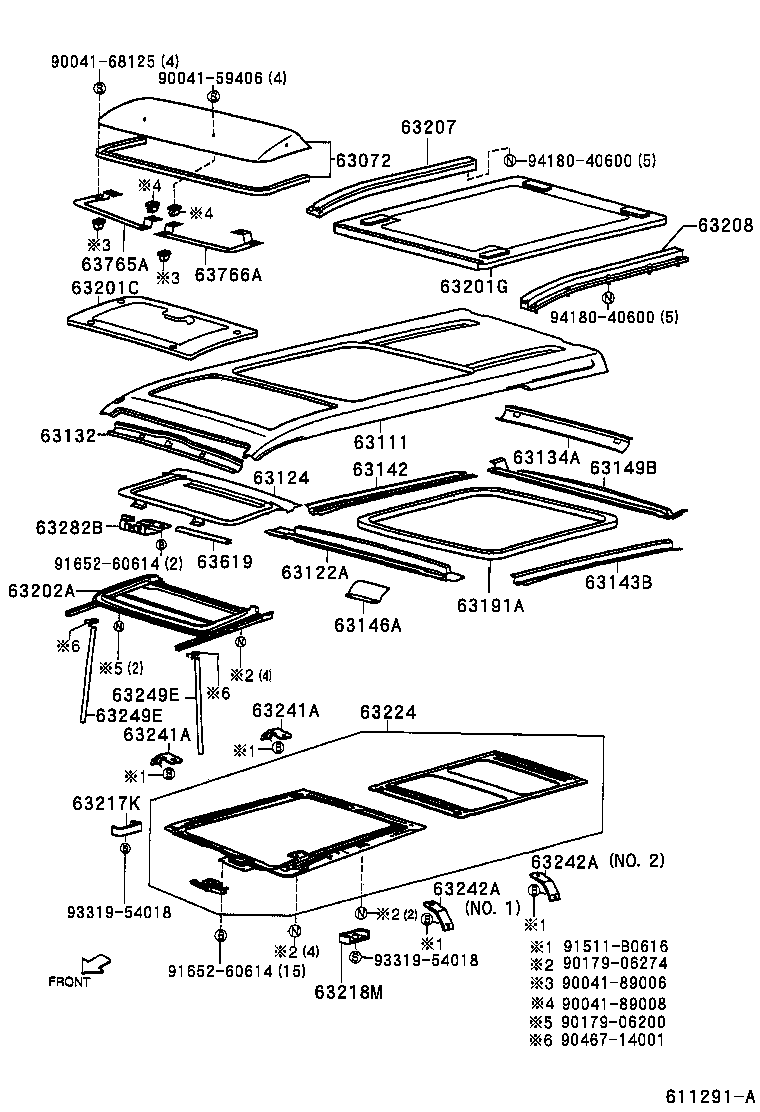

Figure 611290A 611290A 2000-09 → — Figure 611291A 611291A 2000-09 → —

Part groups

PNCDescription
63072 Deflector Set, Roof Air
63111 Panel, Roof
63122A Reinforcement, Roof Panel, Front
63124 Reinforcement, Roof Panel, NO.1
63132 Panel, Windshield Header, Inner
63134A Frame, Back Door Opening, Upper
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63146A Bracket, Roof Panel Reinforcement, NO.1
63149B Reinforcement, Roof Panel, NO.1 Rear
63191A Weatherstrip, Roof Window, NO.1
63201C Glass Sub-assy, Tilt Roof
63201G Glass Sub-assy, Sliding Roof
63202A Housing Sub-assy, Sliding Roof, Front
63207 Rail Sub-assy, Sliding Roof Guide, RH
63208 Rail Sub-assy, Sliding Roof Guide, LH
63217K Garnish, Sliding Roof Side, RH
63218M Garnish, Sliding Roof Side, LH
63224 Cable, Sliding Roof Drive, LH
63241A Bracket, Sliding Roof Housing Front Mounting, RH
63242A Bracket, Sliding Roof Housing Front Mounting, LH
63249E Hose, Sliding Roof Drain
63282B Striker, Tilt Roof Lock
63619 Cover, Tilt Roof Panel
63765A Bracket, Roof Air Deflector, RH
63766A Bracket, Roof Air Deflector, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
