Toyota Sparky
2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan
Discontinued model
Data version 2003-10

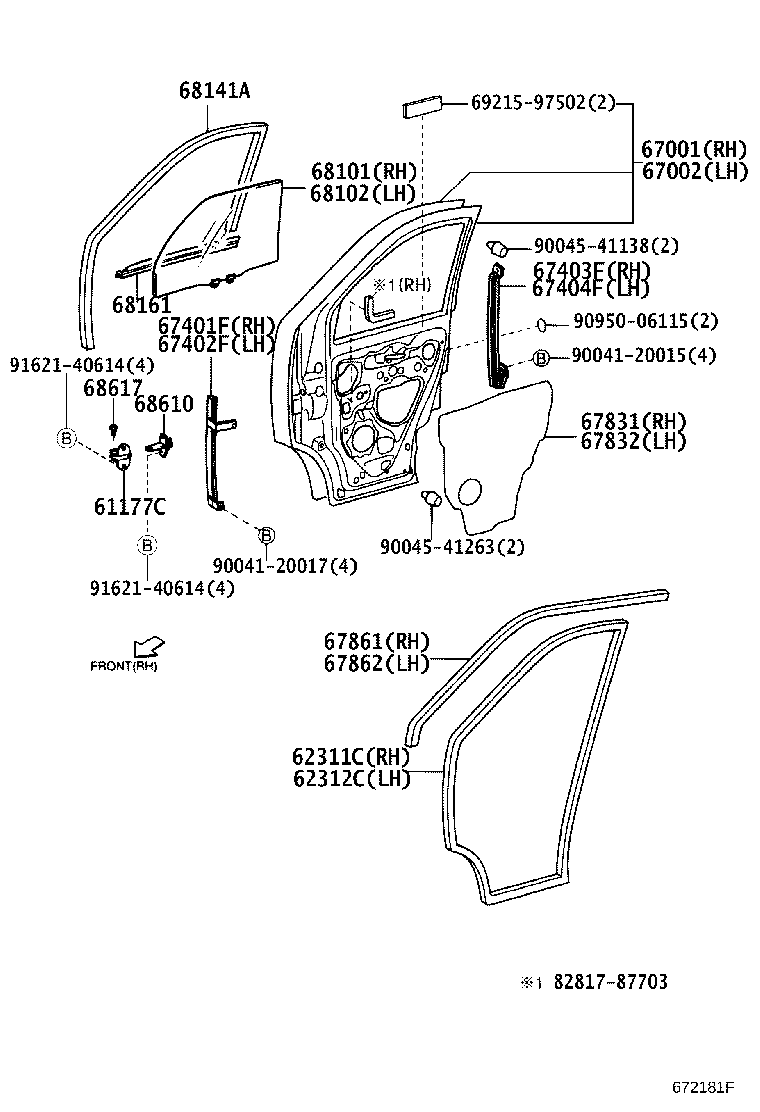

Front Door Panel & Glass
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61177C | Bracket, Door Check Arm |
| 62311C | Weatherstrip, Front Door Opening Trim, RH |
| 62312C | Weatherstrip, Front Door Opening Trim, LH |
| 66990A | Holder Assy, Cup |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67615B | Trim, Front Door, Upper RH |
| 67616B | Trim, Front Door, Upper LH |
| 67663D | Garnish, Door Frame, RH |
| 67664C | Garnish, Door Frame, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141A | Run, Front Door Glass, Upper |
| 68161 | Weatherstrip, Front Door Glass, Outer |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610 | Check Assy, Front Door |
| 68617 | Pin, Front Door Check |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
