Toyota Sparky

2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

16 part groups · 2 illustrations

Illustrations

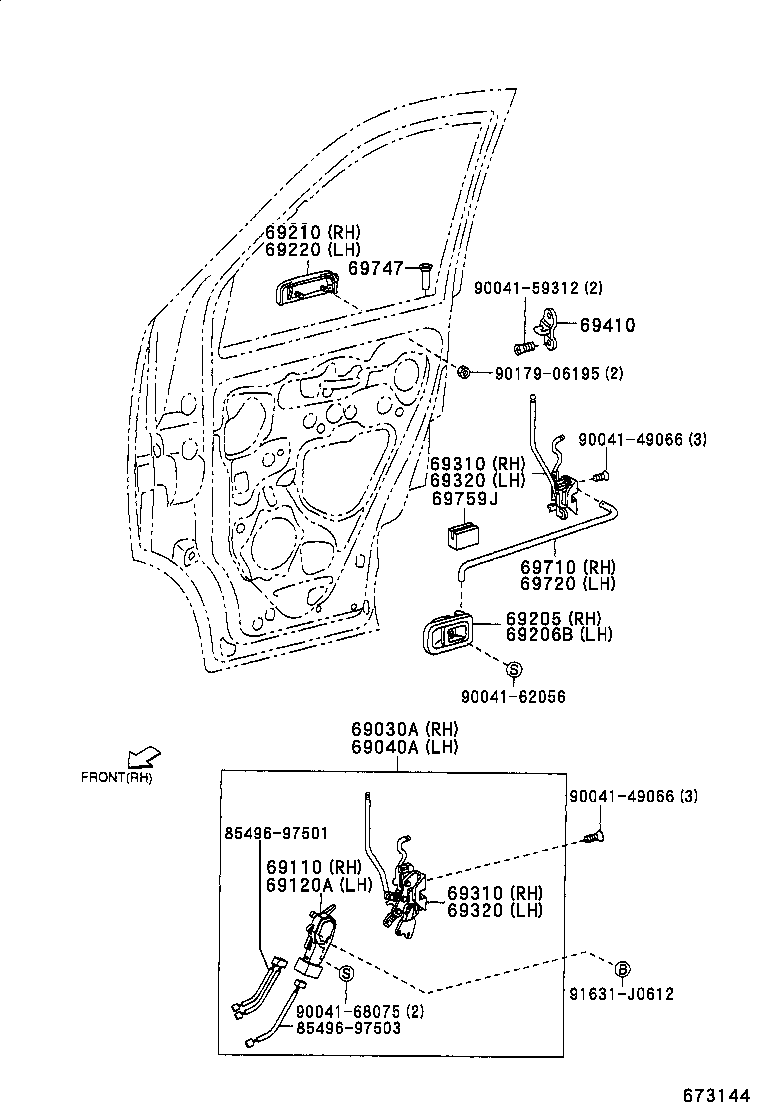

Figure 672187C 672187C 2000-09 → 2002-10 Figure 673144 673144 2002-10 → —

Part groups

PNCDescription
69030A Lock Assy, Front Door W/Motor, RH
69040A Lock Assy, Front Door W/Motor, LH
69110 Actuator Assy, Front Door Lock, RH
69120A Actuator Assy, Front Door Lock, LH
69205 Handle Sub-assy, Front Door Inside, RH
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69710 Link Assy, Front Door Open Control, RH
69720 Link Assy, Front Door Open Control, LH
69747 Button, Door Locking
69759J Silencer, Door Lock Link
84931B Switch, Door Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
