Toyota Sparky

2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

10 part groups · 2 illustrations

Illustrations

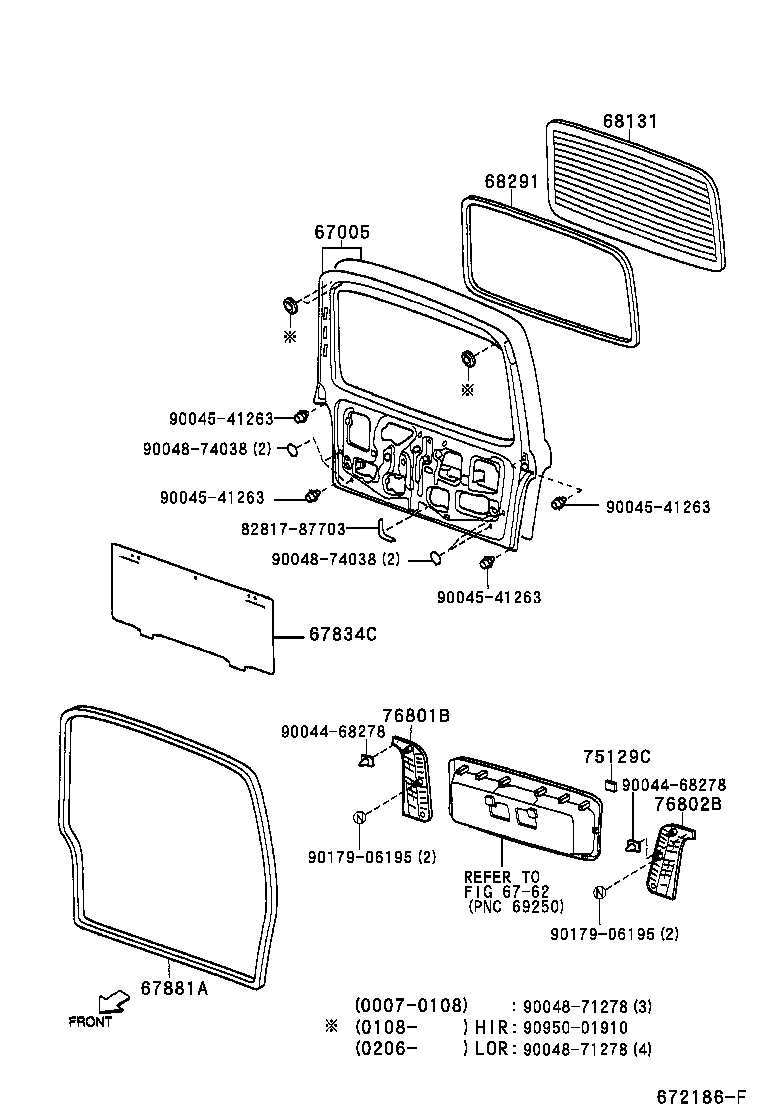

Figure 672185B 672185B 2000-09 → — Figure 672186F 672186F 2000-09 → —

Part groups

PNCDescription
67005 Panel Sub-assy, Back Door
67750 Board Assy, Back Door Trim
67834C Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67961 Strap, Back Door Pull
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
75129C Cushion, Rear Licence Plate
76801B Garnish Sub-assy, Back Door, Outside RH
76802B Garnish Sub-assy, Back Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
