Toyota Sparky

2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

7 part groups · 2 illustrations

Illustrations

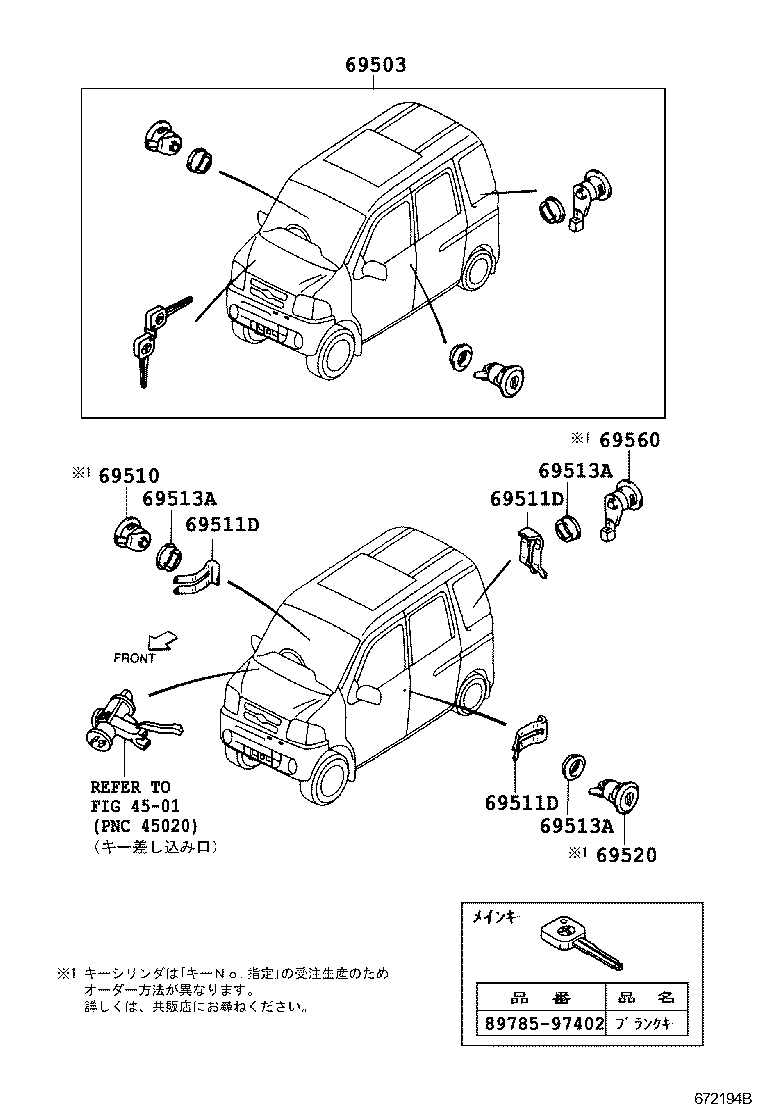

Figure 672193C 672193C 2000-09 → — Figure 672194B 672194B 2000-09 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69510 Cylinder Assy, Front Door Lock, RH
69511D Retainer, Back Door Lock Cylinder
69513A Pad, Door Cylinder
69520 Cylinder Assy, Front Door Lock, LH
69560 Cylinder Assy, Back Door Lock
69570 Cylinder Assy, Ignition Switch Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
