Toyota Sparky
2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan
Discontinued model
Data version 2003-10
Wiring & Clamp
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82121 | Wire, Engine |
| 82131 | Wire, Cowl |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153A | Wire, Rear Door, RH |
| 82154A | Wire, Rear Door, LH |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82186 | Wire, Rear Window, NO.1 |
| 82187 | Wire, Rear Window, NO.2 |
| 82188A | Wire, Back Door, NO.3 |
| 82415 | Wire, Fuel Pump |

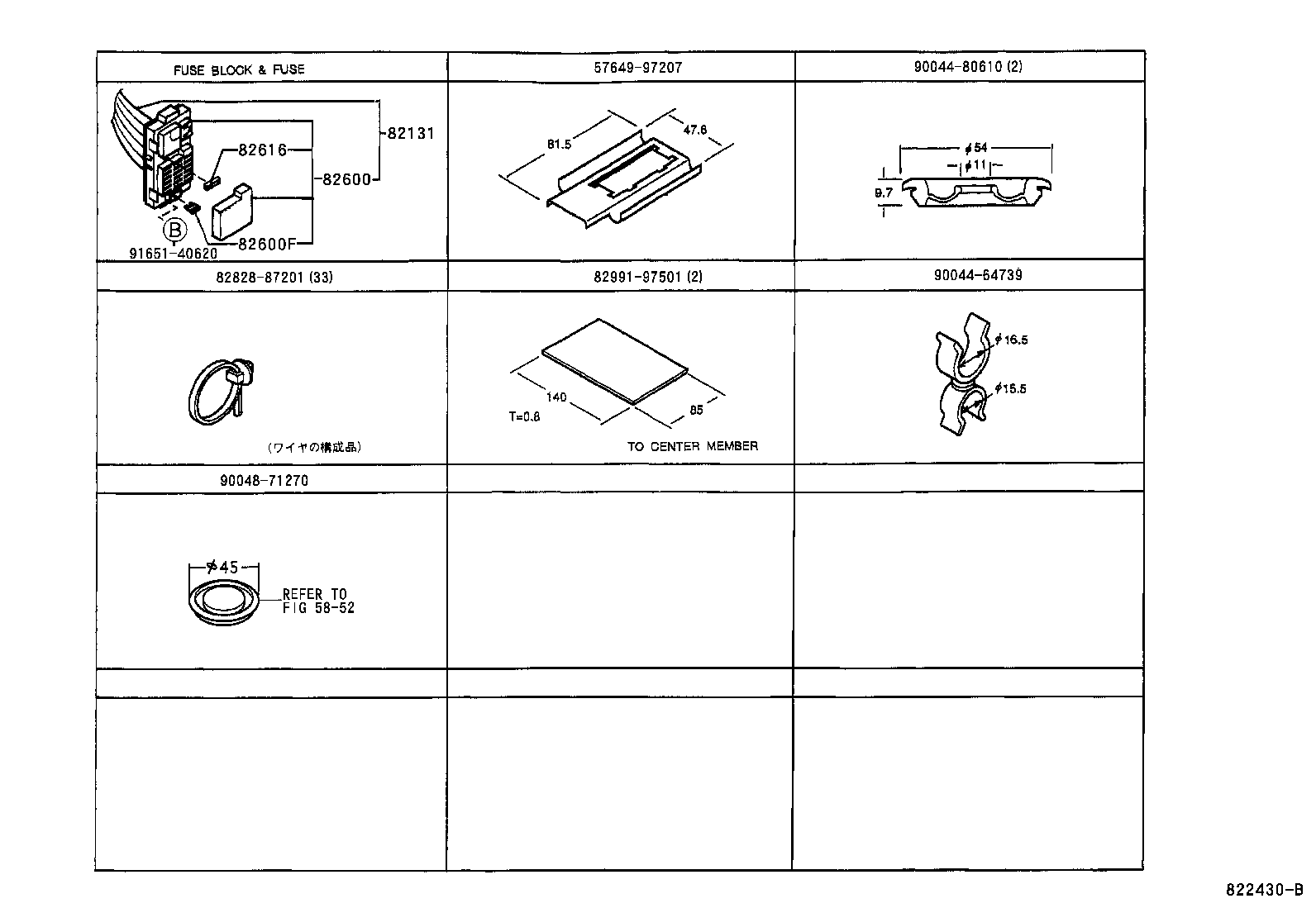

| 82600 | Block Assy, Fuse |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 86832A | Wire, Accessory Socket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
