Toyota Sparky
2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan
Discontinued model
Data version 2003-10
Meter
13 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

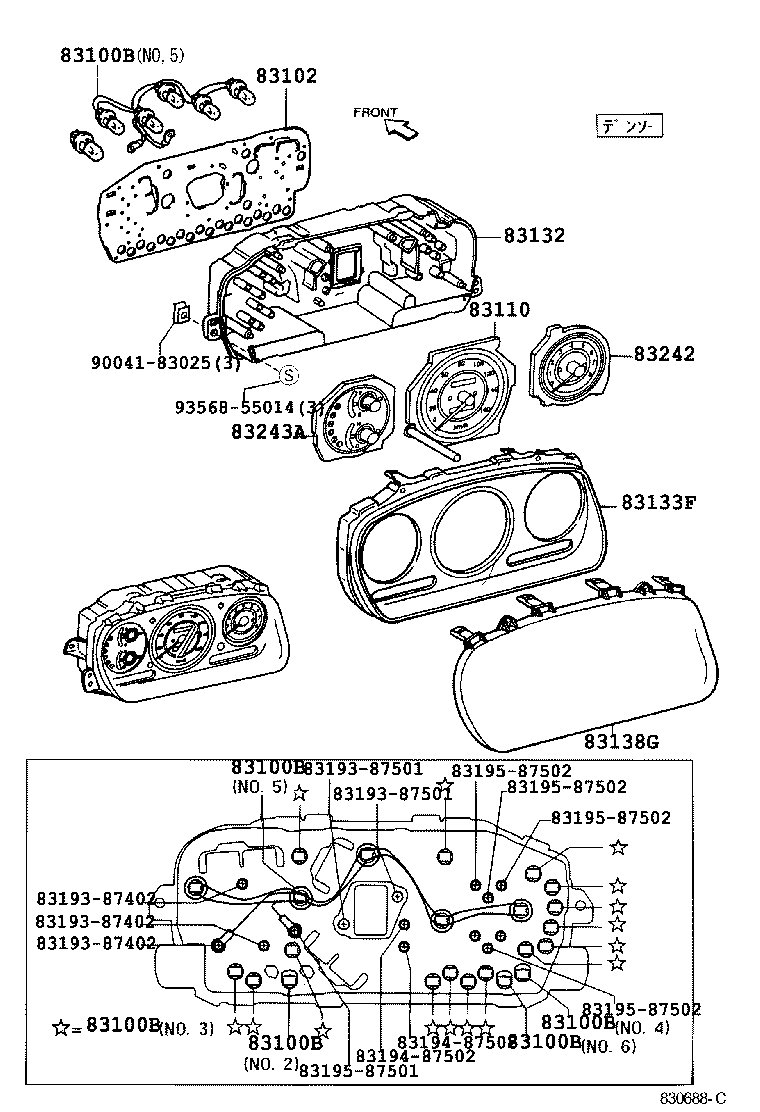

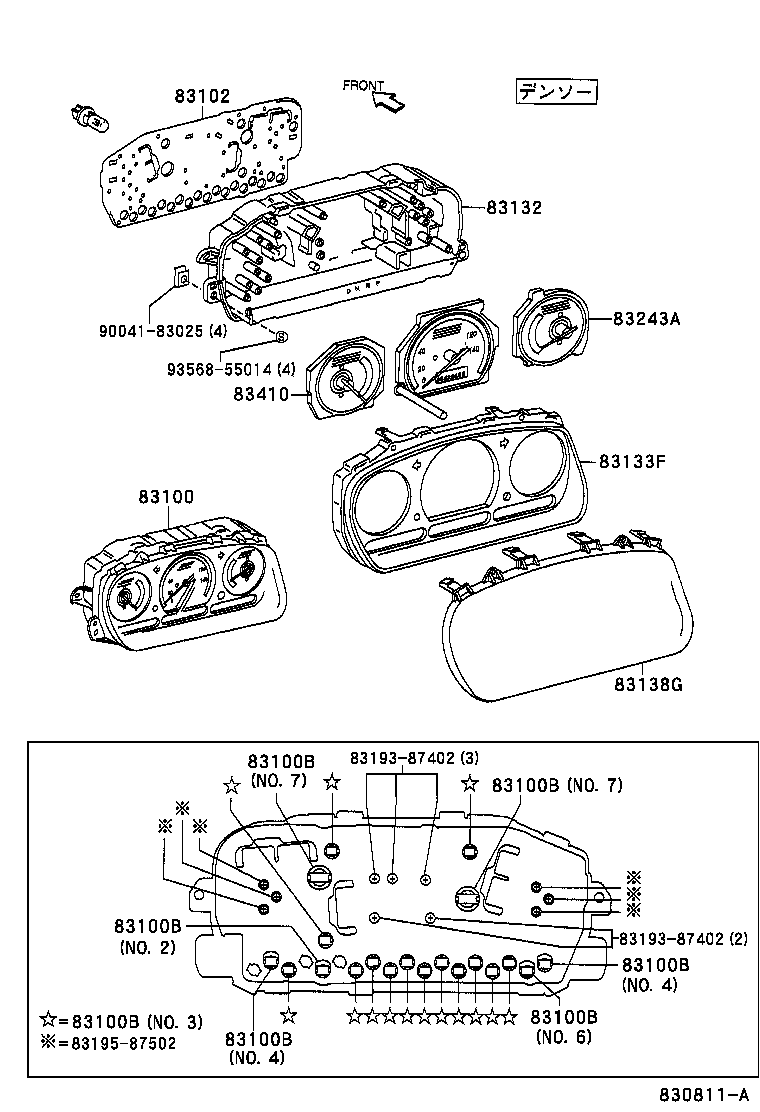

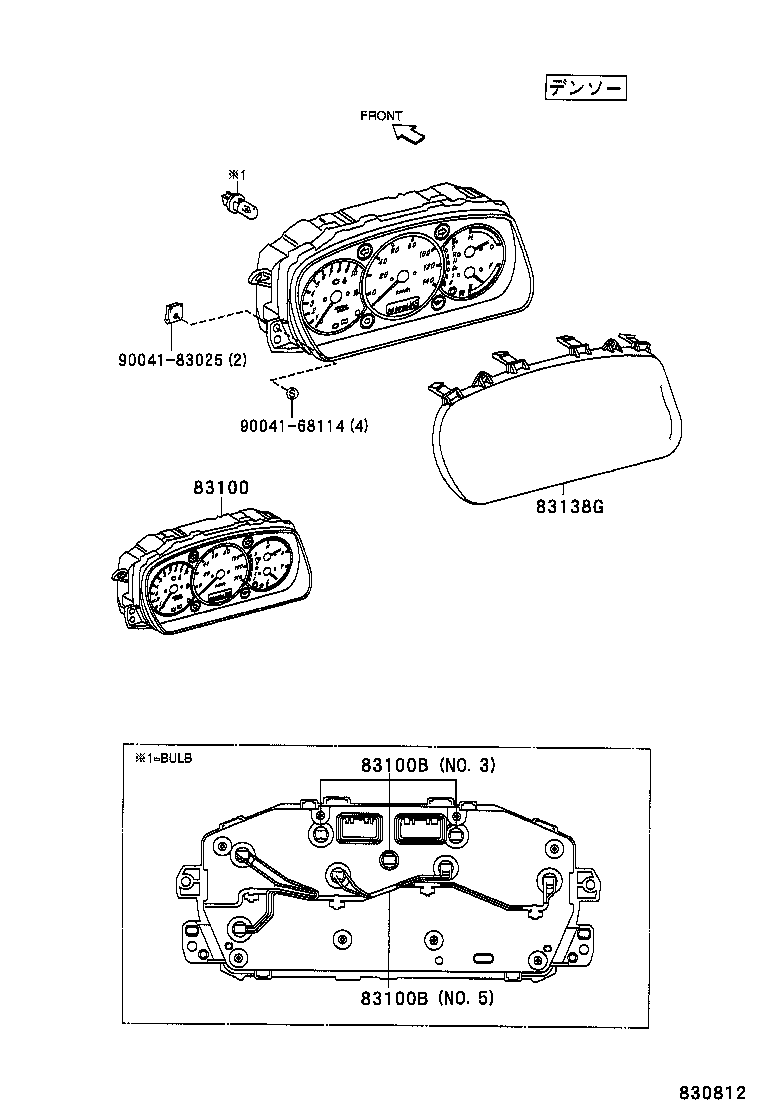

| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133F | Plate, Meter |
| 83138G | Glass, Combination Meter |
| 83181A | Sensor, Speedometer |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |

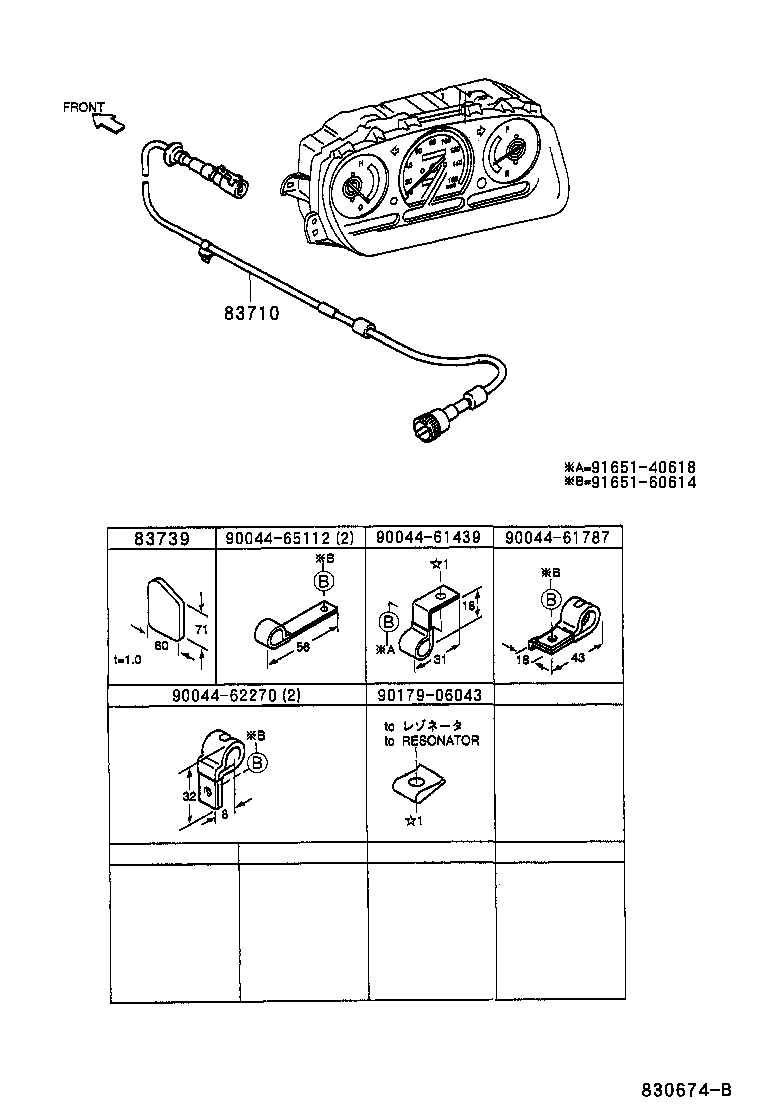

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83739 | Protector, Speed Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
