Toyota Sparky
2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan
Discontinued model
Data version 2003-10
Heating & Air Conditioning - Heater Unit & Blower
14 part groups · 4 illustrations
Part groups

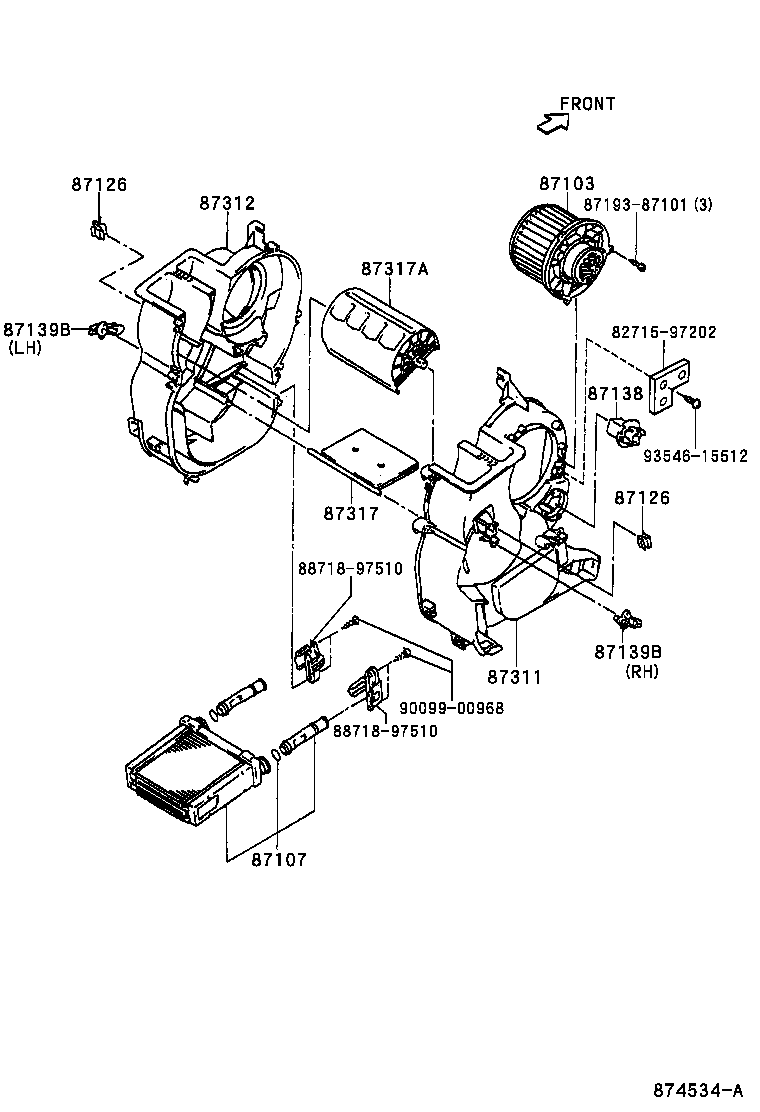

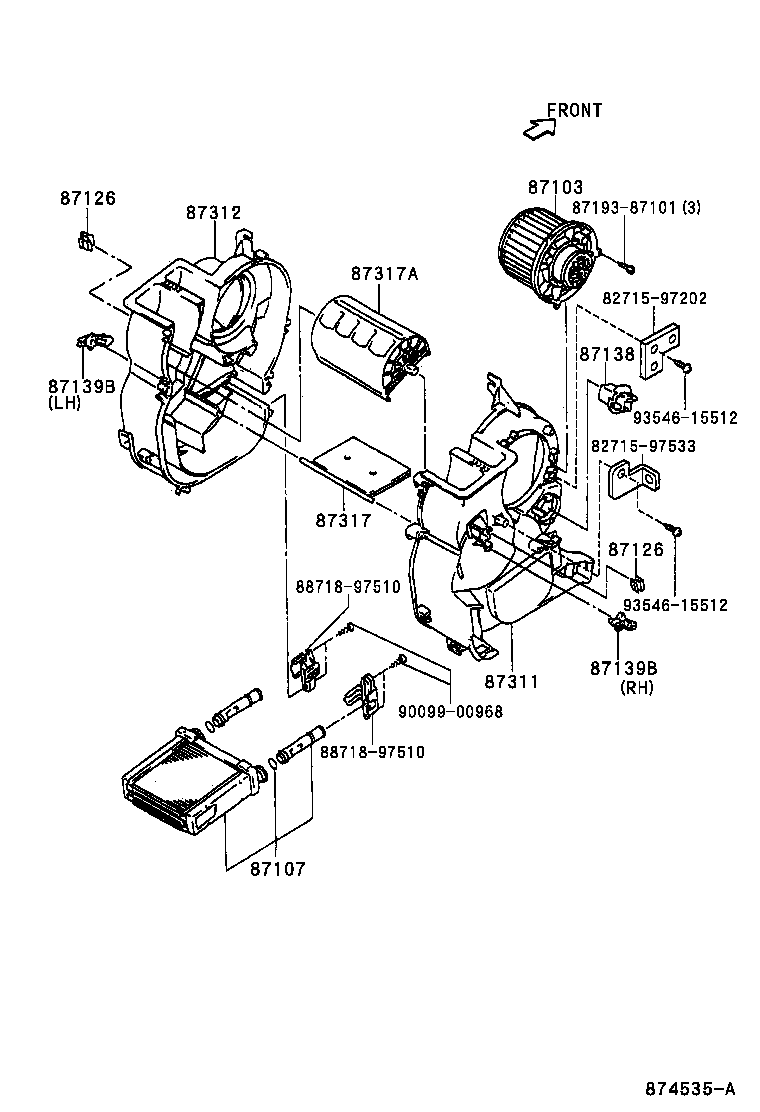

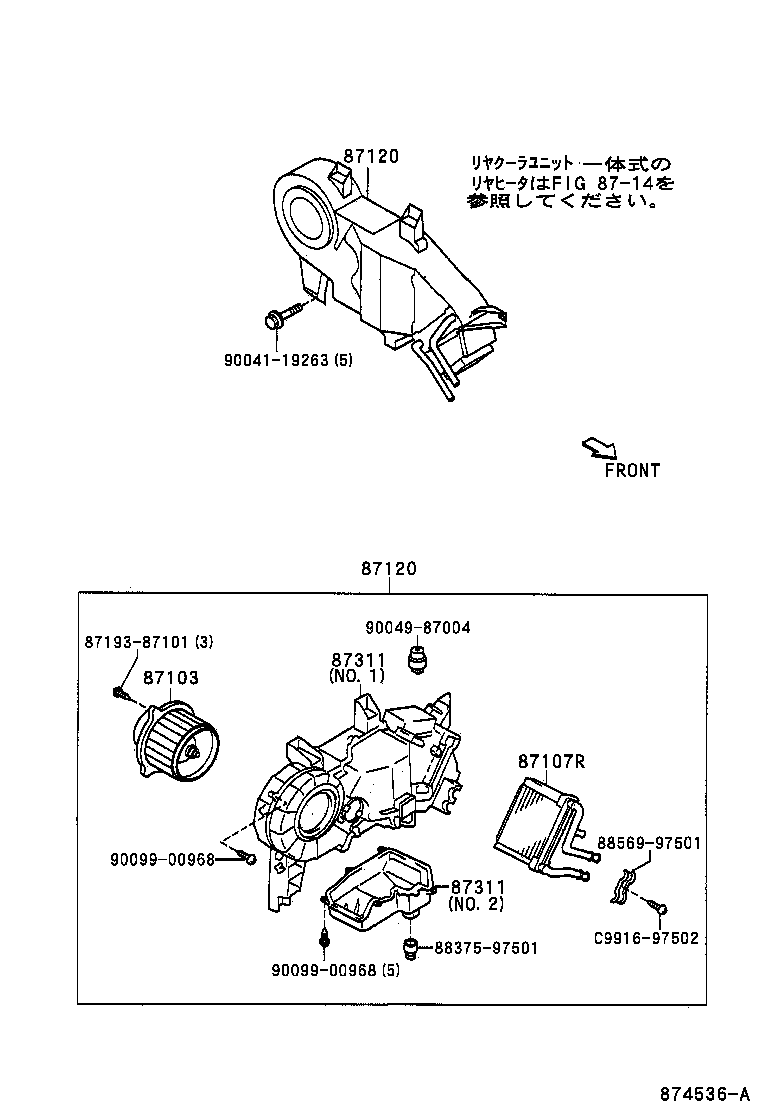

| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87110 | Heater Assy |
| 87120 | Heater Assy, Rear |
| 87126 | Clamp, Heater Control |
| 87138 | Resistor, Heater Blower |
| 87139B | Filter, Clean Air |
| 87210E | Case Assy, Air Damper |
| 87220A | Duct Assy, Heater Radiator Air |
| 87311 | Case, Heater, NO.1 |
| 87312 | Case, Heater, NO.2 |
| 87317 | Damper, Heater Duct |
| 87317A | Damper, Heater Duct |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
