Toyota Sparky
2000-09 → 2003-03 · chassis S221E,S231E · catalogue 632110 · Japan
Discontinued model
Data version 2003-10

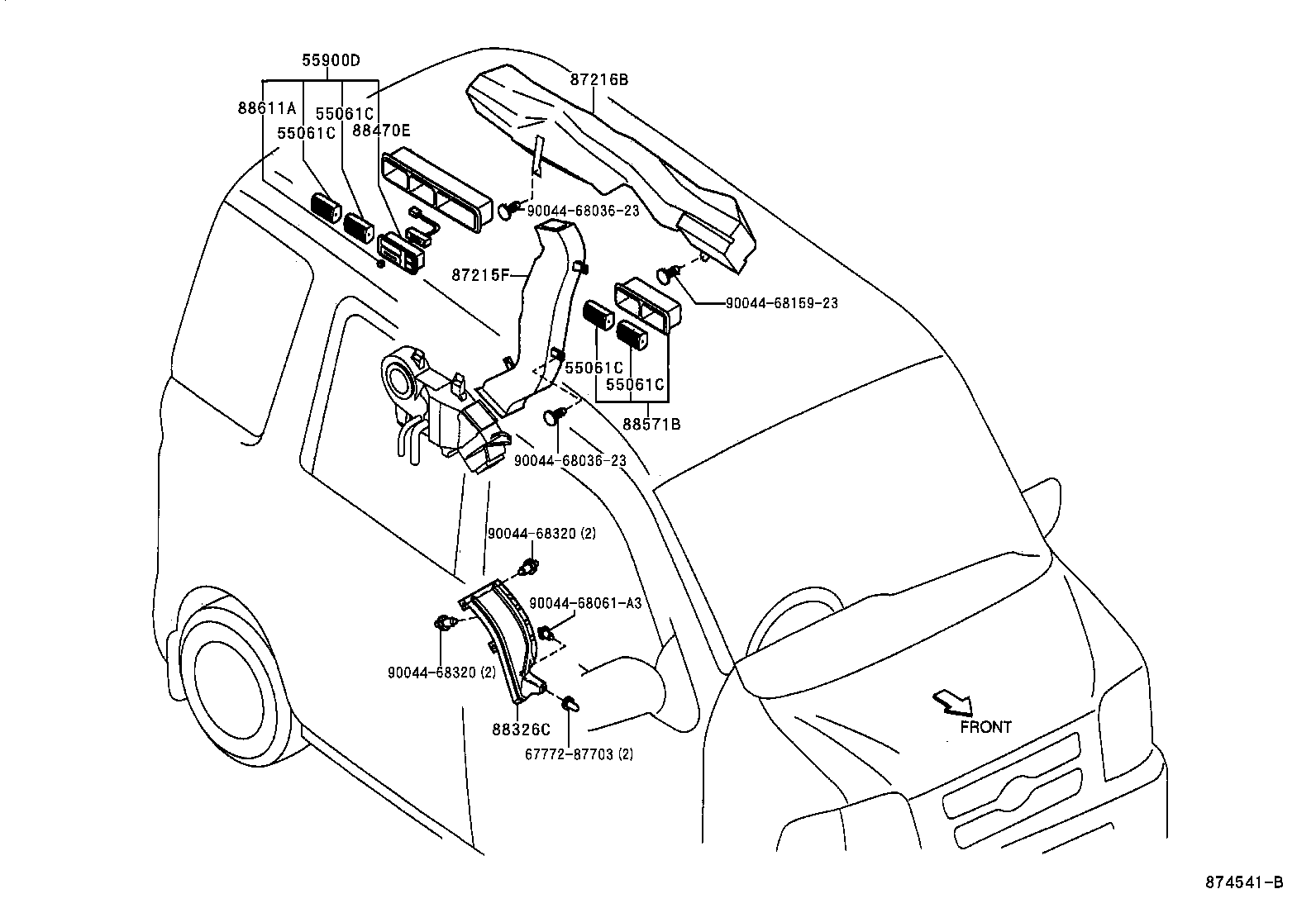

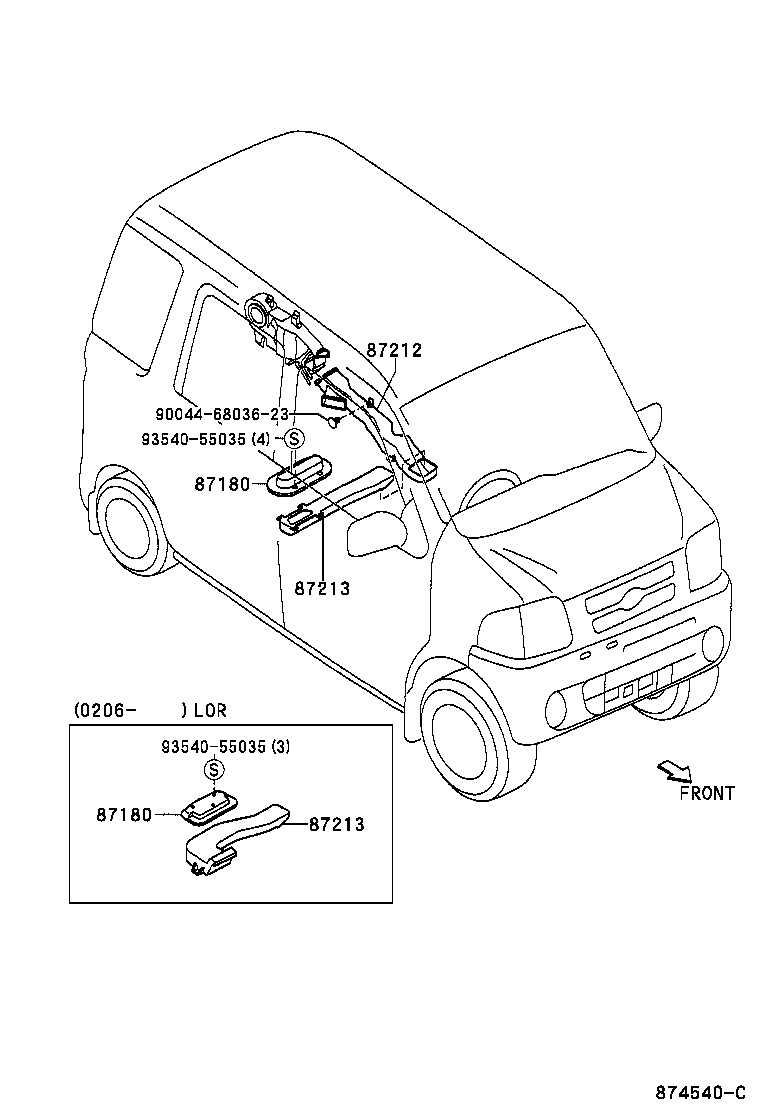

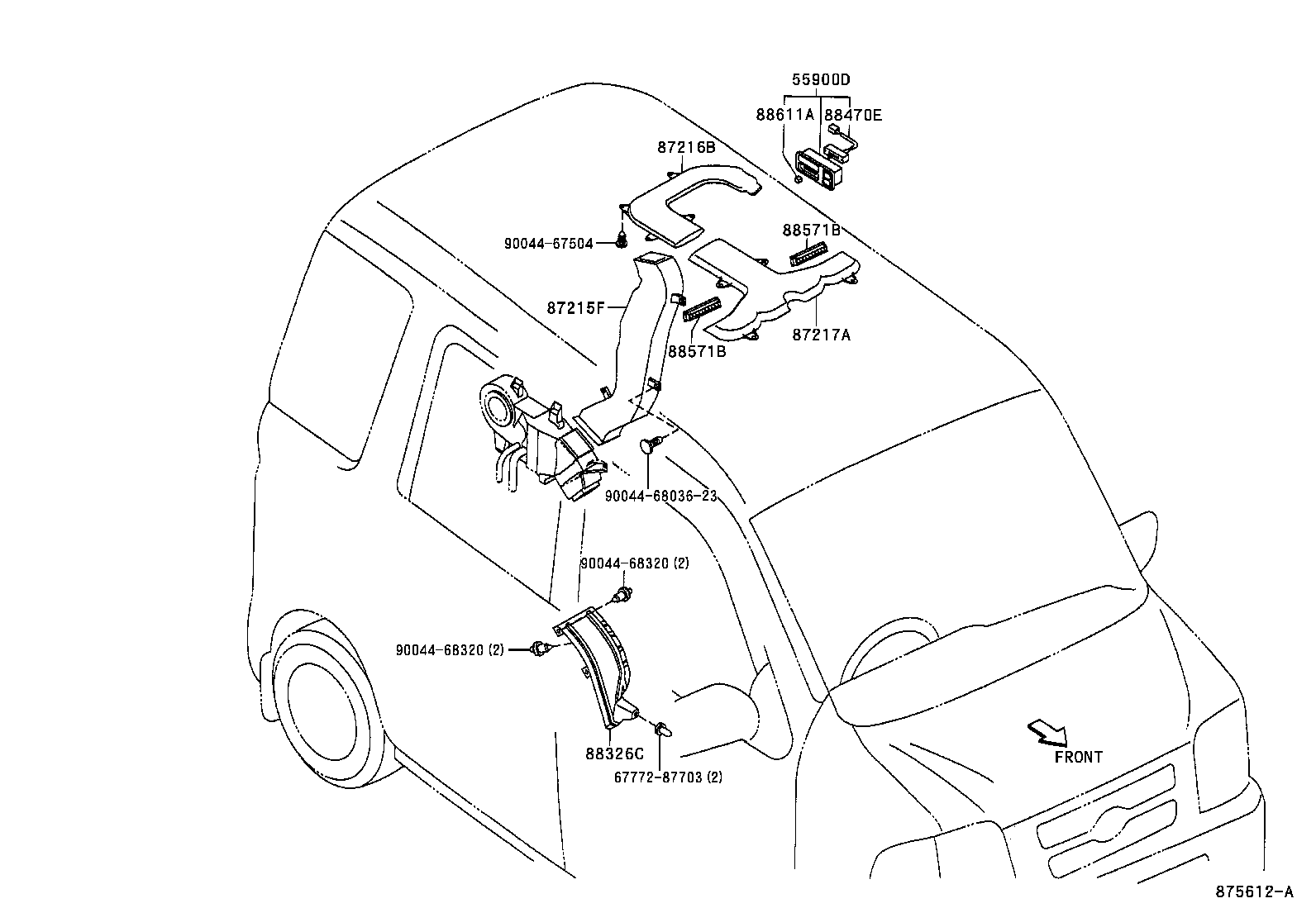

Heating & Air Conditioning - Control & Air Duct
24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55061C | Register Sub-assy, Instrument Panel |
| 55519 | Plate, Heater Control Name |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55873D | Seal, Air Duct, Center |
| 55900 | Control Assy, Air Conditioner |
| 55900D | Control Assy, Air Conditioner, NO.2 |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55906 | Cable Sub-assy, Heater Control |
| 55907B | Cable Sub-assy, Temperature Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55925 | Knob, Heater Control Lever |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 87180 | Grille Assy, RR Heater Air Outlet |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215F | Duct, Air, Rear NO.3 |
| 87216B | Duct, Air, Rear NO.4 |
| 87217A | Duct, Air, Rear NO.6 |
| 88326C | Plate, Cover |
| 88470E | Switch Assy, Blower Control |
| 88571B | Grille, Air Outlet |
| 88611A | Knob, Cooler Control Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
