Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

20 part groups · 6 illustrations

Illustrations

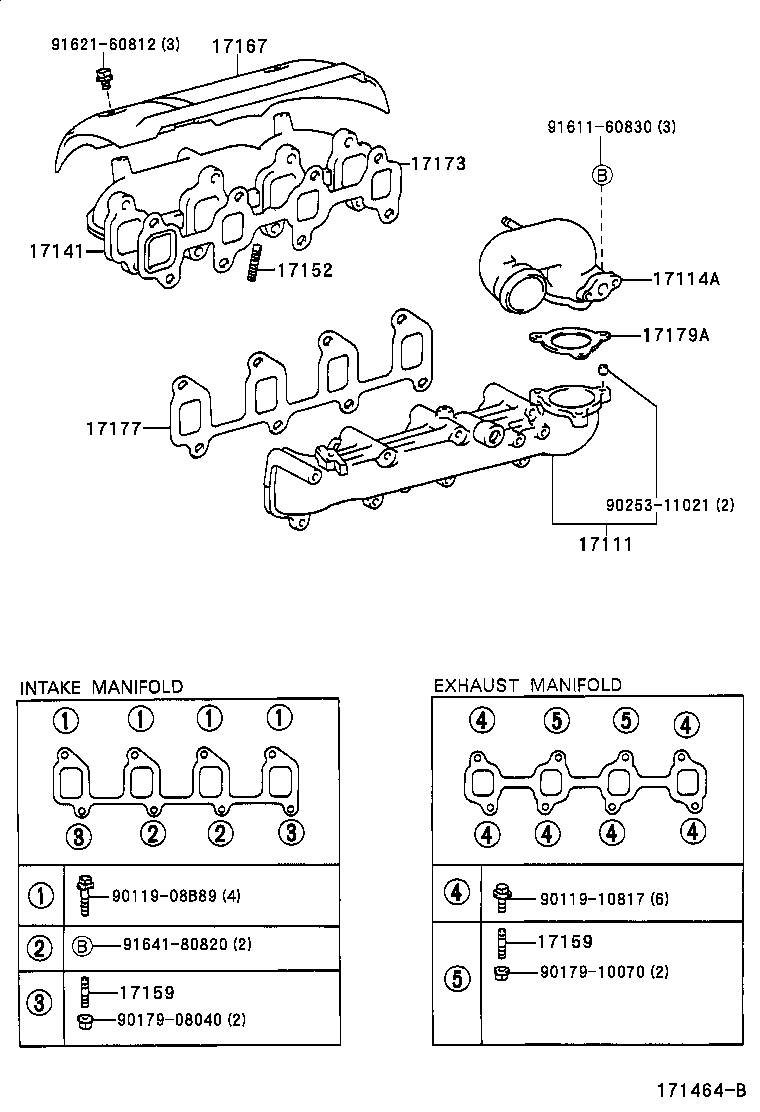

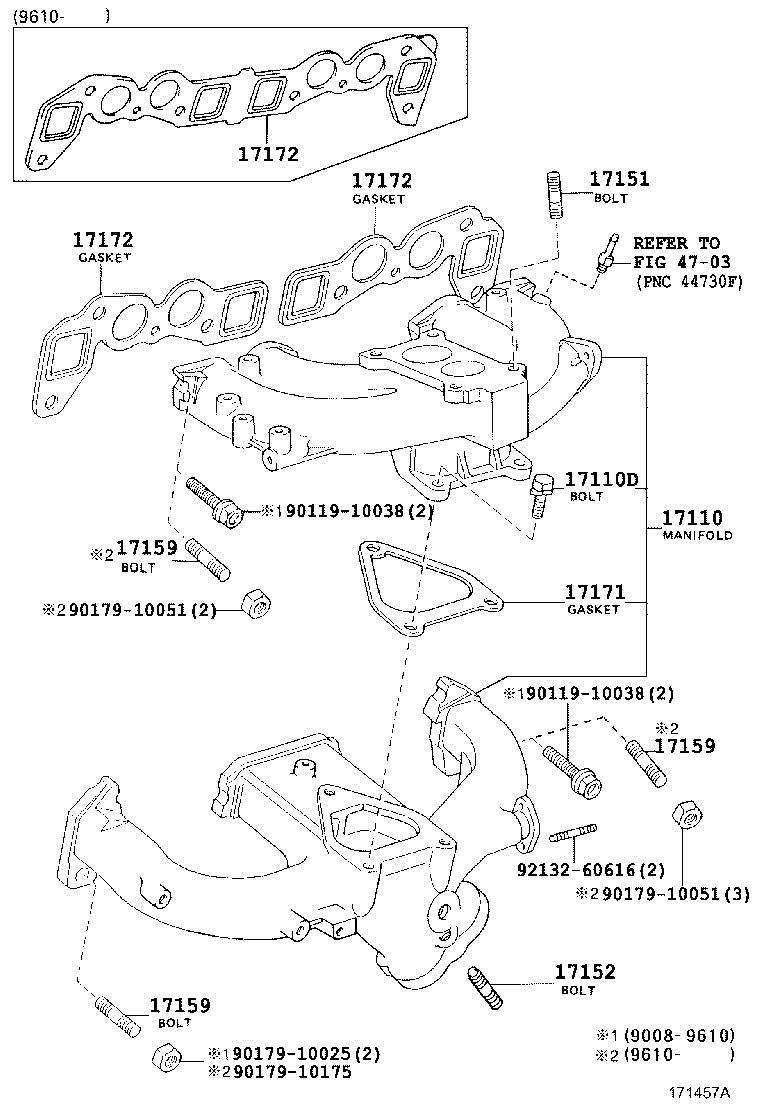

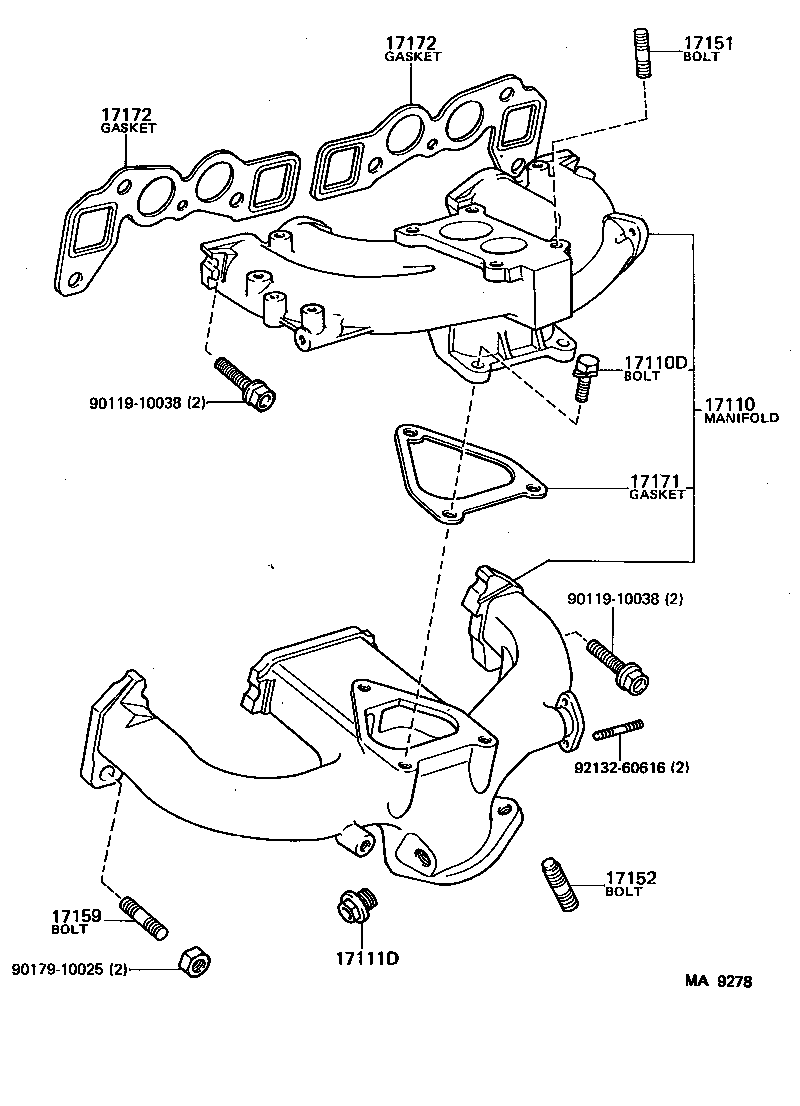

Figure 171463B 171463B 1986-10 → — Figure 171464B 171464B 1995-08 → — Figure MA8650 MA8650 1986-10 → 1990-08 Figure MA9278 MA9278 1986-10 → 1990-08 Figure 171457A 171457A 1990-08 → — Figure MA8619A MA8619A 1986-10 → —

Part groups

PNCDescription
17110 Manifold Assy
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111D Plug, NO.4
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17114A Flange, Intake
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
