Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

27 part groups · 3 illustrations

Illustrations

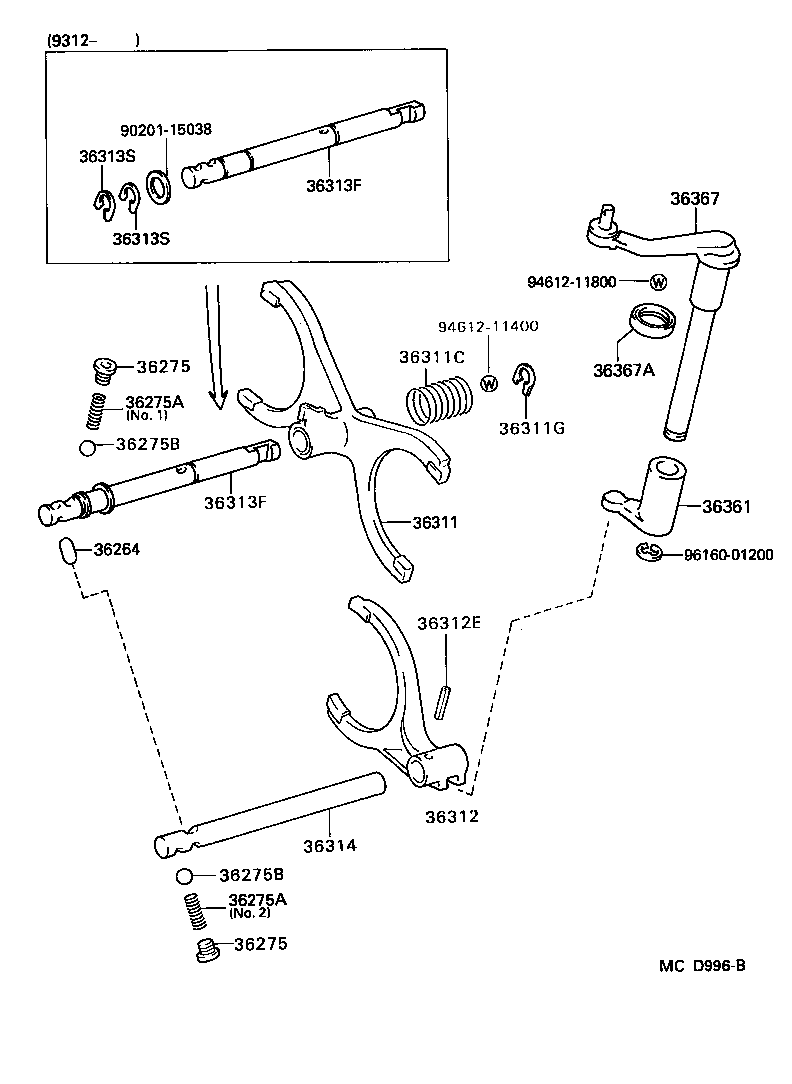

Figure 360317 360317 1986-10 → — Figure MCD996B MCD996B 1986-10 → 1995-08 Figure MCU339A MCU339A 1995-08 → —

Part groups

PNCDescription
33820D Cable Assy, Transfer Control
33820F Washer, Plate (FOR TRANSFER CONTROL CABLE)
33823B Bracket, Transfer Control Cable
36264 Pin OR Roller, Shift Inter-lock
36275 Plug, Shift Detent Ball Spring
36275A Spring, Compression (FOR SHIFT DETENT BALL)
36275B Ball, Shift Detent
36303 Knob Sub-assy, Shift Lever
36304 Retainer Sub-assy, Transfer Control Shift Lever
36304A Coller (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)
36304B Grommet (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)
36305B Lever Sub-assy, Transfer Shift
36311 Fork, Transfer Gear Shift, NO.1
36311C Spring, Compresion (FOR SHIFT FORK)
36311G Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
36312 Fork, Transfer Gear Shift, NO.2
36312E Pin, Slotted Spring (FOR TRANSFER GEAR SHIFT FORK)
36312G Pin, Slotted Spring
36313F Shaft, Transfer Front Drive Shift Fork
36313S Ring, Shaft Snap (FOR TRANSFER FRONT DRIVE SHIFT SHAFT)
36314 Shaft, Transfer High And Low Shift Fork
36315D Head, Transfer Gear Shift, NO.1
36321D Bush (FOR TRANSFER SHIFT LEVER)
36321G Coller (FOR TRANSFER SHIFT LEVER)
36361 Lever, Transfer Shift, Inner
36367 Shaft, Transfer Shift Inner Lever
36367A Seal, Oil (FOR TRANSFER SHIFT INNER LEVER SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
