Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

10 part groups · 4 illustrations

Illustrations

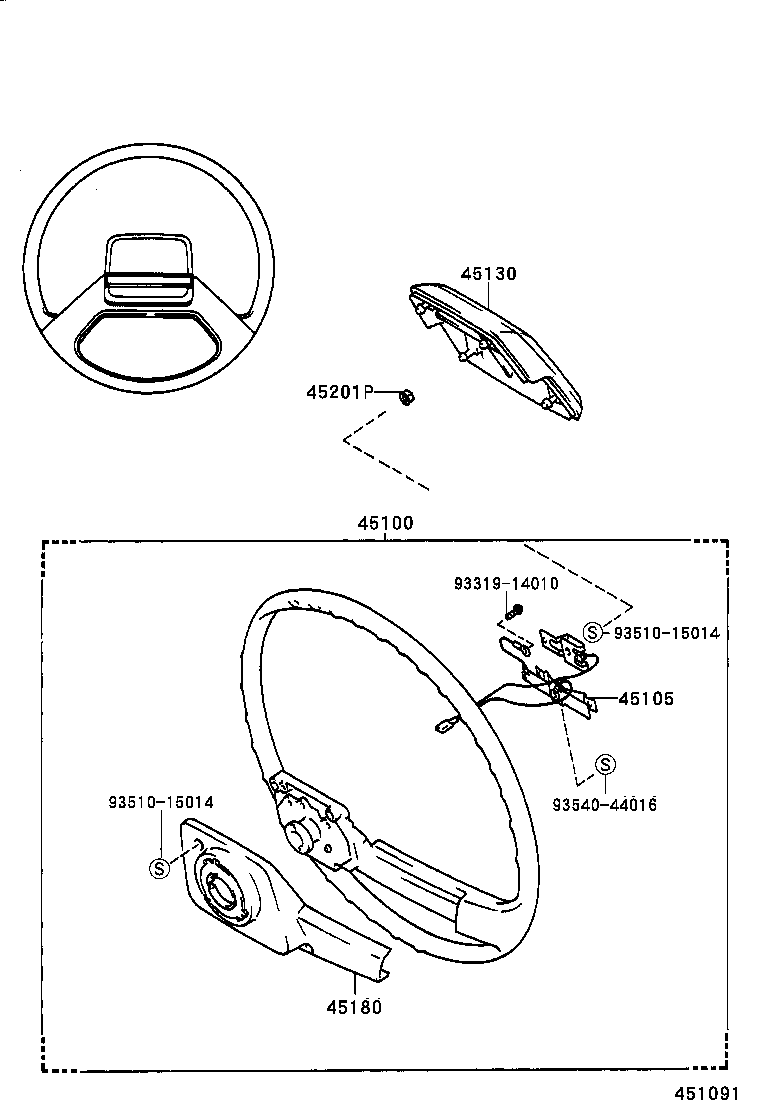

Figure 451090 451090 1986-10 → 1996-11 Figure 451091 451091 1986-10 → 1996-11 Figure 451092 451092 1996-11 → — Figure 451093 451093 1996-11 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45136F Plate, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45155 Spacer, Horn Button Contact Plate
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
