Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

13 part groups · 3 illustrations

Illustrations

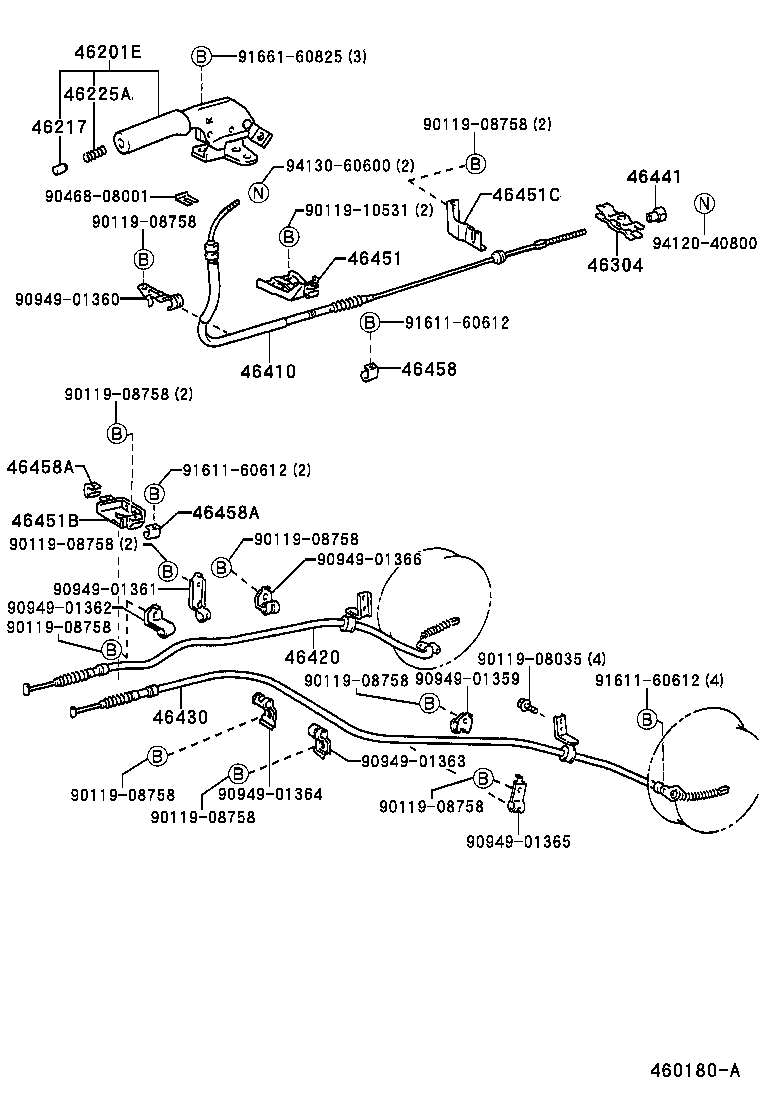

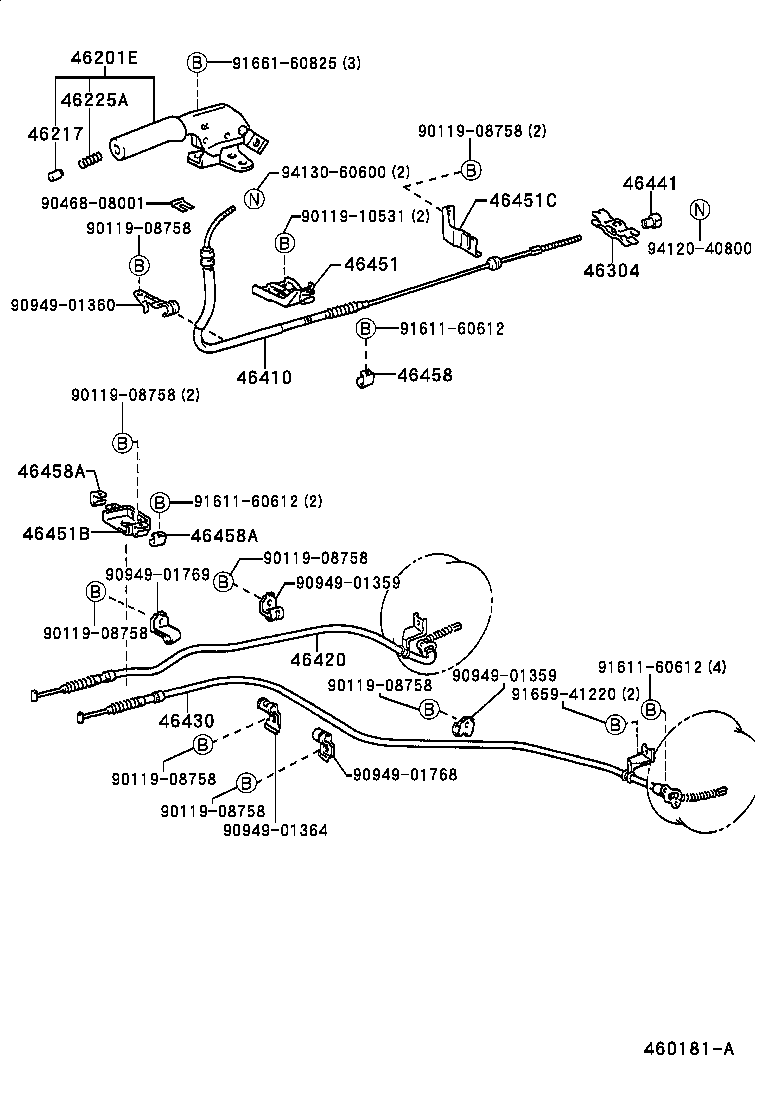

Figure 460179A 460179A 1986-10 → — Figure 460180A 460180A 1986-10 → — Figure 460181A 460181A 1991-10 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46217 Knob, Parking Brake Release Rod
46225A Spring, Compression(FOR PARKING BRAKE PAWL ROD)
46304 Equalizer Sub-assy, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46451 Bracket, Cable Support
46451B Bracket, Parking Brake Cable Support
46451C Bracket, Parking Brake Cable Support, NO.1
46458 Retainer, Cable
46458A Retainer, Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
