Toyota Lite/Townace Truck
1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan
Discontinued model
Data version 1999-12

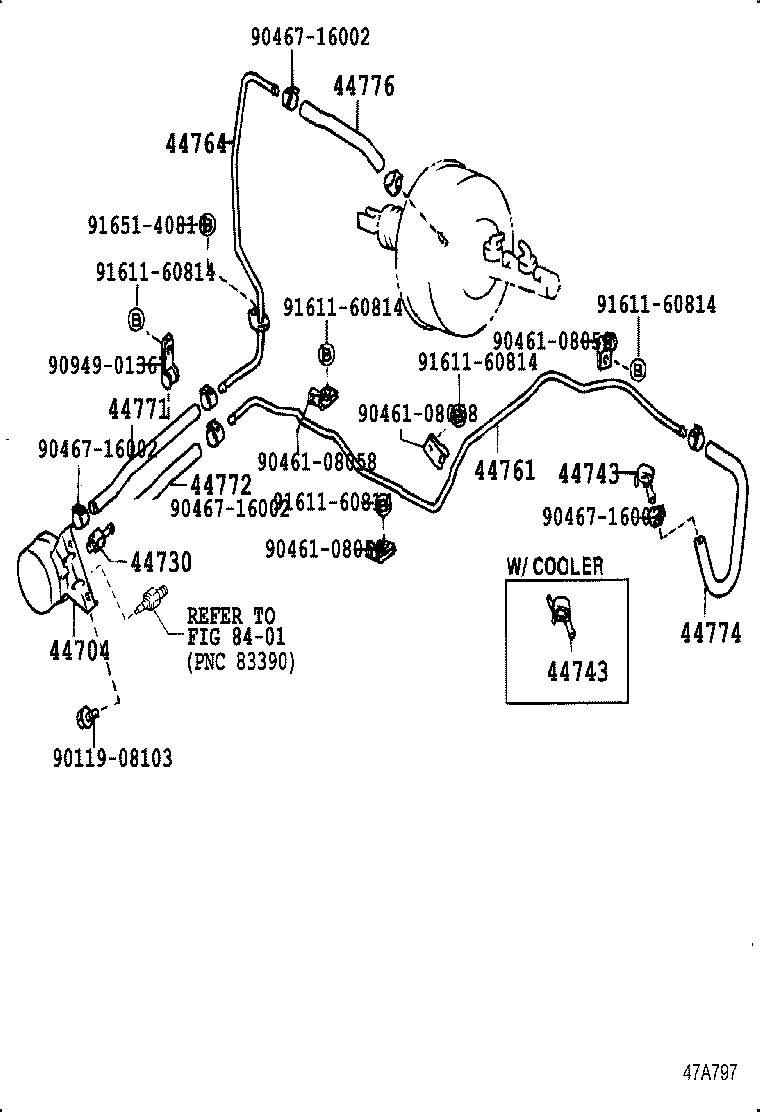

Brake Booster & Vacuum Tube
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04443 | Booster Kit, Brake |
| 44608 | Push Rod Sub-assy, Booster |
| 44610 | Booster Assy, Brake |
| 44618 | Seal, Booster Body |
| 44629 | Ring, Circular Internal |
| 44642 | Piston, Brake Booster |
| 44663 | Key, Valve Stopper |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44743 | Union(FOR VACUUM PUMP) |
| 44758 | Bracket, Vacuum Check Valve |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44763 | Tube, Booster Vacuum |
| 44764 | Tube, Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44773F | Hose, Union TO Check Valve |
| 44774 | Hose, Union TO Connector Tube |
| 44776 | Hose, Brake Booster |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44779 | Hose, Union TO Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
