Toyota Lite/Townace Truck
1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan
Discontinued model
Data version 1999-12

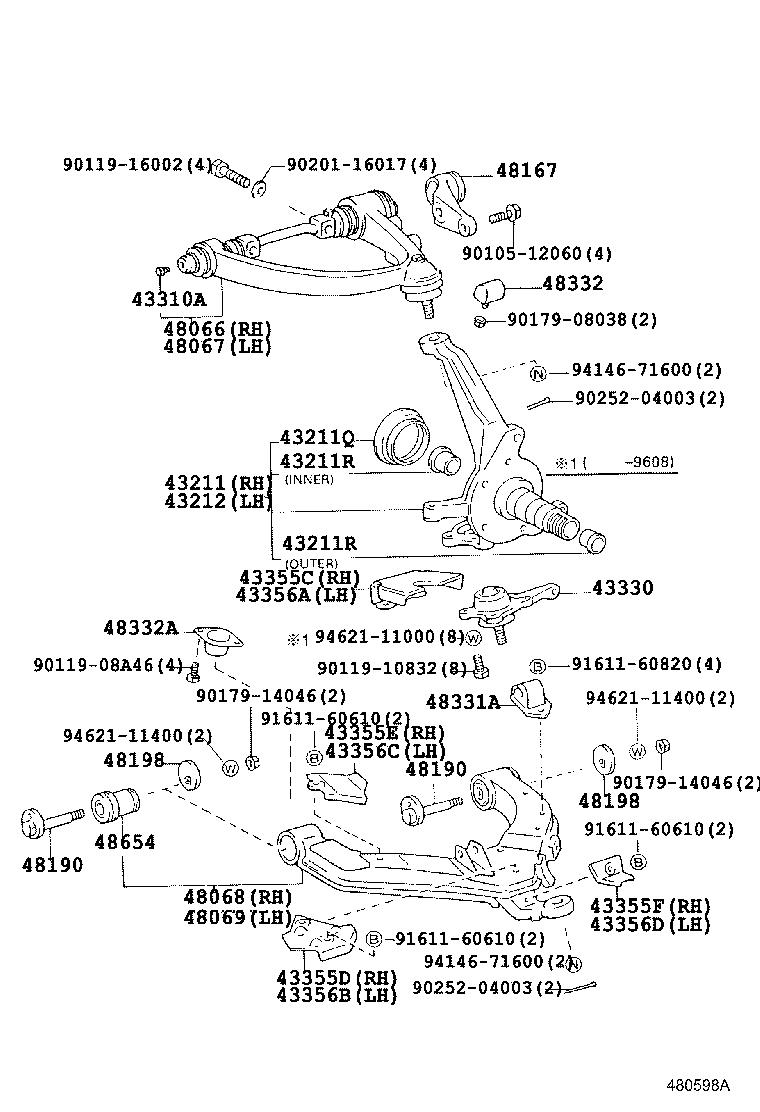

Front Axle Arm & Steering Knuckle
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04485 | Shaft Kit, Upper Suspension Arm |
| 43211 | Knuckle, Steering, RH |
| 43211Q | Seal, Oil (FOR STEERING KNUCKLE) |
| 43211R | Bush (FOR STEERING KNUCKLE) |
| 43212 | Knuckle, Steering, LH |
| 43310 | Joint Assy, Upper Ball |
| 43310A | Plug (FOR BALL JOINT) |
| 43330 | Joint Assy, Lower Ball, Front |
| 43346 | Protector, Lower Ball Joint Dust Cover |
| 43355C | Deflector, Lower Arm Ice, RH NO.1 |
| 43355D | Deflector, Lower Arm Ice, RH NO.2 |
| 43355E | Deflector, Lower Arm Ice, RH NO.3 |
| 43355F | Deflector, Lower Arm Ice, RH NO.4 |
| 43356A | Deflector, Lower Arm Ice, LH NO.1 |
| 43356B | Deflector, Lower Arm Ice, LH NO.2 |
| 43356C | Deflector, Lower Arm Ice, LH NO.3 |
| 43356D | Deflector, Lower Arm Ice, LH NO.4 |
| 48066 | Arm Sub-assy, Front Suspension, Upper RH |
| 48067 | Arm Sub-assy, Front Suspension, Upper LH |
| 48068 | Arm Sub-assy, Front Suspension, Lower NO.1 RH |
| 48069 | Arm Sub-assy, Front Suspension, Lower NO.1 LH |
| 48167 | Arm, Torque |
| 48167A | Bolt(FOR TORQUE ARM SETTING) |
| 48167B | Tube(FOR TORQUE ARM SETTING BOLT) |
| 48190 | Cam Assy, Camber Adjust |
| 48198 | Cam, Camber Adjust, NO.2 |
| 48331A | Bumper, Front Spring, NO.1 |
| 48332 | Bumper, Front Spring, NO.2 |
| 48332A | Bumper, Front Spring, NO.3 |
| 48631B | Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM) |
| 48632 | Bush, Upper Arm |
| 48654 | Bush, Lower Arm |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
