Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

16 part groups · 3 illustrations

Illustrations

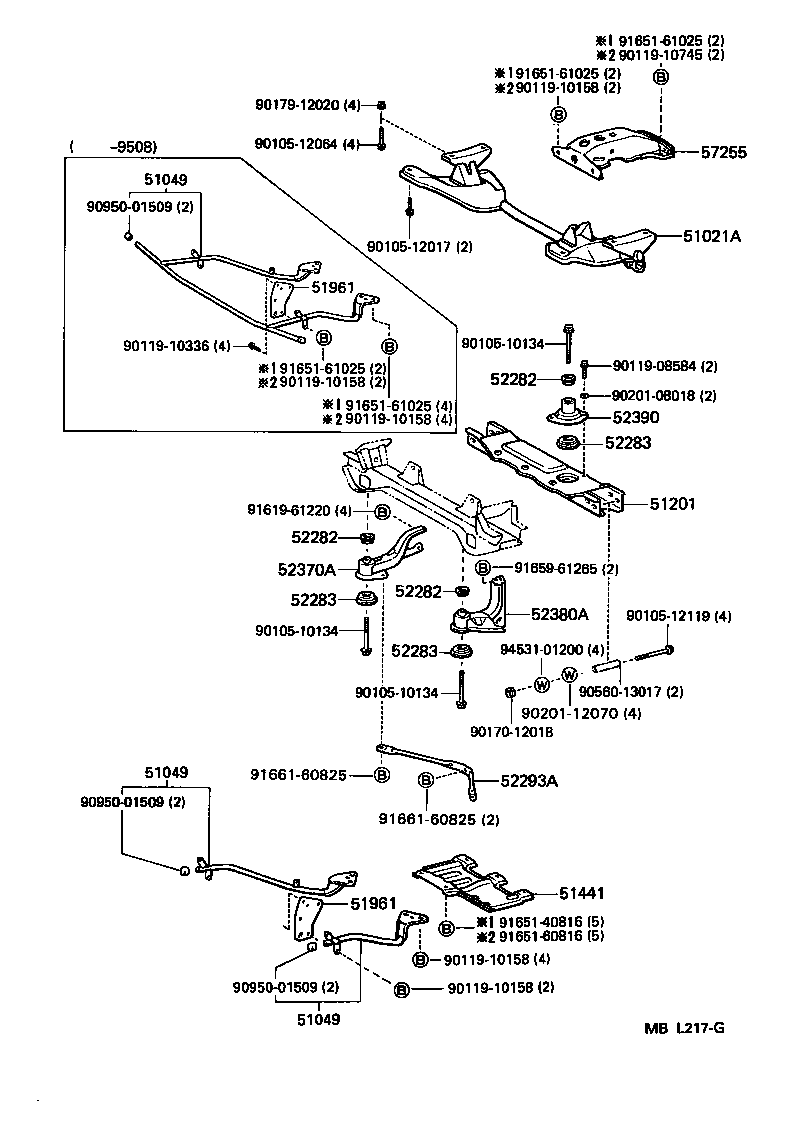

Figure MBL216B MBL216B 1986-10 → — Figure MBL217G MBL217G 1986-10 → — Figure MBV826B MBV826B 1991-10 → —

Part groups

PNCDescription
51021A Member Sub-assy, Engine Front Support
51049 Bar Sub-assy, Under Guard, Front
51201 Crossmember Sub-assy, Front Suspension
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51443B Cover, Engine Under, NO.3
51448A Cover, Engine Side Under, RH
51449A Cover, Engine Side Under, LH
51961 Hook, NO.1
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52293A Brace, Front Differential Support
52370A Support Assy, Front Differential, Front RH
52380A Support Assy, Front Differential, Front LH
52390 Support Assy, Front Differential, Rear
57255 Member, Engine Rear Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
