Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12

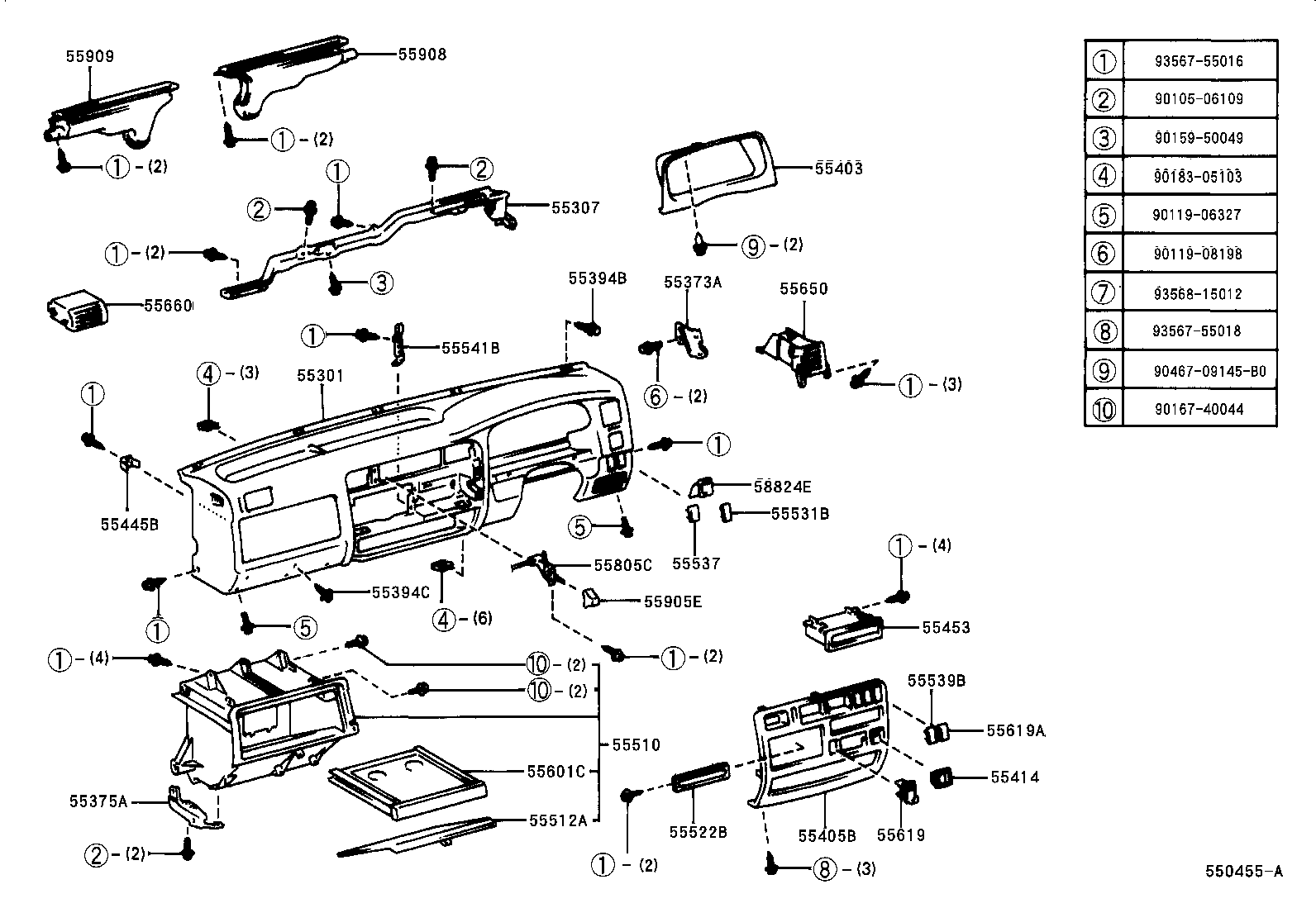

Instrument Panel & Glove Compartment

39 part groups · 2 illustrations

PNC	Description
55301	Panel Sub-assy, Instrument
55307	Reinforcement Sub-assy, Instrument Panel, Lower
55338	Extension, Instrument Panel Reinforcement, NO.1
55341	Brace, Instrument Panel, NO.1
55343	Brace, Instrument Panel, NO.3
55373A	Bracket, Oil Reservoir Tank
55375A	Bracket, Instrument Panel Lower Mounting, LH
55394B	Bolt, Instrument Panel
55394C	Bolt, Instrument Panel
55401E	Pad Sub-assy, Instrument Panel Safety
55403	Hood Sub-assy, Meter
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55414	Bezel, Cigar Lighter Hole
55425A	Bracket, Meter Hood Set
55445B	Plate, Instrument Panel Finish
55453	Cover, Radio Tuner Opening
55478A	Bezel, Auto Clock Hole
55505	Lock Sub-assy, Glove Compartment Door
55510	Door Assy, Glove Compartment
55512A	Plate, Glove Compartment
55522B	Cover, Radio Tuner Opening
55531B	Cover, Choke Knob Hole
55533	Cover, Auto Clock Hole
55537	Cover, Rear Window Defogger Switch Hole
55539	Cover, Spare Switch Hole
55539B	Cover, Spare Switch Hole, NO.2
55541B	Retainer, Radio Tuner Opening, NO.1
55557B	Stopper, Glove Compertment Door Check
55561A	Striker, Glove Compartment Door Lock
55601C	Tray Sub-assy, Instrument Panel Under
55619	Cover, Switch Hole
55619A	Cover, Switch Hole, NO.2
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55805C	Bracket Sub-assy, Air Damper Control Lever
55905E	Knob Sub-assy, Control
55908	Nozzle Sub-assy, Defroster, RH
55909	Nozzle Sub-assy, Defroster, LH
58824E	Box, Instrument Panel Coin

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
