Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

15 part groups · 4 illustrations

Illustrations

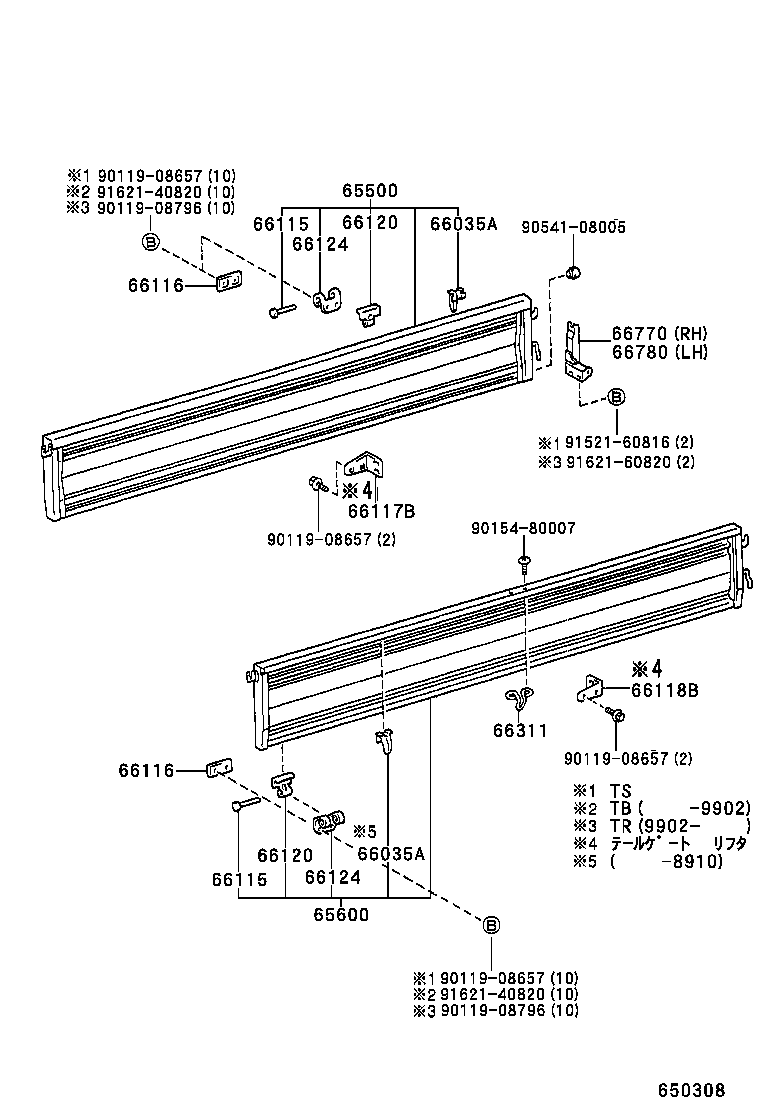

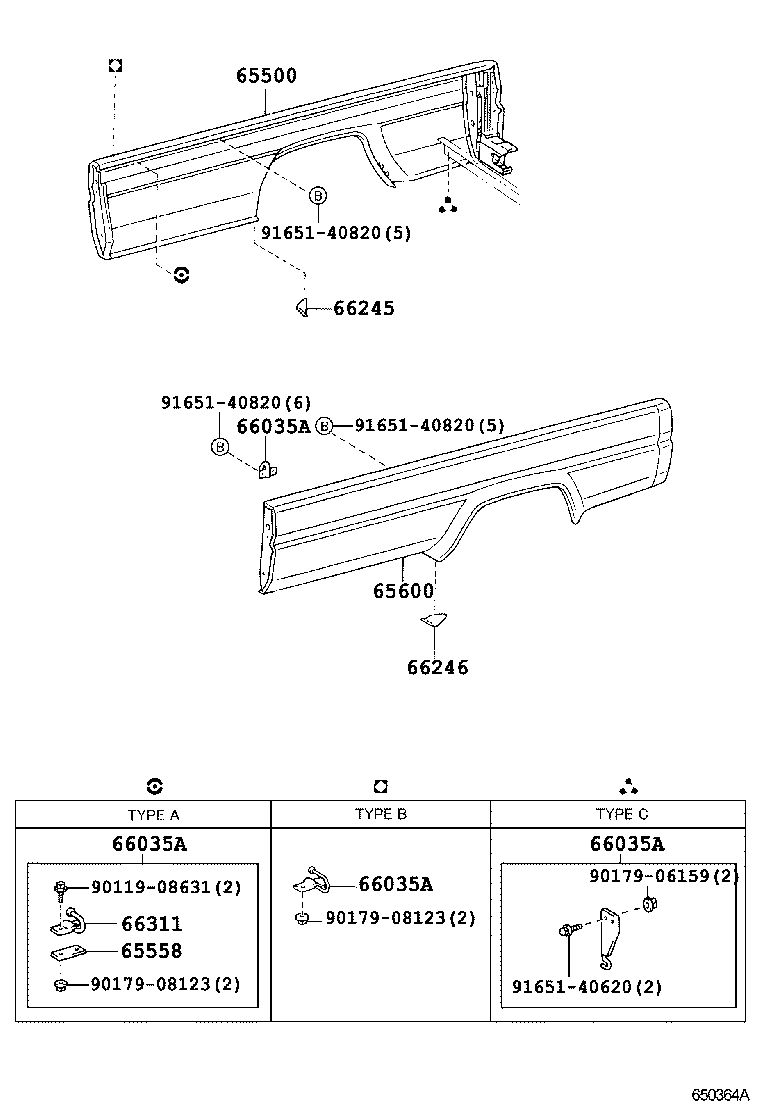

Figure MBL465 MBL465 1986-10 → — Figure 650364A 650364A 1986-10 → — Figure 650308 650308 1986-10 → — Figure 650307 650307 1989-11 → —

Part groups

PNCDescription
65500 Panel Assy, Rear Body Side, RH
65558 Spacer, Rope Hook
65600 Panel Assy, Rear Body Side, LH
66035A Rope Hook Set
66115 Pin, Gate Hinge
66116 Retainer, Gate Hinge, Lower
66117B Gusset, Gate Hinge, RH
66118B Gusset, Gate Hinge, LH
66120 Hinge Assy, Side Gate
66124 Hinge, Side Gate, Female
66245 Protector, Rear Body, NO.3 RH
66246 Protector, Rear Body, NO.3 LH
66311 Hook, Rope
66770 Support Sub-assy, Side Gate, RH
66780 Support Sub-assy, Side Gate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
