Toyota Lite/Townace Truck
1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan
Discontinued model
Data version 1999-12

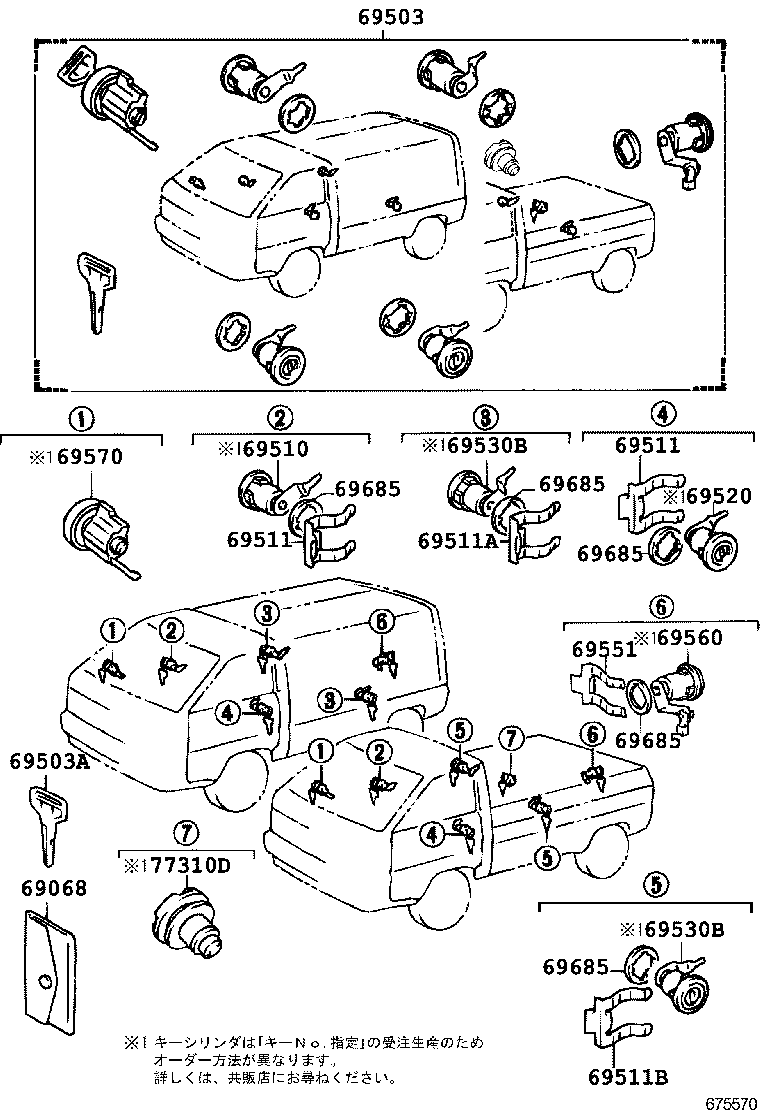

Lock Cylinder Set
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69053C | Cylinder & Key Set, Top Cover Lock |
| 69054 | Cylinder & Key Set, Back Door Lock |
| 69054B | Cylinder & Key Set, Slide Door Lock, LH |
| 69058D | Cylinder & Key Set, Fuel Tank Filler |
| 69064 | Cylinder & Key Set, Ignition Switch Lock |
| 69068 | Cover Sub-assy, Key |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69511 | Retainer, Front Door Lock Cylinder |
| 69511A | Retainer, Side Tarpaulin Lock Cylinder |
| 69511B | Retainer, Top Cover Lock Cylinder |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69530B | Cylinder Assy, Top Cover Lock |
| 69551 | Retainer, Back Door Lock Cylinder |
| 69560 | Cylinder Assy, Back Door Lock |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69685 | Pad, Lock Cylinder |
| 77310D | Cap Assy, Fuel Tank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
