Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

12 part groups · 3 illustrations

Illustrations

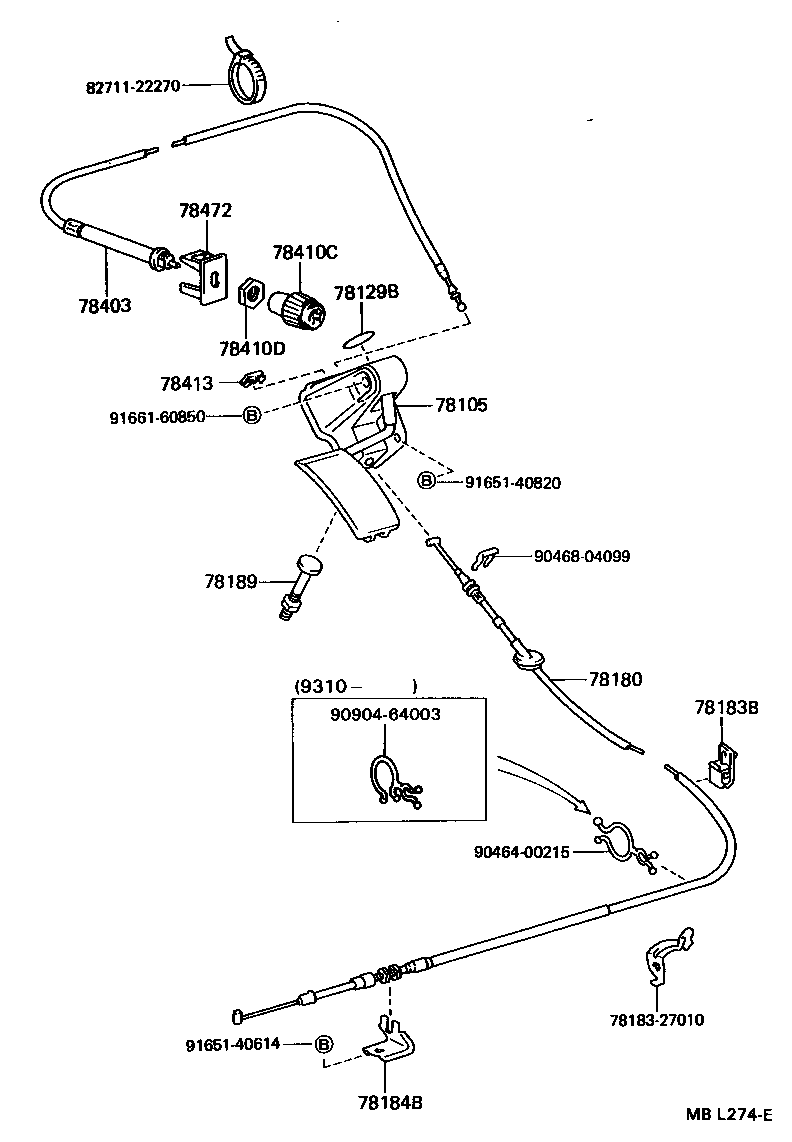

Figure MBL272B MBL272B 1986-10 → — Figure MBL273A MBL273A 1986-10 → — Figure MBL274E MBL274E 1986-10 → —

Part groups

PNCDescription
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78129B Seal, Accelerator Pedal Arm
78180 Wire Assy, Accelerator
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78191A Clamp (FOR ACCELERATOR WIRE SET)
78403 Cable Sub-assy, Throttle Control
78410C Knob, Throttle Cable
78410D Nut, Throttle
78413 Cover, Throttle Control Cable
78472 Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
