Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

3 part groups · 2 illustrations

Illustrations

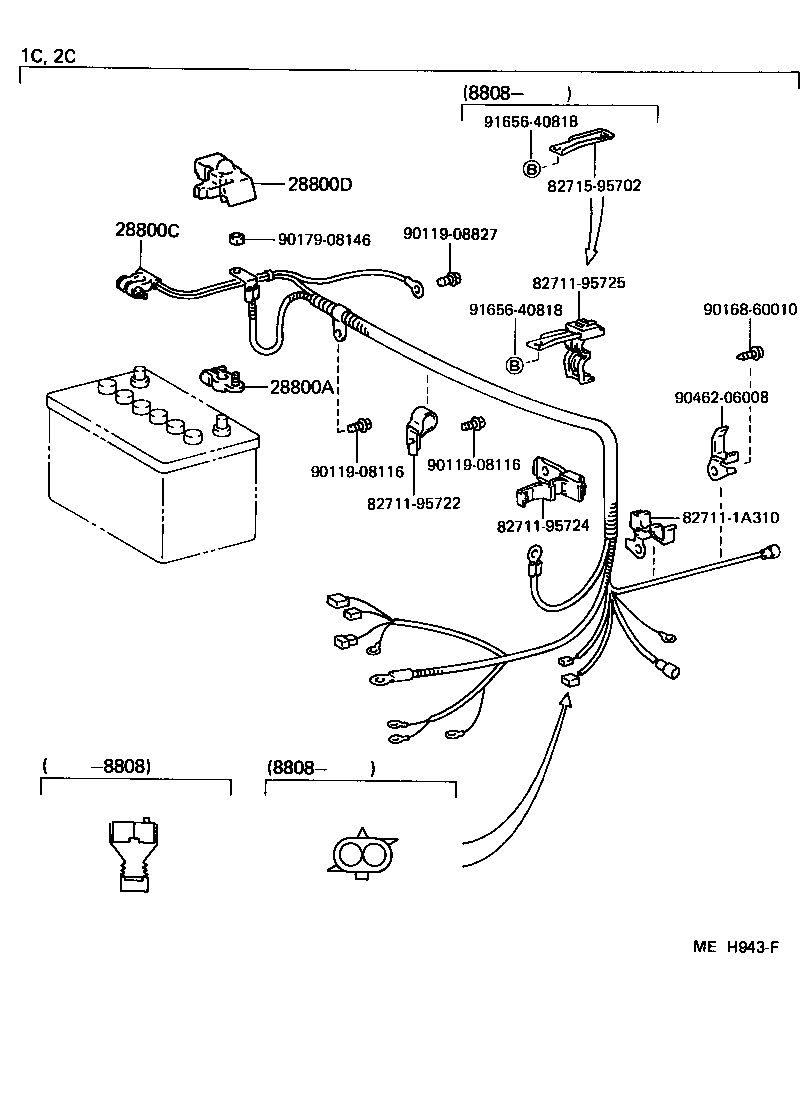

Figure MEH942C MEH942C 1986-10 → — Figure MEH943F MEH943F 1986-10 → —

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800C Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
28800D Cover, Connector(FOR BATTERY TERMINAL)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
